Cisco CRS-1 Series Manual de usuario

Quick Start Guide

Cisco CRS-1 Series Carrier Routing System Craft Works Interface

Quick Start Guide

Cisco IOS-XR Software Release 2.0

1Introduction

2About the CWI

3Getting Started

4Setting Up the Router and CWI Client

5Getting Started with the CWI

6CWI Overview

7CWI Desktop Window

8Configuration Desktop Window

9Obtaining Documentation

10 Documentation Feedback

11 Obtaining Technical Assistance

12 Obtaining Additional Publications and Information

1 Introduction

This document introduces the Craft Works Interface (CWI) that supports Cisco IOS-XR Software Release 2.0. The following

sections are provided:

•About the CWI, page 2

•Getting Started, page 3

•Setting Up the Router and CWI Client, page 6

•Getting Started with the CWI, page 11

•CWI Overview, page 18

•CWI Desktop Window, page 18

•Configuration Desktop Window, page 20

•Obtaining Documentation, page 22

•Documentation Feedback, page 23

•Obtaining Technical Assistance, page 23

•Obtaining Additional Publications and Information, page 24

Related Documentation

Refer to the following list for related documents that may be useful:

•Cisco CRS-1 Series Carrier Routing System Getting Started Guide

•Cisco CRS-1 Series Carrier Routing System Craft Works Interface User Interface Guide

•Cisco CRS-1 Series Carrier Routing System Craft Works Interface Configuration Applications Reference Guide

•Cisco CRS-1 Series Carrier Routing System Craft Works Interface Configuration Guide

Intended Audience

This document is intended for experienced service provider administrators, Cisco telecommunication management engineers,

and third-party field service technicians that have completed the required Cisco router training sessions.

2 About the CWI

The CWI is a client-side application used to configure and manage routers. The management and configuration features include

fault, configuration, security, and inventory, with an emphasis on speed and efficiency.

The CWI provides a context-sensitive graphical representation of the objects in a router, simplifying the process of configuring

and managing the router. The CWI allows you to log in to multiple routers and perform the following management tasks:

•View, filter, sort, search, correlate, purge, and monitor real-time alarms.

•View, filter, export, and search real-time inventory and interface object attribute information.

•Display a dynamic graphical representations of routers.

•Telnet/Secure Shell (SSH) to the router for command-line interaction.

•Troubleshoot management connectivity problems.

The CWI provides three ways to configure and manage a router:

•Using a Telnet or SSH session launched from the CWI, which allows you to configure and manage the router using

command-line interface (CLI) commands.

•Using the Configuration Editor or Replace Configuration Editor, which allows you to view and edit the running

configuration in CLI format. The configuration editors provide common text editing functionality as well as traditional CLI

features. See the “Configuration Editor” section on page 22 and the “Replace Configuration Editor” section on page 22.

•Using the graphical configuration applications. See the “Configuration Desktop Window” section on page 20.

Support is provided to manage a two-stage commit functionality, which includes locking and rollback control.

3 Getting Started

This section provides information you need to know before you can start setting up a router and CWI client. The following

information is provided:

•Network Considerations, page 3

•Prerequisites, page 4

Network Considerations

The following network information must be taken into consideration before starting the minimum router and CWI client

configuration.

Basic Configuration

The basic configuration is not secure. See the “Setting Up the Required Management Services Without a Secure Connection”

section on page 8 for procedures.

Secure Socket Layer Encryption Configuration

The secure configuration has Secure Socket Layer (SSL) encryption. If you use the SSL protocol on your network, use the SSL

configuration. See the “Setting Up the Required Management Services with a Secure Connection” section on page 8 for

procedures.

IP Security

IP security (IPSec) does not require any special configuration for CWI on the router or client. See the “Setting Up the Required

Management Services Without a Secure Connection” section on page 8 for procedures.

Firewall

If you have a firewall in your network, you can use the basic or SSL encryption configurations. See the “Setting Up the Required

Management Services with a Secure Connection” section on page 8 and “Setting Up the Required Management Services Without

a Secure Connection” section on page 8 for procedures.

The ports listed in Table 1 must be opened when configuring the firewall. Refer to the firewall documentation for information

on opening the ports.

Table 1 Firewall Ports

Component Port Direction

HTTP/HTTPS 80/443 Inbound

IIOP/IIOPSSL 10001/10002 Inbound

Virtual Private Network

When setting the minimum router configuration you must use the client Virtual Private Network (VPN) IP address and Domain

Name Server (DNS) name instead of the client IP address and DNS name when configuring the IP hostname for the CWI client.

This mapping is required for the client to receive notifications from the router. See Step 3 in the “Setting the Minimum Router

Configuration” section on page 7.

If you have a VPN, you can use the basic or SSL encryption configurations. See the “Setting Up the Required Management

Services with a Secure Connection” section on page 8 and “Setting Up the Required Management Services Without a Secure

Connection” section on page 8 for procedures.

Dual-Homed

Dual-homed devices are used to bridge two networks. You can run an instance of CWI on the dual-homed device so that you

can access the secondary network. You will require terminal services or X-client software to run the CWI graphical application

from the client PC. A dual-homed device contains a client-side interface (IP address) and router-side interface (IP address). The

client-side is the primary interface, and the router-side is the secondary interface. (See Figure 1.)

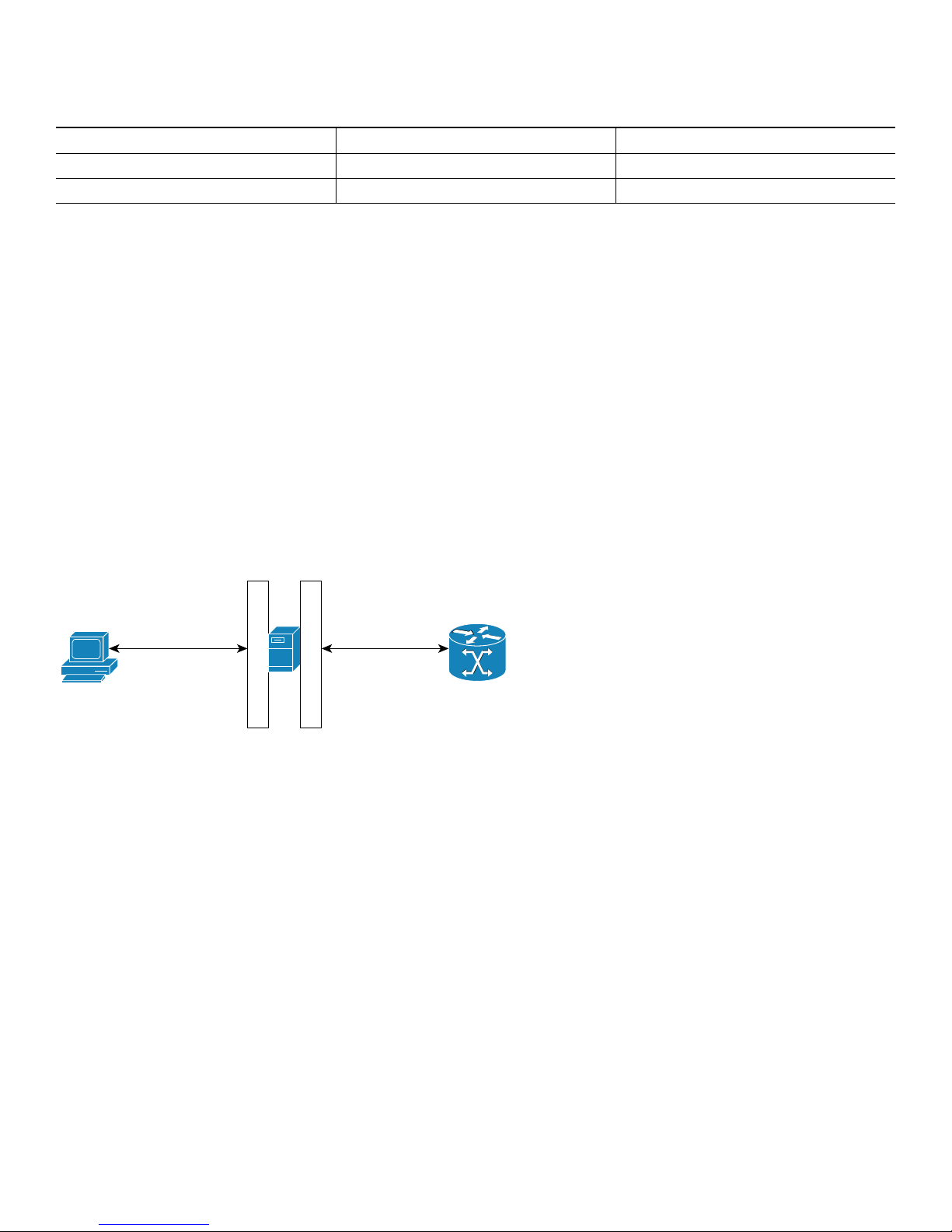

Figure 1 Dual-Homed Device Configuration

When setting the minimum router configuration you must use the dual-homed device router-side (secondary) IP address and

DNS name when configuring the IP hostname for the CWI client. This mapping is required for the client to view the notifications

from the router received by the dual-home instance of CWI. See Step 3 in the “Setting the Minimum Router Configuration”

section on page 7.

If you have a dual-homed device in your network, you can use the standard or SSL encryption configurations. See the “Setting

Up the Required Management Services with a Secure Connection” section on page 8 and “Setting Up the Required Management

Services Without a Secure Connection” section on page 8 for procedures.

Prerequisites

Prerequisites ensure that the CWI client and router are correctly set up to allow them to communicate. Meeting all prerequisites

before starting any of the procedures in this guide is recommended to ensure successful communication between the CWI client

and router.

The following prerequisites are provided:

•CWI Client System Prerequisites, page 5

•Router Prerequisites, page 6

•CWI Client Prerequisites, page 6

Notifications 49901 to 49950 Outbound

Telnet/SSH 23/22 Inbound

Table 1 Firewall Ports (continued)

Component Port Direction

Dual-homed device

Client PC Router

111615

Note The managed router must be configured to send notifications to a specified client. These notifications include real-time

inventory updates (for example online insertion and removal [OIR]), alarms, and change of configuration events. See

the “Setting the Minimum Router Configuration” section on page 7 for information on configuring the router to send

notifications to a specified client.

CWI Client System Prerequisites

The CWI client hardware requirements ensure that the CWI client has the proper verified system requirements for the chosen

platform.

The following system requirements for a CWI client are provided in the following hardware platform tables:

•Windows-based PC (See Table 2.)

•UNIX (See Table 3.)

•Linux (See Table 4.)

Table 2 Windows-Based PC Minimum System Requirements

Requirement Type Minimum Requirements

System hardware IBM PC-compatible 500 MHz PentiumIII minimum, 1.20 GHz Pentium IV recommended.

System software Windows NT, Windows 98, Windows 2000, or Windows XP.

Memory (RAM) 256 MB minimum, 512 MB recommended.

Available drive space CWI=5MB, JRE=48MB.

Additional software One of these browsers:

•Microsoft Internet Explorer 5.0 or higher.

•Netscape Navigator 4.77 or higher.

•Netscape Navigator 7.0 or higher.

Java Runtime environment (JRE) version 1.4.2.

Monitor display settings Minimum recommended screen resolution=1024 by 768 pixels.

Table 3 UNIX Minimum System Requirements

Requirement Type Minimum Requirements

System hardware Solaris 550 MHz minimum, 1.2GHz recommended.

Operating System Solaris 7, 8, 9 (each with a full set of required Solaris patches).

Memory (RAM) 256 MB minimum, 512 MB recommended.

Available drive space CWI=5MB, JRE=48MB.

Additional software One of these browsers:

•Netscape Navigator 4.77 or higher.

•Netscape Navigator 7.0 or higher.

JRE version 1.4.2.

Refer to the Sun website for latest minimum system requirements for the JRE on Solaris.

Monitor display settings Minimum recommended screen resolution=1024 by 768 pixels.

Router Prerequisites

The router prerequisites ensure that the router is correctly set up.

The following router prerequisites must be met before logging in to a router using the CWI:

•Ensure that the base image and Manageability pie have been installed and booted up on the router that you will be

connecting to using the CWI client. Optionally, install and boot up the Crypto pie to enable SSH and SSL functionality, and

the MPLS pie to enable a Multiprotocol Label Switching (MPLS) configuration. Refer to the Cisco CRS-1 Series Carrier

Routing System Getting Started Guide for information on booting up the base image.

•Ensure that connectivity is established between the router management Ethernet interface and the CWI client. Refer to the

Cisco CRS-1 Series Carrier Routing System Getting Started Guide for information on connecting an Ethernet interface from

the CWI client to the router.

•At least one username and password must be configured on the router. A valid authentication, authorization, and

accounting (AAA) username and password for accessing the router must be configured. Refer to the Cisco CRS-1 Series

Carrier Routing System Getting Started Guide for information on configuring usernames and passwords on the router.

CWI Client Prerequisites

Ensure that the CWI client is correctly set up to communicate with the router. No special configuration is required on the CWI

client.

4 Setting Up the Router and CWI Client

This section provides the procedures that must be completed, in sequence, before you can start using the CWI. The procedures

include setting the minimum router configuration that will allow the router to communicate with the CWI client, configuring

the required Management Services, and configuring the CWI client.

The following two procedures are provided:

•Setting the Minimum Router Configuration, page 7

•Setting Up the Required Management Services, page 7

Refer to the Cisco CRS-1 Series Carrier Routing System Getting Started Guide for information on the capabilities of the router,

installing IOS-XR software packages on the router, and booting up the router.

Table 4 Linux-Based PC Minimum System Requirements

Requirement Type Minimum Requirements

System hardware IBM PC-compatible 500 MHz PentiumIII minimum, 1.20 GHz Pentium IV recommended.

Operating System Red Hat Linux release 7.1 (Seawolf) or any Linux operating system on which Java

Development Kit (JDK) 1.4.2 runs.

Memory (RAM) 256 MB minimum, 512 MB recommended.

Available drive space CWI=5MB, JRE=48MB.

Additional software One of these browsers:

•Netscape Navigator 4.77 or higher.

•Netscape Navigator 7.0 or higher.

JRE version 1.4.2.

Refer to the Sun website for latest minimum system requirements for the JRE on Linux.

Monitor display settings Minimum recommended screen resolution=1024 by 768 pixels.

Setting the Minimum Router Configuration

The minimum router configuration must be set before configuring the CWI client and required Management Services.

The “Router Information Requirements” section on page 7 provides a list of information you require to complete the procedures

in this section.

Router Information Requirements

Contact your system administrator to obtain the following information required to configure the router for use with the CWI:

•Router hostname.

•CWI client DNS name.

•CWI client IP address if the client DNS name is not registered in a DNS server accessible by the router.

Note Before starting the procedures in this section, you must determine if the router will be running under Secure Socket

Layer (SSL).

To set the minimum router configuration, perform the following steps:

Step 1 Establish a Telnet/SSH session with the router.

Step 2 Enter configuration mode.

RP/0/RP0/CPU0:router# configure terminal

Step 3 Configure the IP host DNS name to IP address mapping for the CWI client.

Note If you are using a VPN or a dual-homed device in your network, the client IP address and DNS name are not

used when configuring the IP hostname for the CWI client. For a VPN, use the VPN IP address and DNS name.

For a network with a dual-homed device, use the dual-homed device router-side (secondary) IP address and

DNS name. See the “Network Considerations” section on page 3 for information on VPN and dual-homes

devices in a network.

RP/0/RP0/CPU0:router(config)# domain ipv4 host client-DNS-name client-IP-address

Step 4 Configure the hostname for the router.

RP/0/RP0/CPU0:router(config)# hostname router-hostname

Step 5 Exit configuration mode.

RP/0/RP0/CPU0:router(config)# commit

Setting Up the Required Management Services

When setting up the required Management Services, you have the option of communicating between the CWI client and required

Management Services using SSL (secure connection) or no SSL (nonsecure encryption).

The following two sections provide procedures for setting up the required Management Services with or without a secure

connection:

•Setting Up the Required Management Services Without a Secure Connection, page 8

•Setting Up the Required Management Services with a Secure Connection, page 8

The “Setting Up the CWI Client” section on page 10 provides information on setting up the CWI client after the required

Management Services are set up. The “Troubleshooting CWI Client Connectivity” section on page 10 provides information on

resolving connectivity problems.

Setting Up the Required Management Services Without a Secure Connection

This section provides the procedures required to set up the required Management Services without SSL.

Note The Telnet server must be enabled before you can manage a router using certain CWI features. These features include

the Telnet application, setting character displays in the Rack View application, and viewing committed configuration

changes using the Configuration Change dialog box. Refer to Chapter 4, “Bring Up a New Cisco CRS-1 Series Router,”

in the Cisco CRS-1 Series Carrier Routing System Getting Started Guide for information on enabling the Telnet server.

Note If you are connecting through a firewall in your network, the ports listed in Table 1 must be open before setting up the

required Management Services. Refer to your firewall documentation for information on opening the ports. See the

“Network Considerations” section on page 3 for information on firewalls in a network.

To start the required Management Services on the router, perform the following steps:

Step 1 Establish a Telnet/SSH session with the router.

Step 2 Enter configuration mode.

RP/0/RP0/CPU0:router# configure terminal

Step 3 Enable the HTTP server on the router.

RP/0/RP0/CPU0:router(config)# http server

Step 4 Enable the XML agent on the router.

RP/0/RP0/CPU0:router(config)# xml agent corba

Step 5 Exit configuration mode.

RP/0/RP0/CPU0:router(config)# commit

Setting Up the Required Management Services with a Secure Connection

This section provides the procedures required to set up the Management Services with SSL encryption. When setting up the

required Management Services and the CWI client with a secure connection, the certification authority (CA) and router

certificates must be set up before enabling the HTTP server and CORBA agent.

The following procedures are provided:

•Setting Up the Certificates, page 9

•Enabling the Secure HTTP Server and CORBA Agent, page 10

Note The SSH server must be enabled before you can manage a router using certain CWI features. These features include the

SSH application, setting character displays in the Rack View application, and viewing committed configuration changes

using the Configuration Change dialog box. Refer to Chapter 4, “Bring Up a New Cisco CRS-1 Series Router,” in the

Cisco CRS-1 Series Carrier Routing System Getting Started Guide for information on enabling the SSH server.

Note If you are connecting through a firewall in your network, the ports listed in Table 1 must be open before setting up the

required Management Services. Refer to your firewall documentation for information on opening the ports. See the

“Network Considerations” section on page 3 for information on firewalls in a network.

Note You must have the Crypto pie installed before attempting to complete the steps in this section. See the “Router

Prerequisites” section on page 6.

Setting Up the Certificates

Note The CA and router certificates have to be set up only once on a router. If the certificates have been set up, proceed to

the “Enabling the Secure HTTP Server and CORBA Agent” section on page 10.

To set up the certificates, perform the following steps:

Step 1 Establish a Telnet/SSH session with the router.

Step 2 Generate a Rivest, Shamir, and Adelman (RSA) key pair. Accept all prompted defaults.

RP/0/RP0/CPU0:router# crypto key generate rsa keypair-label

Note If the key pair label is not specified, “the_default” will be used.

Example:

RP/0/RP0/CPU0:router# crypto key generate rsa key1

Step 3 Enter configuration mode.

RP/0/RP0/CPU0:router# configure terminal

Step 4 Configure the CA trustpoint.

RP/0/RP0/CPU0:router(config)# crypto ca trustpoint ca-name

RP/0/RP0/CPU0:router(config-trustp)# enrollment url ca-URL

RP/0/RP0/CPU0:router(config-trustp)# rsakeypair keypair-label (This command must be completed if a

keypair label is specified in Step 2.)

RP/0/RP0/CPU0:router(config-trustp)# exit

RP/0/RP0/CPU0:router(config)# commit

Example:

RP/0/RP0/CPU0:router(config)# crypto ca trustpoint myca

RP/0/RP0/CPU0:router(config-trustp)# enrollment url http://myca/mydomain.com

RP/0/RP0/CPU0:router(config-trustp)# rsakeypair keypair-label

RP/0/RP0/CPU0:router(config-trustp)# exit

RP/0/RP0/CPU0:router(config)# commit

Step 5 Exit configuration mode.

RP/0/RP0/CPU0:router(config)# commit

Step 6 Authenticate the CA by getting the certificate for the CA.

RP/0/RP0/CPU0:router# crypto ca authentication ca-name

Step 7 Obtain a router certificate from the CA.

RP/0/RP0/CPU0:router# crypto ca enroll ca-name

Step 8 Verify that the router was granted a certificate. This command displays information about the router certificate and the

CA certificate.

RP/0/RP0/CPU0:router# show crypto ca certificate

Enabling the Secure HTTP Server and CORBA Agent

To enable the secure HTTP server and CORBA agent, perform the following steps:

Step 1 Establish a Telnet/SSH session with the router.

Step 2 Enter configuration mode.

RP/0/RP0/CPU0:router# configure terminal

Step 3 Enable the HTTPS server on the router.

RP/0/RP0/CPU0:router(config)# http server ssl

Step 4 Enable the XML agent with SSL.

RP/0/RP0/CPU0:router(config)# xml agent corba ssl

Step 5 Exit configuration mode.

RP/0/RP0/CPU0:router(config)# commit

Setting Up the CWI Client

Verify that you can connect to the router by logging in to the router. See the “Starting the CWI” section on page 11 for

procedures. If you are unable to log in to the router, see the “Troubleshooting CWI Client Connectivity” section on page 10.

Troubleshooting CWI Client Connectivity

This section provides information on troubleshooting connectivity problems when attempting to log in to a router using the

CWI.

If you are unable to connect to the router HTTP server using the browser, follow these steps in sequence, exiting the test steps

when a failure is encountered.

Step 1 Ping the IP address of the router management Ethernet interface from the client PC/workstation.

If this step fails, the problem can be an incorrect IP address, incorrect management Ethernet interface configuration, or

a network connectivity problem.

Step 2 (Optional) Ping the DNS name or IP address of the router.

If this step fails, the problem is an incorrect hostname to IP address mapping. See Step 3 in the “Setting the Minimum

Router Configuration” section on page 7.

Step 3 Check that the HTTP Server is running on the router using the following command:

RP/0/RP0/CPU0:router# show process emweb

If this step fails, start the HTTP server. See Step 3 in the “Setting Up the Required Management Services Without a

Secure Connection” section on page 8 or Step 3 in the “Setting Up the Required Management Services with a Secure

Connection” section on page 8.

If you are unable to log into the router from the CWI login screen run the Troubleshooter application at the prompt. Refer to

the Cisco CRS-1 Series Carrier Routing System Craft Works Interface User Interface Guide for information on using the

Troubleshooter application.

Tabla de contenidos

Otros manuales de Software de Cisco

Cisco

Cisco 15454-TCC - Network Processor Card Manual de usuario

Cisco

Cisco Servers Manual de usuario

Cisco

Cisco TELEPRESENCE MOVI 4.1 - FOR MAC OS X Manual de usuario

Cisco

Cisco GO GREEN Manual de usuario

Cisco

Cisco CONFERENCING EXTENSIONS - FOR MICROSOFT EXCHANGE... Manual de usuario

Cisco

Cisco CiscoWorks 1105 Manual de usuario

Cisco

Cisco Signaling Interface H.323 Manual de usuario

Cisco

Cisco OL-4015-08 Manual de usuario

Cisco

Cisco CCNA NETWORK SIMULATOR Manual de usuario

Cisco

Cisco Cisco Access Registrar 4.2 Manual del operador

Cisco

Cisco MeetingPlace Video Integration Manual de servicio

Cisco

Cisco PIX 520 - PIX Firewall 520 Manual de usuario

Cisco

Cisco GEM318P Manual de usuario

Cisco

Cisco TELEPRESENCE MOVI 4.1 - ADMINISTRATOR GUIDE... Manual de servicio

Cisco

Cisco AP775A - Nexus Converged Network Switch 5010 Manual de usuario

Cisco

Cisco CONFERENCING EXTENSIONS - ADMINISTRATOR GUIDE FOR MICROSOFT... Manual de servicio

Cisco

Cisco UC520-24U-8FXO-K9 Guía de instalación

Cisco

Cisco OL-6900-01 Manual del operador

Cisco

Cisco IP Communicator Manual de usuario

Cisco

Cisco TELEPRESENCE MANAGEMENT SUITE EXTENSION - INSTALLATION GUIDE FOR IBM LOTUS NOTES... Manual de usuario

Cisco

Cisco ROUTER-SDM-CD Manual de usuario

Cisco

Cisco Network Assistant Manual de usuario

Cisco

Cisco ACTIVE NETWORK ABSTRACTION 3.7.2 Manual de usuario

Cisco

Cisco 4700M Manual de usuario

Manuales populares de Software de otras marcas

COMPRO

COMPRO COMPROFM Manual de usuario

Muratec

Muratec OFFICEBRIDGE ONLINE Manual de usuario

Oracle

Oracle Contact Center Anywhere 8.1 Manual de usuario

Adobe

Adobe 65007312 - Photoshop Lightroom Manual

Avaya

Avaya NULL One-X for RIM Blackberry Manual de usuario

HP ProLiant BL420c Manual de usuario

PS Audio

PS Audio PowerPlay Manual del propietario

Brady

Brady LOCKOUT PRO 3.0 Manual de servicio

Avaya

Avaya Interaction Center Manual de usuario

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manual

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manual de usuario

Oracle

Oracle Application 9i Manual de usuario

Acer

Acer RDM Manual de usuario

Canon

Canon Vixia HF21 Manual de usuario

Canon

Canon ZR950 Manual de usuario

Samsung

Samsung Auto Backup Manual de usuario

Polycom

Polycom Vortex EF2201 Instrucciones de instalación y funcionamiento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manual de usuario
