Avenview FO8K-DP MM Series Manual de usuario

Control Your Video

VIDEO WALLS VIDEO PROCESSORS

VIDEO MATRIX SWITCHES

EXTENDERS SPLITTERS WIRELESS

CABLES & ACCESSORIES

8K DisplayPort 1.4

Extender over Fiber

Optic Cable

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties

with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product

descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication.

Except as set forth inAvenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to its products of Avenview Inc. is strictly prohibited.

Model#:FO8K-DP-XX-MM

UHD

7680X4320

www.avenview.com

Product Application & Market Sectors

Corporate House Of Worship

Military Residential

Education Industrial

Medical Aviation

www.avenview.com

TABLE OF CONTENTS

GETTING STARTED……………………………………………………………………………. 1

1.1

IMPORTANT SAFEGUARDS………………………………………………………………….. 1

1.2

SAFETY INSTRUCTIONS……………………………………………………………………… 1

1.3

REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)……...2

INTRODUCTION………………………………………………………………………………… 3

2.1

MODEL DESCRIPTION………………………………………………………………………… 3

2.2

PACKAGE CONTENTS………………………………………………………………………… 4

2.3

BEFORE INSTALLATION…………………………………………………………………….. 4

3. OPTICAL FIBER HAZARD……………………………………………………………………… 4

INSTALLATION………………………………………………………………………………….. 5

SPECIFICATIONS………………………………………………………………………………. 6

6. DISPLAYPORT PIN ASSIGNMENT…………………………………………………………… 7

FO8K-DP-XX-MM CABLE CONSTRUCTION………………………………………………….8

MECHANICAL SPECIFICATIONS……………………………………………………………… 9

GENERAL TROUBLESHOOTING……………………………………………………………… 11

www.avenview.com

Page

SECTION 1: GETTING STARTED

1.1

IMPORTANT SAFEGUARDS

Please read all of these instructions carefully before you use the Fiber Optic cable. Save this manual

for future reference.

What the warranty does not cover

•

Any product, on which the serial number has been defaced modified or removed.

•

Damage, deterioration or malfunction resulting from:

•

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification,

or failure to follow instructions supplied with the product.

•

Repair or attempted repair by anyone not authorized by us.

•

Any damage of the product due to shipment.

•

Removal or installation of the product.

•

Causes external to the product, such as electric power fluctuation or failure.

•

use of supplies or parts not meeting our specifications.

•

Normal wear and tear.

•

Any other causes which does not relate to a product defect.

•

Removal, installation, and set-up service charges.

1.2

SAFETY INSTRUCTIONS

The Avenview FO8K-DP-XX-MM, DisplayPort Extender System over fiber Optic, has been tested for conformance

to safety regulations and requirements, and has been certified for international use. However, like all electronic

equipment’s, the FO8K-DP-XX-MM should be used with care. Read the following safety instructions to protect

yourself from possible injury and to minimize the risk of damage to the unit.

On no account should you:

! Do not dismantle the housing or modify the module.

! Dismantling the housing or modifying the module may result in electrical shock or burn.

! Refer all servicing to qualified service personnel.

! Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

! keep the module away from liquids.

! Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls

or spills on to the housing, unplug the module immediately.

! Have the module checked by a qualified service engineer before using it again.

! Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

www.avenview.com

Page

1.3

REGULATORYNOTICESFEDERALCOMMUNICATIONSCOMMISSION

(FCC)

This equipment has been tested and found to comply with part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.

Warning symbols Description

LASER RADIATION

DO NOT STARE INTO BEAM

< 1 MILLIWATT LASER

DIODE CLASS 2 LASER

PRODUCT

Risk levels increase. These lasers emit a visible beam,

from 400 to 780 Nanometres (nm), with an upper power

limit of 1 milliwatt. An example is a (mw) bar code

scanner. Momentary viewing is not hazardous, but

extended viewing is. laser protective eyewear is

recommended for even momentary viewing and

necessary for extended viewing

DO NOT TAMPER WITH THE FIBER CABLE; DOING

SO WILL VOID THE WARRANTY AND CONTINUED

USE OF THE PRODUCT.

LASER BEAM USED IN OPTICAL COMMUNICATIONS

ARE INVISIBLE AND CAN SERIOUSLY DAMAGE THE

EYES. VIEWING IT DIRECTLY DOES NOT CAUSE

ANY PAIN TO THE EYE BUT SERIOUS DAMAGE CAN

BE DONE TO THE RETINA OF THE EYE

www.avenview.com

Page

INTRODUCTION

Avenview FO8K-DP-XX-MM 8K Series fiber optic, active optical cable (AOC) lets you extend DisplayPort

1.2a or 1.4 digital signal up to 100 meters (328 feet) at 8K@60Hz (7680X4320) resolution.

-High Speed and long-distance transmission by Optical fiber

- Compatible with DisplayPort VESA standard v1.2a and 1.4

- HBR3 (High Bit Rate) Cable Assembly (up to 8.1 Gbs Data Rate)

- Supports up to 8K@60Hz (7680X4320) resolution

-Main-link video signal / AUX data and Hot Plug Detection signal is transmitted by 1ch multi-mode fiber -

DPCP & HDCP compliant (HDCP are not part of the DisplayPort standard)

- MMF optical fiber / copper UL certified Hybrid optical cable (OFNP)

2.1 MODEL DESCRIPTION

Available Lengths (XX)

10 meters

20 meters

30 meters

40 meters

50 meters

70 meters

100 meters

FO8K-DP-XX-MM

Model Name

FO- Fiber Optic 8K –Resolution DP - Cable type

Length in Meters

(5= 5 meters, 10 = 10 meters)

EXAMPLE: FO-DP4K-10-MM

Connector type

M-Male

F- Female

www.avenview.com

Page

2.2

PACKAGE CONTENTS

Before you start the installation of the converter, please check the package contents.

2.3 BEFORE INSTALLATION

•

Use the product in a stable location. If the product falls or drops, it may pull connected equipment causing

them to fall.

•

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high humidity.

•

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

3. OPTICAL FIBER HAZARD

•

Persons installing fiber optic products must take all necessary safety precautions, such as wearing

protective clothing and goggles and observing warning signs.

•

To ensure that the required personnel and equipment is properly installed, secure from unnecessary failure

of the components or failure of the whole system, injury to one’s self and in addition to legal responsibility;

everyone is responsible for his own health

•

Keep exposed optical fiber ends away from skin and eyes.

•

The waste fragments should be treated with care and not picked up with bare hands, but rather with special gloves.

•

Dispose of waste in a suitable container via an approved agency. Make sure that the quantity of optical fiber

waste is minimized.

•

Closures containing termination points for optical fiber cabling must be labeled with appropriate warning

signs or clearly visible text.

•

Make sure that the quantity of optical fiber waste is minimized. Closures containing termination points for

optical fiber cabling must be labeled with appropriate warning signs or a clearly viewable text.

•

There are four laser Classifications based on risk levels. laser manufacturers are required to label their lasers

accordingly.

DisplayPort Extender Cable

X 1

User’s Manual

X 1

www.avenview.com

Page

INSTALLATION

Avenview FO8K-DP-XX-MM is composed of a TX/RX ends, the Transmitter converts the video/audio signal of

an input such as a computer over the Optical fiber to the Receiver. The RX then decodes the transmitted data

to the connected monitor via the DisplayPort connector.

The Transmitter should be connected to source (Computer/media player) DisplayPort connector and the

Receiver should be connected to a monitor/TV with DisplayPort connector.

Avenview FO8K-DP-XX-MM is designed to self-detect the resolution of the monitor and

adapt to the resolution accordingly. follow these steps for connecting to a device:

power on your display.

Connect Transmitter DP Male connector to the Source device (Laptop/PC).

Connect the Receiver DP Male connector to the Display/Monitor.

Once all connections are completed you can then configure your computer’s output mode.

NOTE: Ensure when installing this product you carefully read the labels an do not mix the connections in the opposite direction.

(Transmitter end)

Source

(Receiver end)

Display

www.avenview.com

Page

SPECIFICATION

ITEM

DESCRIPTION

UNITS

FO8K-DP-XX-MM

UNIT DESCRIPTION

8K@60Hz 4:4:4 HBR3 DisplayPort 1.4 cable over Fiber Optic

DisplayPort fiber Optic Receiver

INPUT/OUTPUT SIGNAL

DisplayPort Signal v1.2a, 1.4

VIDEO BANDWIDTH

5.4Gbps (HBR2) / 8.1 Gbps (HBR3) Per lane

DATA RATE

Up to 8.1 Gbps per lane

SUPPORTED RESOLUTION

& DISTANCE*

Up to 8K(7680X4320) @60Hz - up to 100 meters (328 feet)

ELECTRICAL CONNECTOR

Male 20 pin DisplayPort plug

DIMENSIONS (L × W × h)*

2.95” × 1.0” × 0.8”

2.16” × 1.0” × 0.8”

POWER SUPPLY

+3.3V, max 3.6V

POWER CONSUMPTION

0.3W

1.39W

Optical

OPTICAL SOURCE

1x4 Array 850nm Multi-mode VCSEL

O/E CONVERTER

PIN photo Diode

CABLE TYPE

Optical Hybrid + Copper

FIBER TYPE

50/125 ㎛Multi-mode glass-fiber

Environmental

OPERATING TEMPERATURE

32˚ ~ 122˚F (0˚ to 50˚C)

STORAGE TEMPERATURE

-4˚ ~ 158˚F (-20˚ ~ 70˚C)

RELATIVE HUMIDITY

20~80% RH (no condensation)

www.avenview.com

Page

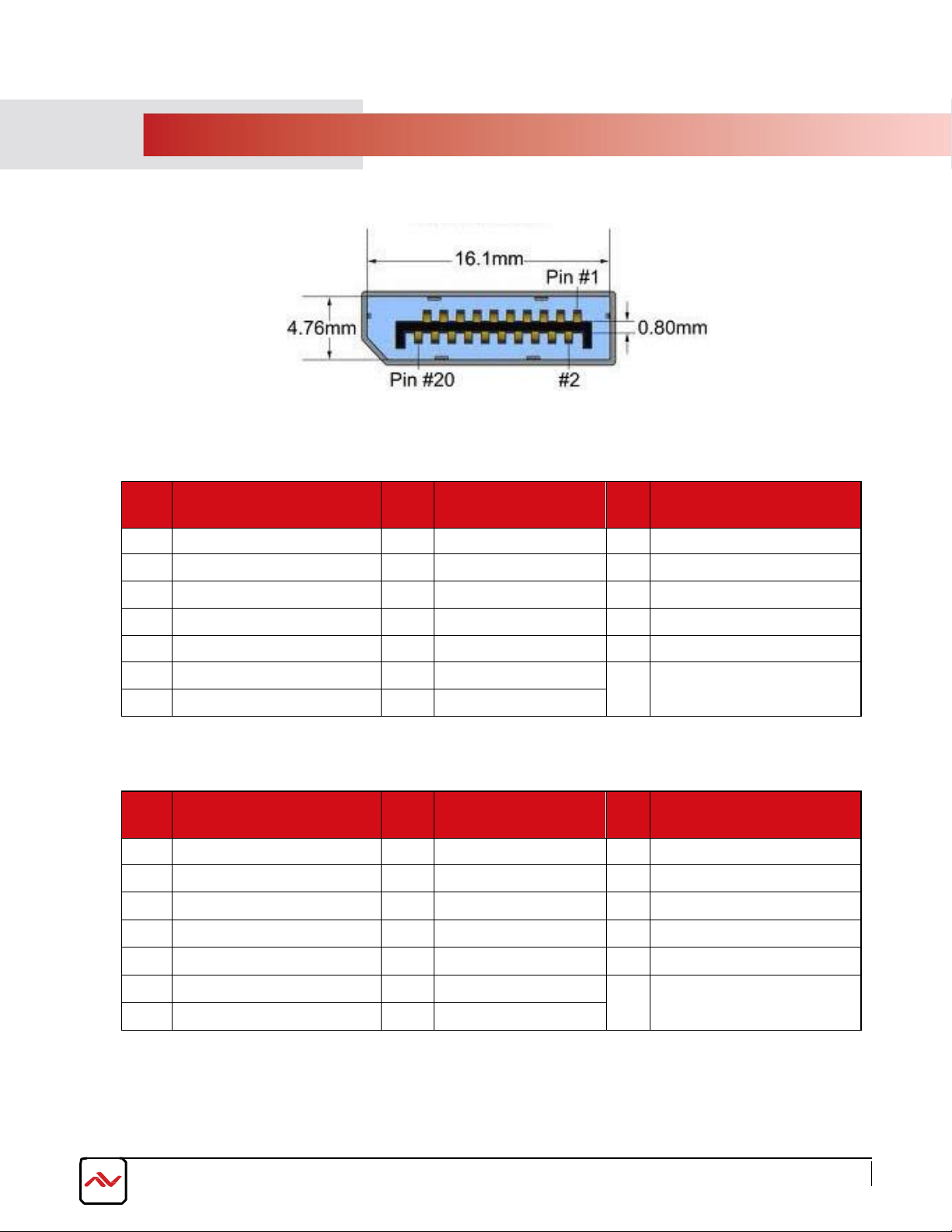

DISPLAYPORT PIN ASSIGNMENT

6.1

Transmitter

SIGNAL

ASSIGNMENT

SIGNAL

ASSIGNMENT

SIGNAL

ASSIGNMENT

Main link lane 0+

Ground

Auxiliary Channel+

Ground

Main link lane 2-

Ground

Main link lane 0-

Main link lane 3+

Auxiliary Channel -

Main link lane +

Ground

Hot plug Detect

Ground

Main link lane 3-

Return

Main link lane 1-

Configuration 1

Connector power

(3.3V,500mA)

Main link lane 2+

Configuration 2

6.2

Receiver

SIGNAL

ASSIGNMENT

SIGNAL

ASSIGNMENT

SIGNAL

ASSIGNMENT

Main link lane 0+

Ground

Auxiliary Channel+

Ground

Main link lane 2-

Ground

Main link lane 0-

Main link lane 3+

Auxiliary Channel -

Main link lane 1+

Ground

Hot plug Detect

Ground

Main link lane 3-

Return

Main link lane 1-

Configuration 1

Connector power

(3.3V,500mA)

Main link lane 2+

Configuration 2

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Extensor de Avenview

Avenview

Avenview WL-VGA-EXT Manual de usuario

Avenview

Avenview USB-C6-50M Manual de usuario

Avenview

Avenview FO-HDM-1000M-EMI Manual de usuario

Avenview

Avenview HDM-C6IP-SET Manual de usuario

Avenview

Avenview FO-HDM4K-200-EMIX Manual de usuario

Avenview

Avenview FO-HDSDI-SET Manual de usuario

Avenview

Avenview FO-HDMI-1000M-EMI Manual de usuario

Avenview

Avenview HDM-C5SP-8SRSR Manual de usuario

Avenview

Avenview FO-DVI-1000X-EMIX Manual de usuario

Avenview

Avenview VGA-C5A-R Manual de usuario

Avenview

Avenview HBT-C6IR-SET Manual de usuario

Avenview

Avenview DVI-C5-LC-R Manual de usuario

Avenview

Avenview VGA-C5A-SET Manual de usuario

Avenview

Avenview HBT-C6POE-R Manual de usuario

Avenview

Avenview C-USB-HDM Manual de usuario

Avenview

Avenview HDMI-C5SP-8SRSR Manual de usuario

Avenview

Avenview DVI-C5-R Manual de usuario

Avenview

Avenview W-HDM3D-100-SET Manual de usuario

Avenview

Avenview HDMI-C5-IR-SET Manual de usuario

Avenview

Avenview FO-VGA-DVI Manual de usuario

Avenview

Avenview C5-USB-200 Manual de usuario

Avenview

Avenview FO-DVI-DL-330X Manual de usuario

Avenview

Avenview HDMI-C5-S Manual de usuario

Avenview

Avenview FO-DVI-DL-330 Series Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
