Avenview WL-VGA-EXT Manual de usuario

www.avenview.com

Wireless VGA Extender

User’s Guide

Models

WL-VGA-EXT

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations

or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to

specifications and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual

property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes

no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied

warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly

prohibited.

www.avenview.com

Table of Contents

Section 1: Getting Started...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

1.4 Introduction ........................................................................................................................... 4

1.5 Package Contents................................................................................................................... 4

1.6 Before Installation.................................................................................................................. 4

1.7 Installation ............................................................................................................................. 5

1.8 Client Utility ........................................................................................................................... 7

1.8.1 Starting Program ................................................................................................................ 7

1.8.2 Buttons Descriptions.......................................................................................................... 7

1.8.3 Web Admin ........................................................................................................................ 8

1.9 WL-VGA-EXT for PDA ........................................................................................................... 10

1.10 Conference Control.............................................................................................................. 10

1.11 System Status....................................................................................................................... 11

1.12 Network Status .................................................................................................................... 12

1.12.1 Auto-Configuration Network Setup ............................................................................. 12

1.13 Projection Setup .................................................................................................................. 13

1.14 Change Password................................................................................................................. 13

1.15 Reset to Default ................................................................................................................... 14

1.16 Firmware Upgrade ............................................................................................................... 14

www.avenview.com

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The WL-VGA-EXT Wireless VGA Extender has been tested for conformance to safety regulations and

requirements, and has been certified for international use. However, like all electronic equipments, the

C-COMP-VGA should be used with care. Read the following safety instructions to protect yourself from

possible injury and to minimize the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

www.avenview.com

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

1.4 Introduction

Avenview WL-VGA-EXT wireless VGA extender is an ideal solution for meeting rooms. With WL-VGA-EXT, you

can display up to four presentations in split screen on a single projector or VGA screen. You can save your

presentation in provided USB key and connect to your projector wirelessly. WL-VGA-EXT supports conference

control function for moderating the conference. The conference moderator can control projection from

connected PCs through a web-based interface

-Plug & Present –no installation required

-4 x 1 Split Screen projection –turn one projector into four displays

-Web-based interface for managing different displays.

-Supports Windows VISTA, XP, 200 and Mobile 5/6

-Supports session security login, wireless WEB key and Gatekeeper function to protect presentation

contents.

1.5 Package Contents

Before you start the installation of the converter, please check the package contents.

-WL-VGA-EXT x 1

-Power Adapter (+5VDC, 2.5A) x1

-USB Key x1

-User’s Manual x1

1.6 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

www.avenview.com

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it

may cause a fire.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

1.7 Installation

To setup Avenview WL-VGA-EXT follow these steps for connecting to a device:

1. Connect projector VGA cable to WL-VGA-EXT’s VGA connector and turn on the projector power

2. Turn on WL-VGA-EXT

3. When projector shows the default menu on the screen as shown below, it indicates the WL-VGA-EXT

box is ready for operation.

www.avenview.com

4. Make sure PC WLAN is enabled and connect the PC to WL-VGA-EXT

5. In your default browser, enter 192.168.101.15 or refer to default IP address of WL-VGA-EXT shown on

projector screen.

6. Download the client software from WL-VGA-EXT web-based interface. Select the appropriate

software for your system (Windows VISTA, XP, 200 or Mobile 5/6)

7. Once the software is installed, it will create a shortcut to your desktop.

8. Make sure VPS (Video Presentation Software) is allowed to pass through system firewall if it is

enabled.

9. Enter the LOGIN CODE. LOGIN CODE is displayed on the projector screen

10. Click the “PLAY”button to start displaying on the projector

www.avenview.com

1.8 Client Utility

1.8.1 Starting Program

After you have downloaded and installed the VPS Windows program via web-based interface successfully,

then follow these steps to start.

1. Click VPS icon to execute the program

2. Program will automatically try to locate the WL-VGA-EXT.

3. If WL-VGA-EXT is found, then “Login Code”dialog box will pop up.

4. Enter “Login Code”as displayed on the projector screen.

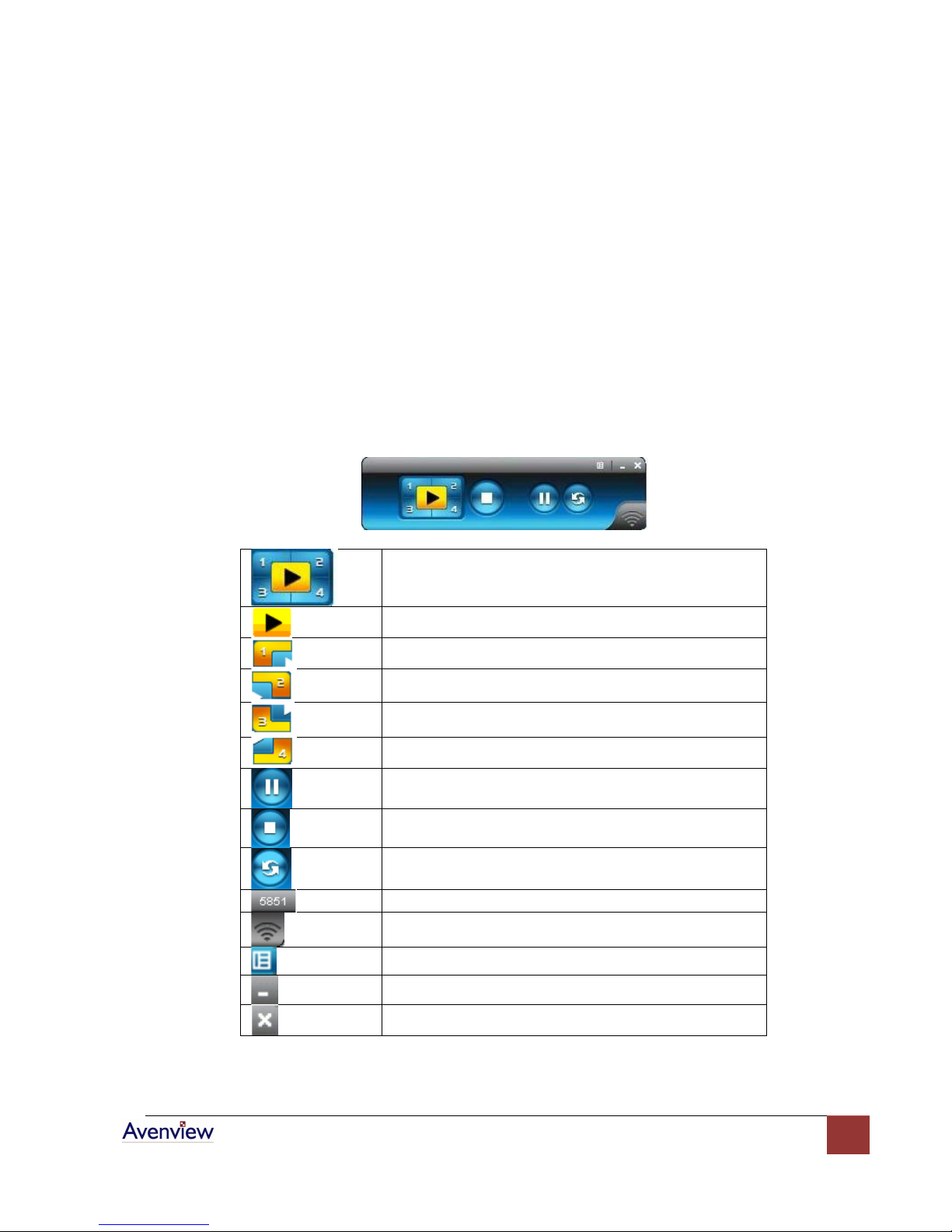

1.8.2 Buttons Descriptions

After login is successful, you will see main UI of VPS

Project desktop screen to Full screen or split screen

Full Screen projection

Project to Split #1

Project to Split #2

Project to Split #3

Project to Split #4

Pause projecting

Stop projecting

Refresh projecting screen

Server Login Code

While projecting in progress, this icon is blinking

Function menu

Minimize the program

Exit the program

www.avenview.com

1.8.3 Web Admin

Click to open function menu and select “Web Admin”management web page. The web page detailed

functions will be described on next chapter.

www.avenview.com

1. Click “Search Server”to search for WL-VGA-EXT

2. Click “Make VPS Token”to make a USB VPS Token

www.avenview.com

1.9 WL-VGA-EXT for PDA

To project your PDA screen with WL-VGA-EXT, please follow these steps:

1. Enable WiFi of PDA and connect to WL-VGA-EXT

2. Open the browser and enter 192.168.101.15 to download and install VPS for PDA with Windows

Mobile 5 or 6

3. Once installation is done, launch VPS software

1.10 Conference Control

1. This function allows you to host a meeting with WL-VGA-EXT

2. Select “Conference Control”function from web-based interface

3. Enter password, the default password is “trainer”.

4. After login is successful, you can see the user list on the screen which indicates all users connected to

WL-VGA-EXT

5. There are three columns, “Computer Name”, “Play Control”and “IP Address”

6. Play Control: There are six buttons, including Play , Play Split #1 , Play Split #2 ,

7. Play Split #3 , Play Split #4 , and Stop .

8. User List:

9. To Login as ADMIN, click on “Admin”and enter default password “admin”
