Avenview VGA-C5A-R Manual de usuario

Page|1

www.avenview.com

VGA / Audio Extender Single CAT5 / CAT6

with RGB Delay Control & EQ

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes

no representations or warranties with respect to the accuracy or completeness of the contents of this publication and

reserves the right to make changes to specifications and product descriptions at any time without notice. No license,

whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set

forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any

express or implied warranty, relating to its products of Avenview Inc. is strictly prohibited.

Model #: VGA-C5A-R

Page|2

www.avenview.com

TABLE OF CONTENTS

SECTION 1: GETTING STARTED........................................................................................................ 3

1.1 IMPORTANT SAFEGUARDS ................................................................................................ 3

1.2 SAFETY INSTRUCTIONS..................................................................................................... 3

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC) .......... 4

2. INTRODUCTION................................................................................................................. 5

2.1 PACKAGE CONTENTS........................................................................................................ 5

2.2 BEFORE INSTALLATION..................................................................................................... 6

3. PANEL DESCRIPTION ......................................................................................................... 7

4. INSTALLATION .................................................................................................................... 8

5. GENERAL TROUBLESHOOTING ....................................................................................... 8

SECTION 2: SPECIFICATIONS ............................................................................................................ 9

Page|3

www.avenview.com

SECTION 1: GETTING STARTED

1.1 IMPORTANT SAFEGUARDS

Please read all of these instructions carefully before you use the device. Save this manual for

future reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product

modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 SAFETY INSTRUCTIONS

The Avenview VGA-C5A-R, VGA and Audio Extender over Single CAT5/CAT6 with RGB Delay Control has

been tested for conformance to safety regulations and requirements, and has been certified for international

use. However, like all electronic equipments, the VGA-C5A-SET should be used with care. Read the

following safety instructions to protect yourself from possible injury and to minimize the risk of damage to

the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

Page|4

www.avenview.com

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

Warning symbols

Description

ONLY USE THE PROVIDED POWER CABLE

OR POWER ADAPTER SUPPLIED. DO NOT

TAMPER WITH THE ELECTRICAL PARTS.

THIS MAY RESULT IN ELECTRICAL SHOCK

OR BURN.

DO NOT TAMPER WITH THE UNIT.

DOING SO WILL VOID THE WARRANTY

AND CONTINUED USE OF THE

PRODUCT.

THE VIDEO BOARDS ARE VERY SENSITIVE

TO STATIC. PLEASE ENSURE IF RACK

MOUNTED OR INSTALLED ON A

SURFACE, IT SHOULD BE IN A GROUNDED

ENVIROMENT.

Page|5

www.avenview.com

2. INTRODUCTION

With only one cost effective CAT-5e cable, the Avenview VGA-C5A-R lets you extend VGA (WUXGA) to

cover the distance up to 300m (1,000ft). With built-in EQ and GAIN control, the transmission path can be

adjusted to adapt the cable quality and video bandwidth. Furthermore, the VGA RGB delay control

[de-skew] function provides the compensation among R, G, B signals due to long transmission or through

normal LAN cable. Analog stereo audio signals can be sent along with high quality VGA signal over long

distance LAN cable. Compatible with the VGA-C5-SP8

- Supports up to WUXGA (1920x1200@60) to 300m (1,000ft)

- Supports Analog Stereo Audio and S/PDIF Digital Audio

- Adjustable equalization and gain control on Receiver unit

- De-skew compensation available for RGB delay control

- Wall mounting case for better fixedness

2.1 PACKAGE CONTENTS

Before you start the installation of the converter, please check the package contents.

-VGA-C5A-R x 1

Power Adapter (+5VDC)

User’s Manual

Page|6

www.avenview.com

2.2 BEFORE INSTALLATION

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C)

or high humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then

it may cause a fire.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

Page|7

www.avenview.com

3. PANEL DESCRIPTION

INPUT PANEL (Receiver, VGA-C5A-R)

1. 5V 2A DC Power Connector

2. RJ45 IN for CAT5 cable

3. EQ: Rotary Control for equalization of R,

G, B respectively

4. GAIN: Rotary control for Gain Control of R,

G, B respectively

5. Rotary Control: R=0~2, G=3~5, B=6~7

for de-skew compensation on respective

color channel

6. Push button to increase level of de-skew

compensation

7. Push button to decrease level of de-skew

compensation

OUTPUT PANEL (Receiver, VGA-C5A-R)

1. Audio OUT

2. S/PDIF OUT

3. VGA OUT

Page|8

www.avenview.com

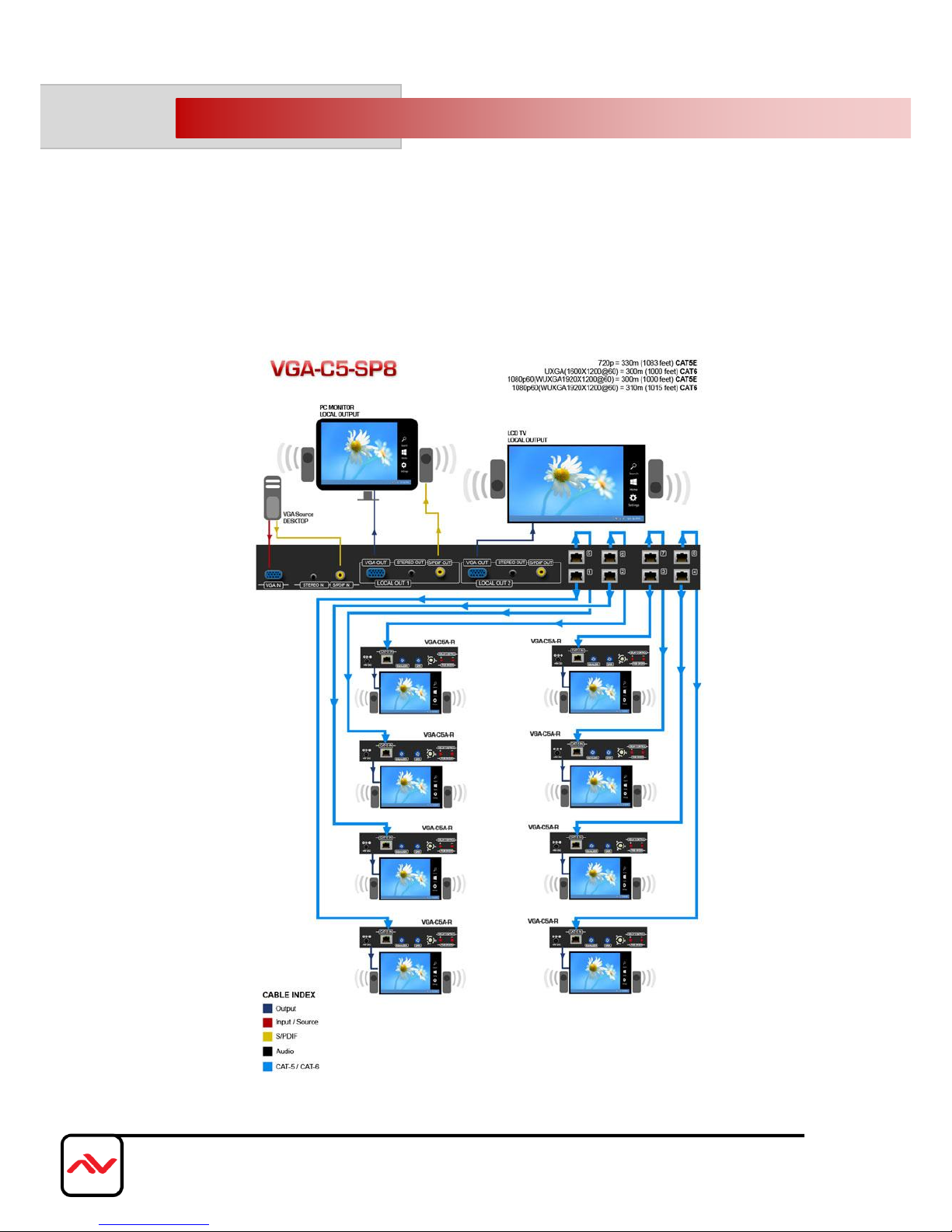

4. INSTALLATION

1. Connect VGA and audio source to Transmitter (VGA-C5-SP8)

2. Connect VGA display and speakers to Receiver (VGA-C5A-R)

3. Connect CAT5/CAT6 cable between Transmitter (VGA-C5-SP8) and Receiver (VGA-C5A-R)

4. Ensure that cables are tightly connected

5. Plug in 5V 2ADC power adapter to the power jack of the Receiver VGA-C5A-R.

6. Plug in 5V 4ADC power adapter to the power jack of the Transmitter VGA-C5-SP8.

5. GENERAL TROUBLESHOOTING

PROBLEM

POSSIBLE SOLUTION

NO IMAGE

Check if connection to the source and the display are

correct.

Ensure that display device supports the resolution that is

being output.

SCREEN DEFECTS APPEAR

This product supports up to WUXGA (1920x1200)

resolution.

Check the VGA and CAT5 connection

If outputting from a PC. Check the maximum resolution

range of the graphics card.

1. If a blurred video is seen or even worse, not displayed at all, try to adjust the EQ and Gain rotary

controls to improve the cable skew. GAIN rotary controls are designed for gain control, and EQ

rotary controls are designed for equalizing the wave form of the receiving video signal. It is

suggested to begin with adjusting the rotary control of EQ to get the input video displayed first,

and then the GAIN according to the video you see on the screen.

2. RGB delay control [De-skew] offers the flexible functionality to allow skew compensation among

VGA R, G, B signals due to long transmission or thru low quality cable. By adjusting the rotary

switch to choose R, G or B color channel at first, then use the push buttons to increase or decrease

the delay in the corresponding color channel. There are totally 31 steps, each step with 2ns

difference, for adjusting the delay between each color individually. Then the graphics quality can

be further assured.

Page|9

www.avenview.com

SECTION 2: SPECIFICATIONS

ITEM

DESCRIPTION

Units

VGA-C5A-R

Unit Description

VGA Receiver with RGB Delay

Control

Video Bandwidth

350MHz

Video Support

VESA

Supported Resolutions

Up to WUXGA (1920 x1200)

Resolution and Distance

WUXGA 1920x 1200 at 300 meters (1000 feet)

Audio Support

Stereo

Equalization

Continuous Analog Control

Input Video Signal

1.2 Volts (peak-to-peak)

RGB Delay Control

Yes

ESD Protection

-Human body —±19kV (air-gap discharge) & ±12kV (contact discharge)

-Core chipset —±8kV

Input

1 x RJ45

Output

1 x VGA

1 x 3.5mm + 1 x RCA

VGA Connector

HD-15 (15 pin D-sub Female)

RJ45 Connector

WE/SS 8P8C with 2 LED indicators

3.5mm Audio Connector

Earphone jack for Analog Stereo Audio or IR Cable

RCA Connector

S/PDIF Digital Audio

Dimensions (L x W x H)

4.8” x 3.7” x 1”

Power Supply

5V 2A DC

Power Consumption

5 Watt (max)

Environmental

Operating Temperature

32˚~ 104˚F (0˚to 40˚C)

Storage Temperature

-4˚ ~ 140˚F (-20˚ ~ 60˚C)

Relative Humidity

20~90% RH (no condensation)

Disclaimer

While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with

respect to the operation or use of Avenview hardware, software or other products and documentation described

herein, for any act or omission of Avenview concerning such products or this documentation, for any interruption of

service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages

in connection with the furnishing, performance, or use of the Avenview hardware, software, or other products and

documentation provided herein.

Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to

improve reliability, function or design. With respect to Avenview products which this document relates, Avenview

disclaims all express or implied warranties regarding such products, including but not limited to, the implied warranties

of merchantability, fitness for a particular purpose, and non-infringement.
