Avenview FO-HDM4K-200-EMIX Manual de usuario

VIDEO WALLS VIDEO PROCESSORS

VIDEO MATRIX SWITCHES

EXTENDERS SPLITTERS WIRELESS

CABLES & ACCESSORIES

Control Your Video...

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or

warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications

and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted

by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims

any express or implied warranty, relating to its products of Avenview Inc. is strictly prohibited.

Model #: FO-HDM4K-200-EMIX

4K HDMI Extender over

Single SC Fiber Optic Cable

Military Residential

Medical Aviation

Education Industrial

Corporate House Of Worship

www.avenview.com

Product Application & Market Sectors

www.avenview.com Page

TABLE OF CONTENTS

1. GETTING STARTED ..........................................................................................................................1

1.1 IMPORTANT SAFEGUARDS

..............................................................................................................1

....................................................................................................................1

1.2 SAFETY INSTRUCTIONS

........................... 2

2. INTRODUCTION ..............................................................................................................................3

2.1 PACKAGE CONTENTS .....................................................................................................................4

5.INSTALLATION ...................................................................................................................................8

5.1 Before Installation ..........................................................................................................................8

6. OPTICAL FIBER HAZARD ..............................................................................................................10

7.1 Trouble Shooting depending on LED indicator status .................................................................11

8. CAUTION ..........................................................................................................................................12

9.SPECIFICATIONS ..............................................................................................................................13

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

3. APPLICATION DIAGRAM ..................................................................................................................5

4. PANEL DESCRITION.... ........................................................................................................................6

4.1 FRONT PANEL (Sender, FO-HDM4K-200-EMIX-S) ...................................................................6

4.2 REAR PANEL (Sender, FO-HDM4K-200-EMIX-S) .......................................................................6

4.3 FRONT PANEL (Receiver, FO-HDM4K-200-EMIX-S) ................................................................7

4.4 REAR PANEL (Receiver, FO-HDM4K-200-EMIX-S) ....................................................................7

5.2 Cable Specification .........................................................................................................................9

5.3 Installation Steps .. ........................................................................................................................10

7.GENERAL TROUBLESHOOTING ...................................................................................................11

www.avenview.com Page

SECTION 1: GETTING STARTED

1.1 IMPORTANT SAFEGUARDS

Please read all of these instructions carefully before you use the Fiber Optic cable. Save this manual for future

reference.

What the warranty does not cover

•Any product, on which the serial number has been defaced, modified or removed.

•Damage, deterioration or malfunction resulting from:

•Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to

follow instructions supplied with the product.

•Repair or attempted repair by anyone not authorized by us.

•Any damage of the product due to shipment.

•Removal or installation of the product.

•Causes external to the product, such as electric power fluctuation or failure.

•Use of supplies or parts not meeting our specifications.

•Normal wear and tear.

•Any other causes which does not relate to a product defect.

•Removal, installation, and set-up service charges.

1.2 SAFETY INSTRUCTIONS

The Avenview FO-HDM4K-200-EMIX, HDMI Extender over fiber Optic has been tested for conformity to safety regulations

and requirements, and has been certified for international use. However, like all fibre optic products, the FO-HDM4K-200-

EMIX should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize

the risk of damage to the unit.

On no account should you:

! Look into a fiber while the system lasers are on;

! Use unfiltered handheld magnifiers or focusing optics to inspect fiber connectors;

! Connect a fiber to a fiberscope while the system lasers are on;

! Touch the end of the fiber connectors;

! Pull forcefully on the fiber cable;

! Reuse any specified fiber cleaning material more than once;

! Touch the clean area of a any specified fiber cleaning material;

! Use alcohol around an open flame or spark - Alcohol is Very Flammable;

! Use alcohol or wet cleaning without a way to ensure that it does not leave residue on the polished connector;

! Dismantle the housing or modify the connector.

1. GETTING STARTED

www.avenview.com Page

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.

Warning symbols Description

LASER RADIATION

DO NOT STARE INTO BEAM

< 1 MILLIWATT LASER DIODE

CLASS 2 LASER PRODUCT

Risk levels increase. These lasers emit a visible beam, from

400 to 780 Nanometres (nm), with an upper power limit of 1

milliwatt. An example is a (mw) bar code scanner. Momentary

viewing is not hazardous, but extended viewing is. Laser

protective eyewear is recommended for even momentary

viewing and necessary for extended viewing

DO NOT TAMPER WITH THE FIBER CABLE; DOING SO

WILL VOID THE WARRANTY AND CONTINUED USE OF

THE PRODUCT.

LASER BEAM USED IN OPTICAL COMMUNICATIONS ARE

INVISIBLE AND CAN SERIOUSLY DAMAGE THE EYES.

VIEWING IT DIRECTLY DOES NOT CAUSE ANY PAIN TO

THE EYE BUT SERIOUS DAMAGE CAN BE DONE TO THE

RETINA OF THE EYE

www.avenview.com Page

2. INTRODUCTION

The Avenview FO-HDM4K-200-EMIX-SET ULTRA HD Extender set over single SC optical fiber cable has been designed to

extend UHD (3840x2160 @60Hz) and 4K (4096x2160@60Hz) video and multi-channel audio formats to any 4K compatible

monitor up to 200m.

Video Signals: 4K2K@60 (Ultra HD), 3D and Full HD 1080p@60 Hz.

The FO-HDM4K-200-EMIX-SET includes two (2) units: Sending unit (TX) FO-HDM4K-200-EMIX-S and Receiving unit (RX)

FO-HDM4K-200-EMIX-R with one (1) FTP output port which allows the user to extend video and audio up to 200m (656ft).

The FO-HDM4K-200-EMIX-SET input and output supports HBR2 cable assembly to handle upto 5.4Gbps/lane data rate.

The bonus features is the NEW box type design which can be easily installed into any enviroment, behind the monitor and

rack mounted on a rack shelf. This features has been added to the unit to give the installer and user a complete solution with

the new trends in rack mounted 4K sources streaming, network connected devices and new demand in Smart TV, Ultra HD

monitors and content.

- Input: HDMI 2.0 with 3D & ULTRAHD, 1080p, DPCP compliant;

- Bandwidth: from 18 Gbps;

- Video Data Rate: 5.4 Gbps;

- HD resolutions: Up to 4K (4096x2160@60Hz) UHD (3840x2160@60Hz) WQXGA 2560x1600@60Hz and 1080p

(1920x1080@60Hz);

- Audio supported: LPCM 7.1CH, Dolby TrueHD, Dolby Digital plus and DTS-HD Master Audio;

- Audio transmission: (32-192kHz sample rate);

- Distance: up to 200 meters over OM3 SC Fiber Optic cable.

Audio signals: Multi-channel audio formats (DTS-HD Master Audio, Dolby TrueHD).

- Displaying 4K Ultra HD resolution would require the standard HDMI Cable and Display for accurate results.

NOTE:

www.avenview.com Page

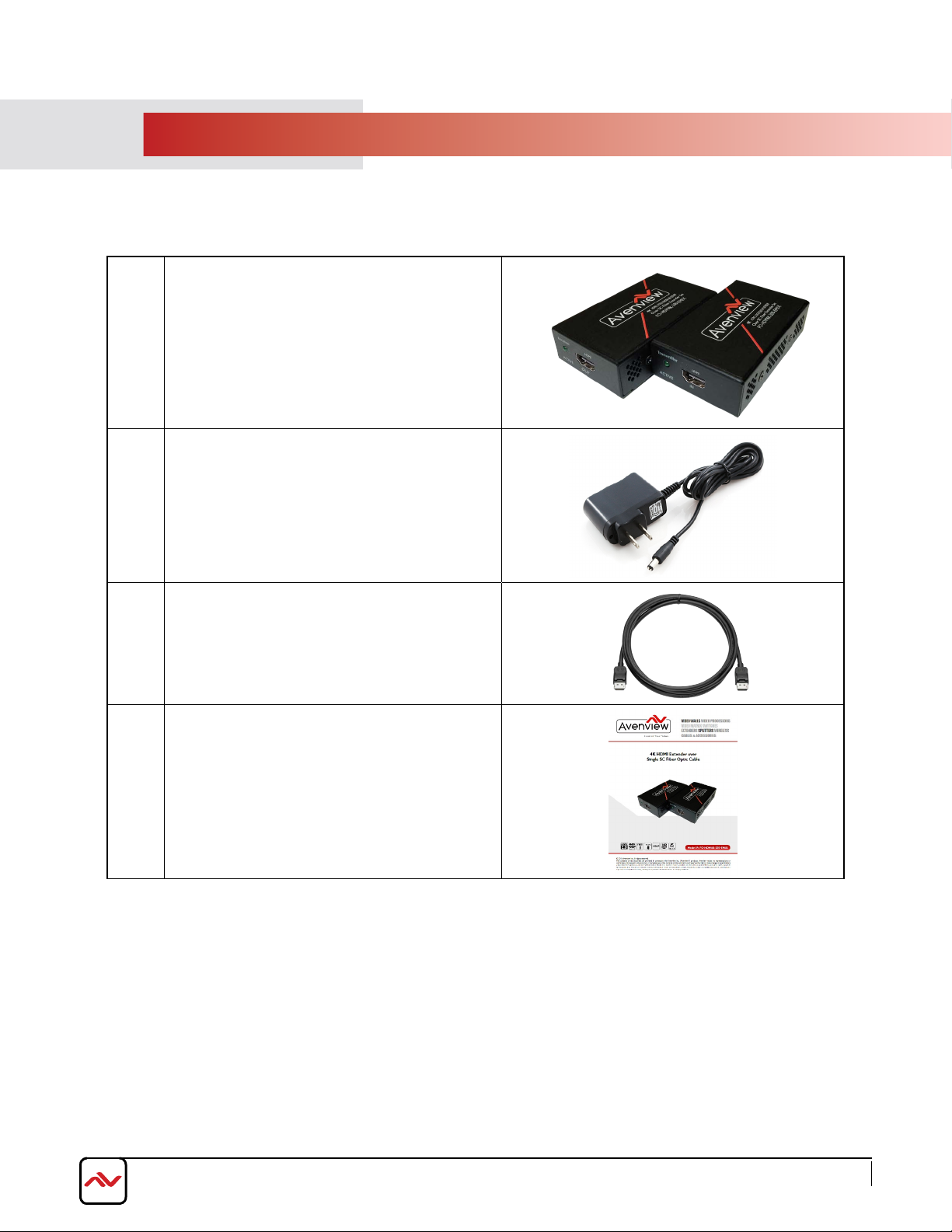

2.1 PACKAGE CONTENTS

Before you start the installation of the converter, please check the package contents.

(FO-HDM4K-200-EMIX-SET)

FO-HDM4K-200-EMIX-S (TX)

FO-HDM4K-200-EMIX-R (RX)

2POWER ADAPTER (5V/2A DC) X2

HDIMI (COPPER CABLE - 3FT) X 2

USER’S MANUAL X 1

www.avenview.com Page

3. ApplICATION DIGRAM

www.avenview.com Page

4. pANEl DESCRIpTION

4.1 FRONT PANEL (Sender, HDM4K-200-EMIX-S)

1. LED Light: Green light indicates an active

connection.

2. HDMI IN

4.2 REAR PANEL (Sender, FO-HDM4K-200-EMIX-S)

1. LAN: Connect Cat 5/6 For media

streaming linking to Receiver

2. 5V 2A Power Supply Jack

www.avenview.com Page

4.3 FRONT PANEL (Receiver, FO-HDM4K-200-EMIX-R)

4.4 REAR PANEL (Receiver, FO-HDM4K-200-EMIX-R)

1. LED Light: Green light indicates an active

connection.

2. HDMI OUT

1. LAN: Connect Cat 5/6 For media streaming

linking to Receiver

2. 5V 2A Power Supply Jack
