Extruder Fans Replacement

SOURCE:

https://support.zortrax.com/extruder-fans-replacement/

page 1 / 35

Table Of Content

Unloading the Material 5

Unplugging the Power Cable 6

Material Guide Removal 7

Unplugging the Extruder Cable 8

Hotend Removal 9

Heater and Thermocouple Removal (from the Hotend) 10

Unplugging all Cables from the Extruder PCB 11

Unscrewing the Extruder PCB 12

Extruder Lower Printed Cover Removal 13

Heater and Thermocouple Removal (from the Extruder) 14

Extruder Upper Fan Replacement 15

Extruder Upper Fan Cable Removal 15

Unscrewing the Extruder Upper Fan 15

Extruder Upper Fan Removal 15

Extruder Upper Fan Assembly, part 1 15

Securing the Extruder Upper Fan 15

Extruder Upper Fan Assembly, part 2 15

Extruder Lower Fan Replacement 20

Extruder Lower Fan Cable Removal 20

Unscrewing the Extruder Lower Fan 20

Extruder Lower Fan Removal 20

Unscrewing the Extruder Lower Fan Shroud 20

Securing the Extruder Lower Fan Shroud 20

Extruder Lower Fan Assembly, part 1 20

Securing the Extruder Lower Fan 20

Extruder Lower Fan Assembly, part 2 20

Heater and Thermocouple Assembly (in the Extruder) 26

Extruder Lower Printed Cover Assembly 27

Extruder PCB Assembly 28

Plugging all Cables into the Extruder PCB 29

Heater and the Thermocouple Assembly (in the Hotend) 30

Hotend Assembly 32

Plugging the Extruder Cable 33

page 2 / 35

Material Guide Installation 34

Plugging the Power Cable 35

page 3 / 35

The extruder is equipped with two fans – upper and lower. The main role of the

extruder upper fan is to cool down the extruder, whereas the extruder lower fan

cools down each layer of the print. Therefore, if your model warps, melts, or you

can notice burn marks on its surface, you should check the extruder fans for

proper operation. The following manual presents how to replace both extruder

fans.

The following manual shows the M200 repair work. For the M300, these procedures are

the same.

page 4 / 35

Unloading the Material

From the menu choose “Material” and then “Unload the material” option. The extruder

should start to heat up automatically. Once the extruder is hot, the motor will start to

unload the material.

page 5 / 35

Unplugging the Power Cable

Turn off the printer and unplug the power cable. Wait about 15 minutes and let the

machine cool down.

page 6 / 35

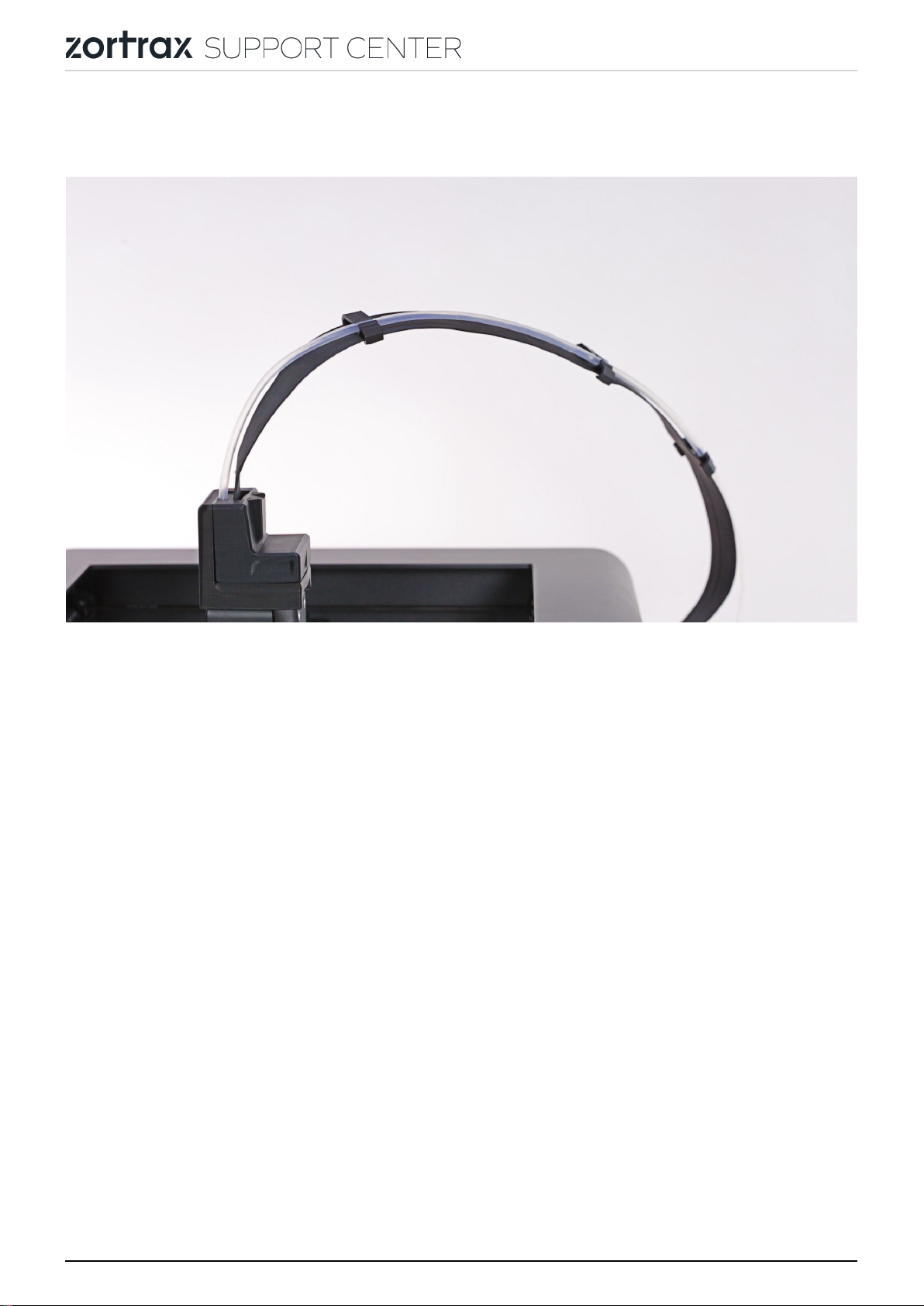

Material Guide Removal

Detach the material guide from the extruder cover. Next, separate the guide from the

extruder cable.

page 7 / 35

Unplugging the Extruder Cable

Detach the extruder upper printed cover and unplug the extruder cable.

page 8 / 35

Hotend Removal

With a 1.5mm Allen key loosen the two screws that secure the hotend and remove the

hotend from the extruder.

page 9 / 35

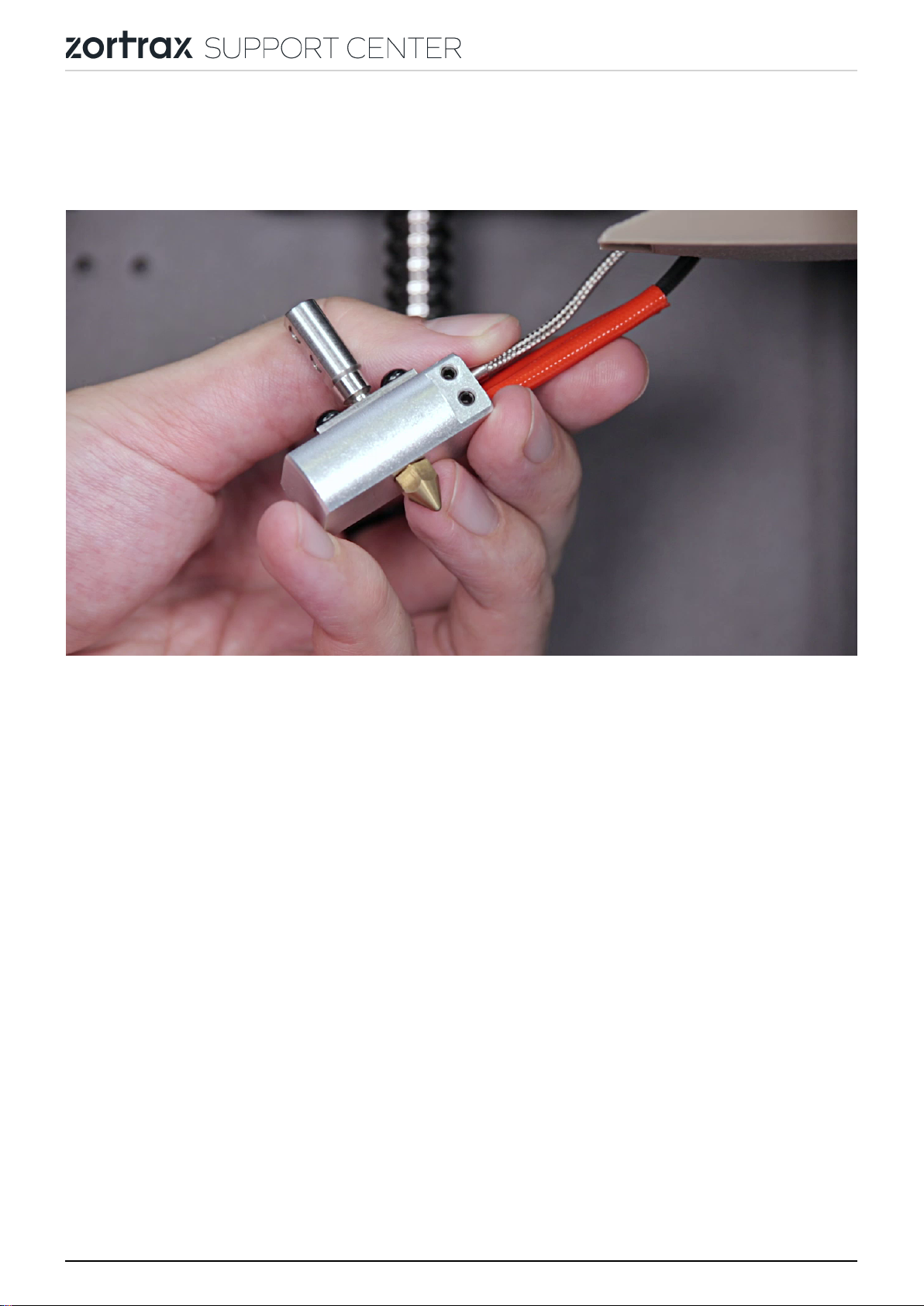

Heater and Thermocouple Removal (from the

Hotend)

With a 1.5mm Allen key loosen the two screws that secure the heater and thermocouple

in the hotend. Then remove the heater and thermocouple.

page 10 / 35
