Zortrax X/Y Manual de usuario

X/Y Axis Motor Replacement

SOURCE:

https://support.zortrax.com/xy-axis-motor-replacement/

page 1 / 12

Table Of Content

Unplugging the Power Cable 4

Unplugging the Motor Cable 5

Unscrewing the Axis Motor 6

Axis Motor Removal 7

Axis Motor Assembly, part 1 8

Axis Motor Assembly, part 2 9

Securing the Axis Motor 10

Plugging the Motor Cable 11

Plugging the Power Cable 12

page 2 / 12

The X/Y axis motor is responsible for the extruder’s movement along the guide

rails. Therefore, if the extruder in your printer does not move at all or it moves

with difficulties and makes unusual noises, or your models has shifted layers, at

first you should check if the short and long belts are tense and the screws on the

motor pulley and axes pulleys are tightened. More instructions on maintenance

work connected with axes can be found in this article. If carrying out maintenance

work does not help, the X/Y axis motor needs to be replaced. Follow the steps

from this manual to replace the motor.

The following manual shows the M200 repair work. For the M300, these procedures are

the same.

page 3 / 12

Unplugging the Power Cable

Turn off the printer and unplug the power cable.

page 4 / 12

Unplugging the Motor Cable

Unplug the motor cable.

page 5 / 12

Unscrewing the Axis Motor

Unscrew the four screws that secure the motor.

page 6 / 12

Axis Motor Removal

Remove the distance piece and remove the motor.

page 7 / 12

Axis Motor Assembly, part 1

Put the belt on the new motor pulley and install the motor distance piece.

page 8 / 12

Axis Motor Assembly, part 2

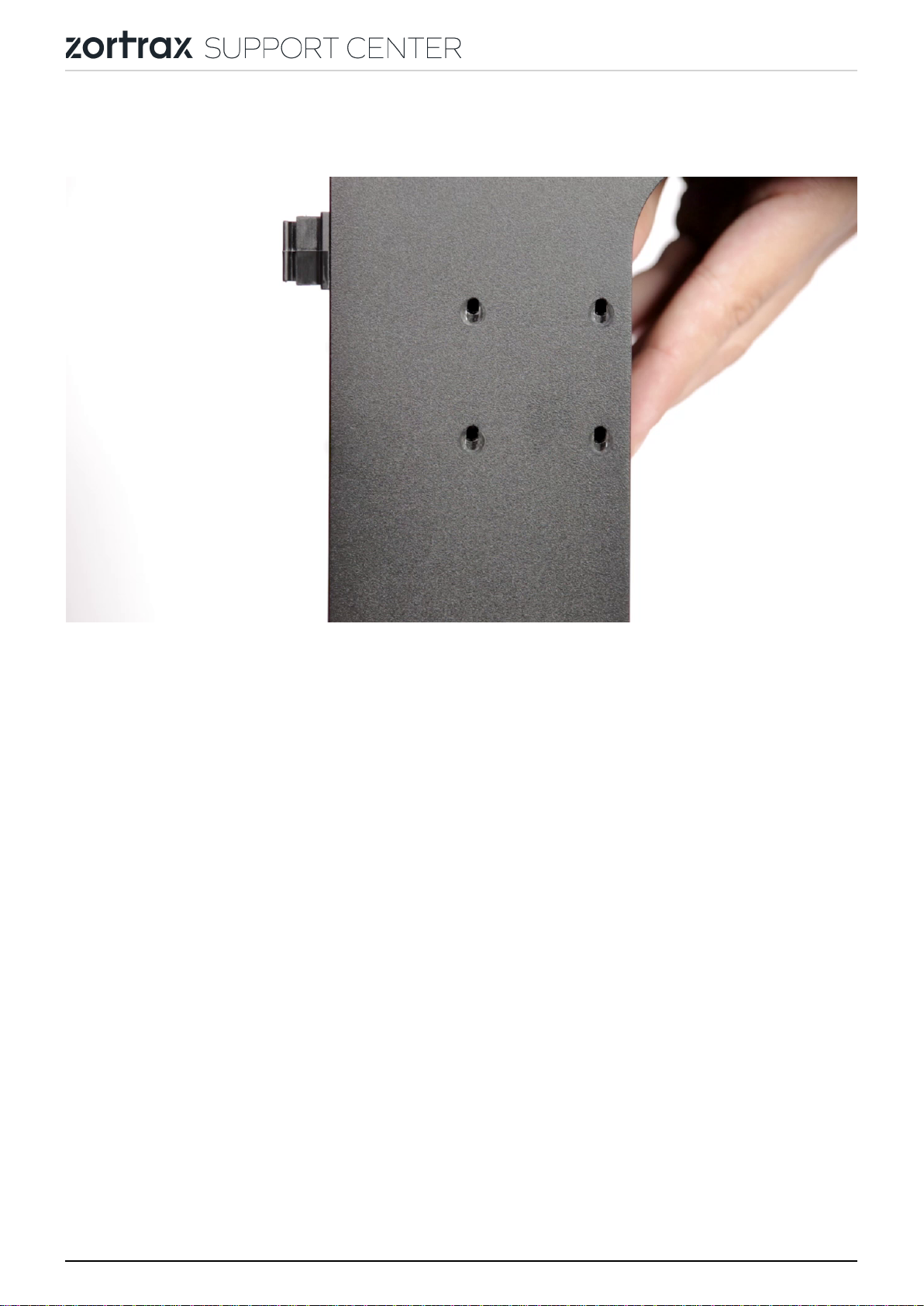

Insert the four screws into the holes in the housing and tighten them slightly.

page 9 / 12

Securing the Axis Motor

Press down the motor by hand to tense up the belt. Tighten the screws while the motor

is still being pressed down.

page 10 / 12
