Trojan SUMMIT 300 Guía de instalación
SUMMIT 300
TREADMILL
TREADMILL CARE INSTRUCTIONS
AND ASSEMBLY MANUAL
TROJAN
MY SPACE MY TIME
®
#1
HOME
FITNESS
SOUTH AFRICA’S
SINCE
1981
CAUTION
READ ALL PRECAUTIONS AND
INSTRUCTIONS IN THIS MANUAL
BEFORE USING THIS EQUIPMENT
KEEP THIS MANUAL FOR
FUTURE REFERENCE
1 YEAR
warranty
CALL
0861 876526
0861 TROJAN
1563
INDEX PAGE
1. SAFETY INSTRUCTIONS 3
2. PRE ASSEMBLY CHECK LIST 4
3. HARDWARE LIST 5
4. ASSEMBLY STEPS 6
5. FOLDING INSTRUCTIONS 8
6. MAINTENANCE 9
7. GROUNDING INSTRUCTIONS 10
8. COMPUTER FUNCTIONS 11
9. FITNESSTIPS ANDTECHNIQUES 15
10. CONDITIONING GUIDELINES 16
11. WARM -UP AND COOL-DOWN 17
12. FREQUENTLY ASKED QUESTIONS 18
13. PARTS LIST 19
14. EXPLODED DRAWING 20
15. TROJAN 1YEAR LIMITEDWARRANTY 21
16. TROJAN REPAIRS PROCEDURE 23
1563-3
1.SAFETYINSTRUCTIONS
WARNING:
To reduce the risk of serious injury, read the following safety instructions before using theTROJAN SUMMIT 300
TREADMILL.
1.Use theTROJAN SUMMIT 300TREADMILL only on a level surface.
2.Keep children and pets away from this equipment at all times.
3.TheTROJAN SUMMIT 300TREADMILL should not be used by persons weighing more than 110kgs.
4.TheTROJAN SUMMIT 300TREADMILL should be used by only one person at a time.
5.Be careful to maintain your balance while using,mounting,dismounting,folding,unfolding or assembling theTROJAN
SUMMIT 300TREADMILL, loss of balance may result in a fall and serious bodily injury.
6.Use theTROJAN SUMMIT 300TREADMILL only as described in the manual.
7.Before using this equipment to exercise,always do stretching exercises to properly warm up.
8.Always make sure all bolts and nuts are tightened prior to each use.
WARNING
Before starting any exercise or conditioning program you should consult with your personal physician to see if you
require a complete physical exam.This is especially important if you are over the age of 35, have never exercised before,
are pregnant,or suffer from any illness.
1563-4
2.PREASSEMBLYCHECKLIST
Thank you for choosing theTROJAN SUMMIT 300TREADMILL.We take great pride in producing this quality product
and hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life to its fullest.
Yes,it’s a proven fact that a regular exercise program can improve your physical and mental health.Too often,our busy
lifestyles limit our time and opportunity to exercise.TROJAN SUMMIT 300TREADMILL provides a convenient and
simple method to begin your assault on getting your body in shape and achieving a healthier lifestyle.
Before reading further,please review the drawing below and familiarize yourself with the parts that are labeled.
• Read this manual carefully before using theTROJAN SUMMIT 300TREADMILL.
Handrail
Safety Clip
Up right
Consol
Rear End Cap
Frame
1563-5
3.HARDWARELIST
,7(0 'HVFULSWLRQ 4W\ ,7(0 'HVFULSWLRQ 4W\
$&RPSXWHU&RQVROH D $OOHQ %ROW 0[3[
%)UDPH E :DVKHU [[W
&8SULJKW/ F $OOHQ %ROW 0[3[
'8SULJKW5 G 6FUHZ0[3[
(3URWHFWLQJ&RYHU H 6,/,&21
)'HFRUDWLYH&RYHU/ I $OOHQ :UHQFK PP
*'HFRUDWLYH&RYHU5 J $OOHQ :UHQFK PP
++DQGUDLO7XEH K 6DIHW\.H\&OLS
,Cpuumf! L 036RXQG&DEOH
˔
1563-6
4.ASSEMBLYSTEPS
STEP1
• Connect the Lower ControlWire of the Frame(B) to
the GuideThread of the Right Upright (D),then pull it
into the Upright (D),and secure with wire ring, before
inserting into the Upright.
• Place the Uprights(C,D) on the Frame(B) and secure
with Allen Bolt(a) andWasher(b)
NOTE:
In order to prevent any injury,two persons are required to
assemble the product.Please be aware that one person must
hold the upright tubes during the assembly process, to prevent
the tubes from falling.
CAUTION:
Ensure that cables are not damaged during assembly or
when tightening screws.
STEP2
• Insert the Side Covers (F, G) onto the Frame and tighten
with Screw (d)
• Pull the ControlWire to the outlet of the Upright.
C
D
ab
ab
ab
a
b
*
)
1563-7
ASSEMBLYSTEPS

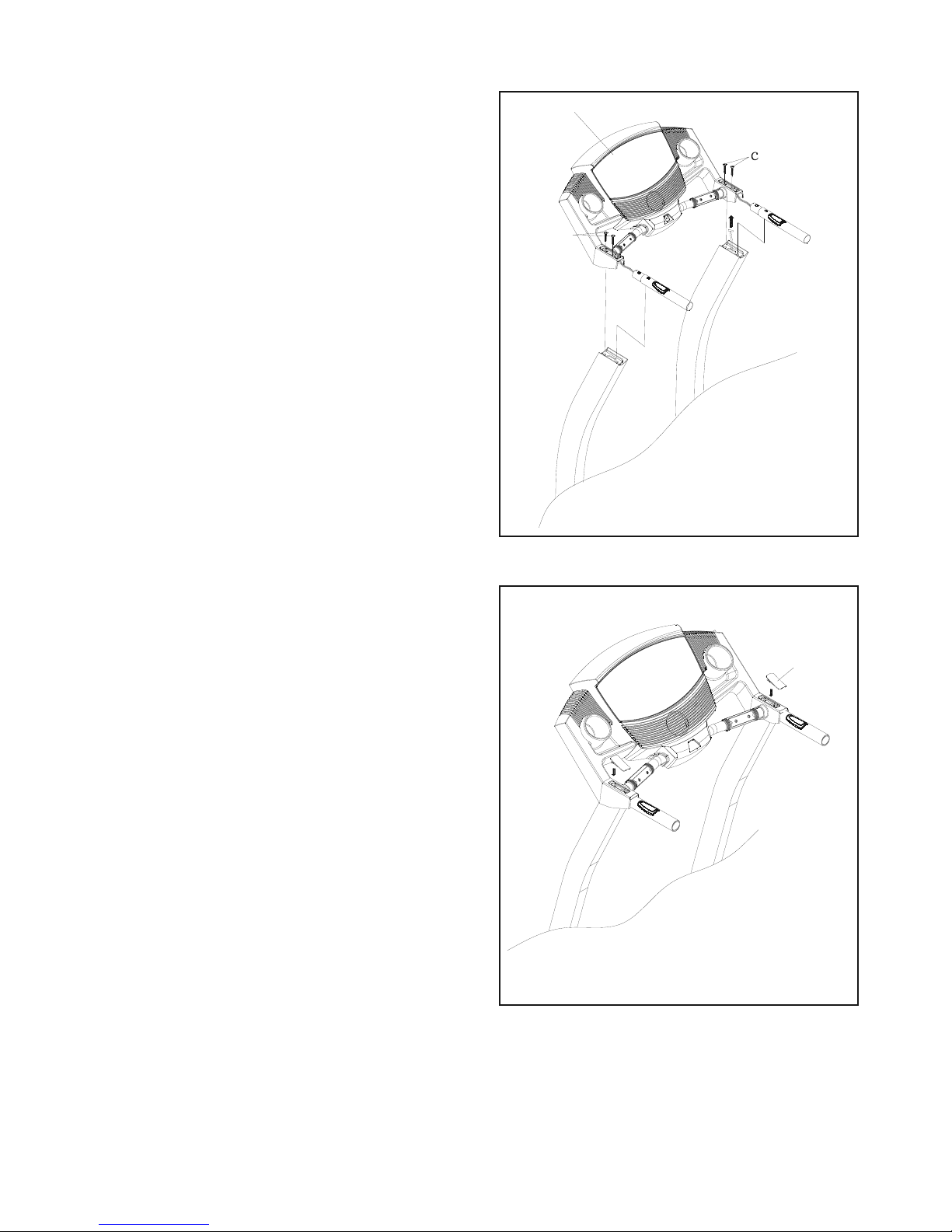

STEP3
• Connect the ControlWires of the frame with the Con-
trolWires in the Computer Consol (A)
• Place the Computer Consol (A) on the Upright. and
tighten with Allen Bolt (c)
NOTE:
In order to prevent any injury,two persons are required to
assemble the product.Please be aware that one person must
hold the upright tubes during the assembly process, to prevent
the tubes from falling.
CAUTION:
Ensure that cables are not damaged during assembly or
when tightening screws.
STEP4
• Cap the Protecting Cover (E) on the Handrails.
B
d
F
1563-8
5.FOLDINGINSTRUCTIONS
FOLDING DECK CYLINDER
Note:The Cylinder is pressurised,so extra care must be taken to avoid
contact with other objects. Note:If you damage the Cylinder,usage
could be affected.
FOLDING MECHANISM
• This treadmill can be folded away for storage.When storing the
treadmill,all power must be off. Fold the running deck
towards the console.
• Ensure that the footplate locks onto the tube of the frame.
• To open, step on the footplate to release the tube. Slowly pull
down the running deck and allow it to automatically move
in the direction shown.
• Never stand underneath the deck.
Warnings
1.To prevent any injuries,ensure that no children are near to the
machine when storing or unpacking the machine.
2.Should you want to move the machine,ensure it is locked in its
storage position,hold machine on rear adjustment boxes,and tilt
slowly onto its roller wheels
1563-9
6.MAINTENANCE
RUNNING BELT NOT CENTERED
• If the running belt is not centered on the tail roller and it’s either
too far left or right, please turn off the treadmill first.
• Use 6mm AllenWrench shaped wrench to loosen bolts within
rear adjusting boxes.
• If the running belt is tracking to the left,adjust belt to track to the
right.Tighten the left tail roller Allen screw by turning quarter
clockwise.The same procedure applies if the belt is pulling right
i.e.tighten right tail roller.Power on the treadmill after
the adjustment.If it has no obvious effect,just repeat the steps
above.
• Do not use the treadmill until the running belt returns
to the center position.Should tracking occur please use the
above mentioned steps to rectify the issue.
• Please note:The running belt might not stay precisely in the
center, but might move slightly to either the right or left side.
• When aligned properly the belt wont scratch the side rails.
LUBRICATION
• It is strongly suggested that you follow the timetable below to
apply lubrication to the running deck.
• Firstly use the 6mm wrench to loosen the bolts within the rear
adjusting boxes, pull up the running belt and evenly apply
lubrication on the center deck.
• Then adjust the belt to the center of deck and following the
above step to tighten the belt.
• Please run treadmill at low speed,after all bolts are secure,to
allow equal distribution of the lubricating oil.
• Please follow the above steps to lubricate the belt if you
experience any skid phenomena.
LUBRICATIONTIMETABLE
Speed SuggestedTime
1~6 km 1 year
6~12 km 6 months
12~16 km 3 months
1563-10
7.GROUNDINGINSTRUCTIONS
This product must be grounded.If malfunction or breakdown occurs,grounding provides a path of least resistance
for electric current to reduce the risk of electric shock.This product is equipped with a cord having an equipment-
grounding conductor and a grounding plug.The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
DANGER – Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check
with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded.Do not
modify the plug provided with the product - if it will not fit the outlet;have a proper outlet installed by a qualified
electrician.
This product is for use on a nominal 220~240-volt circuit and has a grounding plug that looks like the plug illustrated
in the figure.Make sure that the product is connected to an outlet having the same configuration as the plug.No
adapter should be used with this product.
