Trojan PEGASUS 400 Manual de usuario

10308

Side rail

10308

NO. DESCRIPTION SPECIFICATION Qty

1 Console Overlay 1

2 Console Board 335.4 x 244 x 13 mm 1

3 Console Display Board 1

4 Console Button Board 1

5 Cross Head Screw ST3 x 8 mm 51

6 Speaker Cable 700 mm x 2 P 2

7 Console Plastic Cover 430 x 438.4 x 106 mm 1

8 Console Right Plastic Cover 410.4 x 218 x 128.9 mm 1

9 Console Left Plastic Cover 410.4 x 218 x 128.9 mm 1

10 Console Left Plastic Lower Cover 308.2 x 160 x 1.6 mm 1

11 Console Right Plastic Lower Cover 308.2 x 160 x 1.6 mm 1

12 Console Lower Plastic Cover 430 x 438.4 x 35.5 mm 1

13 Cross Head Screw ST4.2 x 13 mm 23

14 Console Bracket 1

15 Cross Head Screw 3 x 10 mm 4

16 INCLINE Key 1

17 Handrail Rubber 30 x 60 mm 2

18 SPEED Key 1

19 Bolt Plastic 6 x 6 mm 4

20 Cable 1

21 Easy Key Cable 1100 mm x 5 P 2

22 End Cap 30 x 60 x T1.5 tube 2

23 Left Upright 1

24 Right Upright 1

25 Cable 1900 mm x 10 P 1

26 Washer Ø8 mm 2

27 Cup Head Hex Screw M8 x 45 mm 3

28 Flat Washer Ø8 mm 29

29 Cup Head Hex Screw M8 x 16 mm 2

30 Hex Bolt M10 x 120 mm 2

31 Saddle Washer Ø10 mm 2

32 Hex Bolt M10 x 60 mm 4

10308

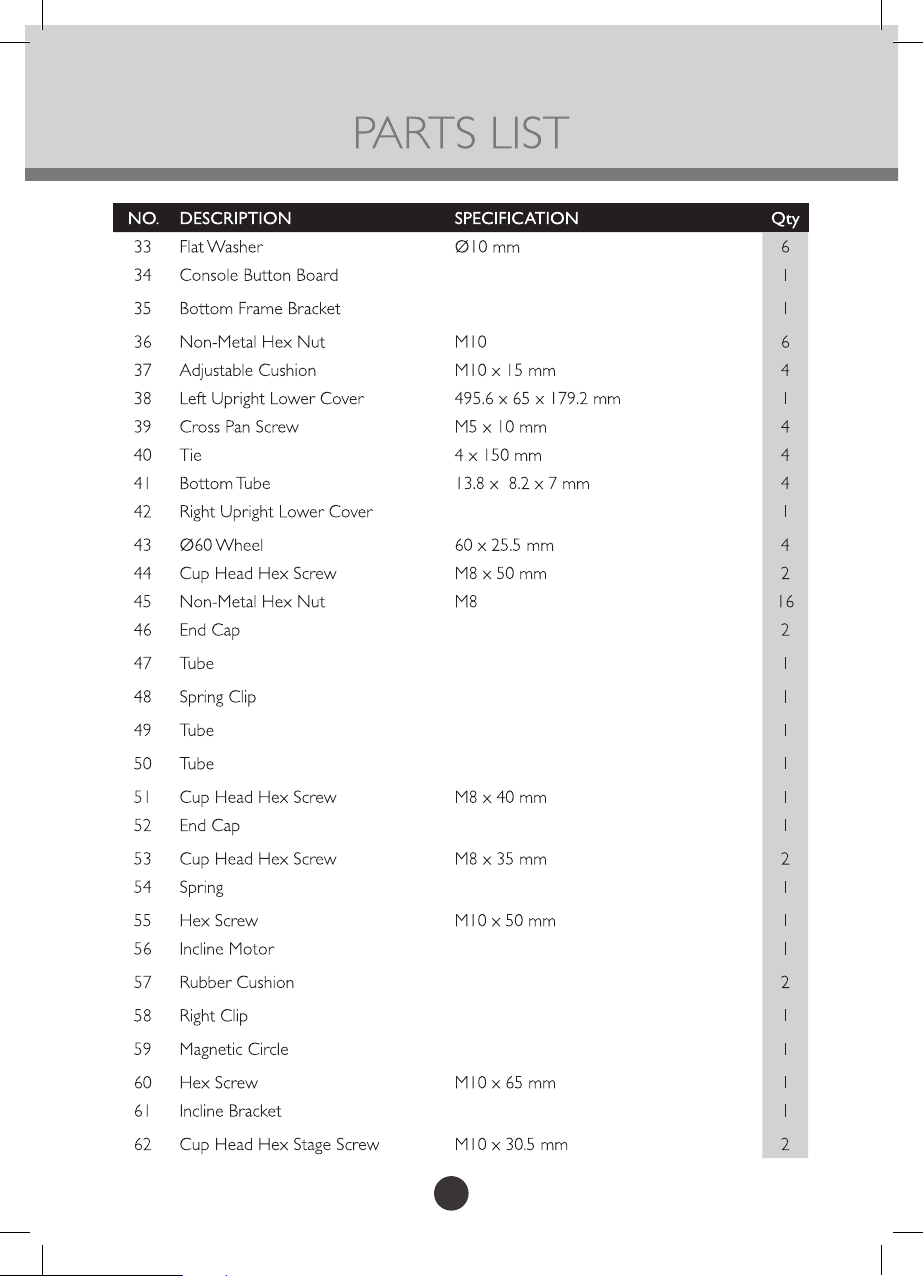

NO. DESCRIPTION SPECIFICATION Qty

33 Flat Washer Ø10 mm 6

34 Console Button Board 1

35 Bottom Frame Bracket 1

36 Non-Metal Hex Nut M10 6

37 Adjustable Cushion M10 x 15 mm 4

38 Left Upright Lower Cover 495.6 x 65 x 179.2 mm 1

39 Cross Pan Screw M5 x 10 mm 4

40 Tie 4 x 150 mm 4

41 Bottom Tube 13.8 x 8.2 x 7 mm 4

42 Right Upright Lower Cover 1

43 Ø60 Wheel 60 x 25.5 mm 4

44 Cup Head Hex Screw M8 x 50 mm 2

45 Non-Metal Hex Nut M8 16

46 End Cap 2

47 Tube 1

48 Spring Clip 1

49 Tube 1

50 Tube 1

51 Cup Head Hex Screw M8 x 40 mm 1

52 End Cap 1

53 Cup Head Hex Screw M8 x 35 mm 2

54 Spring 1

55 Hex Screw M10 x 50 mm 1

56 Incline Motor 1

57 Rubber Cushion 2

58 Right Clip 1

59 Magnetic Circle 1

60 Hex Screw M10 x 65 mm 1

61 Incline Bracket 1

62 Cup Head Hex Stage Screw M10 x 30.5 mm 2

10308

NO. DESCRIPTION SPECIFICATION Qty

63 Cup Head Hex Stage Screw M10 x 28 mm 2

64 Motor Cover 1

65 Motor 1

66 Motor Shock Plate 1 1

67 Motor Bracket 1

68 Screw M8 x 16 mm 4

69 Hex Screw M8 x 40 mm 1

70 Screw M8 x 12 mm 2

71 Motor Shock Plate 2 1

72 V-Belt 1

73 Running Belt 1

74 Lower Controller 1

75 Screw M4 x 16 mm 2

76 Screw M4 x 8 mm 11

77 Filter Plate 1

78 Transformer Plate 1

79 Running Deck 1

80 Cross Head Bolt M8 x 35 mm Full Tooth 4

81 Screw M6 x 30 mm 8

82 Cross Head Bolt M8 x 40 mm Full Tooth 4

83 Flat Washer Ø6 mm 8

84 Non-Metal Hex Nut M6 8

85 Glue EVA 20 x 540 x T2.0 2

86 Frame Tube 2

87 Side Rail 1330 x 85 x 33.5 mm 2

88 30*60 End Cap 30 x 60 x 1.5 mm 2

89 Power Cord 1

90 On/Off Switch 1

91 Tie 6N-4 1

92 Cross Pan Screw ST4.2 x 13 mm 12

93 Speed Sensor 1

94 Running Body 1

95 Hex Screw M8 x 55 mm Half Tooth 1

10308

NO. DESCRIPTION SPECIFICATION Qty

96 Running Deck Cushion 45 x 33 x T3.0 4

97 Rubber Cushion 4

98 Cup Head Hex Screw M8 x 40 Full Tooth 3

99 Hex Screw M8 x 80 Full Tooth 2

100 Left End Cap 1

101 Right End Cap 1

102 Cross Screw ST4.2 x 13 mm 32

103 Rear Roller Ø46 x 605 mm 1

104 Motor Lower Cover T2.3 x 375 x 660 mm 1

105 Cross Screw ST4.2 x 13 mm 16

106 Safety Key 1

107 Safety Key Board 1

108 Speaker Board Ø48 x 612 mm 1

109 Music Board 1

110 Music Speaker 5W / 8Ω 2

111 Filter 1

112 Reactor 1

113 Power Cable 100 / 250 mm 1

114 Power Cable 200 mm 1

115 Power Cable (Red) 250 mm 1

116 Power Cable (Black) 250 mm 1

117 EVA Glue 1300 x 20 x 2.0 mm 2

118 Front Roller 1

119 MP3 Cable
