Trojan STAMINA 300 Guía de instalación

INDEX

•TROJAN 1YEAR LIMITEDWARRANTY 3

• PRODUCT OVERVIEW 5

• SAFETY INSTRUCTIONS 6

• PRE-ASSEMBLY CHECKLIST 7

• ASSEMBLY STEPS 8

• COMPUTER INSTRUCTIONS 10

• MAINTENANCE 13

• FITNESSTIPS ANDTECHNIQUES 16

• FREQUENTLYASKED QUESTIONS 19

• PARTS LIST 20

• EXPLODEDVIEW 22

• REPAIRS PROCEDURE 23

TROJAN1YEARLIMITEDWARRANTY

Masstores (Pty)Ltd (“the Supplier) hereby provides a limited warranty to the original purchaser of this product (“the

Consumer”) that this product will be free of manufacturing defects in materials and workmanship which under normal,

personal,family or household use (commercial use expressly excluded) manifest themselves within the following stipu-

lated periods from the date of purchase:

Exclusions

The warranty does not include and will not be construed to cover products damaged as a result of disaster;misuse;

commercial use;use not in accordance with the written instructions included with the product;abuse;and/or any

non-authorized modiﬁcation of the product.It also does not cover replacement of the light bulbs and other

expendables.All demo models carry a 3 month warranty.

Waiver

The warranty provided herein and the obligations of the Supplier are in lieu of,and the Customer waives,all other

warranties,guarantees,conditions or liabilities,express or implied,arising by law or otherwise,including without

limitation,any obligation of the Supplier in respect of any injury,loss or damage (direct,indirect or consequential)

arising out of the use of,or inability to use, this product and whether or not occasioned by the Supplier’s negligence

or any act or omission on its part.

Claims under 1 Year Limited Warranty

Within 7 days of purchase:

The faulty product will be exchanged at the store (provided that the product is in its original packaging with

all accessories).

After 7 days but within 3 months of purchase:

The Supplier may in its sole discretion either replace or repair the product.

After 3 months but within 1 year of purchase:

The Supplier may in its sole discretion either replace or repair the product.The following shall not be covered:

• Treadmills:Running Decks,Running Belts,and Rubber Arm covers

• Exercise Bikes/Spinners:Pedals, Cranks, and RubberArm covers

• CrossTrainers/ Ellipticals/ Steppers:Foot Rests, Cranks,Shocks,and Rubber/FoamArm covers

• Home Gyms:Pulleys,Cables,Seats and Padding

• Trampolines:Springs,Mats,and Covers

xxxx-4

PROOFOFPURCHASE

Any claim in terms of the warranty must be supported by a proof of purchase or a warranty number.

Warranty numbers can be issued through contacting our call centre on 0861 Trojan (0861 876 526),

or online at www.trojanhealth.co.za. If such proof is not available, then notwithstanding anything to the

contrary herein,the service agent’s prevailing charges for services/repairs including call-out and/or spares will

be payable by the Consumer upon collection or delivery of the repaired product.

After the ﬁrst 7 days the Consumer may not return the product to the store.

The Consumer shall phone theTrojan hotline on 0861 Trojan (0861 876 526) and the Supplier’s authorized agent will

at its discretion either repair the item at the Consumer’s residence or collect and repair the item at their premises.

During the warranty period the product may only be serviced and/or repaired by the Supplier’s duly

authorized agent(s).

Masstores (Pty) Ltd

16 Peltier Drive,Sunninghill

Sandton, Johannseburg,South Africa

ATTACH RECEIPT

CLIENT DETAILS

NAME:

EMAIL: CELL:

TEL(H): TEL(W) FAX

ADDRESS:

PRODUCT DETAILS

DATE OF PURCHASE: dd / mm / yy SERIAL NUMBER: TILL SLIP NUMBER:

DISCRIPTION OF PRODUCT

BRANCH PURCHASED AT

0861 TROJAN (0861 876526) WWW.TROJANHEALTH.CO.ZA

TROJAN

MY SPACE MY TIME

xxxx-5

PRODUCTOVERVIEW

Thank you for choosing theTROJAN STAMINA 300TREADMILLWe take great pride in producing this quality product

and hope it will provide many hours of quality exercise to make you feel better,look better and enjoy life to its fullest.

Yes,it’s a proven fact that a regular exercise program can improve your physical and mental health.Too often, our busy

lifestyles limit our time and opportunity to exercise.TheTROJAN STAMINA 300TREADMILL provides a convenient and

simple method to begin your assault on getting your body in shape and achieving a healthier lifestyle.

Before reading further,please review the drawing below and familiarize yourself with the parts that are labeled.

• Read this manual carefully before using theTROJAN STAMINA 300TREADMILL.

Computer (21)

Safety Key/Clip (44)

UprightTube (5)

Rear End Cap (34)

Rear Stabilizer (95)

Base Frame (2)

Hand Pulse Seneor (28)

Front End Cap (25)

Power Switch (14)

xxxx-6

SAFETYINSTRUCTION

WARNING:

Safety Instruction before using theTROJAN STAMINA 300TREADMILL.

To reduce the risk of serious injury,read the following.

1.Use theTROJAN STAMINA 300TREADMILL only on a level surface.

2.Keep children and pets away from this equipment at all times.

3.TheTROJAN STAMINA 300TREADMILL should not be used by persons weighing more than 110kgs.

4.TheTROJAN STAMINA 300TREADMILL should be used by only one person at a time.

5.Be careful to maintain your balance while using,mounting,dismounting,folding,unfolding or assembling theTROJAN

STAMINA 300TREADMILL, loss of balance may result in a fall and serious bodily injury.

6.Use theTROJAN STAMINA 300TREADMILL only as described in the manual.

7.Before using this equipment to exercise,always do stretching exercises to properly warm up.

8. Always make sure all bolts and nuts are tightened prior to each use.

WARNING

Before starting any exercise or conditioning program you should consult with your personal physician to see if you

require a complete physical exam.This is especially important if you are over the age of 35,have never exercised before,

are pregnant,or suffer from any illness.

xxxx-7

PRE-ASSEMBLYCHECK LIST

No. Description Qty

111

Phillips Head Screw (M3x18m/m)

Button Head Socket Screw

(5/16”x15m/m)

100

FlatWasher (ø5/16”x ø18 x 1.5T)

101

CurvedWasher (ø5/16” x ø23 x 1.5T)

No. Description Qty

104

Lubricant

Safety Key

102

Combination AllenWrench & Phillips

Head Screw driver (M5)

103

AllenWrench (M6)

NOTE :

The described parts are all you need to assemble this machine.

Before starting assembly, please check the hardware packing to make sure they are included.

xxxx-8

ASSEMBLYSTEP

Two persons are required to ﬁnish the assembly steps.

(Caution!! Please follow exactly the assembly steps below to aviod injury .)

STEP1

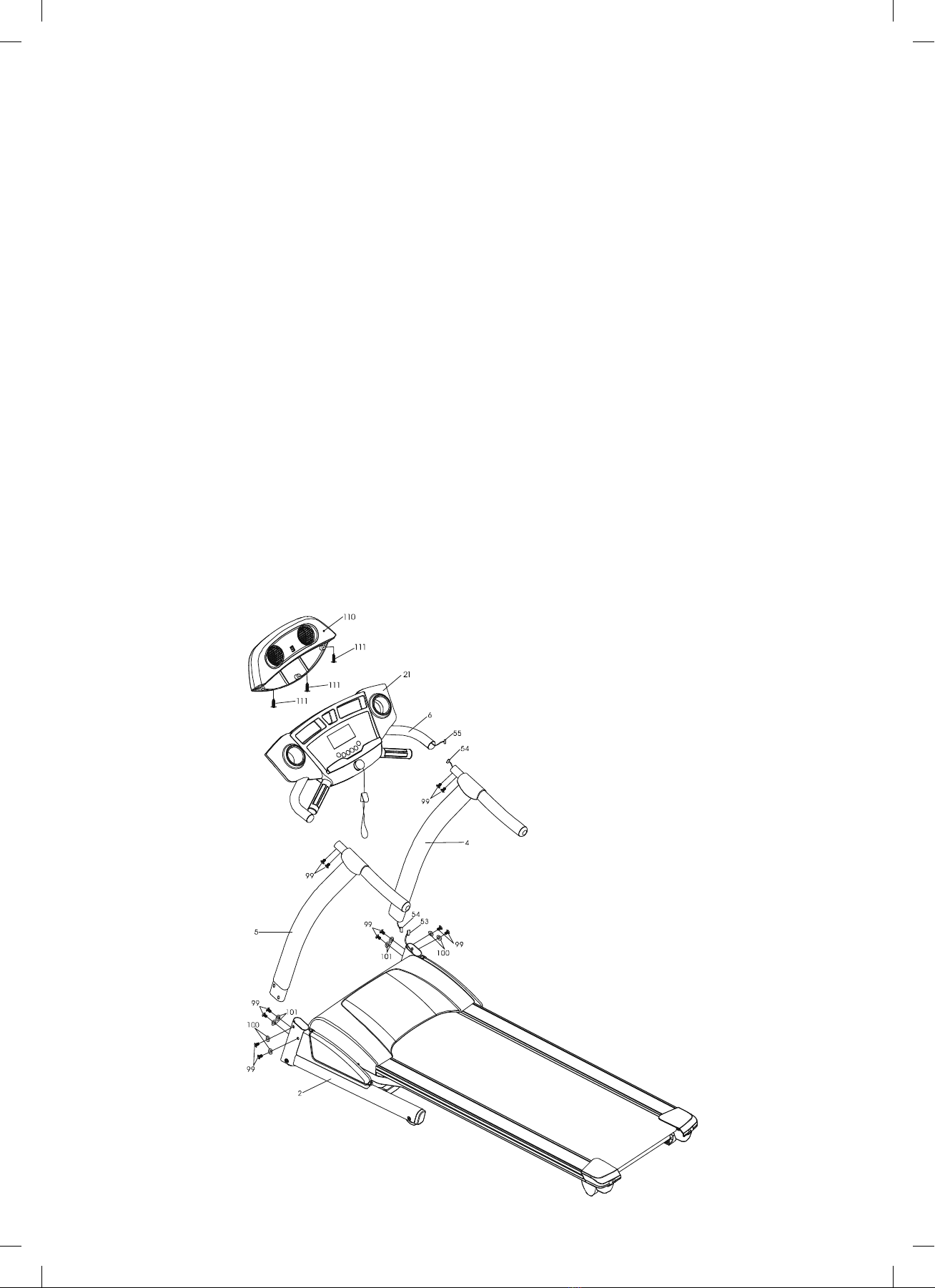

Connect Computer Cable (Lower) (53) with Computer Cable (Middle) (54).

STEP2

Tightly fasten the Right and Left Handrails (4,5) into the Frame Base (2) with eight (5/16”x15m/m) Button Head Socket

Screws (99),four (5/16”x 18 x 1.5T) FlatWashers (100) and four (5/16”x 23 x 1.5T) CurveWashers (101) by using the

Combination (M5) AllenWrench & Phillips Head Screwdriver (102).

STEP3

Connect Computer Cable (Middle) (54) with Computer cable (Upper) (55).

STEP4

Install the Console Support (6) into the Right and Left Handrails (4,5) with four (5/16”x l5m/m) Button Head Socket

Screws (99) by using Combination (M5)AllenWrench & Phillips Head Screwdriver (102).

STEP5

Connect the Computer Cable of FanAssembly (110) with Console.

Install the Fan Assembly (110) onto Console (21) with three (M3 x 18m/m) Phillips Head Screws (111) by the

Combination (M5) AllenWrench & Phillips Head Screwdriver (102).

PLEASE LOCKALL COMPONENTS UPAFTERTHEACCESSSORIES HAVE BEENASSEMBLED.

xxxx-9

GROUNDINGINSTRUCTIONS

The products must be grounded ﬁrst. If a malfunction or breakdown occurs,grounding will provide a

path of least resistance for electric current to reduce the risk of electric shock.

The product is equipped with a cord having an equipment-grounding conductor and a grounding plug.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance

with all local codes and ordinances.

Danger – Improper connection of the equipment-grounding conductor can result in a risk of electric shock.

Check with a qualiﬁed electrician or serviceman if you are in doubt as to whether the products are properly

grounded.Do not modify the plug provided with the product – if it will not ﬁt the outlet,have a proper outlet install

by a qualiﬁed electrician.

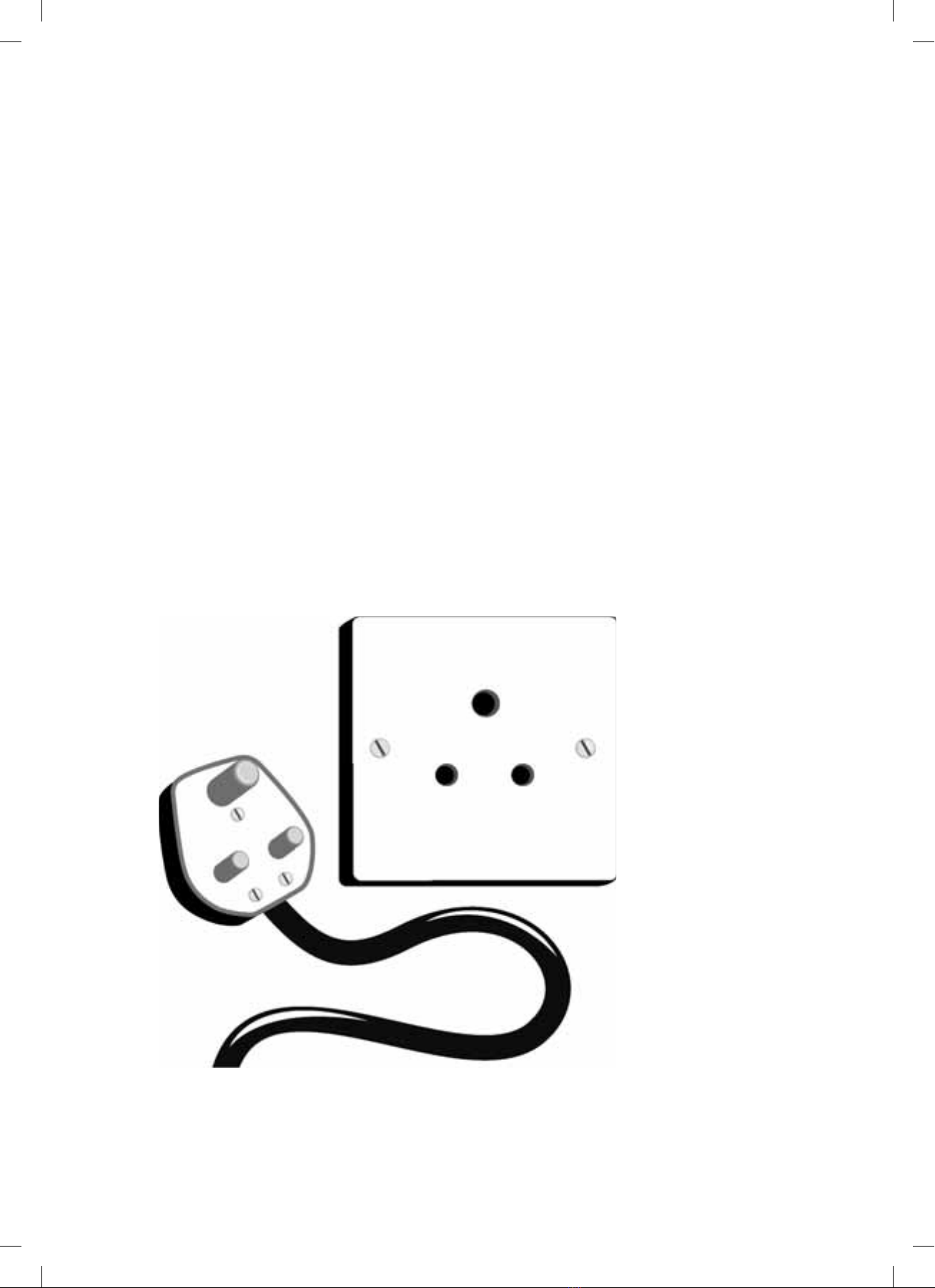

The products is for use on nominal 220-240 volt and has a grounding plug that looks like the plug illustrated in the ﬁgure

below .Make sure that the product is connected to an outlet having the same conﬁguration as the plug.

There is no need to use any adapter for this product.

xxxx-10

COMPUTERFUNCTION

GETTING STARTED :

Power the treadmill on by plugging it into an appropriate wall outlet,then turn on the power switch located at the front

of the treadmill below the motor hood.Ensure that the safety key is installed,as the treadmill will not power on without

it.

WINDOW DISPLAY

SPEED Displays the current running speed from lKmh- l6Kmh (lMph-lOMph).

TIME Accumulates total workout time from 00:00 to 99:59.

DISTANCE Accumulates total workout distance from 0.00 to 99.99Kmh (Mph).

CALORIES Accumulates the user’s calorie consumption during exercise. Max.Value is 999.9 calories.

Note:

This is only a rough guide used for comparison of different exercise sessions,which cannot be used for medical purposes.

PULSE/INCLINE Display your current heart rate in beats per minute during workout from 40 to 240 or displays

your current workout elevation from 0 to 10.

FUNCTION BUTTON

UP Press UP button to increase elevation position.

DOWN Press DOWN button to decrease elevation position.

MODE Press MODE button to display single parameter or all parameters.The latter rotates exercising data

every 5 seconds

ST/SP Press ST/SP button to start or stop training.

FAST Press FAST button to increase your speed,each increment is 0.1 km (0.1Mph).

SLOW Press SLOW button to decrease your speed,each decrement is 0.1 km (0.1 Mph).

SAFETY KEY Attach the safety key in its position to power on the computer.When safety key is pulled away

from its position,the computer will shut down automatically.
