Trojan IGNITE 360 Manual de usuario

USER MANUAL

IGNITE 360

TREADMILL LEG WORKOUT CARDIO

Visit facebook.com/trojanhealth

www.trojanhealth.co.za

www.instagram.com/trojanhealth

CAUTION

READ ALL PRECAUTIONS AND

INSTRUCTIONS IN THIS MANUAL

BEFORE USING THIS EQUIPMENT.

KEEP THIS MANUAL FOR

FUTURE REFERENCE.

INDEX

• Important Safety Instructions ________________________________ 3

• Pre Assembly Check List _____________________________________ 5

• Parts List ___________________________________________________ 6

• Exploded Drawing ___________________________________________ 8

• Assembly Steps _____________________________________________ 9

• Console Functions ___________________________________________ 10

• Exercise Instructions ________________________________________ 16

• Fitness Tips & Techniques ____________________________________ 18

• Conditioning Guidelines ______________________________________ 19

• Warm Up & Cool Down _______________________________________ 20

• Maintenance ________________________________________________ 21

• Troubleshooting _____________________________________________ 23

• 2 Year Limited Warranty ______________________________________ 24

• Repairs Procedure ___________________________________________ 25

IMPORTANT SAFETY INSTRUCTIONS

It is the sole responsibility of the purchaser of Trojan products to read the owner’s manual, warning labels and

instruct all individuals, on proper usage of the equipment. Understanding each and every warning to the fullest

is important. If any of these instructions or warnings are unclear please contact Trojan Customer Services on

0861 TROJAN (0861 876526), within the Republic of South Africa. Customers residing outside South Africa

can contact us on +27 10 206 4405.

The equipment is only intended for home use and is not intended for commercial, institutional and/or studio

facilities use.

Contact Trojan with any questions regarding this classication. It is recommended that all users of Trojan be

informed of the following information prior to use.

HEALTH WARNING

• Before starting any exercise or conditioning program you should consult with your personal physician to

see if you require a complete physical exam. This is especially important if you are inactive, pregnant or

suffer from any illness.

• If at any time during exercise you feel faint, dizzy or experience pain, stop exercising immediately and

consult your physician.

• To avoid muscular pain and strain, begin each workout by stretching and warming up and end each session

by cooling down and stretching.

INSTALLATION

Trojan recommends that all equipment:

• Be secured to or set up on a solid, level surface to stabilise and eliminate rocking or tipping over

during training.

• Be set up inside your home away from moisture and dust (the equipment is not designed for outdoor use).

• Be set up with sufcient ventilation to ensure proper operation.

• Be set up with sufcient space around the equipment so that all exercises can be completed safely. It is

recommended that there should be at least 1 m of space around the equipment where access is required

to exercise.

PROPER USAGE

• Do not use the equipment in any way other than as designed or intended by the manufacturer. It is

imperative that Trojan equipment is used properly to avoid injury.

• Injuries may result from exercising improperly or excessively.

• Your Trojan equipment should only be used by 1 person at a time.

• Be careful to maintain your balance while using, mounting, dismounting or assembling your Trojan

equipment to avoid injury.

• Servicing other than the procedures in this manual should be performed by an authorised service

representative only.

ACCESS CONTROL

• Trojan recommends that all tness equipment be used in a supervised area. It is recommended that

the equipment be located in an access controlled area. Control is the responsibility of the owner.

Keep children away from all equipment.

• Parents or other supervising adults must provide close supervision of children if the equipment is used

in the presence of children.

INSPECTION

• Do not use or permit use of any equipment that is damaged, or has worn or broken parts. For all Trojan

equipment use only replacement parts supplied by Trojan.

• Always make sure that all nuts and bolts are tightened prior to each use.

• Maintain labels and nameplates – do not remove labels for any reason. They contain

important information.

• Equipment maintenance – preventative maintenance is the key to smooth operating equipment. Please

ensure that you follow our maintenance tips to ensure the continued correct function of your

Trojan equipment.

• Before any use, examine all accessories approved for use with the Trojan equipment for damage or wear.

• Should your Trojan equipment appear damaged or worn, do not attempt to use or repair the

equipment yourself.

• Please contact our service department on 0861 TROJAN (0861 876526) to arrange a repair.

Customers residing outside South Africa can contact us on +27 10 206 4405.

OPERATING WARNINGS

• It is the purchaser’s responsibility to instruct all users as to the proper operating procedures of all

Trojan equipment.

• Keep children away from all moving parts. Parents must provide close supervision of children if the

equipment is used in the presence of children.

• Do not wear loose tting clothing or jewellery when using the equipment. It is also recommended that

users tie up long hair to avoid contact with moving parts.

• Ensure that anyone not using the equipment stays clear of the user, accessories and moving parts while

the machine is in operation.

USER WEIGHT LIMITATIONS

• This Trojan Ignite 360 Treadmill may not be used by persons weighing more than 130 kg.

SAVE THIS INSTRUCTION MANUAL FOR FUTURE USE AND REFERENCE.

If any of these instructions or warnings are unclear please contact Trojan Customer Services on

0861 TROJAN (0861 876526) within the Republic of South Africa or visit www.trojanhealth.co.za.

Customers residing outside South Africa can contact us on +27 10 206 4405.

IMPORTANT SAFETY INSTRUCTIONS

PRE ASSEMBLY CHECK LIST

Thank you for choosing the Trojan Ignite 360 Treadmill. We take great pride in producing this product and

hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life to its

fullest. Yes, it’s a proven fact that a regular exercise program can improve your physical and mental health. Too

often, our busy lifestyles limit our time and opportunity to exercise. The Trojan Ignite 360 Treadmill provides

a convenient and simple method to begin your assault on getting your body in shape and achieving a healthier

lifestyle. Before reading further, please review the drawing below and familiarise yourself with the parts that

are labelled.

Read this manual carefully before using the Trojan Ignite 360 Treadmill.

Console

Handgrip

Heart Rate

Sensor

Power

Switch

Side Rail

Running

Belt

Upright

Programs 25 Pre-set

Set-up Size 1830 mm (l) x 800 mm (w) x 1300 mm (h)

Running deck 1240 mm (l) x 547 mm (w)

User Weight 130 kg (maximum)

PARTS LIST

No. Description Qty

1 Bottom Frame 1 1

2 Bottom Frame 2 1

3 Incline Frame 1 1

4 Incline Frame 2 1

5 Left Upright 1

6 Right Upright 1

7 Left Upright Connector Steel 1

8 Right Upright Connector Steel 1

9 Meter Frame 1

10 Motor Mounting Steel 1

11 Up Down Steel Bar 1

12 Belt Guide 2

13 Binder (6N - 4) 1

14 Spring (Ø11.8 x Ø1.8 x 5 mm) 1

15 2500 Tube 7 (Ø13.8 x Ø8.2 x 7 mm) 4

16 2500 Tube 8 (Ø15.8 x Ø10.2 x 8.5 mm) 2

17 AC Output Wire (Red) (250 mm) 1

18 AC Input Wire (Black) (100 mm / 250 mm) 1

19 Spring Cable 1

20 Connect Wire For Quick Key (5P x 1100 mm) 2

21 Connect Wire For Keys (6P x 300 mm) 1

22 Speaker Cable (3P x 380 mm) 1

23 Motor Cover (T3.0 x 620 mm x 400 mm x

130 mm) 1

24 Foot Rail (1230 mm x 85 mm x 33.5 mm) 2

25 Foot Rail Insert Bar (T3.0 x 1230 mm x

24.9 mm) 2

26 Motor Back Cover (H30 x T1.8 x 610 mm x

380 mm) 1

27 Logo 1

28 Speed Sensor Wire (2P x 1100 mm) 1

No. Description Qty

29 Binder 3

30 Console Master Wire (4P x 900 mm) 1

31 Base Connect Wire (4P x 1900 mm) 1

32 Speaker Cable (2P x 700 mm) 2

33 Speaker Cable (2P x 270 mm) 2

34 Left Roller End Cap (126.8 mm x 99.8 mm x

91 mm) 1

35 Right Roller End Cap (126.8 mm x 99.8 mm

x 91 mm) 1

36 Platform Cushion (T3.0 x 45 mm x 33 mm) 4

37 Roller Wheel (Ø60 x 25 mm) 4

38 Tube Cover (30 mm x 60 mm x 1.5) 2

39 Guide Of Side Rail (Ø19 x 6.8 mm) 6

40 Rubber Cushion Nut (Ø30 x 28 mm x M8 /

15-17 mm) 4

41 Plastic Washer (T2.0 x Ø20 x Ø10.5) 2

42 Tube Cover (T1.5 x 30 mm x 30 mm) 2

43 Bottom Left Cover (495.6 mm x 65 mm x

179.2 mm) 1

44 Bottom Right Cover 495.6 mm x 65 mm x

179.2 mm 1

45 Foot Bumper (M10 / 15 mm x 15 mm) 4

46 Tube Cover (XG-107 – T2.0 x 40 mm x 80 mm) 2

47 Moving Part (Ø13 x 50 mm x 39.5 mm) 2

48 Motor Cushion 1 (T3.0 x 100 mm x 65 mm) 1

49 Motor Cushion 2 (T3.0 x 155 mm x 100 mm) 1

50 Running Board (T18 x 1240 mm x 547 mm) 1

51 Front Roller (Ø56 x 553 mm) 1

52 Rear Roller (Ø46 x 555 mm) 1

53 Running Belt (T1.8 x 2825 mm x 450 mm) 1

54 Air Shock (Ø22) 2

55 V Belt (210 mm) 1

56 Magnetic Ring (Ø31 x Ø19 x 13 mm) 1

PARTS LIST

No. Description Qty

57 Power Cord 1

58 Incline Motor 1

59 Main Motor 1

60 Switch 1

61 Rubber Stopper 1

62 Transformer 1

63 Controller 1

64 EVA Pastern (T1.0 x 8 x 1200 mm) 2

65 EVA Pastern (T2.0 x 20 x 1200 mm) 2

66 Safety Key 1

67 Flat Washer (Ø8) 34

68 (M8) Flat Washer (Ø8) 2

69 Hexagram Bolt (M10 x 120) 2

70 Hexagram Bolt (M10 x 50) 1

71 Hexagram Bolt (M8 x 40) 1

72 Hexagram Bolt (M10 x 75) 2

73 Hexagram Bolt (M10 x 65) 1

74 Hexagram Bolt (M10 x 60) 4

75 Hexagram Bolt (M10 x 55) 2

76 Screw (M8 x 45) 2

77 Screw (M8 x 16) 7

78 Screw (M8 x 20) 2

79 Screw (M8 x 25) 2

80 Screw (M8 x 50) 2

81 Screw (M8 x 40) 2

82 Screw (M8 x 80) 2

83 Screw (M8 x 55) 1

84 Screw (M8 x 12) 1

No. Description Qty

85 Screw (M8 x 16) 4

86 Cross Bolt (M8 x 25) 4

87 Cross Bolt (M8 x 35) 4

88 Cross Screw (M4 x 8) 7

89 Cross Screw (M5 x 10) 4

90 Cross Screw (ST4.2 x 13) 5

91 Flat Washer (M10) 2

92 Cross Screw (ST4.2 x 13) 26

93 Cross Screw (ST4.2 x 13) 4

94 Lock Nut (M10) 8

95 Lock Nut (M8) 18

96 Flat Washer (M10) 18

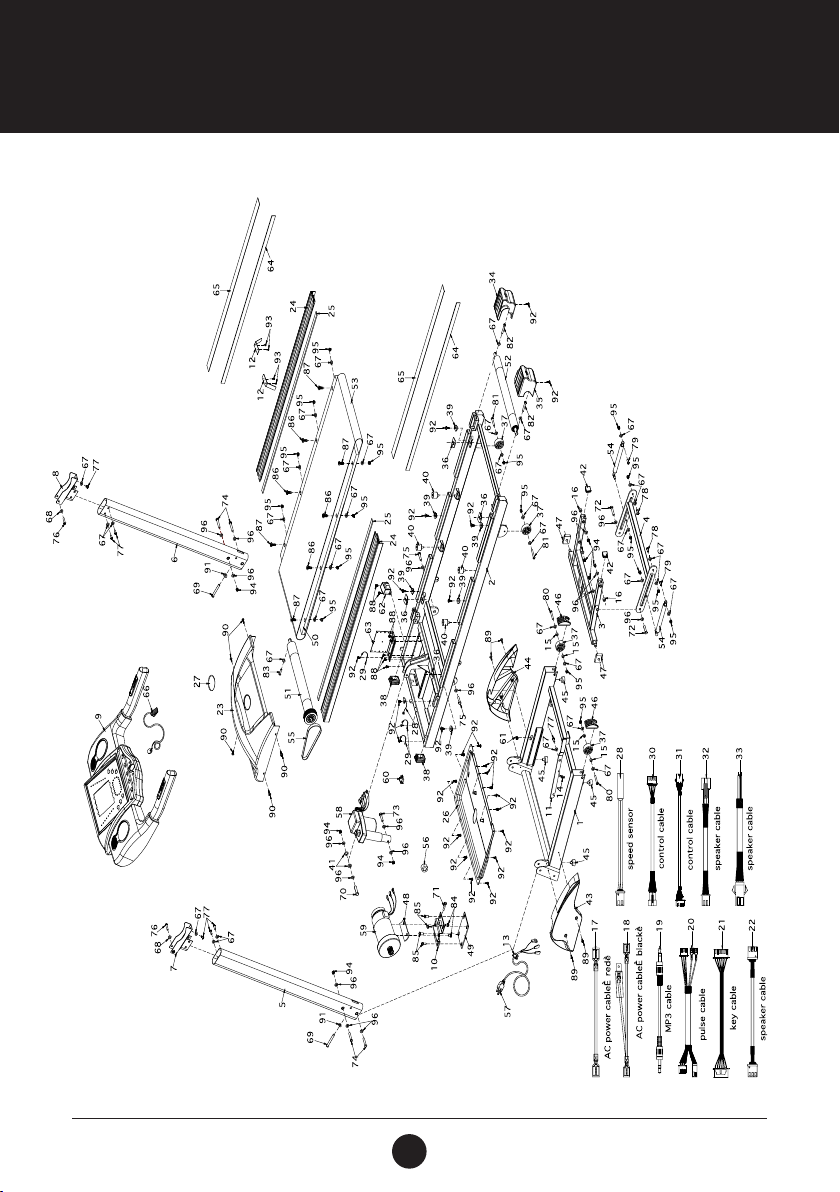

EXPLODED DRAWING

Bolt (M10 x 120) (2 PCS)

Washers (2 PCS)

Left Cover

Connection Wire

Bolt (M8 x 16) (2 PCS)

Washers (4 PCS)

Bolt (M10 x 65) (2 PCS)

Washers (2 PCS)

Pan Bolt (M5 x 10)

(4 PCS)

Right Cover

ASSEMBLY STEPS

1. PREPARATION

• Before assembling make sure that you will have enough space around the item.

• Use the supplied parts and hardware for the assembly.

• Before assembling please check whether all the required parts have been supplied as per the exploded

drawing on the opposite page.

Unpack the carton and place all the parts on the oor, carefully removing all packaging.

Check that all the required parts are in the box.

When assembling, rst assemble all nuts and bolts loosely, then tighten them up once the entire Trojan Ignite

360 Treadmill is assembled.

FUNCTION BUTTON:

MODE: Pressing MODE when the Trojan Ignite 360 Treadmill is on, gives you the

option to choose 1 of the preset programs P1 - P25. Press CLEAR to exit.

SET: Pressing SET while the Trojan Ignite 360 Treadmill is on, will allow you to

set Time, Distance or Calorie countdown program as the target for your

workout. The values are adjusted by pressing SPEED + to increase or SPEED

– to decrease the values. Press CLEAR to exit.

START / STOP: Press START to turn on the Trojan Ignite 360 Treadmill to begin. Pressing it

again will stop the Trojan Ignite 360 Treadmill and give the workout reading.

Press CLEAR to erase the workout reading.

CLEAR: Pressing CLEAR while the Trojan Ignite 360 Treadmill is on, will allow to

clear the selected Time, Distance or Calorie target.

MUSIC: Power on the machine, connect the auxiliary cable from your device to

the Trojan Ignite 360 Treadmill, press MUSIC to play the music through the

speakers.

INCLINE UP: While running, pressing INCLINE UP will increase the incline level by 1%.

INCLINE DOWN: While running, pressing INCLINE DOWN will decrease the incline level by 1%.

SPEED UP: While running, pressing SPEED UP will increased the speed by 0.5 km/h.

SPEED DOWN: While running, pressing SPEED DOWN will decreased the speed by 0.5 km/h.

CONSOLE FUNCTIONS

Incline & decline Speed

Otros manuales para IGNITE 360

Tabla de contenidos

Otros manuales de Rueda de andar de Trojan

Trojan

Trojan EXECUTIVE 600 Guía de instalación

Trojan

Trojan STAMLINA 320 Guía de instalación

Trojan

Trojan TR 100 Manual de usuario

Trojan

Trojan TR105 Manual de usuario

Trojan

Trojan IRONMAN 510 Guía de instalación

Trojan

Trojan ALTITUDE 600 Guía de instalación

Trojan

Trojan iSMART 500 Manual de usuario

Trojan

Trojan CARDIO COACH 460 Guía de instalación

Trojan

Trojan STAMINA 310 Guía de instalación

Trojan

Trojan TR 1500 Manual de usuario

Trojan

Trojan IGNITE 360 Manual de usuario

Trojan

Trojan Pegasus Manual de usuario

Trojan

Trojan MOTION 360 Manual de usuario

Trojan

Trojan MARATHON 200 Guía de instalación

Trojan

Trojan MOTION 360 Manual de usuario

Trojan

Trojan SOLITUDE 400 Guía de instalación

Trojan

Trojan STAMINA 300 Guía de instalación

Trojan

Trojan Stamina 315 Guía de instalación

Trojan

Trojan MARATHON 220 Guía de instalación

Trojan

Trojan TITAN 330 Manual de usuario

Trojan

Trojan IGNITE 350 Guía de instalación

Trojan

Trojan SOLITUDE 410 Guía de instalación

Trojan

Trojan IGNITE 350 Manual de usuario

Trojan

Trojan ATLAS 220 Manual de usuario

Manuales populares de Rueda de andar de otras marcas

Treadly

Treadly TREADLY 2 Manual de usuario

HEALTH ONE

HEALTH ONE Walk Ro Manual de usuario

NordicTrack

NordicTrack NTL12941 Manual de usuario

NordicTrack

NordicTrack T7.5 S Manual de usuario

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manual de usuario

Merax

Merax MS282992 Manual de usuario

FYTTER

FYTTER RU-2SX Manual de usuario

Precor

Precor 903 Manual de usuario

FitLogic

FitLogic freewill d225 Manual de usuario

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manual de usuario

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manual de usuario

Stamia

Stamia InMotion II Manual de usuario

Smooth Fitness

Smooth Fitness EVO 3i Manual de usuario

NordicTrack

NordicTrack NETL81810.0 Manual de usuario

Schwinn

Schwinn 830/Journey 8.0 Manual de usuario

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manual de usuario

Spirit

Spirit XT8 Manual de usuario

NordicTrack

NordicTrack T 14.0 Treadmill Manual de usuario
