Socket CHS 7M Manual de usuario

Model shown: CHS 7Ci

Bluetooth Barcode Scanner

CHS 7Ci,7Di,7DiRx

www.socketmobile.com

SerieS 7

1D IMAGER QUICKSTART GUIDE

PACKAGE CONTENTS PRODUCT INFORMATION

SocketScan are registered trademarks or trademarks of Socket Mobile, Inc. The Bluetooth

word mark and logo are registered trademarks of the Bluetooth SIG, Inc. USA, and any

use by Socket Mobile, Inc. is under license. All other trademarks and trade names con-

tained herein may be those of their respective owners.

CHS

7Ci/7Di/7DiRx

AC adapter* & USB

to DC plug cable

*Use the plug that is region-

ally appropriate

Lanyard NiMH

rechargeable

batteries

*Also used for keyboard Pop-up (HID Mode only)

Twist-lock

(horizontal/unlocked)

Battery door

Twist-lock

(vertical/locked)

Lanyard

Blue/Green/Red

LED

Trigger button

Power button*

DC-in connector

Scanner head

Product label

Thank you for choosing Socket Mobile!

Let’s get started!

Pins for

charging

cradle

SCANNER SETUP

Insert the Batteries

Unlock the Battery door by us-

ing a thin coin to turn the lock

under the CHS to a horizontal

position (turn 90 degrees).

Install the batteries in their correct po-

sition as indicated by the +/- symbols.

Important: Only use NiMH

Rechargeable batteries. Do

NOT use Alkaline Batteries

Attach the Lanyard (optional)

Detach the string loop of the

tether from the lanyard. Then

feed the string loop through the slot

in the Twist-lock and then through the

end of the loop. Pull tight so the string

loop is secure to the Twist-lock, Reat-

tach the string loop to the tether from

the Lanyard.

If desired, attach the tether to a lan-

yard or belt.

CHARGE THE BATTERY

Charge the CHS

The CHS must be fully charged be-

fore rst use. Please allow 5 hours

uninterrupted charging for the

initial battery charge.

For the 7Di or 7DiRx, lift the rubber ap to

access the power connector.

• Red LED = Charging

• Green LED = Fully charged

Charging from a computer USB port

is not reliable and not recommended.

Charging Cradles & Charging QX Stand

available separately.

5 Hours

BASIC FUNCTIONALITY

Powering On:

Press and hold down the small

power button until the LED

turns blue and the CHS beeps

twice (low-high).

Powering Off/ Disconnecting:

Press and hold down the small

power button until the CHS beeps

twice (high-low).

USING THE SCANNER

Scanning Barcodes

After connecting the CHS to your device, open an application. Place

the cursor where you want to enter the scanned data.

1. Hold the CHS a few inches from the barcode.

2. Aim, press and hold the trigger button.

By default, the CHS will beep, vibrate, and the LED will ash green to

conrm successful scan.

Not recommended

scanning techniques

Aim the scan beam straight

across the entire barcode.

Power button

6 7

Connect your CHS using one of the following Bluetooth modes:

Bluetooth Connection Proles

Bluetooth Mode Description

HID (Default)*

Human Interface

Device Prole

• “NO” software installation needed.

• Connects to most devices.

• Good for barcodes containing small amounts of data.

• Scanner appears like a keyboard.

SPP

Serial Port

Prole

• Software installation required.

• More efcient data communications for barcodes con-

taining lots of data.

iOS

Apple Specic

Serial Prole

• Must use with an App developed to work with

iOS devices

• Apple MFI tested and certied.

• If you have an application that supports Socket Mobile

Scanners this is the mode you want to use.

*By default, the CHS is set to HID Mode.

BLUETOOTH CONNECTION METHODS BLUETOOTH CONNECTION METHODS

Operating System Connection Options

Operating

Systems

(OS)

Devices

Bluetooth

HID

Support

Bluetooth

SPP

Support

Bluetooth

Apple Serial

Specic

(iOS Mode)

Android Android 2.1 &later Yes Ye s No

Apple iOS iPod, iTouch, iPhone,

&iPad Yes No Ye s

Windows

Mobile Windows Mobile 6.x Yes Ye s No

Windows PC Windows 7, 8 Yes Ye s No

Mac OS

Mac OS X 10.4 to 10.X

Mac Books, Mac Mini,

&iMac

Yes No No

Note: To switch from one mode to the other you must remove the

pairing information (see unpairing procedure on page 20) from both

devices - host computer and the CHS.

HID MODE

Android: Connect Android Device in HID Mode

1. Power on the CHS. Make sure the CHS is discoverable (unpaired).

2. Touch Home | Menu | Settings | Wireless &Networks |

Bluetooth settings

3. Make sure the device has Bluetooth “On”. Scan for devices.

4. In the list of found devices, select Socket CHS [xxxxxx]. Tap Pair.

5. The CHS will connect to the Android device.

6. The CHS will beep once after it has connected and is ready to scan

barcodes.

Apple: Connect Apple iOS Device or Mac OS Device HID Mode

In this mode the scanner works and behaves just like a keyboard.

Therefore, CHS will work with Safari, Notes, and any other applications

that supports an active cursor.

1. Power on the CHS. Make sure the CHS is discoverable (unpaired).

2. Start a Bluetooth device search.

• iOS: Tap Settings | General | Bluetooth. Turn on Bluetooth. A

Bluetooth device search will begin.

• Mac OS: Click System Preferences | Internet &Wireless | Bluetooth.

In Bluetooth preferences, select the On checkbox. Click Set up New

Device... A Bluetooth device search will begin.

3. In the device list, tap on CHS [xxxxxx]. Tap Pair.

4. The CHS will connect to the Apple device.

5. The CHS will beep once after it has connected and is ready to scan

barcodes.

HID MODE

Windows: Connect Windows PC

Power on the CHS. Make sure the CHS is discoverable (unpaired).

1. Use your computer’s Bluetooth Settings to connect to the CHS.

2. Open Devices and Printers and select “Add a device”.

3. In the device list, select Socket CHS [xxxxxx]. Click Next.

4. If a passkey is requested, enter 0000 (four zeroes). Click OK.

Or Pair Now.

5. Follow the remaining screens to complete the wizard.

Note: On some computers the CHS will have to be congured as HID

Periferal.

10 11

SPP MODE

Connect Android & Windows Mobile Device Quickly:

Highly recommended, allows two-way communications with Android,

Blackberry, and Windows. SocketScan 10 software installation required.

1. Power on the CHS and scan this barcode. The CHS will beep 3 times.

2. Turn Bluetooth on for your device. Go to Settings > Bluetooth. A

Bluetooth Devices search will begin.

3. Tap Socket CHS[xxxxxx] in the list of Devices found. After a few

seconds the “Not Paired” status will change to “Connected” and the

CHS Blue LED will blink every 3 seconds conrming the connection.

You are now ready to scan barcodes with the Scanner-enabled

Application.

Windows: Connect Windows PC as a HID Peripheral

1. Power on the CHS and scan this barcode. The CHS will beep 3 times.

2. Turn on Bluetooth on your PDA or PC and start a device search.

3. Select Socket CHS. If prompted for a passkey, enter 0000 (four ze-

roes). If prompted to select services, select Input Device.

4. After the CHS connects and is ready to scan barcodes, it will beep

once.

Now you are ready to scan barcodes!

To connect to a new device, you must rst unpair the CHS See

page 20.

WINDOWS HID (PERIPHERALS) MODE

12 13

SPP MODESPP MODE

Connect Android device in SPP Mode

15. Select [On screen] button.

16.On the next screen, tap on the 8Ci [1D Scanner] or 8Qi [2D Scanner]

button that is appropriate for your scanner button.

17.Scan the barcode on the screen. The CHS will beep 3 times.

18.When notied of a pairing request, swipe the notication down then

tap Pairing request.

19.On the next screen, tap Pair.

20.The CHS will beep once to indicate connected state and is ready to

scan barcodes. Tap Back to close Socket EZ Pair.

21.If you are connecting a scanner which is not registered, a CHS

registration icon will appear on top of the screen. Swipe the icon

down to open the registration pages. Follow the instructions

to register your CHS. Socket Mobile highly recommends that all

customers register their products, but registration is not necessary.

Now you are ready to scan barcodes!

Note: If you are unable to scan the barcode on screen, please refer to

the alternative Bluetooth Method to connect the CHS in the User Guide

at Socket Mobile’s support web page.

1514

Connect Android device in SPP Mode using EZ Pair

1. Go to Google Play Store, search for “SocketScan 10”.

2. Download &install. Follow the on screen instructions.

Note: If prompted, allow the app to access your Bluetooth settings /

USB storage / SD card / Coarse location.

3. Make sure Bluetooth is turned on.

4. Open SocketScan 10 application.

5. When prompted to set SocketScan 10 as the keyboard language, tap

Back .

6. Go to Settings / Language and Input

7. Under Keyboard Settings, select SocketScan 10.

8. Open SocketScan 10 on your device.

9. When prompted to enable SocketScan 10 as Input Method,

tap Back .

10.Tap the Menu icon, then select Input Method.

11.On the next screen, select SocketScan 10 as input method.

12. Power on the CHS. Make sure the CHS is discoverable (unpaired).

13. In SocketScan 10, tap the Menu icon then select Socket EZ Pair.

14.Scan the barcode on the screen to switch or set your scanner in SPP

mode. The CHS will beep 3 times.

WINDOWS PC

Connect Windows PC in SPP Mode

Note: Make sure you have administrative privileges.

1. Download the latest SocketScan 10 software from Socket Mobile’s

support web page.

2. Follow the on-screen instructions to install the software.

3. In SocketScan 10 Settings, select an incoming Bluetooth serial COM

port.

Note: If there is none please click Ports to create a new incoming COM

port in Bluetooth settings.

4. Click Finish.

5. Restart your system.

WINDOWS PC

To pair the CHS with the PC using EZ Pair:

1. Power on the CHS. Make sure the CHS is discoverable (unpaired).

2. Launch SocketScan 10 and click on the SocketScan 10 icon in the task

tray. In the pop-up menu, click Socket EZ Pair.

3. Scan the barcode on the screen to switch set your scanner in SPP

mode. The CHS will beep 3 times.

4. Click 1D Scanner accordingly.

5. Scan the barcode that appears on the screen.

6. The PC will automatically try to pair with the CHS. If prompted to

allow the pairing, click Yes. If prompted for a passkey, enter 0000

(four zeroes).

7. After the CHS connects, it will beep once. Close Socket EZ Pair.

8. If you are connecting a scanner which is not registered, a CHS

registration icon will appear on top of the screen. Follow the

instructions to register your CHS. Socket Mobile highly recommends

that all customers register their products, but registration is not

necessary.

9. The task tray icon will change to indicate the connection.

Now you are ready to scan barcodes.

Note: If you are unable to scan the barcode on screen, please refer to

the alternative Bluetooth Method to connect the CHS in the User Guide

at Socket Mobile’s support web page.

iOS MODE

Connect Apple device in iOS Mode

Please check with your scanner application vendor or visit

www.socketmobile.com/appstore to conrm your Scanner-enabled

application supports the CHS.

If you are using the CHS with an Apple iOS device and a Scanner-enabled

Application that does not provide instructions how to connect with the

CHS, please use the following steps.

1. Power on the CHS. Make sure the CHS is discoverable (unpaired).

2. To change the prole to iOS mode scan this barcode. The CHS will

beep 3 times.

Use with iPad, iPod touch, and iPhones.

iOS MODE

3. Turn Bluetooth on the Apple device. Go to Settings > Bluetooth.

A Bluetooth Devices search will begin.

4. Tap Socket CHS[xxxxxx] in the list of Devices found. After a few

seconds the “Not Paired” status will change to “Connected” and the

CHS Blue LED will blink every 3 seconds conrming the connection.

Note: The characters in brackets are the last 6 characters of the

Bluetooth Address. The full Bluetooth address is printed on the Product

label.

5. Open the Scanner-enabled Application. The CHS will beep once

indicating that it is connected to the appropriate application.

Now you are ready to scan barcodes.

Otros manuales para CHS 7M

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Lector de código de barras de Socket

Socket

Socket S740 Manual de usuario

Socket

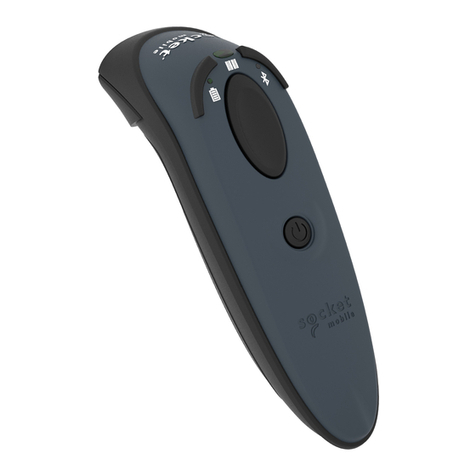

Socket DURASCAN Series Manual de usuario

Socket

Socket Cordless Ring Scanner Series 9 Manual de usuario

Socket

Socket DuraScan D730 Manual de usuario

Socket

Socket CHS Series 7 Manual de usuario

Socket

Socket SocketScan S550 Manual de usuario

Socket

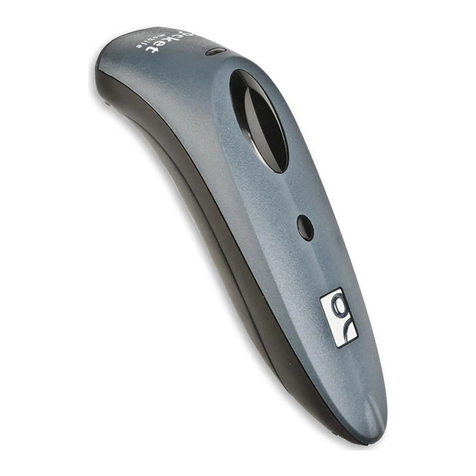

Socket 7Qi Manual de usuario

Socket

Socket CHS 7M Manual de usuario

Socket

Socket DuraScan 700 Series Manual de usuario

Socket

Socket DURASCAN D740 Manual de usuario

Socket

Socket CHS 7Mi Manual de usuario

Socket

Socket CHS 7Ci Manual de usuario

Socket

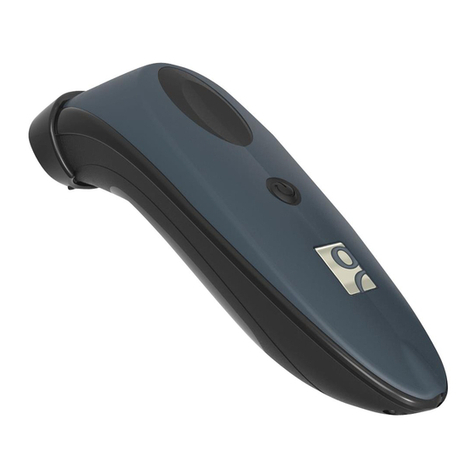

Socket 7 Series Manual de usuario

Socket

Socket CX2821-656 Manual de usuario

Socket

Socket SOCKETSCAN 800 Series Manual de usuario

Socket

Socket Socketscan S370 Hoja de especificaciones

Socket

Socket DuraSled DS800 Series Manual de usuario

Socket

Socket CHS Series 7 Manual de usuario

Socket

Socket CHS Series 7 Manual de usuario

Socket

Socket SocketScan 700 Series Manual de usuario

Socket

Socket SocketScan S730 Manual de usuario

Socket

Socket 7Qi Manual de usuario

Socket

Socket DURACASE 800 Series Manual de usuario

Socket

Socket CHS Series 7 Manual de usuario

Manuales populares de Lector de código de barras de otras marcas

POSMicro

POSMicro Datalogic PowerScan D7100 Manual de usuario

Marson

Marson MT780 Guía de configuración rápida

NCR

NCR RealPOS Manual de usuario

Motorola

Motorola SE3300 Guía de configuración rápida

Element

Element P130BT Manual de usuario

Motorola

Motorola Symbol LS3008 Manual de instalación y operación

Meec tools

Meec tools OBD-II / VAG Manual de usuario

SICK

SICK CLP 100 Manual de usuario

Royal Tag SA

Royal Tag SA I-Read Manual de usuario

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manual de usuario

Meteor

Meteor 8310 Manual de usuario

Denso

Denso BHT-500B Manual de usuario

Datalogic

Datalogic Heron HD3130 Manual de usuario

Motorola

Motorola MP6000 Instrucciones de montaje

Newland

Newland NLS-HR15-BT Manual de usuario

ARTDEV

ARTDEV AS-1310 Manual de usuario

Aopos

Aopos AS290 Manual de usuario

ENS

ENS 367-5455 Manual de usuario
