Socket DuraScan 700 Series Manual de usuario

D700, D730, D740, D745, D750, D755  D760

DS® 700 S

U G

Table of Contents

Package Contents 4

Optional Charging Accessories 4

Product Information 5

Attach wristrap 6

Charge the Battery 7

Power Adapter 7

Powering on/off 8

Scanning Barcodes 9

Bluetooth Connection Modes 10-11

Bluetooth connection Roles 12

Data Mode-For SPP mode only 13

Bluetooth Re-Connection 14

How to setup our scnner

Download our Companion App 15

Cn’t use Compnon App

How to setup our scnner n Applcton Mode

Apple® 16

Android 17

Windows 18

How to setup our scnner n Bsc Mode

Apple 19

Android 20

Windows 21

Pairing reset 22

Factory Reset 23

Restore Method 24

Battery Replacement 25

Quick Programming 26-32

Status Indicators 33-36

Helpful Resources 37

Battery Warning, Safety, Compliance, Warranty 38

DuraScan

D700 Series

Charging Cable Insert Card

Package Contents

Wrist Strap

Thn ou for choosn Socet Moble Let’s et strted

Battery Friendly® are registered trademarks or trademarks of Socket Mobile, Inc. Microsoft® is a registered trademark of

Microsoft Corporation in the United States and other countries. Apple®, iPad®, iPad Air®, iPad mini®, iPad Pro®, iPhone®, iPod touch®,

Objective-C®, Swift™, and Xcode® are registered trademarks of Apple, Inc., registered in the U.S. and other countries. The Bluetooth®

Technology word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket

Mobile, Inc. is under license. Other trademarks and trade names are those of their respective owners.

Optional Charging Accessories

Charging Stand AC Power

Supply

International

Adapters available

Charging CradleCharging Dock

Product Information

The DuraScan 700 Series has a protection rating of IP54 for dust and water protection.

Socket Mobile’s barcode readers can be wiped clean with a cloth dampened with isopropyl alcohol

or water. Or, the barcode readers can be wiped clean with a Sani-Cloth.

Warning: DO NOT IMMERSE IN WATER (reader’s mechanics could be damaged)

*Also used to display the on-screen keyboard in Basic Keyboard Mode (iOS only).

Reader head

Product label

Lanyard Eyelet

Scan Indicator Light

Scan button

Power button*

Battery Light

(Green/Yellow/Red)

Bluetooth Light (Blue)

Charging pins

Power Connector

Stand Attachment

Battery Door

Attch the Wrst Strp (optional)

1. Detach the string loop of the tether from the wrist strap.

2. Feed the string loop through the eyelet.

3. Pull the tether through the string loop.

4. Pull tight so the string loop is secure.

5. Reattach the string loop’s tether to the wrist strap.

attach wristrap

The reader must be fully charged before first use. Please allow 8 hours

uninterrupted charging for the initial battery charge.

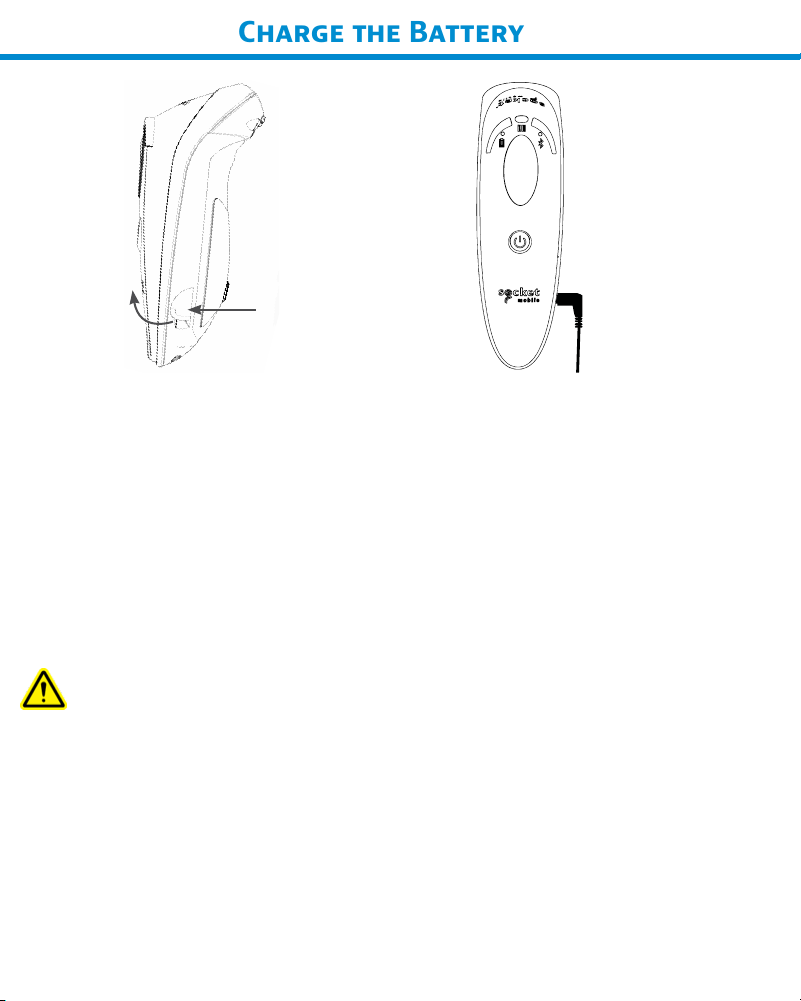

Lift the rubber flap to access the power connector.

• Yellow Light = Charging

• Green Light = Fully charged

Importnt: Charging from a computer USB port is not reliable and not

recommended.

Charge the Battery

Rubber Flp

To open Power Adpter

Powern On

Press and hold down the small

power button until the Battery

light turns on and the reader

beeps twice (low-high).

Powern Off/ Dsconnectn

Press and hold down the small

power button until the reader beeps

twice (high-low) and all lights turn

off.

The reader will power off

automatically if device is not

connected within 5 minutes. Reader

connected to a device will power off

within 2 hours if idle/inactive.

Powering on/off

Power button

1D/2D Brcode nd OCR

Aim the scan beam straight across the entire barcode

Scnnn Brcodes

1. Hold the barcode reader 4-5 inches away from the barcode.

Note: Distance between the reader and barcode depend on the size of the

barcode.

2. Aim, press and hold the trigger button.

By default, the reader will beep, vibrate, and the scan indicator will flash green

to confirm a successful scan.

Cuton: Do not stare directly into the reader’s light beam.

Scanning Barcodes

scan button

Opertn Sstem Connecton Optons

Operating

Systems

(OS)

Devices

Bluetooth

HID

Support

Bluetooth

SPP

Support

Bluetooth

Apple

Serial

Specific

(MFi Mode)

Android Android 4.0.3 &

later Yes Yes N/A

Apple iOS iPod, iPhone, &

iPad Yes N/A Yes

Windows

PC Windows 8, 10, 11 Yes Yes N/A

Mac OS

Mac OS X 10.4 to

10.X

Mac Books, Mac

Mini, &iMac

Yes No N/A

Note: To switch from one mode to the other you must remove the

pairing information from both devices - host device and the reader. (see pairing

reset procedure on page 24)

Bluetooth Connection Modes
