SIIG SATA-to-IDE Adapter Manual de usuario

SATA-to-IDEAdapter

Quick Installation Guide

04-0476B

Introducing the SATA-to-IDE Adapter

The SATA-to-IDE Adapter allows you to connect existing

Ultra ATA 150/133/100/66 hard disk drives and ATAPI

devices to the latest Serial ATA host adapter.

FeaturesandBenefits

• Quickly converts older IDE/Ultra DMA devices for

use with newer Serial ATA controllers

• L-shape compact design to reduce interference with

other devices

• Connects directly to an IDE drive —no expansion

slot required

• Compliant with Serial ATA 1.0a specification

• Supports ATA/ATAPI Ultra DMA data transfer

rates up to 150MB/s

• Compliant with ATA/ATAPI PIO modes 0 to 4

• Connects large Ultra ATA 133/100/66 hard disks to

the latest Serial ATA hosts

• Works with ATAPI optical storage devices such as

CD-ROM,CD-RW,DVD-ROMandDVD-RW(upto

16x)

SerialNumberSticker

For future product return or exchange, this serial number

is required. Please keep it for your reference.

SystemRequirements

• Pentium®or equivalent PC with an available

Serial ATA port

• Windows®7 (32-/64-bit) / Vista (32-/64-bit) / XP

(32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000

PackageContents

•SATA-to-IDE Adapter

• SATA data cable

• "Y" split power cable

• Quick Installation Guide

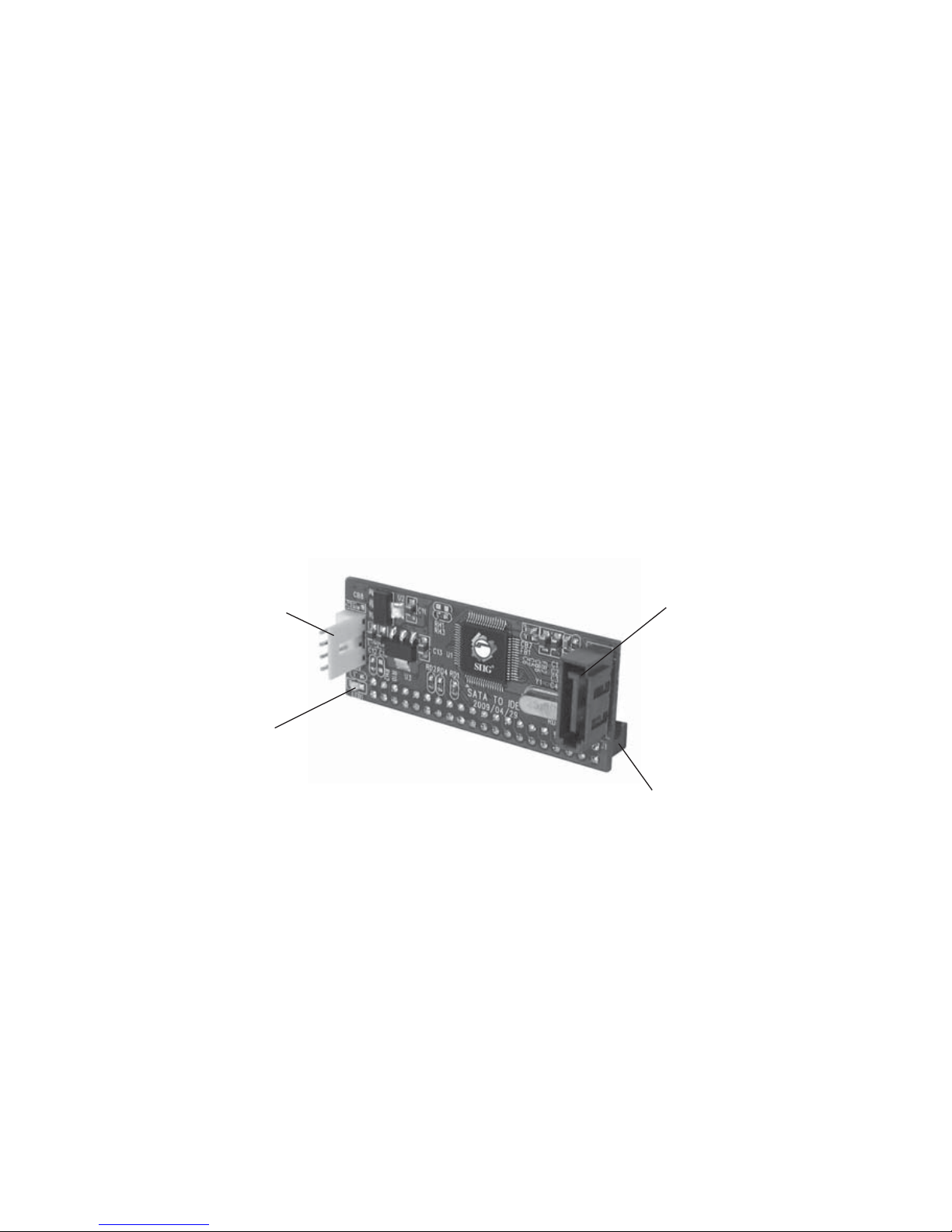

BoardLayout

Figure 1: Layout

•LED: activity LED, blinks when the Ultra ATA/

ATAPI device is accessed. If the LED is on

continuouslycheckthejumpersettingof UltraATA/

ATAPI device. To work properly with this adapter,

Ultra ATA/ATAPI devices must be jumpered as

Master. Please read the Ultra ATA/ATAPI device's

users manual for more information.

SATA connector - to

Serial ATA port

Power supply

connector

IDE connector - to Ultra

ATA/ATAPI device

LED - activity LED

Hardware Installation

Static Electricity Discharge may permanently damage

your system. Discharge any static electricity build up in

your body by touching your computer case for a few

seconds. Avoid any contact with internal parts and

handle cards only by their external edges.

1. Turn OFF the power to your computer.

2. Unplugthepower cord andremoveyour computer's

cover.

3. Using the jumper setting on the Ultra ATA/ATAPI

device, set the device to Master. Read the Ultra

ATA/ATAPI device's user's manual for more

information. Important: Your device must be set to

Master in order for it to work properly through the

SATA-to-IDE Adapter.

4. Connect the SATA-to-IDE Adaptertothe Ultra ATA/

ATAPI device, refer to Figure 2 and 3.

Figure 3

Figure 2

5. Connect the SATA data cable to the SATA-to-IDE

Adapter, refer to Figure 4 and 5.

Figure 4 Figure 5

6. Connect the "Y" split power cable to the SATA-to-

IDE Adapter, refer to Figure 6 and 7.

Figure 6 Figure 7

7. Connect the other end of the SATA data cable to an

available Serial ATA port on the Serial ATA host

adapter or motherboard.

8. Connect the "Y" split power connector to power the

Ultra ATA/ATAPI device, refer to Figure 8.

Figure 8

9. Connect the other end of the “Y”split power cable

to the system power source.

10. Hardware installation is now complete.

11. Replace thecomputercover andreconnectthe power

cord.

Windows Driver Installation

No driver installation needed.

Blank Page

Technical Support and Warranty

QUESTIONS? SIIG’sOnline Support hasanswers! Simplyvisitour

web site at www.siig.com and click Support. Our online support

database is updated daily with new drivers and solutions. Answers

toyour questions could be just a few clicksaway. Youcan also submit

questions online and a technical support analysts will promptly

respond.

SIIGoffers alifetime manufacturerwarranty withthis product. Please

see our web site for more warranty details. If you encounter any

problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the

product to the store where you purchased from.

B) Ifyour purchase has passed the store's return policy period, please

follow these steps to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then RMA to submit a

request to SIIG RMA. If the product is determined to be

defective, an RMA number will be issued.

Step 2: After obtaining an RMA number, ship the product.

•Properly pack the product for shipping. All software, cable(s)

and any other accessories that came with the original package

must be included.

•Clearly write your RMA number on the top of the returned

package. SIIG will refuse to accept any shipping package, and

will not be responsible for a product returned without an

RMA number posted on the outside of the shipping carton.

•You are responsible for the cost of shipping. Ship the product

to the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA #:

•SIIG will ship the repaired or replaced product via Ground

in the U.S. and International Economy outside of the U.S. at

no cost to the customer.

SATA-to-IDEAdapterisatrademarkofSIIG,Inc. SIIGandtheSIIGlogoareregisteredtrademarksof

SIIG,Inc. Microsoft,WindowsandWindowsVistaareeitherregisteredtrademarksortrademarksof

MicrosoftCorporationintheUnitedStatesand/orothercountries. Pentiumisa registered trademark

of Intel Corporation. Other names used in this publication are for identification only and may be

trademarksof their respective companies.

About SIIG, Inc.

Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer

of I/O connectivity products, including PCI & ISA serial and parallel

ports, USB, Serial ATA & UltraATA controllers, FireWire (1394a/b),

networking, sound cards, and other accessories. SIIG is the premier

one-stop source of upgrades.

SIIGproducts offercomprehensive usermanuals,many user-friendly

features, and are backed by an extensive manufacturer warranty.

High-quality control standards are evident by the overall ease of

installation and compatibility of our products, as well as one of the

lowest defective return rates in the industry. SIIG products can be

found in computer retail stores, mail order catalogs, through major

distributors, system integrators, and VARs in the Americas and the

UK, and through e-commerce sites.

PRODUCT NAME

SATA-to-IDE Adapter

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS

B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCCCOMPLIANCESTATEMENT:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

Phone: 510-657-8688
