SIIG PCI Express Serial Manual de usuario

DP Industrial PCI Express

Serial Adapter Card

Quick Installation Guide

04-0821B

Introduction

The DP Industrial PCI Express Serial Adapter Card

is a high-speed serial card that provides

additional serial ports to your system.

Key Features and Benefits

•Provides serial ports to PCI Express enabled

system.

•Supports serial port data transfer rate up to

921.6Kb/s

•Built-in 15KVDC ESD serial interface

protection

•Built in 128-byte FIFO buffer for ID-E80011-

S1 & ID-E80111-S1; built-in 256-byte FIFO

buffer for ID-E20211-S1

•Built in H/W, S/W data direction flow

control

System Requirements

•Desktop PC with an available PCIe slot

•Windows®

8 (32-/64-bit) / 7 (32-/64-bit) /

Vista (32-/64-bit) / XP (32-/64-bit) / Server

2003 & 2008 (32-/64-bit) / Server 2008 R2

/ 2000

Package Contents

•DP Industrial PCI Express Serial Adapter

Card

• Connector adapter cable:

For ID-E20211-S1: 2x RJ-45 to DB9 (male)

cable

For ID-E80011-S1 & ID-E80111-S1:

1x VHDI68 to 8-port DB9 (male) cable

• Spare low profile bracket

• Driver CD

• Quick installation guide

Layout

Figure 1: ID-E20211-S1 Layout

* NOTE: Short JP1 and JP2 for 120 ohm terminal resistance to get signal reflection

elimination.

Figure 2: ID-E20211-S1 Jumper Setting

RJ 45 port

JP6

JP3 1

JP1*

JP2*

Figure 3: ID-E80111-S1 Layout

Figure 4: ID-E80111-S1 Jumper Setting - RS-422/485

VHDI68 port

JP1

JP2

JP3

JP4

Figure 5: ID-E80111-S1 Jumper Setting - RS-232

Figure 6: ID-E80011-S1 Layout

VHDI68 port

Figure 8: ID-E20211-S1 DB9 pin assignment

Pin Assignment

ID-E20211-S1 Pin Assignment

RJ-45 Pin Assignment

Figure 7: ID-E20211-S1 RJ-45 pin assignment

Note: For RS-485 (2-wire), need to control input (RTS) and output (DTR).

RJ45 Pin# RS-422 RS-485

(4-wire)

RS-485

(2-wire)

1 RxD-(A)

2RxD+(B)

3GND

4NCNC

5NCNC

6 TxD-(A) Data-(A)

7NC

8 TxD+(B) Data+(B)

DB9 Pin# RS-422 RS-485

(4-wire)

RS-485

(2-wire)

1 TxD-(A) Data-(A)

2NCNC

3NCNC

4 TxD+(B) Data+(B)

5GND

6 RxD-(A)

7RxD+(B)

8NC

9NC

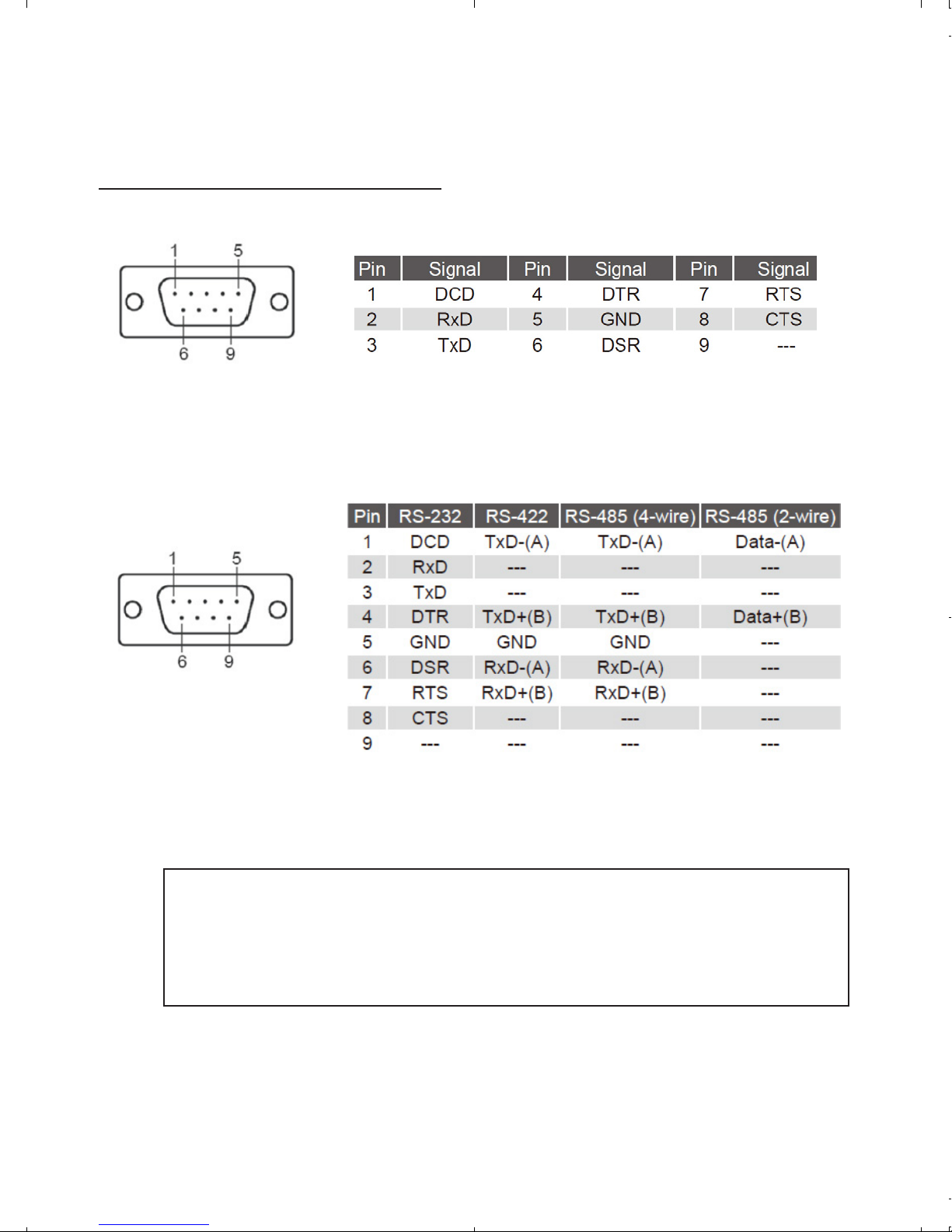

DB9 Pin Assignment

Figure 9: ID-E80011-S1 DB9 Pin Assignment

ID-E80011-S1/ID-E80111-S1 Pin Assignment

DB9 Pin Assignment

Note: for RS-485 (2-wire), need to control input(RTS) and output(DTR).

Figure 10: ID-E80111-S1 DB9 Pin Assignment

IMPORTANT: Please loop pin 1 and pin6,

pin4 and pin7 when using RS-485 (2-

wire)

Figure 11: ID-E80011-S1 / ID-E80111-S1 VHDI68 Pin

Assignment - RS-232 Mode

VHDI68 Pin Assignment

68 35

Figure 12: ID-E80111-S1 VHDI68 Pin Assignment -

RS-422/485 (4-wire) Mode

Hardware Installation

General instructions for installing the card are

provided below. The design of computer cases

and motherboards may vary, refer to your

computer's reference manual for further

information, if needed.

Static Electricity Discharge may permanently

damage your system. Discharge any static

electricity build up in your body by touching

your computer's case for a few seconds. Avoid

any contact with internal parts and handle

cards only by their external edges.

Note: For low profile chassis, remove the

standard height bracket and install the

enhanced low-profile bracket now.

1. Turn OFF the power to your computer and

any other connected peripheral devices.

2. Unplug the power cord and remove the

cover from the computer.

3. Remove the slot bracket from an available

PCIe slot.
