Samsung MWR-TH01 Manual de usuario

Wired Remote Control

MWR-TH00

MWR-TH01

DB98-29803A(2)

IFSE P G

Ne Po Hu

ARD

Air Conditioner

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

29803-2_co.indd 3 2010-09-06 오후 5:11:51

Safety Precautions

◆Do not attempt to install or repair this wired remote

controller by yourself.

◆This remote controller contains no user-serviceable

parts. Always consult authorized service personnel

for repairs.

◆When moving, consult authorized service personnel

for disconnection and installation of the remote

controller.

◆Ensure that the wall is strong enough to support the

weight of the remote controller.

◆Must install the remote controller with rated power

supply.

◆In the event of a malfunction (burning smell, etc.),

immediately stop operation, turn off the electrical

breaker, and consult authorized service personnel.

WARNING

CAUTION ◆

Do not use inflammable gases near the remote

controller.

◆

Do not spill water into the wired remote controller.

◆

Do not operate the remote controller with wet hands.

◆

Do not install the remote controller in a location

where it will come into contact with the combustible

gases, machine oil, sulphide gas, etc.

◆

Do not press buttons with a pointed thing.

◆

Do not pull or bend the wired remote controller cable

excessively.

◆

Do not use this wired remote controller for other

purpose.

◆

Do not spray an insecticide or other combustible

things on the wired remote controller.

◆

Do not clean the wired remote controller with

benzene, solvents or other chemicals.

◆

Do not give a shock to the wired remote controller or

disassemble it by yourself.

E-2

●

Before using the wired remote controller, read carefully this instructions.

●

After reading the instructions, keep this owner's instructions and the

installation manual in a handy and safe place. If a user is changed, you must

hand over the manuals.

●

Never attempt to install the air conditioning system or to move the wired

remote controller by yourself.

MWR-TH00 IB_E_29803 10/24/08 18:01 Page 2

E-3

ENGLISH

Contents

◆

IEW OF THE

IRED

EMOTE

ONTROLLER

◆

ETTING

TARTED

◆

ELECTING THE

UTOMATIC

PERATING

ODE

◆

OOLING

OUR

OOM

◆

EATING

OUR

OOM

XCEPT COOLING ONLY MODELS

)

◆

EMOVING

XCESS

UMIDITY

◆

IRING

OUR

OOM

◆

DJUSTING THE

LOW

IRECTION

XCEPT DUCT TYPE

)

◆

ETTING THE

IMER

◆

ETTING THE

IMER

MWR-TH00 IB_E_29803 10/24/08 18:01 Page 3

E-4

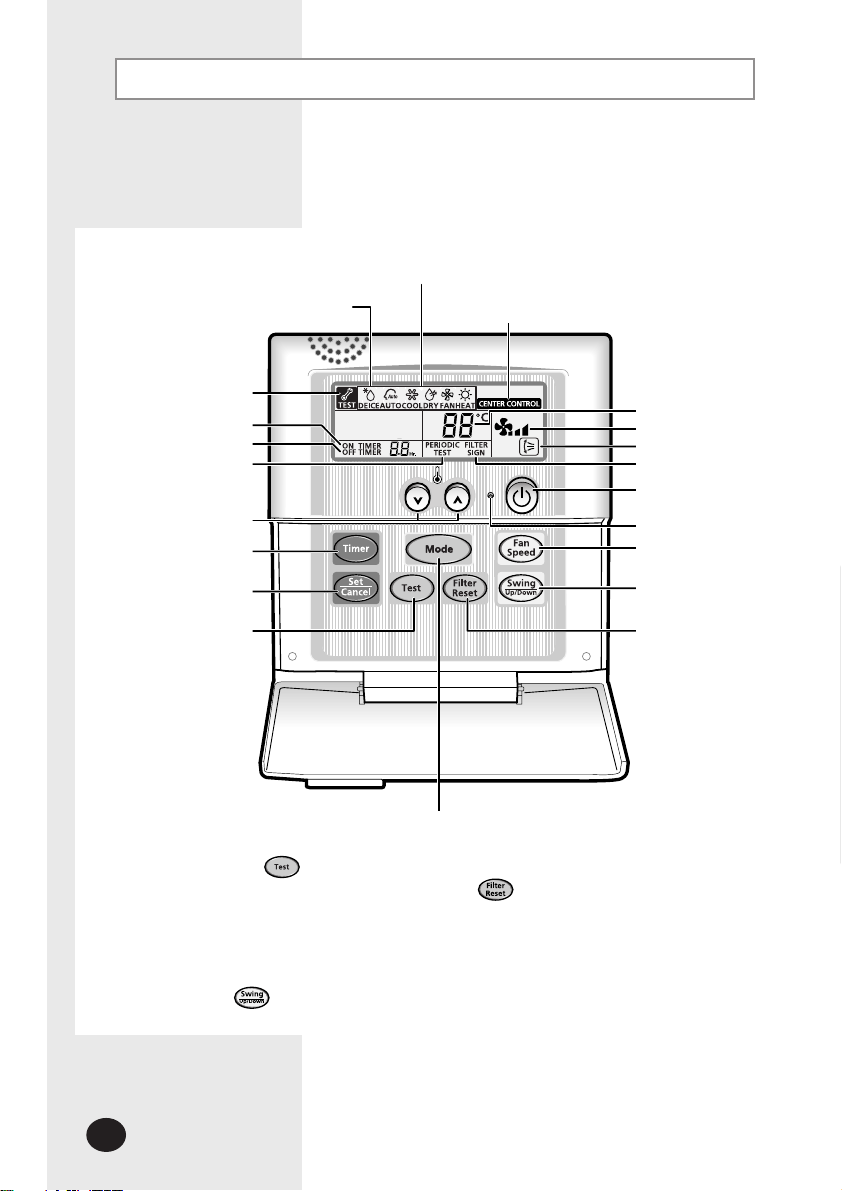

The wired remote controller is installed on the wall.

◆The button is for your installation specialist. You must NOT press it.

◆After cleaning the air filter, press the button. Then the wired remote

controller will display the FILTER SIGN indicator when the time to clean the

air filter.

◆Duct type air conditioner does not have function of adjusting air flow

direction. Therefore, the function is not operated even if you press the

button.

NNoo

oott

ttee

Mode selection button

Communication error indicator

On Timer setting

Off Timer setting

Test indicator

Timer button

Timer Set/Cancel button

Test button Filter Reset button

Swing button

(Except Duct type)

Temperature adjustment

buttons

Removing frost indicator

Temperature setting

Fan speed

Air flow direction

Filter Sign indicator

On/Off button

Fan speed adjustment

button

On/Off indicator

Operating mode

Centralized controller indicator

(In case of installing the Centralized controller)

View of the Wired Remote Controller

MWR-TH00 IB_E_29803 10/24/08 18:01 Page 4

ENGLISH

E-5

etting Started

You have just purchased a wired remote controller and it has

been installed by your installation specialist.

Your Owner’s Instructions contain much valuable information on

using your wired remote controller. Please take the time to read them

as they will help you take full advantage of the unit’s features.

In the manual, you will find a series of step-by-step procedures for each

function available.

The illustrations in the step-by-step procedures use three different

symbols:

PRESS PUSH HOLD DOWN

MWR-TH00 IB_E_29803 10/24/08 18:01 Page 5

E-6

If necessary, press (ON/OFF) button.

Result: :◆The On/Off indicator on the wired remote

controller comes on.

◆The air conditioner runs in the mode

selected when the unit was last used.

In the Automatic mode, the room temperature and the

fan speed are controlled automatically.

To select the AUTO mode, press the button until

is displayed at the top of the wired remote controller.

Result: :◆The air conditioner runs in the AUTO mode.

The air conditioner is fitted with a

protection mechanism to prevent the unit

from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

◆You can change modes at any time.

NNoo

oott

ttee

Selecting the Automatic Operating Mode

MWR-TH00 IB_E_29803 10/24/08 18:01 Page 6

E-7

ENGLISH

To adjust the temperature, press the buttons one

or more times until the required temperature is displayed.

Possible temperatures are between 18°C and 30°C

inclusive.

Result: ◆Each time you press buttons:

- The temperature is adjusted by 1°C.

◆The air conditioner starts cooling, provided

that the room temperature is than the

selected temperature.

- The quantity of air is adjusted automatically.

MWR-TH00 IB_E_29803 10/24/08 18:01 Page 7

E-8

Cooling Your Room

If necessary, press (ON/OFF) button.

Result: :◆The On/Off indicator on the wired remote

controller comes on.

◆The air conditioner runs in the mode

selected when the unit was last used.

You must select the COOL mode if you wish to adjust the :

◆Cooling temperature

◆Fan speed when cooling

To select the COOL mode, press the button until

is displayed at the top of the wired remote controller.

Result: :◆

The air conditioner runs in the COOL mode.

The air conditioner is fitted with a protection

mechanism to prevent the unit from being

damaged when it is started immediately

after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

◆You can change modes at any time.

NNoo

oott

ttee

MWR-TH00 IB_E_29803 10/24/08 18:01 Page 8

ENGLISH

E-9

To adjust the temperature, press the buttons one

or more times until the required temperature is displayed.

Possible temperatures are between 18°C and 30°C

inclusive.

Result: ◆Each time you press buttons:

- The temperature is adjusted by 1°C.

◆The air conditioner starts cooling, provided

that the room temperature is higher than the

selected temperature ; the fan will, however,

operate.

Select the fan speed by pressing the button one or

more times until the intended value is displayed :

To control the direction of the air flow, refer to page 15.

Automatic(rotated : ➔➔ )

Low

Medium

High

MWR-TH00 IB_E_29803 10/24/08 18:01 Page 9

E-10

Heating Your Room (Except cooling only models)

If necessary, press (ON/OFF) button.

Result: :◆The On/Off indicator on the wired remote

controller comes on.

◆The air conditioner runs in the mode

selected when the unit was last used.

You must select the HEAT mode if you wish to adjust the :

◆Heating temperature

◆Fan speed when heating

To select the HEAT mode, press the button until

is displayed at the top of the wired remote controller.

Result: :◆

The air conditioner runs in HEAT mode.

The air conditioner is fitted with a protection

mechanism to prevent the unit from being

damaged when it is started immediately

after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

◆You can change modes at any time.

NNoo

oott

ttee

You can select the HEAT mode only in heat pump models.

MWR-TH00 IB_E_29803 10/24/08 18:01 Page 10
