Samsung HW-S40T Manual de usuario

USER MANUAL

HW-S40T / S41T

You can access the FULL MANUAL on Samsung’s on-line customer support

centre by scanning the QR code. To see the manual on your PC or mobile

device, download the manual in document format from Samsung’s website.

(http://www.samsung.com/support)

ENG - 2

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - 3

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ENG - 4

Fabric cleaning

Remove any dirt or stain on the product surface

immediately.

Removing and cleaning can be less effective for

some substances or if left for a prolonged time.

CAUTION

•Use a vacuum cleaner or an adhesive lint

roller to remove dust, handprints, and the

likes.

– Some cleaning brushes may damage the

product, depending on the materials they

contain.

– Towels and cleaning clothes may leave

lint or dirt on the product.

•Do not use a nail or other tools to scratch the

dirt off. It may damage the fabric.

•To remove oil or liquid stains, use a clean

white cloth moist with water. If the stain

persists, wipe it with a mixture of water and

neutral detergent (such as dishwashing

soaps) and a cloth.

– A non-neutral detergent or cleaner may

cause discolouration or fabric damage.

– After cleaning, use a dry cloth or

hairdryer to dry the area.

– Do not use excessive force to avoid

discolouration or fabric damage.

ENG - 5

CONTENTS

01 Checking the Components 6

02 Product Overview 7

03 Using the Remote Control 9

04 Connecting the Soundbar 11

05 Using a wired connection to the TV 12

06 Using a wireless connection to the TV 13

07 Connecting an External Device 15

08 Connecting a Mobile Device 16

09 Installing on a wall 19

10 Installing the Soundbar in front of TV 19

11 Software Update 20

12 Troubleshooting 22

13 Licence 23

14 Open Source Licence Notice 23

15 Important Notes About Service 23

16 SpecicationsandGuide 24

ENG - 6

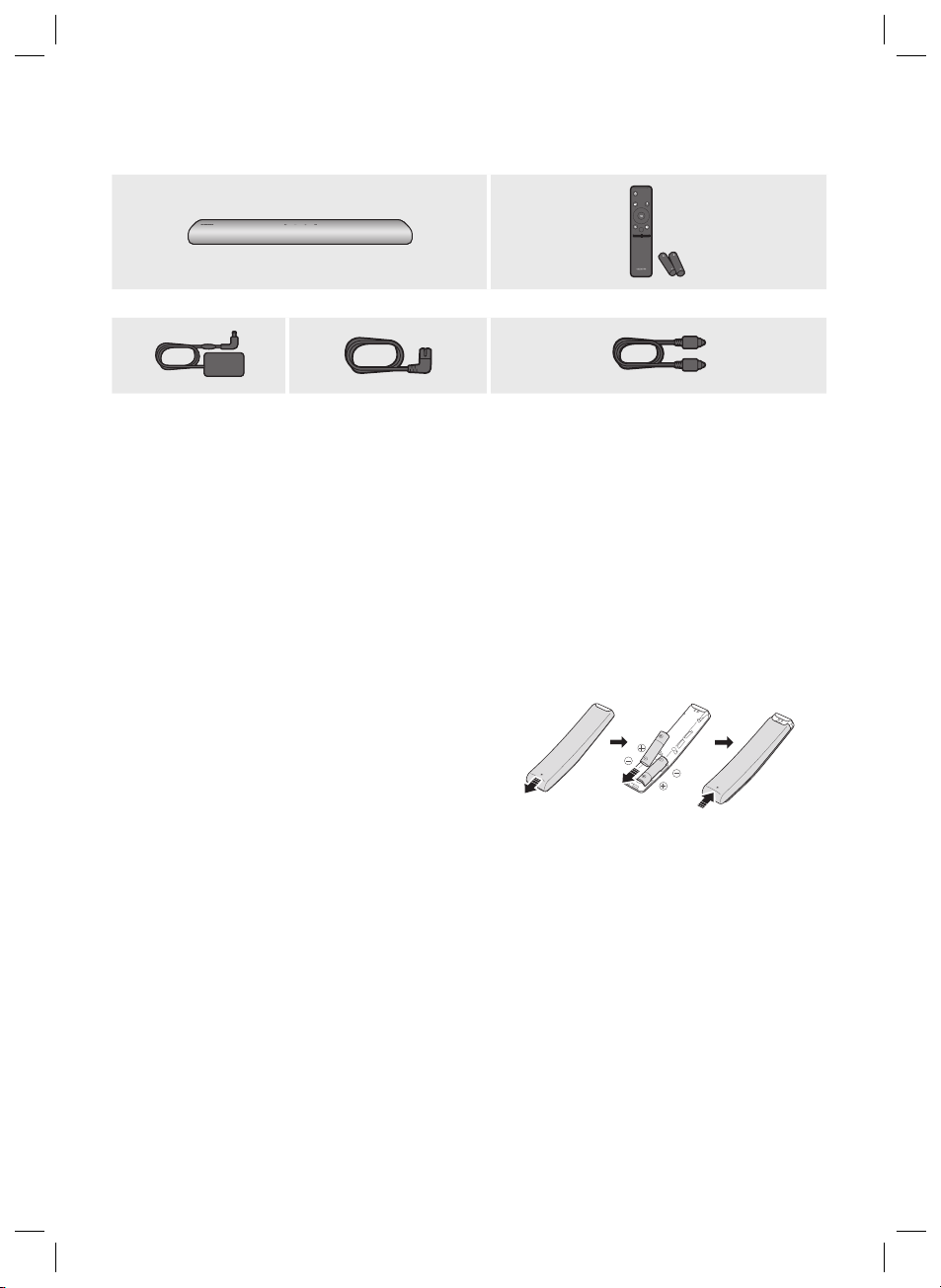

01 CHECKING THE COMPONENTS

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Soundbar Remote Control

/ Batteries

AC/DC Adapter

(Soundbar)

Power Cord

(Soundbar)

Optical Cable

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

•To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

•There are two wall mount holes (M4 size) at the bottom of the Soundbar. Individually purchase a

compatible bracket and mount the Soundbar on a wall to suit your preferences.

•Design, specications are subject to change without prior notice.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the back cover in the direction of the arrow

until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide

the back cover back into position.

ENG - 7

01 CHECKING THE COMPONENTS

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Soundbar Remote Control

/ Batteries

AC/DC Adapter

(Soundbar)

Power Cord

(Soundbar)

Optical Cable

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

•To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

•There are two wall mount holes (M4 size) at the bottom of the Soundbar. Individually purchase a

compatible bracket and mount the Soundbar on a wall to suit your preferences.

•Design, specications are subject to change without prior notice.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the back cover in the direction of the arrow

until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide

the back cover back into position.

02 PRODUCT OVERVIEW

Top Panel of the Soundbar

Top Panel

Position the product so that

the SAMSUNG logo is

located on the top.

󱂔

󱂓

VolumePower

󱂓LED

indicator

The LED Indicator ashes, glows, or changes colour depending on the Soundbar's current

mode or status. The colour of the LED indicator and the number of lights indicate the active

mode as described below.

White LED

Multicolour LED

White LED

•The Multicolour LED changes to White, Cyan, Green, Red, Yellow, Orange, Purple and

Blue depending on the mode or status.

󱂔Source

•Press the (Source) button to change the mode. Each time you change the mode,

the LED lights in white and then turns off.

LED Indicator

White On -> Off White On -> Off

“Digital Audio In” “Bluetooth”

ENG - 8

Bottom Panel of the Soundbar

SERVICE

DC 24V

DIGITAL AUDIO IN

(OPTICAL)

DC 24V

SERVICE

DIGITAL AUDIO IN

(OPTICAL)

DC 24V

SERVICE

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

DC 24V

DIGITAL AUDIO IN

(OPTICAL)

DC 24V

SERVICE

DIGITAL AUDIO IN

(OPTICAL)

DC 24V

SERVICE

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

DC 24V

DIGITAL AUDIO IN

(OPTICAL)

DC 24V

SERVICE

DIGITAL AUDIO IN

(OPTICAL)

DC 24V

SERVICE

DIGITAL AUDIO IN

(OPTICAL)

󱂓 󱂔 󱂕

󱂓DC 24V (Power Supply In)

Connect the AC/DC power adapter.

󱂔DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device.

󱂕SERVICE

Connect a USB storage device to upgrade the product's software.

ENG - 9

03 USING THE REMOTE CONTROL

How to Use the Remote Control

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

󱂓

󱂔

󱂕

󱂖

󱂗

󱂙

󱂘

󱂚

󱂜

󱂛

󱂓Power

Turns the Soundbar on and off.

LED

Indicator

Cyan Blinks X1

On Off

Red Blinks X3

•Auto Power Down Function

The unit turns off automatically in the following

situations:

– In “Digital Audio In”/ “Bluetooth”mode if there is no

audio signal for 20 minutes.

󱂔(Source)

Press to select a source connected to the Soundbar.

󱂕(Mute)

Press the (Mute) button to mute the sound.

Press it again to unmute the sound.

LED

Indicator

Blinks X Repeatly

󱂖SOUND MODE

By pressing the button, you can select the desired audio

mode. Each time the mode changes, the Multicolour LED

blinks in white.

LED

Indicator

White Blinks X1

“Standard”“Smart”“Music”

ENG - 10

󱂗Bluetooth PAIR

Switch the Soundbar to Bluetooth pairing mode.

When you press the button, the LED display changes as shown below.

•Until pairing is complete, the Multicolour LED changes as Red → Green → Blue in turn.

LED

Indicator

Red → Green → Blue Blinks

Pairing Connection is complete

Cyan Blinks X3

󱂘p(Play / Pause)

You can also play or pause music by pressing the button.

󱂙Up/Down/Left/Right

Press Up/Down/Left/Right on the button to select or set functions.

󱂚(Sound Control)

By pressing the button, you can select the desired audio mode. The desired item can be adjusted using

the Up/Down buttons. Each time the mode changes, the Multicolour LED blinks in white.

LED

Indicator

White Blinks X1

“Treble”“Bass”“Sync”

󱂛WOOFER (BASS) LEVEL

Push the button up or down to adjust the woofer (bass) between -6 to +6. To set the woofer (bass)

volume level to 0 (Default), press the button.

󱂜VOLUME

Push the button up or down to adjust the volume.

LED

Indicator

White moves to right X1

Volume Up

White moves to left X1

Volume Down

Otros manuales para HW-S40T

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Mando a distancia de Samsung

Samsung

Samsung SPC-300 Manual de usuario

Samsung

Samsung SolarCell Remote Manual de usuario

Samsung

Samsung SolarCell Remote Manual de usuario

Samsung

Samsung MWR-WH00 Manual de usuario

Samsung

Samsung MWR-TH00 Manual de usuario

Samsung

Samsung MWR-WG00UN Manual de usuario

Samsung

Samsung MWR-SH00N Manual de usuario

Samsung

Samsung BN68-03092A-02 Manual de usuario

Samsung

Samsung CU7172 Manual de usuario

Samsung

Samsung SolarCell Remote Manual de usuario

Samsung

Samsung SolarCell Remote Manual de usuario

Samsung

Samsung AA5900818A Manual de usuario

Samsung

Samsung Smart Remote BN68 Series Manual de usuario

Samsung

Samsung MWR-WH02 Manual de usuario

Samsung

Samsung MWR-SH11UN Manual de usuario

Samsung

Samsung SRF1 Guía de instalación

Samsung

Samsung MWR-SH11UN Manual de usuario

Samsung

Samsung MWR-WE00 Manual de usuario

Samsung

Samsung MWR-VH01 Manual de usuario

Samsung

Samsung MWR-SH11N Manual de usuario

Samsung

Samsung EIRC200 Manual de usuario

Samsung

Samsung SolarCell QN85C Manual de usuario

Samsung

Samsung SolarCell SE-GL-2002861 Manual de usuario

Samsung

Samsung MWR-SC00T Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
