USER’S MANUAL

Multi Function

Wired Remote Controller

MWR-WE00

System Air Conditioner

SE F I P GD

Ne Po Hu

DB98-30794A(1)AR

ENGLISHESPAÑOLFRANÇAISITALIANOPORTUGUÊSDEUTSCHEΛΛHNIKA

NEDERLANDS

POLSKIMAGYARRUSSIAN

MWR-WE00_IB_E_30794-1.indd 29 2009-06-22 ｿﾀﾈﾄ 2:37:09

E-2

Safety Precautions

Do not attempt to install or repair this multi function

wired remote controller by yourself.



This remote controller contains no user-serviceable parts.

Always consult authorized service personnel for repairs.

When moving, consult authorized service personnel for

disconnection and installation of the remote controller.

Ensure that the wall is strong enough to support the

weight of the remote controller.

Must install the remote controller with rated power

supply.

In the event of a malfunction (burning smell, etc.),

immediately stop operation, turn off the electrical

breaker, and consult authorized service personnel.

WARNING

CAUTION



Do not use inflammable gases near the remote

controller.



Do not spill water into the multi function wired remote

controller.



Do not operate the remote controller with wet hands.



Do not install the remote controller in a location where

it will come into contact with the combustible gases,

machine oil, sulphide gas, etc.



Do not press buttons with a pointed thing.



Do not pull or bend the multi function wired remote

controller cable excessively.



Do not use this multi function wired remote controller

for other purpose.



Do not spray an insecticide or other combustible things

on the multi function wired remote controller.



Do not clean the multi function wired remote controller

with benzene, solvents or other chemicals.



Do not give a shock to the multi function wired remote

controller or disassemble it by yourself.

• Before using the multi function wired remote controller, read carefully these

instructions.

• After reading the instructions, keep this user's manual in a handy and safe place.

If a user is changed, you must hand over the manuals.

• Never attempt to install the air conditioning system or to move the multi function

wired remote controller by yourself.

MWR-WE00_IB_E_30794-1.indd 2 2009-06-22 ｿﾀﾈﾄ 2:36:40

E-3

ENGLISH

Contents

 MULTI FUNCTION WIRED REMOTE CONTROLLER

........................

 GETTING STARTED

...........................................................................

 SELECTING THE AUTOMATIC OPERATING MODE

..........................

 SELECTING THE COOLING MODE

....................................................

 SELECTING THE DEHUMIDIFYING MODE

........................................

 SELECTING THE FAN MODE

.............................................................

 SELECTING THE HEATING MODE

....................................................

 SELECTING THE QUIET MODE

.........................................................

 SELECTING THE SLEEP MODE

..........................................................

 ADJUSTING THE AIR SWING DIRECTION

........................................

 CHECKING THE ROOM TEMPERATURE

............................................



LOCKING THE MULTI FUNCTION WIRED REMOTE CONTROLLER

.......

 OPERATING THE ERV

......................................................................

 USING THE E.SAVER FUNCTION

.....................................................

 SETTING THE 7-DAY SCHEDULE

......................................................

 DELETING A SCHEDULE

....................................................................

 SETTING AND CANCELING A HOLIDAY SCHEDULE

.........................

 RESETTING THE 7-DAY SCHEDULE

..................................................

 SETTING THE AUTO STOP FUNCTION

.............................................

 SETTING THE TEMPERATURE LIMITS

................................................

 LOCKING THE PARTS OF THE MULTI FUNCTION

WIRED REMOTE CONTROLLER

........................................................

 SETTING THE CURRENT TIME AND DAY

.........................................

MWR-WE00_IB_E_30794-1.indd 3 2009-06-22 ｿﾀﾈﾄ 2:36:40

E-4

Getting Started

You have just purchased a multi function wired remote controller and it has

been installed by your installation specialist.

Your User’s Manual contain much valuable information on using

your multi function wired remote controller. Please take the time to read

them as they will help you take full advantage of the unit’s features.

In the manual, you will find a series of step-by-step procedures for each

function available.

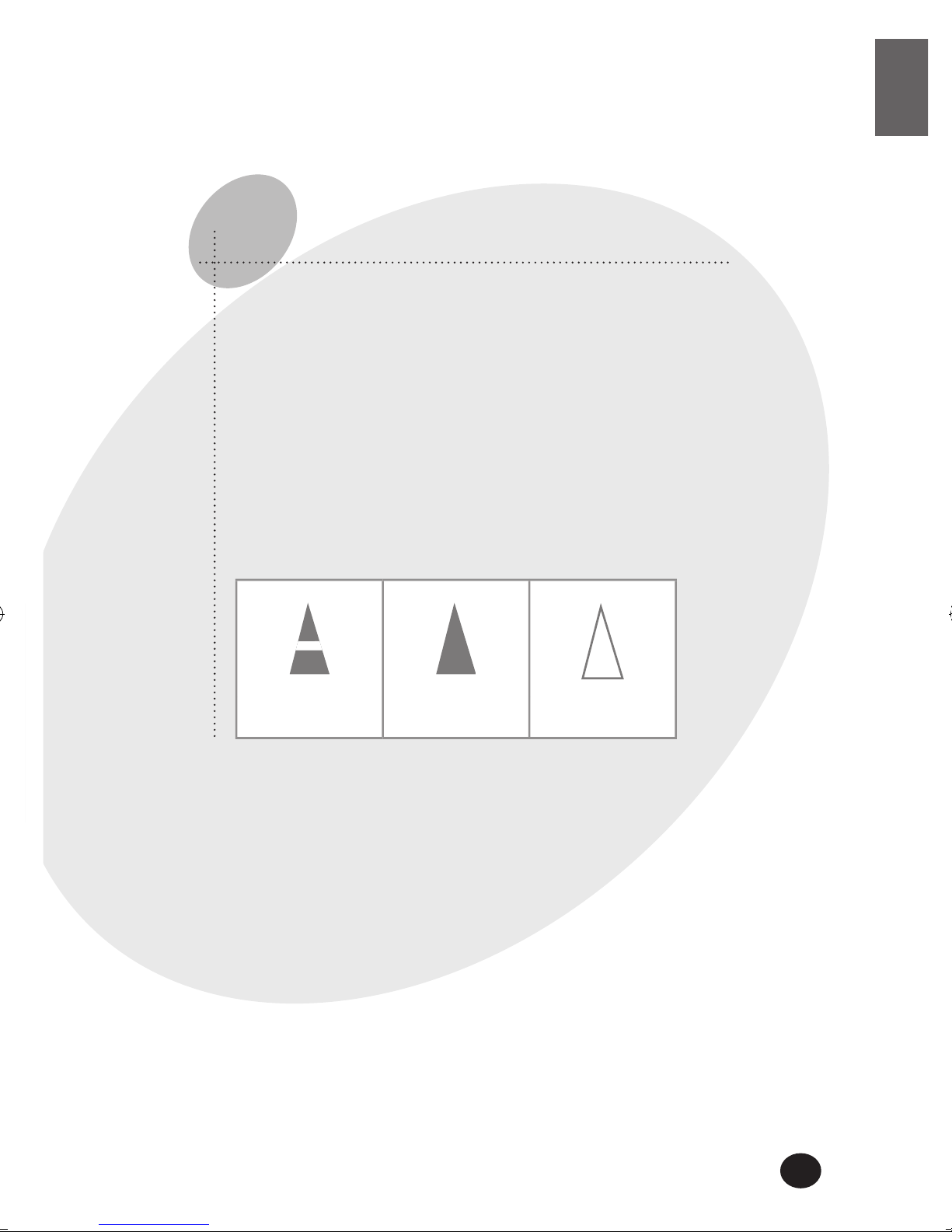

The illustrations in the step-by-step procedures use 3 different symbols:

PRESS PUSH HOLD DOWN

Multi Function Wired Remote Controller

The multi function wired remote controller is installed on the wall.

Schedule number/

Schedule applied

unit display

Schedule/

Current time

display

Operation mode

display

AC fan speed/

air swing display

Special function

display

ERV fan speed

display

7-day schedule setup

Mode selection

ERV on/fan speed

control

Swing button

Energy saving

function selection

Room temperature

check button

Schedule reset button

Temperature

display

Operation ON/OFF button Temperature setting

button

Fan speed setting

button

Note  The button operates only when 1 indoor unit and 1 ERV unit is

connected to the multi function wired remote controller. If ERV unit is

not connected or more than 2 ERV units are connected, will be

displayed when you control it.

 ERV operates in Heat Exchange mode only.

 Press the buttons after cleaning the air filter. sign will be off.

The remote controller will display the filter sign to alert the user to clean the

filter and turn off the display when the buttons are pressed.

 will be displayed if you press the button of the function that the

indoor unit does not support.

 If you press button when ERV unit is connected to the multi function

wired remote controller, you can turn on/off both of ERV unit and the air

conditioner at the same time or turn on/off the air conditioner only.

The default setting is turning on/off both of them.

(Refer to the installation manual.)

 Even if the ERV and air conditioner are set to turn on/off at the same time,

you can control the air conditioner and ERV individually by other controllers

(Wireless remote controller, Centralized controller, S-NET mini, etc.) except

the multi function wired remote controller.

MWR-WE00_IB_E_30794-1.indd 4 2009-06-22 ｿﾀﾈﾄ 2:36:41

E-5

ENGLISH

Getting Started

You have just purchased a multi function wired remote controller and it has

been installed by your installation specialist.

Your User’s Manual contain much valuable information on using

your multi function wired remote controller. Please take the time to read

them as they will help you take full advantage of the unit’s features.

In the manual, you will find a series of step-by-step procedures for each

function available.

The illustrations in the step-by-step procedures use 3 different symbols:

PRESS PUSH HOLD DOWN

MWR-WE00_IB_E_30794-1.indd 5 2009-06-22 ｿﾀﾈﾄ 2:36:42

E-6

The room temperature and the fan speed are controlled

automatically in the auto mode.

Press the (ON/OFF) button to turn on the indoor unit.

- Do not press the (ON/OFF) button if the remote

controller is on.

Result: The air conditioner will be turned on with the

most recently used mode.

Caution The air conditioner has a built-in protection

mechanism to prevent the unit from being

damaged when it is started immediately after

being:

 Plugged in

 Stopped

The air conditioner will start up after 3 minutes.

To select the AUTO mode, press the button until Auto is

displayed on the remote controller.

Result:  The air conditioner will operate in auto mode.

 The auto fan speed will be selected

automatically in auto mode.

You cannot control the fan speed.

To adjust the temperature, press the buttons.

The temperature can be set between 18°C(65°F) and

30°C(86°F).

Result: The temperature will be adjusted by 1°C(1°F)

when the buttons are pressed.

To adjust the air swing direction, refer to page 13.

Note Fan speed in auto mode

When the room temperature is high, cool and strong

air will come out. After the room is cooled, mild air will

come out.

Selecting the Automatic Operating Mode

MWR-WE00_IB_E_30794-1.indd 6 2009-06-22 ｿﾀﾈﾄ 2:36:42

E-7

ENGLISH

Selecting the Cooling Mode

Select the cooling mode to lower the room temperature.

Press the (ON/OFF) button to turn on the indoor unit.

- Do not press the (ON/OFF) button if the remote

controller is on.

Result: The air conditioner will be turned on with the

most recently used mode.

Caution The air conditioner has a built-in protection

mechanism to prevent the unit from being

damaged when it is started immediately after

being:

 Plugged in

 Stopped

The air conditioner will start up after 3 minutes.

To select the COOL mode, press the button until Cool is

displayed on the remote controller.

Result: The air conditioner will operate in cooling mode.

To adjust the temperature, press the buttons.

The temperature can be set between 18°C(65°F) and

30°C(86°F).

Result: The temperature will be adjusted by 1°C(1°F)

when the buttons are pressed.

Select the fan speed by pressing the button.

Result: Each time the button is pressed, fan speed will

change in the following order:

Low Med High Auto

To adjust the air swing direction, refer to page 13.

Note If you select heating mode while the cooling mode is in

operation, cooling mode will be canceled.

MWR-WE00_IB_E_30794-1.indd 7 2009-06-22 ｿﾀﾈﾄ 2:36:44

E-8

Select the dehumidifying mode if the room is too humid.

Using this mode will slightly lower the room temperature.

Press the (ON/OFF) button to turn on the indoor unit.

- Do not press the (ON/OFF) button if the remote

controller is on.

Result: The air conditioner will be turned on with the

most recently used mode.

Caution The air conditioner has a built-in protection

mechanism to prevent the unit from being

damaged when it is started immediately after

being:

 Plugged in

 Stopped

The air conditioner will start up after 3 minutes.

To select the DRY mode, press the button until Dry is

displayed on the remote controller.

Result:  The air conditioner will operate in

dehumidifying mode.

 The Auto fan speed will be selected

automatically in the dry mode.

You cannot control the fan speed.

To adjust the temperature, press the buttons.

The temperature can be set between 18°C(65°F) and

30°C(86°F).

Result: The temperature will be adjusted by 1°C(1°F)

when the buttons are pressed.

To adjust the air swing direction, refer to page 13.

Selecting the Dehumidifying Mode

MWR-WE00_IB_E_30794-1.indd 8 2009-06-22 ｿﾀﾈﾄ 2:36:45

E-9

ENGLISH

Selecting the Fan Mode

Select the fan mode to circulate air without changing the

temperature.

Press the (ON/OFF) button to turn on the indoor unit.

- Do not press the (ON/OFF) button if the remote

controller is on.

Result: The air conditioner will be turned on with the

most recently used mode.

Caution The air conditioner has a built-in protection

mechanism to prevent the unit from being

damaged when it is started immediately after

being:

 Plugged in

 Stopped

The air conditioner will start up after 3 minutes.

To select the FAN mode, press the button until Fan is

displayed on the remote controller.

Result:  The air conditioner will operate in fan mode.

 You cannot adjust the temperature in fan

mode.

Select the fan speed by pressing the button.

Result: Each time the button is pressed, fan speed will

change in the following order:

Low Med High

To adjust the air swing direction, refer to page 13.

MWR-WE00_IB_E_30794-1.indd 9 2009-06-22 ｿﾀﾈﾄ 2:36:46

E-10

Select the heat mode to raise the room temperature.

Press the (ON/OFF) button to turn on the indoor unit.

- Do not press the (ON/OFF) button if the remote

controller is on.

Result: The air conditioner will be turned on with the

most recently used mode.

Caution The air conditioner has a built-in protection

mechanism to prevent the unit from being

damaged when it is started immediately after

being:

 Plugged in

 Stopped

The air conditioner will start up after 3 minutes.

To select the HEAT mode, press the button until Heat is

displayed on the remote controller.

Result: The air conditioner will operate in heating mode.

To adjust the temperature, press the buttons.

The temperature can be set between 16°C(61°F) and

30°C(86°F).

Result:  The temperature will be adjusted by 1°C(1°F)

when the buttons are pressed.

 The air conditioner will start heating if the

set temperature is higher than the room

temperature.

 The fan will operate even if the set

temperature is lower than the room

temperature.

Select the fan speed by pressing the button.

Result: Each time the button is pressed, fan speed

will change in the following order:

Low Med High Auto

To adjust the air swing direction, refer to page 13.

Note

 After starting heating operation, the air may not come out

immediately to prevent the cold air from coming out.

 (Defrost indicator)

- Defrost indicator will be on while your outdoor unit

defrosts the frost formed during heating operation.

After defrosting is completed, the indicator will be off.

(Air will not come out of the indoor unit while defrosting.)

 If you stop running the air conditioner after heating

operation, the air will come out for a while to radiate heat.

 If you select cooling mode while the heating mode is in

operation, heating mode will be canceled.

Selecting the Heating Mode

The heating mode can be selected only on the heat pump models.

MWR-WE00_IB_E_30794-1.indd 10 2009-06-22 ｿﾀﾈﾄ 2:36:48

Tabla de contenidos

Otros manuales de Mando a distancia de Samsung

Samsung

Samsung MWR-WG00JN Manual de usuario

Samsung

Samsung MWR-SH00 Manual de usuario

Samsung

Samsung MWR-SH11N Manual de usuario

Samsung

Samsung SolarCell QN85C Manual de usuario

Samsung

Samsung MWR-WE10 Manual de usuario

Samsung

Samsung SolarCell Remote Manual de usuario

Samsung

Samsung BN68-03092A-02 Manual de usuario

Samsung

Samsung MWR-WE10N Manual de usuario

Samsung

Samsung EAF2E2C6 Manual de usuario

Samsung

Samsung MWR-WE11N Manual de usuario

Samsung

Samsung C700 Manual de usuario

Samsung

Samsung SWPZ01-RX Manual de usuario

Samsung

Samsung RMC-QTD1 Manual de usuario

Samsung

Samsung RMC-QTD1 Manual de usuario

Samsung

Samsung SolarCell Remote Manual de usuario

Samsung

Samsung MWR-WE10 Manual de usuario

Samsung

Samsung BN68-11568A Manual de usuario

Samsung

Samsung MWR-BS00 Manual de usuario

Samsung

Samsung MWR-TH01 Manual de usuario

Samsung

Samsung SolarCell Remote Manual de usuario

Samsung

Samsung SolarCell SE-GL-2002861 Manual de usuario

Samsung

Samsung CU7172 Manual de usuario

Samsung

Samsung MWR-WE10N Manual de usuario

Samsung

Samsung MWR-SH00N Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
