• Throughout the scheduling process, the LEFT and RIGHT buttons
will move forward and backward through each section of settings
• The UP and DOWN buttons will toggle or scroll through the options
in each section.
TECHNICAL BULLETIN: Page
www.SamsungHVAC.com
888-699-6067
1 of 10
MWR-WE1*, MWR-WE1*N, MWR-WE1*UN
Scheduling Instructions
© 2019 Samsung HVAC
Version 1.0 (04/25/2019)
NOTE: Button location and controller image will vary based on model/generation.
• After pressing the SCHEDULE button ,
this screen will display
• The “Weekly” icon will flash, at this point
you can press the UP button to toggle to
“Holiday” for holiday scheduling.
• Leave the “Weekly” icon flashing and
press the RIGHT button to advance to
the next section.
• This is the standard display while in
normal operation.
• It indicates that there are no events
scheduled on this controller for the
connected unit.
• If there were events scheduled, a line
would display under the days that have
scheduling.
www.SamsungHVAC.com
Page 2 of 10
TECHNICAL BULLETIN:.MWR-WE1*, MWR-WE1*N, MWR-WE1*UN
Scheduling Instructions
• After pressing the RIGHT direction
button, weekly will stop flashing and the
first “S” (Sunday) will flash.
• This is where you tell the controller the
days of the week you would like the first
event to occur.
• Press the UP button to select Sunday or
RIGHT to move to Monday.
• Press UP or DOWN on the days of the
week wanted.
• A box will appear around the days that
have been selected
• See example below.
In this example Monday – Friday have been selected
Page
www.SamsungHVAC.com
3 of 10
TECHNICAL BULLETIN: MWR-WE1*, MWR-WE1*N, MWR-WE1*UN
Scheduling Instructions
• Once Saturday is reached, when the
RIGHT button is pressed again you will
advance to the next section
•If there is a Samsung ERV also
connected to the controller, UP
and DOWN can be pressed to
select “AC” or “ERV”
• Most applications will not have an ERV
• Press RIGHT again to advance to the
next section.
• You should now see “PM” flashing
(depending on the current time of the
controller)
• Press UP or DOWN to change to “AM”
or “PM”
• Press RIGHT to advance to the hour and
minute settings
www.SamsungHVAC.com
Page 4 of 10
TECHNICAL BULLETIN: MWR-WE1*, MWR-WE1*N, MWR-WE1*UN
Scheduling Instructions
• The hour section should now be flashing
• Press UP or DOWN to adjust the hour of
the time for this event to occur
• Press RIGHT, the minutes section
should be flashing.
• Press UP or DOWN to adjust the
minutes
• Press RIGHT to advance to the next
settings
Hours Minutes
• The “ON” icon should be flashing
• Press UP or DOWN to adjust to “OFF”
depending on the type of event being
scheduled (should the unit turn OFF/ON
at this time or stay ON/OFF?)
• Press RIGHT to advance to the
operation mode section
ON
OFF
Page
www.SamsungHVAC.com
5 of 10
TECHNICAL BULLETIN: MWR-WE1*, MWR-WE1*N, MWR-WE1*UN
Scheduling Instructions
• In the top left corner the mode should be
flashing
• Press UP and DOWN to scroll through
all of the mode options (AUTO, COOL,
DRY, FAN, HEAT
• Once the desired operation mode is
selected, press RIGHT to advance to the
next section
Auto
Cool Dry
Fan Heat
www.SamsungHVAC.com
Page 6 of 10
TECHNICAL BULLETIN: MWR-WE1*, MWR-WE1*N, MWR-WE1*UN
Scheduling Instructions
• The temperature should be blinking
• Press UP or DOWN to adjust the
temperature for this schedule event
• Press RIGHT to advance to the fan
speed adjustment section
• The fan speed icon should be flashing
• Press the UP or DOWN buttons to adjust
fan speed
• Auto fan speed will show a scrolling fan
speed indicator
• Once selected, press “SET”
Page
www.SamsungHVAC.com
7 of 10
TECHNICAL BULLETIN: MWR-WE1*, MWR-WE1*N, MWR-WE1*UN
Scheduling Instructions

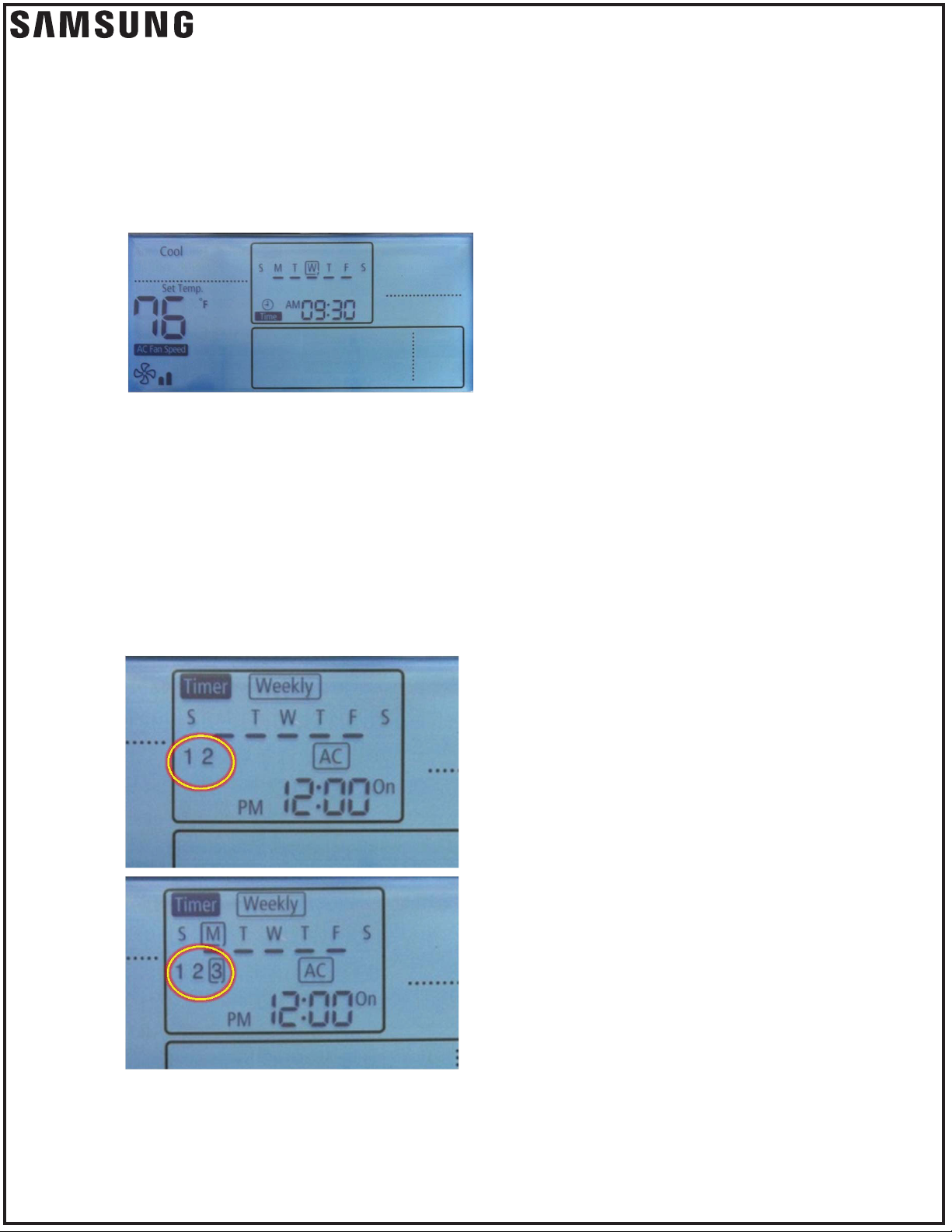

• The screen now indicates the days of the
week that have events scheduled with a
line underneath
• Up to 6 events per day can be scheduled
• To add more, go through the same steps
for the days of the week that require
more events
• Days with multiple events will display the
total quantity below when selected
during event scheduling setup
www.SamsungHVAC.com
Page 8 of 10
TECHNICAL BULLETIN: MWR-WE1*, MWR-WE1*N, MWR-WE1*UN
Scheduling Instructions

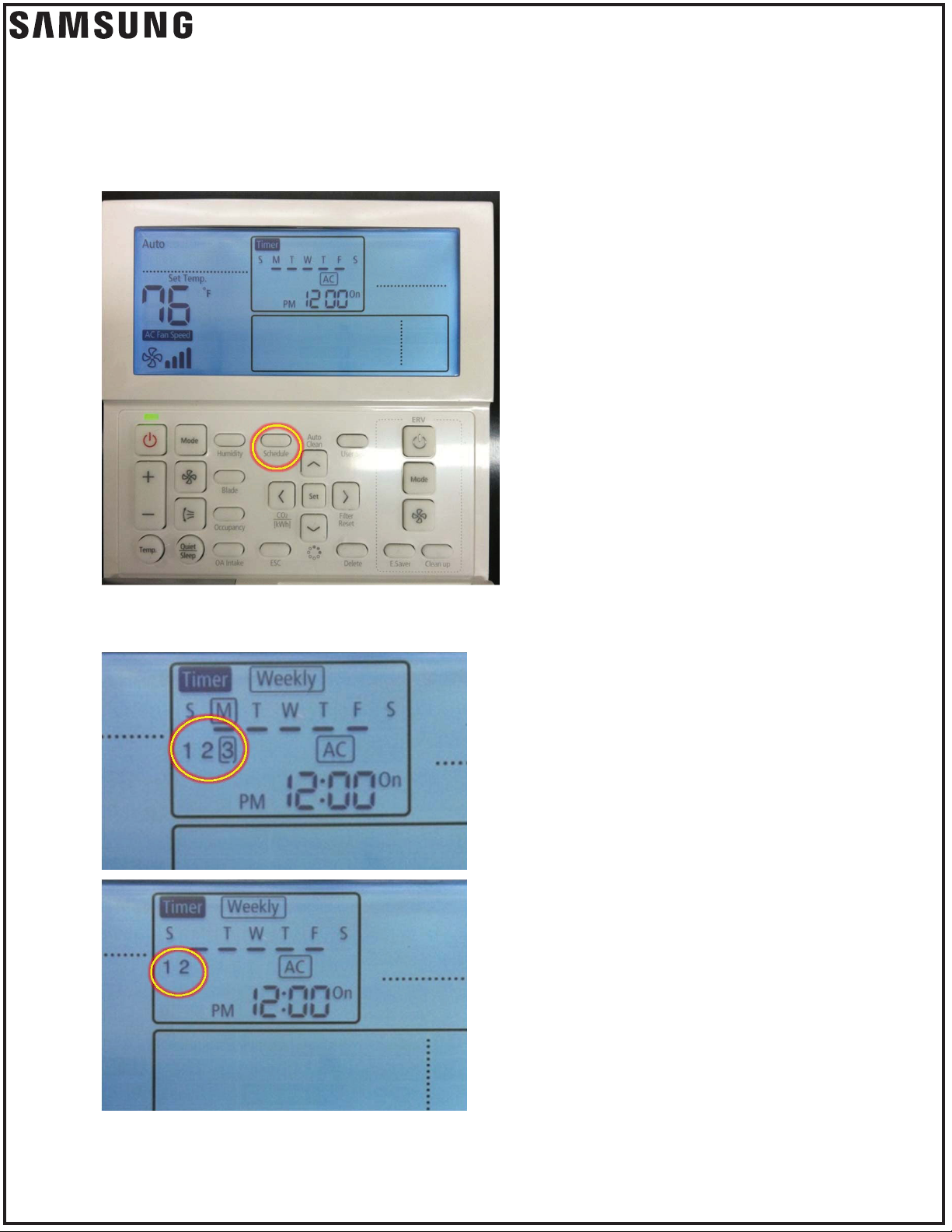

• To review already programmed events,
press SCHEDULE
• Press RIGHT to select a single day of
the week with an event that needs
reviewed
• Once to this day of the week, press UP
to select
• Press RIGHT until the number of
scheduled events appears for that day of
the week
• Press UP and DOWN to scroll through
the multiple events that have been
scheduled
• This will display all schedule setting for
each
Page
www.SamsungHVAC.com
9 of 10
TECHNICAL BULLETIN: MWR-WE1*, MWR-WE1*N, MWR-WE1*UN
Scheduling Instructions
• When ready to exit scheduling, press
ESC to escape
www.SamsungHVAC.com
Page 10 of 10
TECHNICAL BULLETIN: MWR-WE1*, MWR-WE1*N, MWR-WE1*UN
Scheduling Instructions
