Samsung MWR-SH00 Manual de usuario

Airconditioner

User manual

Wired Remote Control MWR-SH00

• Thank you for purchasing this Samsung Product.

• Before operating this unit, please read this user manual carefully and retain it for future

reference.

E-2

Safety Precautions



Do not attempt to install or repair this wired remote

control by yourself.

This remote control contains no user-serviceable parts.

Always consult authorized service personnel forrepairs.



When moving, consult authorized service personnel for

disconnection and installation of the remote control.

Ensure that the wall is strong enough to support the

weight of the remote control.



Must install the remote control with rated power

supply.

In the event of a malfunction (burning smell, etc.),

immediately stop operation, turn off the electrical

breaker, and consult authorized service personnel.

WARNING

CAUTION



Do not use inflammable gases nearthe remote

control.



Do not spill water into the wired remote control.



Do not operate the remote control with wet hands.



Do not install the remote control in a location where

it will come into contact with the combustible gases,

machine oil, sulphide gas, etc.



Do not press buttons with a pointed thing.



Do not pull or bend the wired remote control cable

excessively.



Do not use this wired remote control for other

purpose.



Do not spray an insecticide or other combustible

things on the wired remote control.



Do not clean the wired remote control with benzene,

solvents or other chemicals.



Do not give a shock to the wired remote control or

disassemble it byyourself.

• Before using the wired remote control, read carefully these instructions.

• After reading the instructions, keep this user's manual in a handy and safe

place. If a useris changed, you must hand over the manuals.

• Neverattempt to install the airconditioning system orto move the wired

remote control byyourself.

E-3

Contents

WIRED REMOTE CONTROL

.............................................................

GETTING STARTED

...........................................................................

SELECTING THE AUTO MODE

.........................................................

SELECTING THE COOL MODE

.........................................................

SELECTING THE HEAT MODE

..........................................................

SELECTING THE DRY MODE

...........................................................

SELECTING THE FAN MODE

...........................................................

DISPLAYING THE DEICE MODE

.....................................................

ADJUSTING THE FAN SPEED

..........................................................

Ɵ˵ʪͱиʪϑϩϑʪϩϩʪΧʪθɇϩЇθʪϑϩʪʒϩͱߣߡʒʪ˝θʪʪϩ˵ʪƸkɇʀʀͱθʒ˝ϩͱƸkࢋƊߦߡߢߡࣗߦࡏߣߡߢߧࢋ

E-4

Wired Remote Control

The wired remote control is installed on the wall.

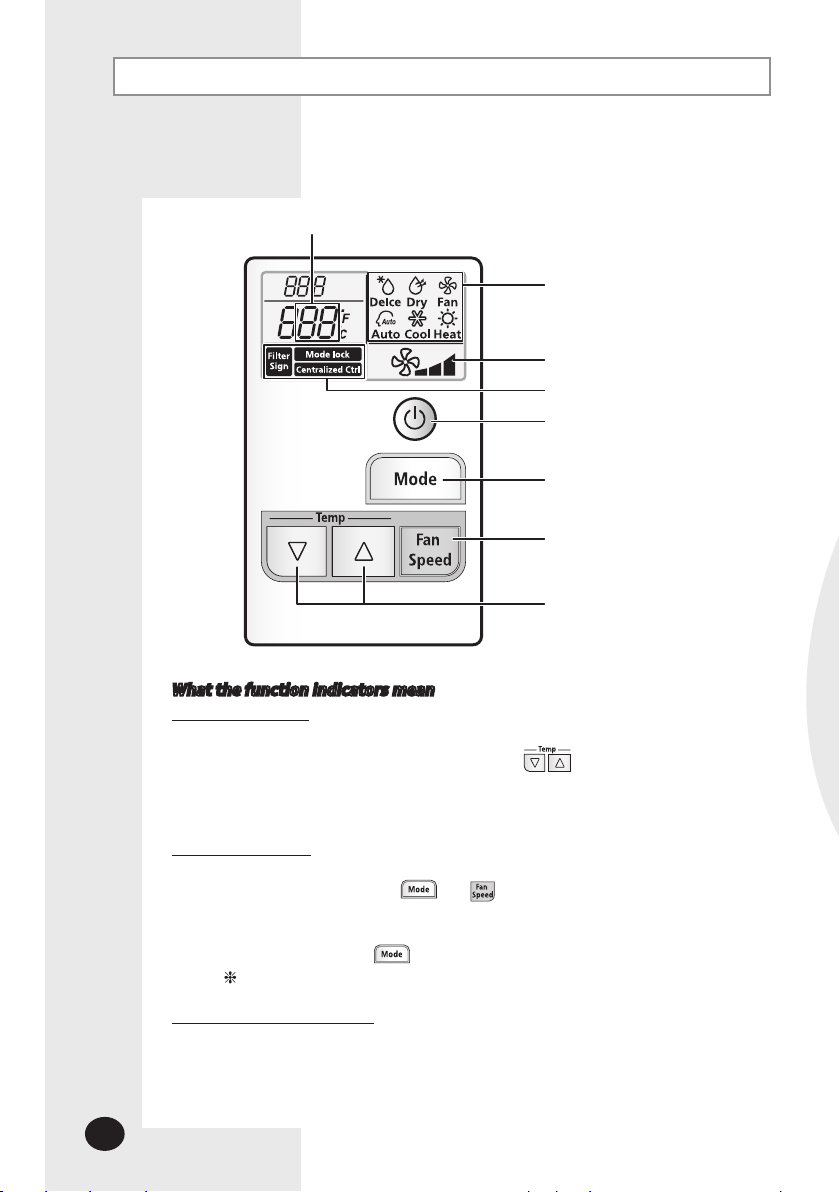

What the function indicators mean

Filter sign indicator



On : The filter inserted in the air conditioner needs to be cleaned. Clean up the

filter and reset the indicator by pressing the buttons at once for 5 sec-

onds.



Off : The filter inserted in the air conditioner is working well.

No action needed.

Mode lock indicator



On : The mode lock function is activating. You can not change the operation

mode. Press and hold the and buttons for 5 seconds to activate and

deactivate the function.



Off : The mode lock function is deactivating. You can change the operation mode

by short pressing the button.

You cannot activate the function with sub wired remote controls. Sub

wired remote controls just display the activating status only.

Centralized control indicator



On : The upper controllers (For example, centralized controllers and S-NET

series) activate central control. You cannot control the devices with the

wired remote control when central control is activating.



Off : Central control is deactivating. You can control the connected devices

with the wired remote control.

Operation mode indicator

Temperature indicator

Fan speed indicator

On/Off button

Mode selection button

Fan speed button

Temperature adjustment

buttons

Function indicator

E-5

Getting Started

You have just purchased a wired remote control and it has been

installed byyour installation specialist.

Your User’s Manual contains much valuable information on usingyour

wired remote control. Please take time to read it as itwill help you take full

advantages of the unit’s features.

In the manual, you will find a series of step-by-step procedures foreach

function available.

The illustrations in the step-by-step procedures use 3 different symbols:

PRESS PUSH HOLD DOWN

E-ߧ

Selecting the Auto Mode

The room temperature and the fan speed are controlled

automatically in the Auto mode.

Press the (ON/OFF) button to turn on the indoor unit.

(Do not press the (ON/OFF) button if the remote

control is on).

Result: The air conditioner will be turned on with the

mode selected when the unit was last used.

Caution

The air conditioner has a built-in protection

mechanism to prevent the unit from being

damaged when it is started immediately after

being:



Plugged in



Stopped

The air conditionerwill start up after 3 minutes.

To select the Auto mode, press the button until

is displayed on the remote control.

Result: The air conditioner will run in Auto mode.

To adjust the temperature, press the buttons to

set the desired temperature.

Ɵ˵ʪϩʪΧʪθɇϩЇθʪʀɇɵʪϑʪϩɵʪϩиʪʪߢߩইA࣍ߧߦই࣎ɇʒ

ߤߡইA࣍ߩߧই࣎ࢋ

Result: The temperature is adjusted by 1°C(1°F) when

the buttons are pressed.

E-7

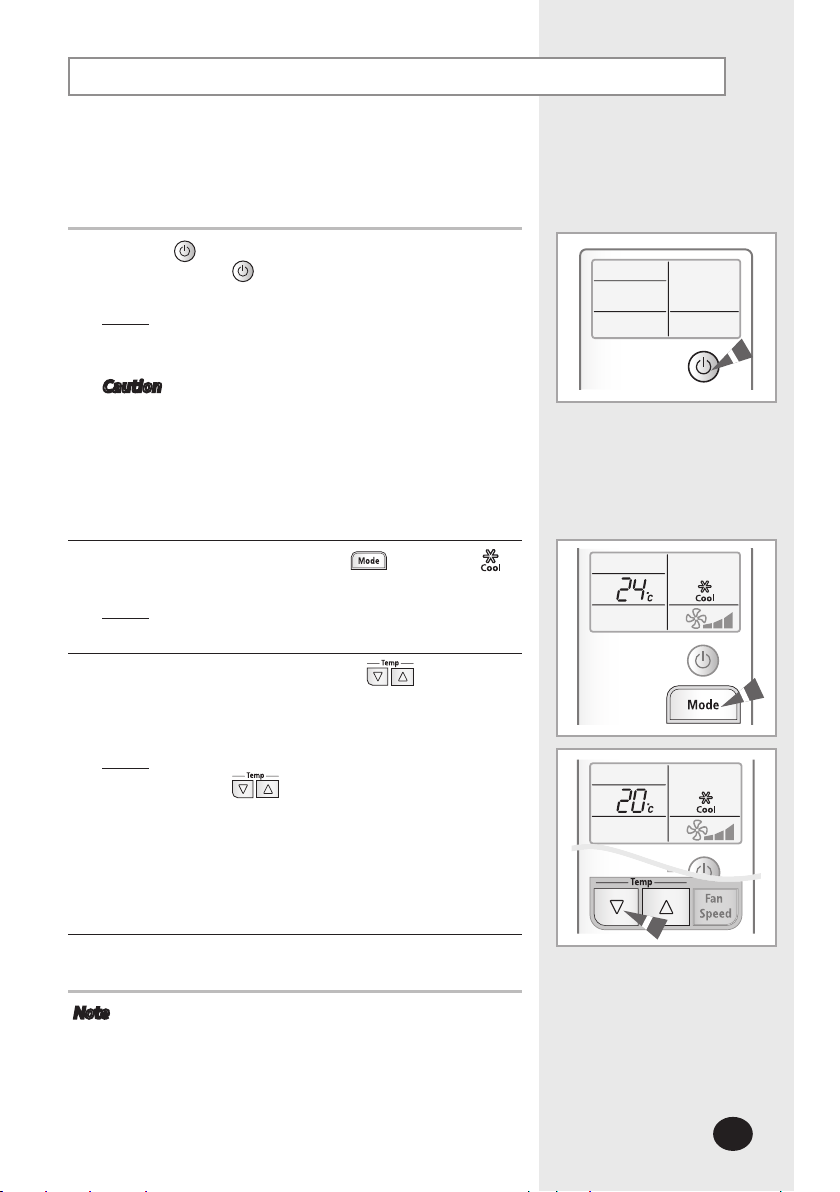

Selecting the Cool Mode

Select the Cool mode to lower the room temperature.

Press the (ON/OFF) button to turn on the indoor unit.

(Do not press the (ON/OFF) button if the remote

control is on).

Result: The air conditioner will be turned on with the

mode selected when the unit was last used.

Caution

The air conditioner has a built-in protection

mechanism to prevent the unit from being

damaged when it is started immediately after

being:



Plugged in



Stopped

The air conditionerwill start up after 3 minutes.

To select the Cool mode, press the button until is

displayed on the remote control.

Result: The air conditioner will run in Cool mode.

To adjust the temperature, press the buttons to

set the desired temperature.

Ɵ˵ʪϩʪΧʪθɇϩЇθʪʀɇɵʪϑʪϩɵʪϩиʪʪߢߩইA࣍ߧߦই࣎ɇʒ

ߤߡইA࣍ߩߧই࣎ࢋ

Result:



The temperature is adjusted by1°C(1°F) when

the buttons are pressed.



The air conditioner will start cooling if

the temperature set is lower than the room

temperature.



The fan will run even if the temperature set

is higher than the room temperature.

To adjust the fan speed, refer to page 11.

Note

The Cool and Heat mode cannot be selected at

the same time.

E-8

Selecting the Heat Mode

Select the Heat mode to raise the room temperature.

Press the (ON/OFF) button to turn on the indoor unit.

(Do not press the (ON/OFF) button if the remote

control is on).

Result: The air conditioner will be turned on with the

mode selected when the unit was last used.

Caution

The air conditioner has a built-in protection

mechanism to prevent the unit from being

damaged when it is started immediately after

being:

Plugged in

Stopped

The air conditionerwill start up after 3 minutes.

To select the Heat mode, press the button until

is displayed on the remote control.

Result: The air conditioner will run in Heat mode.

To adjust the temperature, press the buttons to

set the desired temperature.

Ɵ˵ʪϩʪΧʪθɇϩЇθʪʀɇɵʪϑʪϩɵʪϩиʪʪߢߧইA࣍ߧߢই࣎ɇʒ

ߤߡইA࣍ߩߧই࣎ࢋ

Result:

The temperature is adjusted by1°C(1°F) when

the buttons are pressed.

The air conditionerwill start heating if

the temperature set is higher than the room

temperature.



The fan will run even if the temperature set

is lower than the room temperature.

To adjust the fan speed, refer to page 11.

Note

The Cool and Heat mode cannot be selected at

the same time.

The Heat mode can be selected only on the heat pump models.

E-9

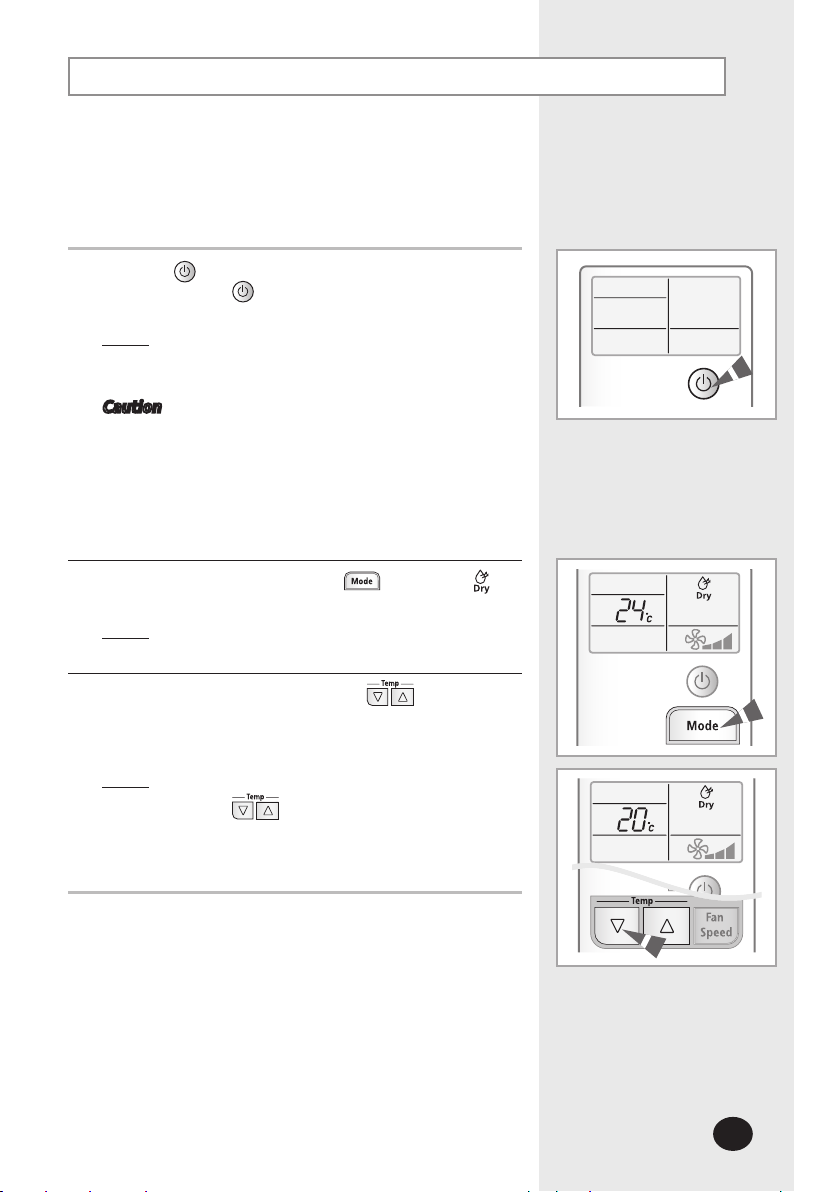

Selecting the Dry Mode

Select the Dry mode if the room is too humid.

Using this mode will slightly lower the room temperature.

Press the (ON/OFF) button to turn on the indoor unit.

(Do not press the (ON/OFF) button if the remote

control is on).

Result: The air conditioner will be turned on with the

mode selected when the unit was last used.

Caution

The air conditioner has a built-in protection

mechanism to prevent the unit from being

damaged when it is started immediately after

being:

Plugged in

Stopped

The air conditionerwill start up after 3 minutes.

To select the Dry mode, press the button until is

displayed on the remote control.

Result: The air conditioner will run in Dry mode.

To adjust the temperature, press the buttons to

set the desired temperature.

Ɵ˵ʪϩʪΧʪθɇϩЇθʪʀɇɵʪϑʪϩɵʪϩиʪʪߢߩইA࣍ߧߦই࣎ɇʒ

ߤߡইA࣍ߩߧই࣎ࢋ

Result:

The temperature is adjusted by1°C(1°F) when

the buttons are pressed.



The fan speed is adjusted automatically in

the Dry mode.

E-10

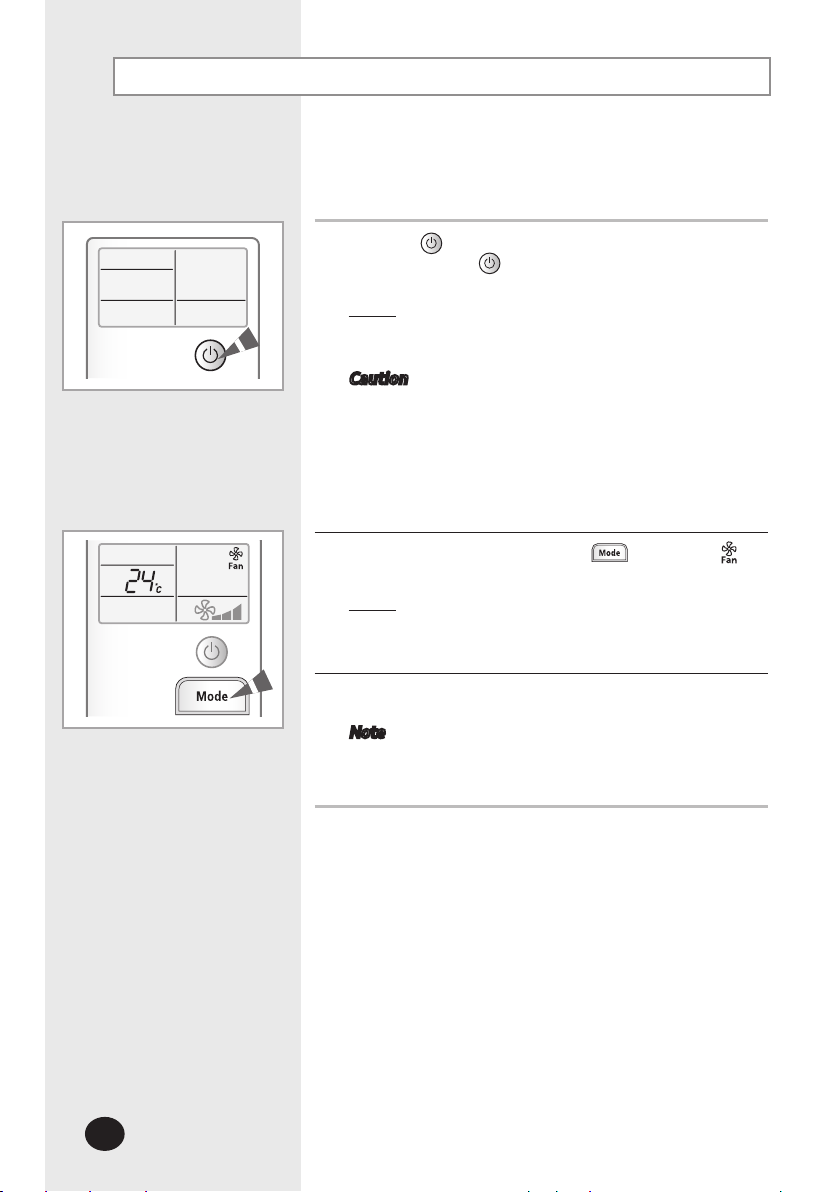

Selecting the Fan Mode

Select the Fan mode to circulate airwithout changing the

temperature.

Press the (ON/OFF) button to turn on the indoor unit.

(Do not press the (ON/OFF) button if the remote

control is on).

Result: The air conditioner will be turned on with the

mode selected when the unit was last used.

Caution

The air conditioner has a built-in protection

mechanism to prevent the unit from being

damaged when it is started immediately after

being:

Plugged in

Stopped

The air conditionerwill start up after 3 minutes.

To select the Fan mode, press the button until is

displayed on the remote control.

Result: The air conditioner will run in Fan mode.

To adjust the fan speed, refer to page 11.

Note

When the air conditioner is operating in the

fan mode, you can not select the automatic fan

speed.
