PROAIM P-WV-2PL-SD Manual de usuario

10' Wave-2 Plus Telescopic Jib Arm

Crane with CST-100 Stand &

Portable Dolly

(P-WV-2PL-SD)

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any

means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permied

by the applicable copyright statutes or in wring by the publisher.

PROAIM 10' Wave-2 Plus Telescopic Jib Arm Crane with CST-100 Stand & Portable Dolly 2

INTRODUCTION

PROAIM welcomes you to the new and modernized era with its Proaim 10' Wave-2 Plus

Telescopic Jib Arm Crane with CST-100 Stand & Potable Dolly, a portable lming

soluon to increase your producon value.The Robust jib crane is specically designed travel

crane for indoor & outdoor video producons. Itstelescopic arm feature adds exibility to frame

perfect shots in indoor and outdoor spaces. This video producon package includes a rugged

camera dolly for smooth, dynamic moving shots and rock solid aluminum tripod

stand for immense support. Now you can create the visual eects and produce incredibly

smooth oang camera crane shots that add value to your lming producons and bring a quick

return on your investment.

IN THE BOX

Please inspect the contents of your shipped package to ensure you have received all that is

pictured and listed below.

Weight Bar with Closer

Wave-2 Plus Camera Jib Arm

with 75mm Bowl adapter

Red Spreader Portable Dolly

Tripod stand

Boom clamp

PROAIM 10' Wave-2 Plus Telescopic Jib Arm Crane with CST-100 Stand & Portable Dolly 3

 Open the legs of 100mm tripod stand then aach it to spreader, lock it in place with the

rubber grips.

 Open Tripod spreader. In order to extend legs of spreader, loosen the knob and extend it as

per your requirement and reghten the knob to secure.

2. In case of Dolly, follow the following steps

Assembling 10' Wave-2 Plus Telescopic Jib Arm

 You will receive your 3-leg dolly collapsed for shipping/storage purposes. Loosen the screw

and extend it as per your requirement and reghten the screw to secure.

1. In case of spreader, follow the following steps

You can use the telescopic jib in 2 ways

PROAIM 10' Wave-2 Plus Telescopic Jib Arm Crane with CST-100 Stand & Portable Dolly 4

 Now mount the Tripod Stand on Dolly, lock it in place with the rubber grips.

 Adjust riser height of Tripod by loosening lock controls located on each leg, slide the stand

up to a desired level posion and lock leg extensions in place to secure.

 Now aach the central fork with the tripod bowl, then aach boom clamp to secure it

well.

PROAIM 10' Wave-2 Plus Telescopic Jib Arm Crane with CST-100 Stand & Portable Dolly 5

 Unscrew the knob to extend jib arm at back and reghten the knob. Secure all the

connecons.

NOTE It is important to make sure that the Central Fork is seated in the bowl properly. That

means perpendicular to the tripod bowl. O axis installaon may hamper movement of the jib.

Also you may need the assistance of a grip stand to hold the camera end of the arm during

installaon prevenng it from falling as it will be front heavy at this point. You may also need

the grip stand or assistance at the rear of the jib when mounng the camera.

 Now slide in weight to it as per your requirement and screw in weight closer properly.

(Counter weight NOT INCLUDED)

 Insert the weight bar into the jib arm.

PROAIM 10' Wave-2 Plus Telescopic Jib Arm Crane with CST-100 Stand & Portable Dolly 6

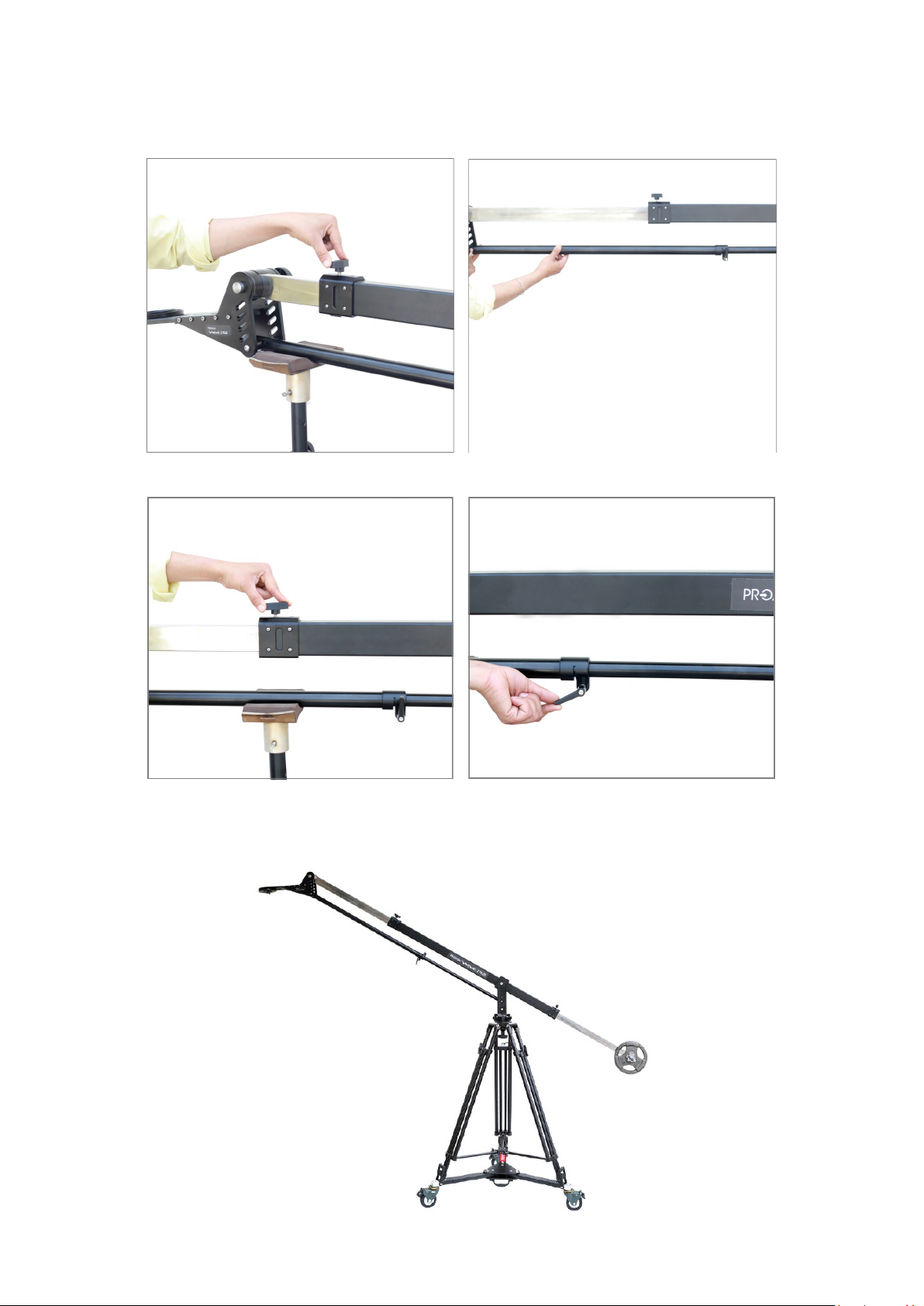

 Loosen the knobs of Jib arm to extend the front telescopic post of the Jib.

 Extend the Jib as per your requirement and ghten all the knobs to secure.

YOUR PROAIM 10' WAVE-2 PLUS TELESCOPIC JIB ARM CRANE

ALL DRESSED UP AND GOOD TO GO

PROAIM 10' Wave-2 Plus Telescopic Jib Arm Crane with CST-100 Stand & Portable Dolly 7

 Loosen the bolts of Jib bowl & remove the adapter plate. Mount your uid head set-up onto

the bowl plate and lock it with locking adapter.

Camera Mounng

 Now mount your camera set-up onto uid head (not included) and secure it with help of

provided knob.

 Aach your LCD Mounng Arm to Jib Fork

and ghten it properly to secure.

 Now screw in the LCD to arm and ghten

its knob aer posioning the angle of LCD

Arm.

LCD Mounng (Not Included)

PROAIM 10' Wave-2 Plus Telescopic Jib Arm Crane with CST-100 Stand & Portable Dolly 8

YOUR PROAIM 10' WAVE-2 PLUS TELESCOPIC JIB ARM CRANE WITH CST-100

STAND & PORTABLE DOLLY ALL DRESSED UP AND GOOD TO GO

(SHOWN WITH OPTIONAL

ACCESSORIES)

WARRANTY

We oer a one year warranty for our products from the date of purchase.

We will repair or replace your product, free of charge, in the event of a defect in materials or

crasmanship obtained during normal use or handling based on the user manual. Please note

that we will not cover any shipping costs for returning the product to us. If any VAT or import

dues are applied to the return, we will also charge these costs to the customer.

The warranty does not include, by the way of example, damage caused by products that we do

not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the

product , or service by anyone other than our company.

We are not liable for incidental or consequenal damages resulng from the use of the unit or

occurring due to any breach of this warranty.

Replacement parts of the product will be provided at nominal cost (covering the cost price of the

replacement parts only) to the customers aer the Warranty Period has expired. We will cover

the complete cost of sending replacement parts within the warranty period. Aer that, Nominal

cost of the product & Actual shipping cost will be charged.

Do not send the unit to us without rst geng a response and geng the approval to send back

the item.

In case of any kind of dissasfacon, we urge you to Contact us immediately and we shall do our

best to help you out.

For any other assistance you can reach us via email.
