PROAIM CINEMA Series Manual de usuario

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is

listed below.

Pro Camera Vibration Isolator,15-30kg (VI-PP-02)

A s s emb l y Ma n u a l

3 x 2.5mm, 3mm, 5/16'' Allen keys

Proaim Pro Vibration Isolator

with Ronin Mounting Plate

DJI-QR Ronin

Top plate of Isolator

Passive Plate

Square O-Rings

Pan Barrel Polymer

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Loosen the side lock lever & insert your

gimbal then again lock the lever to secure

it. If ronin plate look loose then tighten the

side allen bolt.

Vibraon Isolator Setup

NOTE: Attach Isolator with Proaim Airwave

Vibration Isolator Arm then secure with

provided screws

NOTE: The isolator can be fixed both Over Slung

and Under Slung, as per your requirement

Begin by taking out the mainframe from the

case.

Aach DJI-QR Ronin plate with top plate of

Vibraon Isolator with the provided screws

& allen key.

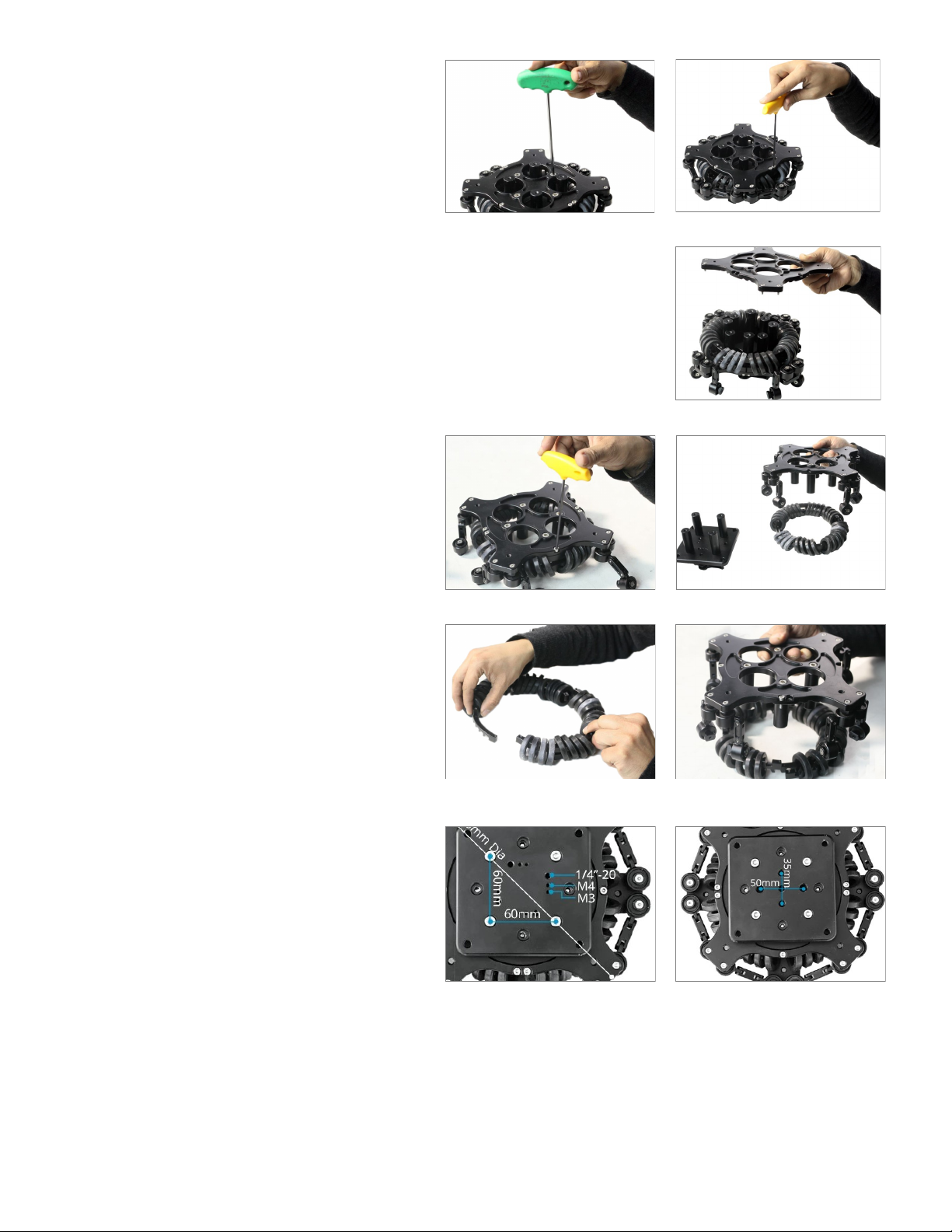

Loosen allen bolts on top Plate with the

help of allen key and remove the plate.

Your equipment will look as shown in

image.

NOTE: Vibration Isolator can also be customized with different payloads for using with lightweight set-ups

from 15-30kg / 33-66lb.

Now reduce the rings set in center of the

Vibration Isolator as per your payload

requirement. Then similarly follow the back

steps to assemble the Vibration Isolator.

Turn the Isolator upside-down & loosen the

bolts to remove Square-O-Rings from the

Isolator.

•There are many dierent holes at the top

and boom side of vibraon isolator plate to

mount dierent accessories.

1/4”-20 hole is for DJI-QR Ronin Plate

M4 or M3 hole is for MOVI Mount

Be sure to mount your Gimbal Camera Setup

securely.

Loosen all allen bolts with help of provided

allen key as shown in images.

Remove the Passive Plate from the Frame as

shown in the image.

YOUR PROAIM PRO CAMERA VIBRATION ISOLATOR

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

utmost support and care unl you use our product.
