NetComm 3G42W-M Manual de usuario

WAN Interface

DC

-HSPA+ x 1 (Up to 42Mbps Downlink/5.76 Mbps Uplink)

Network Standards

Supports quad

-band UMTS/HSDPA/HSUPA (850/900/1900/2100MHz)

Antenna Type

Internal

3G antenna with SMA connector for optional external antenna

LAN

Interface

Ethernet x 4

WLAN

IEEE 802.11n

backward compatible with 802.11b/g

USB 2.0 ports

2 x USB2.0 ports for Print Server/Mass

Storage

Power

External Power adaptor 100

-240VAC to 12VDC/1.5A

Environment

al

Conditions

Operating temperature 0 ~ 50 degrees Celsius

Relative humidity 5 ~ 90% (non

-condensing)

Dimensions

195mm (W) x 65mm(H) x 160mm(D)

Wireless Security Card

Power Supply

Quick Start Guide

Ethernet Cable

User Manual on CD

SIM Slot: Mobily SIM card goes in this slot

LAN ports: 4 Ethernet ports to allow Wired connections

Reset button: To factory default the device

Power connector: Connect the power supply to power up the device

External Antenna connector: SMA connector to connect an optional external antenna

Signal Strength LED: Indicates your connection to the Wireless Service Provider

(Carrier). Signal strength ranges from High, Medium & Low.

Network Connection LED: Indicates whether you are connected via the 2G or the

3G network.

Ethernet Connection LED: Indicates which of the 4 LAN ports are active.

www LED: Indicates whether your Internet connection is active.

WiFi LED: Indicates whether your Wi-Fi network connection is active.

Power LED: Indicates whether your device is ON.

Device ON/OFF button: Use this button to turn the device ON or OFF

Connecting via cable (wired)

1. Connect the yellow Ethernet cable to one of the yellow ports at the back

of the router

2. Connect the other end of the yellow Ethernet cable to your computer.

3. Wait 30 seconds for the connection to establish.

4. You are now connected to the internet

Connecting wirelessly

1. Ensure WiFi is activated on your device (computer/laptop/smartphone)

2. Scan for wireless networks in your area and connect to the network name that

matches the Wireless Network Name found on your Wireless Security Card.

3. When prompted for your wireless security settings, enter the Wireless

Security Key listed on your Wireless Security Card.

4. Wait 30 seconds for the connection to establish.

5. You are now connected to the internet.

Advanced Configuration

1. For advanced configuration, open your browser (eg. Internet Explorer, Safari)

2. Enter the address of your Router (Default: http://192.168.1.1/)

3. When prompted for your Username and Password enter:

Username: admin

Password: admin

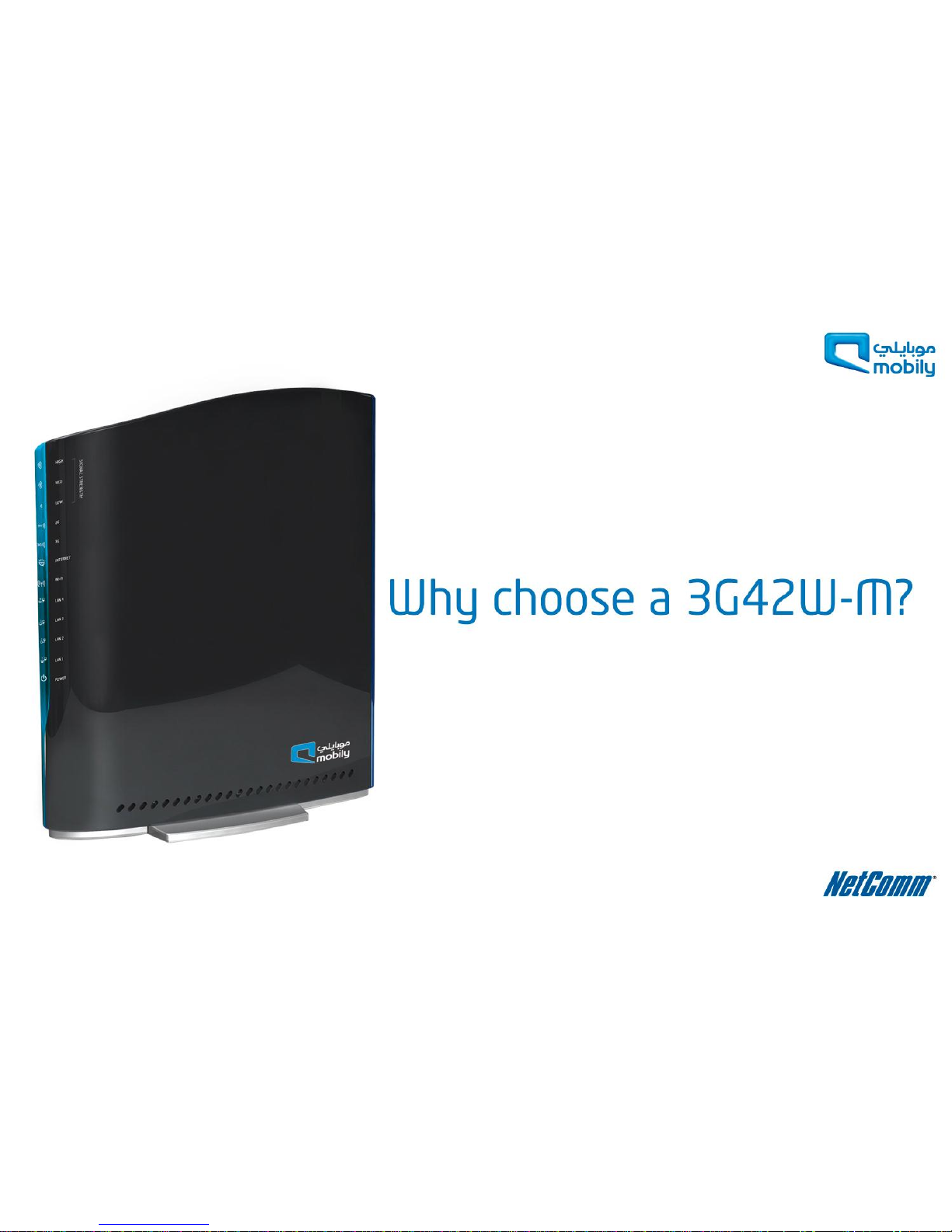

Wireless 42Mbps router

Using DC-HSPA+ technology and NetComm’s unique design to give you up to

42Mbps downlink and 5.6Mbps uplink speeds

Built-in 11n WiFi

Covers 55 metres in every direction and gives you speeds up to 300Mbps

Cable Management

Side cover ensures that your cables stay in order

2x USB ports

Allows you to connect a printer and an external storage device and share them

within your network

External Antenna

Allows you to connect an external antenna to get better signal coverage

Unique housing design

Using natural ventilation, cold air enters from the bottom of the unit, flows over

the inside of the unit and throws the warm air from the top, just like a chimney
