Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11 1

CCoonnnneeccttiinngg aa NNeettCCoommmm WWiirreelleessss RRoouutteerr ttoo aann EEaattoonn NNeettwwoorrkk CCaarrdd

IInnttrroodduuccttiioonn

This document provides instructions for connecting a NetComm Wireless NTC-220 or NTC-140W Series

wireless router to one of the following Eaton connectivity cards

• Industrial Gateway Card (INDGW-M2)

• Gigabit Industrial Gateway X2 Card (INDGW-X2)

• Power Xpert Gateway UPS (PXGX-UPS)

• Power Xpert Gateway Minislot UPS (PXGMS)

• Gigabit Network (Network-M2)

NOTE The Network-M2 card has now reached end-of-life (EOL) status.

PPrreerreeqquuiissiitteess

• Eaton UPS with a INDGW-M2, INDGW-X2, PXGX-UPS, PXGMS, or Network-M2 card

• USB-to-USB (Type B) cable for PXGX-UPS

• USB-to-USB (MiniTypeB) for PXGMS

• USB-to-USB (MicroUSB B) for INDGW-M2, INDGW-X2, or Network-M2

• Serial COM port or USB-to-serial 9-pin male adapter

• An existing PredictPulse account (refer to the PredictPulse Quick Start Guide)

• Download the latest card firmware and RNDIS driver from the Eaton product site

For the INDGW-M2 card, go to

https //www.eaton.com/us/en-us/catalog/backup-power-ups-surge-it-power-distribution/eaton-

industrial-gateway-card.resources.html

For the INDGW-X2 card, go to

https //www.eaton.com/us/en-us/catalog/backup-power-ups-surge-it-power-distribution/eaton-gigabit-

industrial-gateway-card.html.

Go to the Resources page and scroll down to the Software, firmware, and applications section. Click

the links to download the firmware and RNDIS driver files.

NOTE The Netcomm Wireless router must be powered by a 120V electrical outlet powered by

the UPS. This ensures that the router is protected during a power outage. If no UPS-

protected outlet is available, a Universal Accessory Power (UAP) kit is required. The UAP

must be installed by an Eaton technician. Contact your Eaton service representative for a

quote.

NNeettCCoommmm WWiirreelleessss RRoouutteerr IInnssttaallllaattiioonn GGuuiiddeelliinneess

Refer to the Quick Start Guide provided with the NetComm Wireless router for instructions on mounting the

router and connecting power.

NOTE The router must be powered by a 120V electrical outlet powered by the UPS. This

ensures that the router is protected during a power outage. If no UPS-protected outlet is

available, a Universal Accessory Power (UAP) kit is required. The UAP must be installed

by an Eaton technician. Contact your Eaton service representative for a quote.

2 Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11

IINNDDGGWW--MM22 oorr IINNDDGGWW--XX22 CCaarrdd IInnssttaallllaattiioonn

The hot-swappable INDGW-M2 and INDGW-X2 cards (see Figure 1 and Figure 2) can be installed without

turning off the UPS or disconnecting the load. To install the card

1. Ensure that the UPS has logic power.

2. Remove the two screws securing the Minislot or X-slot cover and remove the cover from the UPS. Retain

the screws.

3. Remove the INDGW-M2 or INDGW-X2 card from its shipping package.

4. Slide the card into the open slot. Secure with the screws removed in Step 2.

5. Wait for the Warning LED (see Figure 1 or Figure 2) to flash only green to indicate that the card is

operational. The ON LED also flashes green when the card is ready.

6. Connect a USB cable from the SETTINGS port of the INDGW-M2 or INDGW-X2 card to a USB port on the

laptop.

• Windows will automatically detect the INDGW-M2 or INDGW-X2 card connection

7. Open a web browser and enter https://169 254 0 1. You are prompted to log in.

Figure 1 INDGW-M2 Card

Figure 2 INDGW-X2 Card

8. Log in using the username admin and password admin.

9. You are prompted to change your password.

Network

Connector

Network

Speed LED

Network Link/

Activity LED

AUX (EMP)

Connector

RESTART

Button

ON LED

Warning LED

SETTINGS/

UPS Data Connector

Modbus

Connector

INDGW-M2 or INDGW-X2 Card Installation

Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11 3

10. Enter the new password Eaton123!, re-enter the new password, and press Submit.

Entering a password other than Eaton123! will cause the PredictPulse activation to fail.

11. Read and accept the license agreement.

12. The INDGW-M2 or INDGW-X2 card home page displays (see Figure 3).

13. The green ON LED should be flashing to indicate that the card is operating normally (see Figure 1 or

Figure 2).

If the green ON LED is not flashing, the INDGW-M2 card may need to be reset. Remove the card to reset it,

wait 10 seconds, plug it back in, and wait 3 minutes. If the LED still does not flash, contact the Brightlayer Data

Center at 800-356-5737, option 2, option 2 to troubleshoot.

Figure 3 INDGW-M2 or INDGW-X2 Home Page

IINNDDGGWW--MM22 oorr IINNDDGGWW--XX22 CCaarrdd FFiirrmmwwaarree ppddaattee

1. As noted in the Prerequisites section, the installation requires the latest card firmware. To view the

firmware installed on the INDGW-M2 or INDGW-X2 card, click the Maintenance (wrench) icon on the card

home page (see Figure 3). The Firmware tab shown in Figure 4 displays.

2. The Version column shows the firmware version of the card. To check the latest firmware for the network

card

• For an INDGW-M2 card, go to

https //www.eaton.com/us/en-us/catalog/backup-power-ups-surge-it-power-distribution/eaton-

industrial-gateway-card.html

INDGW-M2 or INDGW-X2 Card Installation

4 Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11

• For an INDGW-X2 card, go to

https //www.eaton.com/us/en-us/catalog/backup-power-ups-surge-it-power-distribution/eaton-gigabit-

industrial-gateway-card.html

3. Click Resources, then scroll down and expand the Software, firmware, and applications section.

Figure 4 INDGW-M2 or INDGW-X2 Card Firmware Tab

4. Note the latest available firmware version. If that version is later than the one on the network card, update

the card firmware

a. Click the link to download and save that file to a known location.

b. Remain connected to the card via the USB cable using the redirected IP address http://169 254 0 1.

c. Select Maintenance from the left-hand menu and select Firmware at the top to display the UPDATE

FIRMWARE page (see Figure 4).

d. Click Upload to load the latest firmware to the card. Click Choose File to navigate to the firmware file

saved in Step 4.b.

e. Select the firmware file and click Upload.

f. When the firmware update is completed, a prompt is displayed. Allow the card to reboot and wait 2–4

minutes for completion.

g. Log in to the card, return to the Firmware tab, and confirm that the firmware updated was successful.

EEnnvviirroonnmmeennttaall MMoonniittoorriinngg PPrroobbee ((EEMMPP)) GGeenn 22 IInnssttaallllaattiioonn

1. Remove the EMP and cable from the packaging.

2. Install the EMP as directed in the

Environmental Monitoring Probe Gen2 EMPDT1H1C2 Installation Instructions.

• Set the MODBUS ADDRESS switches on each EMP as appropriate for your application (see Figure 5).

For example, for an application with one EMP, set the switches as shown in Figure 5, with switch 1

and TER (termination) in the 1position. For a multiple-EMP application, at least one switch must be

set on each EMP in in the daisy-chain and the TER switch set on the last EMP in the daisy-chain.

INDGW-M2 or INDGW-X2 Card Installation

Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11 5

Figure 5 EMP MODBUS ADDRESS Switches

3. Connect the USB end of the cable to the AUX port on the INDGW-M2 or INDGW-X2 card and the RJ45

end to the FROM DEVICE port on the EMP. If possible, route the cable into the battery cabinet and place

the EMP in the battery cabinet.

4. On the INDGW-M2 or INDGW-X2 home page (see Figure 3), select Environment from the left-hand menu

to display the SENSOR COMMISSIONING page (see Figure 6).

Figure 6 Sensor Commissioning Page

5. As shown in Figure 6, no sensors have yet been discovered in the system. Click Discover to identify the

EMP sensor(s). When discovered, the EMP is displayed as shown in Figure 7.

• If no device is found, verify the EMP connections and settings and click Discover again.

INDGW-M2 or INDGW-X2 Card Installation

6 Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11

Figure 7 EMP Sensor Discovered

CCoonnnneeccttiinngg tthhee RRoouutteerr ttoo aann IINNDDGGWW--MM22 oorr IINNDDGGWW--XX22 CCaarrdd

To connect the NTC-220 or NTC-140W Series router to an INDGW-M2 or INDGW-X2 card

• Connect the Ethernet cable from the LAN port on the router to the Network connector on the INDGW-M2

or INDGW-X2 card (see Figure 1 or Figure 2).

• If the INDGW-M2 or INDGW-X2 card is located inside the UPS chassis, route the cable out of the chassis

via a conduit hole that is protected by a rubber grommet

Once connected, the LEDs on the INDGW-M2 or INDGW-X2 card’s Network port should light and the green

LED at the top left of the SETTINGS port should blink.

CCoonnffiigguurriinngg aann IINNDDGGWW--MM22 oorr IINNDDGGWW--XX22 CCaarrdd

To troubleshoot or set up the INDGW-M2 or INDGW-X2 card, refer to the INDGW-M2 User’s Guide or

INDGW-X2 User’s Guide.

The INDGW-M2 or INDGW-X2 card’s default configuration includes a DHCP network configuration. To

configure the INDGW-M2 or INDGW-X2 card, connect to the card’s SETTINGS port with USB-to-USB

(MicroUSB B) cable. Once connected, open an internet browser and navigate to 169.254.0.1 to display the

Network M2 home page (see Figure 3).

Username admin

Password admin

You are prompted to change your password. Enter a new password of at least eight characters, including one

lowercase letter, one uppercase letter, one numeric character, and one special character. Record the new

password.

The INDGW-M2 or INDGW-X2 card will reboot and ask for the new password. Enter the web GUI and click

Settings on the left sidebar menu. Click the Network & Protocol tab (see Figure 8). Verify the IPv4 Mode is

set to DHCP and record the IP address to be used later when configuring the PredictPulse Wizard.

INDGW-M2 or INDGW-X2 Card Installation

Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11 7

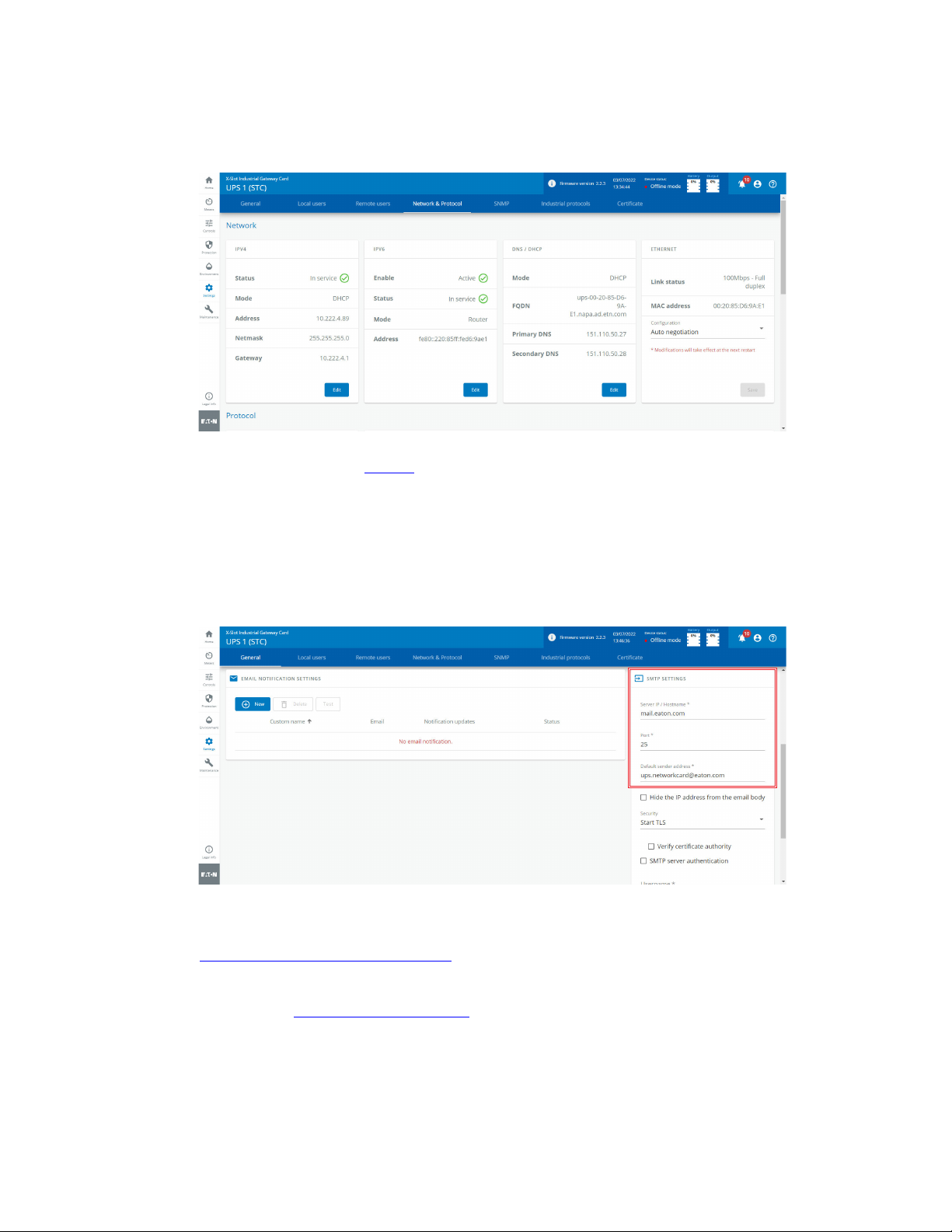

Figure 8 INDGW-M2 or INDGW-X2 Card Network & Protocol Tab

Click the General tab (see Figure 9). In the SMTP SETTINGS section

• Enter mail.eaton.com in the Server IP/Hostname field

• To ensure that e-mails are not marked as spam, enter u [email protected] in the Default sender

address field

Scroll down and click Save in the bottom right.

Figure 9 INDGW-M2 or INDGW-X2 Card General Tab

In the SYSTEM DETAILS section, select the appropriate time zone and select the Dynamic (NTP) radio

button. Enter 192.168.1.1 in the NTP server field. For instructions on configuring NTP in the modem, see the

Configuring a PXGX-UPS or PXGMS Card section.

Also enter the Location,Contact, and System Name. Click Save.

Proceed to the Run the PredictPulse Wizard section.

INDGW-M2 or INDGW-X2 Card Installation

8 Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11

PPXXGGXX-- PPSS oorr PPXXGGMMSS IInnssttaallllaattiioonn

CCoonnnneeccttiinngg tthhee RRoouutteerr ttoo aa PPXXGGXX-- PPSS oorr PPXXGGMMSS CCaarrdd

Connect the NTC-220 or NTC-140W Series router and Eaton network card. Use the included Ethernet cable or

equivalent.

• For a PXGX-UPS card, connect the Ethernet cable from the LAN port on the router to the Upstream port

on the card (see Figure 10)

• For a PXGMS card, connect the Ethernet cable from the LAN part on the router to the Ethernet 10/100

port on the card (see Figure 11)

Route the Ethernet cable into the UPS via the appropriate conduit holes. Once connected, the LEDs on the

active Ethernet port, as well as the green Power LED and Status LEDs should light.

Figure 10 Power Xpert Gateway UPS (PXGX-UPS) Card

Figure 11 Power Xpert Gateway Minislot UPS (PXGMS) Card

CCoonnffiigguurriinngg aa PPXXGGXX-- PPSS oorr PPXXGGMMSS CCaarrdd

To troubleshoot or set up the PXGX-UPS or PXGMS card, refer to Sections 3 – 5 of the

PXGX-UPS Quick Start Instructions or PXGMS Quick Start Instructions for instructions on connecting a

Windows-based computer to the card’s Setup port using a USB cable.

To configure the PXGX-UPS or PXGMS card, connect to the card’s Setup port using a USB cable. Once

connected, open an internet browser and navigate to 169.254.0.101. Log in using the default credentials

Username admin

Password admin

NOTE The PXGX-UPS password may be the MAC address of the card. The PXGMS password

may be the card serial number.

If installing on an existing PXGX-UPS or PXGMS card, reset the card to factory default settings as follows

• Locate the onboard DIP switch and set switch 6 to ON

PXGX-UPS or PXGMS Installation

Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11 9

• Reboot the card to restore the factory defaults

• Return switch 6 to OFF and reboot the card

For more information on restoring the factory default settings, refer to the PXGX-UPS Card User’s Guide or

PXGMS Card User’s Guide.

For a new installation, the PXGX-UPS or PXGMS card will use the factory default settings.

From the Configuration menu (see Figure 12), select E-mail to display the E-mail tab (see Figure 13).

Figure 12 Configuration Menu

Ensure that the SMTP server/IP hostname is mail.eaton.com and the recipient checkboxes are setup as shown

in Figure 13, with monitor@v2. wmonitor.com as the only e-mail recipient.

Figure 13 E-mail Tab

On the E-mail tab, click Configure to display the E-mail Event Trigger Configuration page (see Figure 14).

Verify that all or some alarms are checked. Scroll to the bottom of the page and click Apply after making any

changes.

PXGX-UPS or PXGMS Installation

10 Connecting a NetComm Wireless Router to an Eaton Network Card P-164000722—Rev 11

Figure 14 E-Mail Event Trigger Configuration Page

From the Configuration menu (see Figure 12), select Date/Time to display the Date/Time tab (see

Figure 15). Select the Synchronize with NTP server(s) radio button and enter 192.168.1.1 for the NTP server

IP address. Ensure that the correct time zone is selected for the Time zone for logs, e-mail, and connected

device. Click Apply after making any changes.

Figure 15 Date/Time Tab

the network key printed on the back of the modem. Once connected, open an internet browser

• For an NTC-140W router, navigate to 192.168.1.1

• For an NTC-220 router, navigate to htt s://192.168.1.1

Username admin

Password admin

PXGX-UPS or PXGMS Installation

Otros manuales para NTC-220

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador de red de NetComm

NetComm

NetComm NF8AC Cómo utilizar

NetComm

NetComm G.SHDSL 4-port Security Modem Routers NB712 Manual de usuario

NetComm

NetComm V300 Manual

NetComm

NetComm NP5410 Manual de usuario

NetComm

NetComm N3G005W Manual de usuario

NetComm

NetComm NB750 Manual de usuario

NetComm

NetComm Dynalink WSG-NP804n Manual de usuario

NetComm

NetComm NB6PLUS4W Manual de usuario

NetComm

NetComm NF5 Manual de usuario

NetComm

NetComm NF2 Manual operacional

NetComm

NetComm XBox NF1901ACV Manual de usuario

NetComm

NetComm Liberty 3GM2WN Manual operacional

NetComm

NetComm NP2008HS Manual de usuario

NetComm

NetComm NTC-40 series Manual de usuario

NetComm

NetComm NB6PLUS4WN Manual de usuario

NetComm

NetComm NTC-223 Manual de usuario

NetComm

NetComm NB6PLUS4WN Manual de usuario

NetComm

NetComm 3G15Wn Manual de usuario

NetComm

NetComm Dynalink NP800 Series Manual de usuario

NetComm

NetComm NB7 Manual de usuario

NetComm

NetComm NF5 Manual de usuario

NetComm

NetComm 3G42W-M Manual de usuario

NetComm

NetComm NP2005HS Manual de usuario

NetComm

NetComm NF18ACV Manual de instrucciones

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
