NetComm NB604N Manual de usuario

Wireless Setup Guide

(for Windows XP, Windows Vista, Windows 7 and Mac Osx)

(NB604n)

Wireless Setup Guide

The following steps will take yo thro gh the process of setting p and connecting to yo r

wireless network. Yo can also se these steps to tro bleshoot wireless connection iss es.

Step 1: Checking Computer Network Settings:

Yo will need to set the network connection on yo r comp ter to obtain an IP address

a tomatically. Please follow the instr ctions appropriate for yo r operating system below:

Below are the instr ctions for setting Windows XP to obtain an IP address a tomatically for

yo r ethernet connection:

1. Click on the St rt Menu, and go to “Control P nel”.

2. Click on “Network Connections”.

(If yo only see "Network nd Internet Connections", open that first, and then click on

"Network Connections".)

3. Right click on “Loc l Are Connection” and select “Properties”.

4. Do ble-click on “Internet Protocol”.

5. Select "Obt in n IP ddress utom tic lly", and "Obt in DNS server

ddress utom tic lly".

6. Click “OK”, and then click “OK” (or “Close”).

Below are the instr ctions for setting Windows Vista to obtain an IP address a tomatically for

yo r ethernet connection:

1. Click on the St rt Menu, and go to “Control P nel”.

Click on “Network nd Sh ring Centre”.

(If yo only see "Network nd Internet", open that first, and then click on "Network nd

Sh ring Centre".)

3. Click on “M n ge network connections” (

on the lefthandside of the window

4. Right click on “Loc l Are Connection” and select “Properties”.

5. Do ble-click on “Internet Protocol Version 4 (TCP/IPv4)”.

6. Select "Obt in n IP ddress utom tic lly", and "Obt in DNS server

ddress utom tic lly".

7. Click “OK”, and then click “OK” again.

Below are the instr ctions for setting Windows 7 to obtain an IP address a tomatically for yo r

ethernet connection:

1. Click on the St rt Menu, and go to “Control P nel”.

Click on “Network nd Sh ring Centre”.

(If yo only see "Network nd Internet", open that first, and then click on "Network nd

Sh ring Centre".)

3. Click on “Ch nge d pter settings” (

on the lefthandside of the window

4. Right click on “Loc l Are Connection” and select “Properties”.

5. Do ble-click on “Internet Protocol Version 4 (TCP/IPv4)”.

6. Select "Obt in n IP ddress utom tic lly", and "Obt in DNS server

ddress utom tic lly".

7. Click “OK”, and then click “OK” again.

Below are the instr ctions for setting Mac OS X to obtain an IP address a tomatically for yo r

ethernet connection:

1. Click on the Apple Men , and go to "System Preferences".

2. Click on "Network".

3. Click on “Ethernet” or "Built-in Ethernet".

4. Click on the "Configure" drop-down box, and select "Using DHCP" then click

"Apply".

Step 2: Configuring your wireless settings:

Ple se ensure th t your modem/router is connected to your computer using n

ethernet c ble before continuing.

Troubleshooting Tip

After logging into your router, verify the following settings to troubleshoot issues with your wireless connection:

- Wireless MAC filtering is disabled.

- Your ID is not hidden.

- Confirm your wireless security settings

(Make sure you are using the correct wireless security key)

- Confirm your selected wireless security is supported by your wireless device.

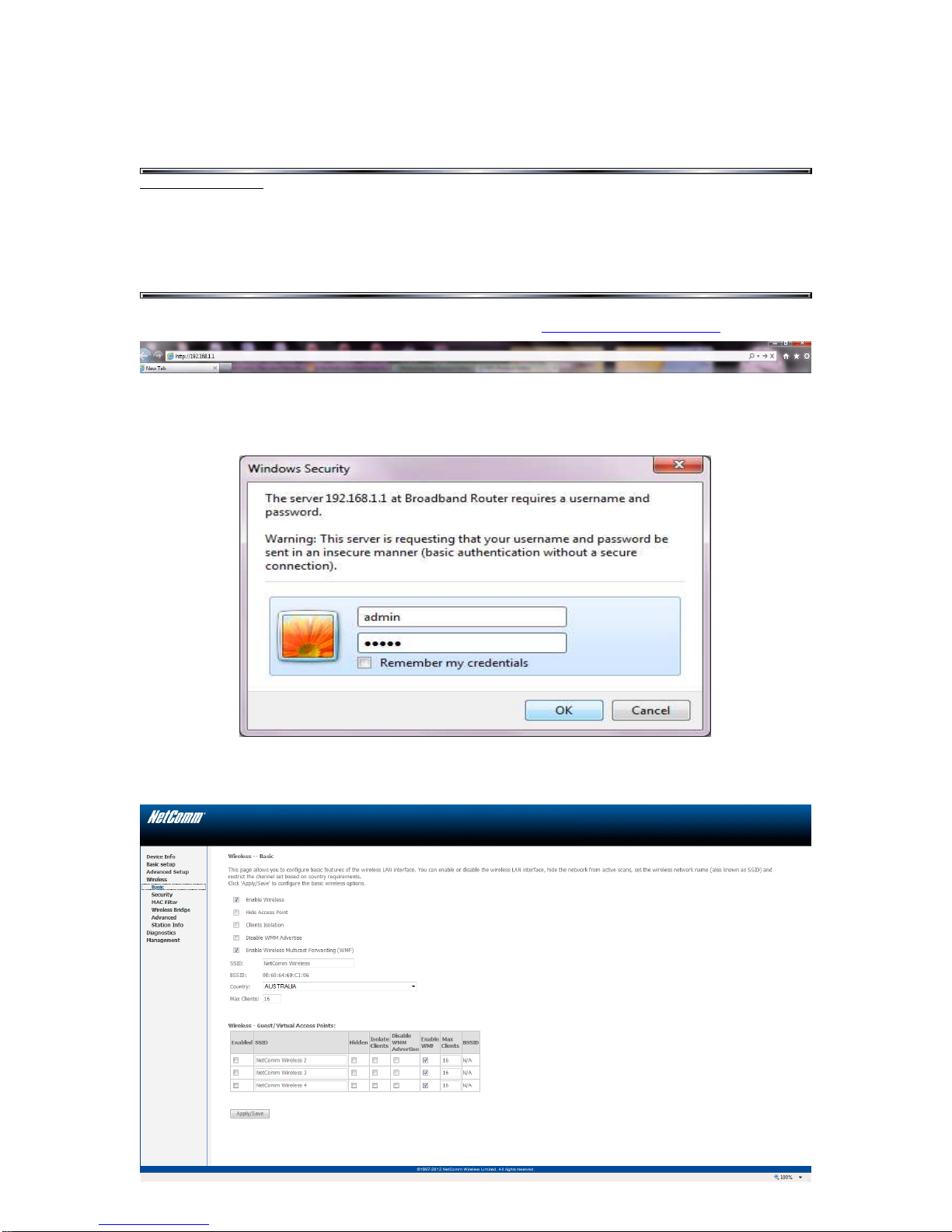

1. Open yo r web browser and navigate to the site

http://192.168.1.1

2. Use “admin” (witho t the q otes) for the sername and “admin” (witho t the q otes)

for the password.

3. Click on Wireless and then select Basic from the left-hand men .

4. Ens re Enable Wireless is ticked and Hide Access Point is nticked.

Yo r SSID will be displayed in the SSID field. This is the name of yo r network and

yo may change this if desired.

If yo choose to change the SSID, please make a note of this as this will be sed to

connect to yo r network in a later step.

6. Click Apply/Save to allow changes to take effect.

7. Click on Sec rity from the left-hand men

8. Ens re Enable WPS is set to Disabled.

9. For this example, WPA2-PSK is being sed as the Network A thentication type.

10. Click on Click here to display to view yo r c rrent Network sec rity key.

Make a note of this, as it will be sed to connect to yo r network in a later step.

11. Click on Apply/Save to allow any changes made to take effect.

Step 3: Sc nning for, nd connecting to your Wireless Network:

Yo can now scan for yo r wireless network and connect to it.

Please click the appropriate operating system listed below and follow the steps for

operating system specific instr ctions on how to do this:

(This page intentionally left blank)

1. Click on the Start Men and then “Run”. Type: ncp .cpl <and click “OK”>

Yo sho ld now see the following window:

2. Right click on “Wireless Network Connection” and select "Properties".

If yo cannot see a “Wireless Network Connection”

item, yo r wireless adapter may not be installed or

inserted correctly. Please check this before contin ing

with steps in this g ide.

3. Click on the "Wireless Networks" tab, as shown below.

(If yo do not see this tab, yo will need to enable and start the “Wireless Zero Configur tion” service.

Please

refer to the steps

at the end of the g ide to enable this)

Make s re "Use Windows to configure my wireless network settings" is TICKED.

This window will list any wireless networks yo have previo sly connected to. If yo see an

entry matching the SSID yo obtained at the start of this g ide, yo will need to select it and

then click "Remove".

(Typically, a n mber of networks will be listed here. This is nothing to worry abo t. Yo can

delete the other entries too. These are j st stored settings and passwords for connecting to

the listed networks.)

If yo r SSID is not listed, or yo have j st removed it, click “OK”.

The window will close and yo sho ld now be ret rned to the “Network Connections” control

panel window.

4. Right click on “Wireless Network Connection” and select "View Av il ble

Wireless Networks".

5. Yo sho ld see a network listed with the SSID yo obtained at the start of this g ide.

Select yo r wireless network and click “Connect”.
