Moxa Technologies EDS-516A Series Manual

P/N: 1802005160014

EDS-516A Series

Hardware Installation Guide

Moxa EtherDevice™ Switch

Sixth Edition, April 2014

- 2 -

Package Checklist

Moxa EtherDevice™ Switch is shipped with the following items. If any of

these items are missing or damaged, please contact your customer

service representative for assistance.

1 Moxa EtherDevice Switch EDS-516A

Hardware Installation Guide

CD-ROM with User’s Manual and Windows Utility

Moxa Product Warranty Booklet

RJ45 to DB9 Console port cable

Protective caps for unused ports

Panel mounting kit (optional—must order separately)

Optional Accessories

DR-4524—45W/2A DIN-Rail 24 VDC Power Supply with 85 to 264

VAC input

DR-75-24—75W/3.2A DIN-Rail 24 VDC Power Supply with 85 to 264

VAC input

DR-120-24—120W/5A DIN-Rail 24 VDC Power Supply with 88 to

132 VAC/176 to 264 VAC input by switch

EDS-SNMP OPC Server Pro—CD with EDS-SNMP OPC Server

Software and manual

WK-46—Wall Mounting Kit

RK-4U—4U-high 19" rack mounting kit

- 3 -

Panel Views of EDS-516A

1. Grounding screw

2. Console port

3. Heat dissipation orifices

4. 6-pin terminal block for DI 1,

DI 2, and PWR 2

5. 6-pin terminal block for PWR1

Relay 1, and Relay 2

6. 10/100BaseT(X), ports 1 to 16

7. PWR 1: LED for power input 1

8. PWR 2: LED for power input 2

9. Fault LED

10. MSTR/HEAD LED

11. CPLR/TAIL LED

12. TP port’s 100 Mbps LED

13. TP port’s 10 Mbps LED

14. Model Name

15. Screw hole for Wall Mounting

Kit

16. DIN-Rail Kit

- 4 -

Panel Views of EDS-516A (SC/ST Type)

NOTE:

The appearance of

EDS-516A-MM-ST

is identical to EDS-516A-MM-SC.

1. Grounding screw

2. Console port

3. Heat dissipation orifices

4. 6-pin terminal block for DI 1,

DI 2, and PWR 2

5. 6-pin terminal block for PWR1

Relay 1, and Relay 2

6. 10/100BaseT(X), ports 1 to 14

7. PWR 1: LED for power input 1

8. PWR 2: LED for power input 2

9. Fault LED

10. MSTR/HEAD LED

11. CPLR/TAIL LED

12. TP port’s 100 Mbps LED

13. TP port’s 10 Mbps LED

14. Model Name

15. 100BaseFX Port 15

16. 100BaseFX Port 16

17. 100BaseFX LEDs

18. Screw hole for Wall Mounting

Kit

19. DIN-Rail Kit

- 5 -

Mounting Dimensions

Unit = mm (inch)

- 6 -

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should already be fixed to the

back panel of EDS-516A when you take it out of the box. If you need to

reattach the DIN-Rail attachment plate to EDS-516A, make sure the stiff

metal spring is situated towards the top, as shown by the following

figures.

STEP 1ȹInsert the top of the

DIN-Rail into the slot just below the

stiff metal spring.

STEP 2ȹThe DIN-Rail attachment

unit will snap into place as shown in

the following illustration.

To remove the EDS-516A from the DIN-Rail, simply reverse Steps 1 and

2 above.

Wall Mounting (Optional)

For some applications, you will find it convenient to mount Moxa

EDS-516A on the wall, as shown by the following illustrations:

STEP 1—Remove the

aluminum DIN-Rail

attachment plate from the

Moxa EDS-516A rear

panel, and then attach the

wall mount plates with M3

screws, as shown by the

figure on the right.

STEP 2—Mounting Moxa EDS-516A on the wall

requires 4 screws. Use the EDS-516A, with wall mount

plates attached, as a guide to mark the correct

locations of the 4 screws. The heads of the screws

should be less than 6.0 mm in diameter, and the shafts

should be less than 3.5 mm in diameter, as shown by

the figure on the right.

NOTE Before tightening the screws into the wall, make sure the screw

head and shank size are suitable by inserting the screw through

one of the keyhole-shaped apertures of the Wall Mounting Plates.

Do not screw the screws in all the way—leave about 2 mm to allow room

for sliding the wall mount panel between the wall and the screws.

- 7 -

STEP 3—Once the screws are

fixed to the wall, insert the four

screw heads through the wide

parts of the keyhole-shaped

apertures, and then slide the

EDS-516A downwards, as

indicated in the figure at the right.

Tighten the four screws for more

stability.

ATEX Information

1. Certification number DEMKO 09 ATEX 0812123X

2. Ambient range (-40°C Tamb 75°C)

3. Certification string (Ex nA nC IIC T4 Gc)

4. Standards covered ( EN60079-0:2012, EN 60079-15:2010)

5. The conditions of safe usage:

The Ethernet Communication Devices are to be mounted in an

IP54 enclosure and used in an area of not more than pollution

degree 2 as defined by IEC60664-1.

A 4mm2 conductor must be used when connection to the

external grounding screw is utilized.

Conductors suitable for use in an ambient temperature of 93°C

must be used for the Power Supply Terminal.

Provisions shall be made, either in external to the apparatus, to

prevent the rated voltage being exceeded by the transients

disturbances of more than 40%.

Wiring Requirements

WARNING

Do not disconnect modules or wires unless power has been

switched off or the area is known to be non-hazardous. The

devices may only be connected to the supply voltage shown on

the type plate. The devices are designed for operation with a

Safety Extra-Low Voltage. Thus, they may only be connected to

the supply voltage connections and to the signal contact with the

Safety Extra-Low Voltages (SELV) in compliance with IEC950/

EN60950/ VDE0805.

ATTENTION

This unit is a built-in type. When the unit is installed in another

piece of equipment, the equipment enclosing the unit must

comply with fire enclosure regulation IEC 60950/EN60950 (or

similar regulation).

- 8 -

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa EtherDevice Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

You should also pay attention to the following points:

Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point

NOTE: Do not run signal or communications wiring and power wiring

through the same wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately

You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring that shares similar electrical characteristics can be

bundled together

Separate input wiring and output wiring

We advise that you label wiring to all devices in the system when

necessary.

Grounding the Moxa EDS-516A

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well-grounded

mounting surface such as a metal panel.

- 9 -

Wiring the Relay Contact

EDS-516A has two sets of relay outputs—relay 1 and relay 2. Each Relay

Contact consists of the two contacts of the terminal block on EDS-516A’s

top panel. You can refer to the next section for detailed instructions on

how to connect the wires to the terminal block connector, and how to

attach the terminal block connector to the terminal block receptor.

In this section, we will explain the meaning of the two contacts used to

connect the Relay Contact.

FAULT:

The two sets of relay contacts of

the 6-pin terminal block connector

are used to detect user-configured

events. The two wires attached to

the fault contacts form an open

circuit when a user-configured

event is triggered. If a

user-configured event does not

occur, the fault circuit remains

closed.

Wiring the Redundant Power Inputs

EDS-516A has two sets of power inputs—power input 1 and power input

2.The top two contacts and the bottom two contacts of the 6-pin terminal

block connector on EDS’ top panel are used for EDS’ two digital inputs.

The top and front views of one of the terminal block connectors are shown

here.

STEP 1: Insert the

negative/positive DC wires into

the V-/V+ terminals, respectively.

STEP 2: To keep the DC wires

from pulling loose, use a small

flat-blade screwdriver to tighten

the wire-clamp screws on the front

of the terminal block connector.

STEP 3: Insert the plastic terminal

block connector prongs into the

terminal block receptor, which is

located on the EDS-516A’s top

panel.

- 10 -

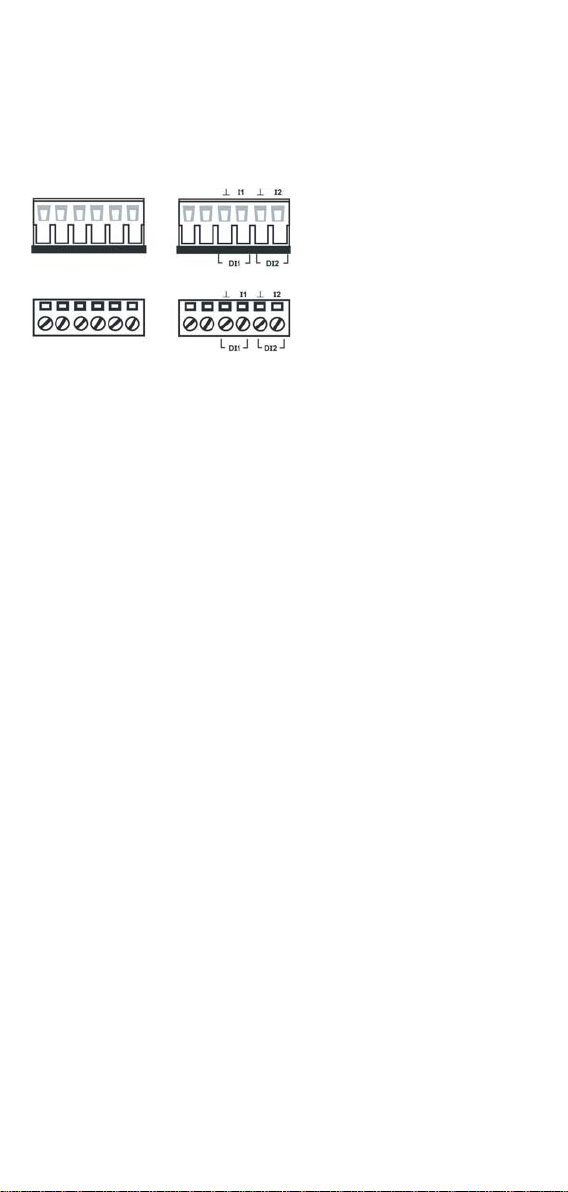

Wiring the Digital Inputs

EDS-516A has two sets of digital inputs, DI 1 and DI 2. Each DI consists

of two contacts of the 6-pin terminal block connector on EDS’s top panel,

which are used for EDS’s two DC inputs. The top and front views of one of

the terminal block connectors are shown here.

STEP 1: Insert the negative

(ground)/positive DI wires into the

ʓ/I1 terminals, respectively.

STEP 2: To keep the DI wires from

pulling loose, use a small

flat-blade screwdriver to tighten

the wire-clamp screws on the front

of the terminal block connector.

STEP 3: Insert the plastic terminal

block connector prongs into the

terminal block receptor, which is

located on the EDS-516A’s top

panel.

Communication Connections

All models of EDS-516A have one RJ45 console port (RS-232 interface),

between 14 and 16 10/100BaseTX Ethernet ports. Some models also

have 2 100BaseFX (SC/ST-type connector) fiber ports.

In this section, we present two types of diagrams—Pinout Diagrams and

Cable Wiring Diagrams—to convey information about the ports and the

cables used to connect Moxa EDS-516A to other devices:

Pinouts—The meaning of the “Pinouts” diagrams is straightforward. The

diagrams simply display the type of signal passing through each of the

port’s pins.

Cable Wiring—Diagrams labeled “Cable Wiring” present standard cable

wiring schemes for cables used to connect Moxa EtherDevice Switch’s

ports to other devices. These diagrams display three pieces of

information:

1. When building your own cable, refer to the “pin-to-pin” Cable

Wiring information displayed between the two vertical dashed lines

to see which pin of the connector on the left should be connected to

which pin of the connector on the right.

2. The information to the left of the left vertical dashed lines gives the

pinouts of the relevant Moxa EtherDevice Switch port.

3. The information to the right of the right vertical dashed line gives the

pinouts of the opposing device’s port.

Otros manuales para EDS-516A Series

Tabla de contenidos

Otros manuales de Cambiar de Moxa Technologies

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-PTP Manual de usuario

Moxa Technologies

Moxa Technologies PowerTrans PT-7528-24TX-WV Manual de usuario

Moxa Technologies

Moxa Technologies EDS-G205-1GTXSFP Manual

Moxa Technologies

Moxa Technologies MDS-G4000-L3-4XGS Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-G2008-EL Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manual de usuario

Moxa Technologies

Moxa Technologies NE-4100 Series Manual de usuario

Moxa Technologies

Moxa Technologies ToughNet TN-5508 Series Manual

Moxa Technologies

Moxa Technologies ToughNet TN-G4500 Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-4014 Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205-T Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-G508E-T Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-P510-T Manual de usuario

Moxa Technologies

Moxa Technologies NPORT 6610 Manual de usuario

Moxa Technologies

Moxa Technologies UPort 400A Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A-PTP Series Manual

Moxa Technologies

Moxa Technologies PT-7828 Series Manual de usuario

Moxa Technologies

Moxa Technologies MDS-G4000 Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-P506E-4PoE Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-516A Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A-T Manual

Moxa Technologies

Moxa Technologies IKS-G6524A Manual de usuario

Moxa Technologies

Moxa Technologies MDS-G4000 Series Manual de usuario

Moxa Technologies

Moxa Technologies ETHERDEVICE EDS-305 Manual

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
