Moxa Technologies PowerTrans PT-7828 Manual

Reproduction without permission is prohibited.

P/N: 1802077280015

PT-7728/7828

Hardware Installation Guide

Moxa PowerTrans Switch

Seventh Edition, January 2014

www.ipc2u.ru

www.moxa.pro

All manuals and user guides at all-guides.com

all-guides.com

- 2 -

Package Checklist

The Moxa PowerTrans switch is shipped with the following items. If any of

these items are missing or damaged, please contact your customer

service representative for assistance.

•1 Moxa PowerTrans Switch

•Hardware Installation Guide

•CD-ROM with User’s Manual and SNMP MIB file

•Moxa Product Warranty Statement

•RJ45 to DB9 console port cable

•Protective caps for unused ports

•2 rack-mount ears

Panel Layout

1. System status LEDs

2. Interface Module mode LEDs

3. Interface Module port LEDs

4. Push-button switch to select mode for Interface Module

5. Model Name

6. Fast Ethernet Interface Modules

7. Gigabit Ethernet Interface Modules

8. Serial Console port

9. 10-pin terminal block for power inputs, and relay output

10. Rack Mounting Kit

www.ipc2u.ru

www.moxa.pro

All manuals and user guides at all-guides.com

- 3 -

Dimensions (unit = mm)

Fast Ethernet Interface Modules (slots 1, 2, and 3)

www.ipc2u.ru

www.moxa.pro

All manuals and user guides at all-guides.com

- 4 -

Gigabit Ethernet Interface Modules (for slot 4)

Rack Mounting

Use four screws to attach the PT switch to a standard rack.

NOTE

Two additional rack-mount ears can be ordered as an option. Use

them to secure the rear of the chassis in

high-vibration

environments.

Wiring Requirements

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa PowerTrans Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

Grounding Moxa PowerTrans Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

Wiring the Power Inputs

The PT series of switches supports dual redundant power supplies:

“Power Supply 1 (PWR1)” and “Power Supply 2 (PWR2)”. The connections

for PWR1, PWR2 and the RELAY are located on the terminal block. The

front view of the terminal block connectors are shown below.

www.ipc2u.ru

www.moxa.pro

All manuals and user guides at all-guides.com

- 5 -

Wiring the Relay Contact

Each PT switch has one relay output. Refer to the next section for detailed

instructions on how to connect the wires to the terminal block connector,

and how to attach the terminal block connector to the terminal block

receptor.

FAULT: The relay contact of the 10-pin terminal block connector are used

to detect user-configured events. The two wires attached to the RELAY

contacts form an open circuit when a user-configured event is triggered.

If a user-configured event does not occur, the RELAY circuit will be closed.

Wiring the Redundant Power Inputs

Each PT switch has two sets of power inputs: power input 1 and power

input 2.

STEP 1: Insert the dual set positive/negative DC wires into PWR1 and

PWR2 terminals (+ →pins 1, 9; - →pins 2, 10). Or insert the L/N AC

wires into PWR1 and PWR2 terminals (L →pin 1, 9; N →pin 2,10)

STEP 2: To keep the DC or AC wires from pulling loose, use a screwdriver

to tighten the wire-clamp screws on the front of the terminal block

connector.

Note 1: The PT switch with dual power supplies uses PWR2 as the first

priority power input by default.

Note 2: For dielectric strength (HIPOT) test, users must remove the

metal jumper located on terminals 3, 4, and 7, 8 of the terminal block to

avoid damage.

www.ipc2u.ru

www.moxa.pro

All manuals and user guides at all-guides.com

- 6 -

LED Indicators

System LEDs

LED

Color

State

Description

STAT

GREEN

On System has passed self-diagnosis

test on boot-up and is ready to run.

Blinking

System is undergoing the

self-diagnosis test.

RED On

System failed self-diagnosis on

boot-up.

PWR1 AMBER

Power is being supplied to the main

module’s power input PWR1.

Off

Power is not being supplied to the

main module’s power input PWR1.

PWR2 AMBER

Power is being supplied to the main

module’s power input PWR2.

Off

Power is not being supplied to the

main module’s power input PWR2.

FAULT RED

The corresponding PORT alarm is

enabled and a user-configured

event has been triggered.

Off

The corresponding PORT alarm is

enabled and a user-configured

event has not been triggered, or

the corresponding PORT alarm is

disabled.

MSTR/HEAD

GREEN

This PT switch is set as the Master

of the Turbo Ring, or as the Head of

the Turbo Chain.

Blinking

The PT switch has become the Ring

Master of the Turbo Ring, or the

Head of the Turbo Chain, after the

Turbo Ring or the Turbo Chain went

down.

Off

The PT switch is not the Master of

this Turbo Ring or is set as a

Member of the Turbo Chain.

CPLR/TAIL GREEN

The PT switch coupling function is

enabled to form a back-

up path, or

it is set as the Tail of the Turbo

Chain.

Blinking

Turbo Chain is down.

Off

This PT switch disabled the

coupling function, or is set as a

Member of the Turbo Chain.

www.ipc2u.ru

www.moxa.pro

All manuals and user guides at all-guides.com

all-guides.com

- 7 -

Mode LEDs

LED

Color

State

Description

LNK/ACT GREEN

The corresponding module port’s

link is active.

Blinking

The corresponding module port’s

data is being transmitted.

Off

The corresponding module port’s

link is inactive.

SPEED GREEN

Off

The corresponding module port’s

data is being transmitted at 10

Mbps.

The corresponding module port’s

data is being transmitted at 100

Mbps.

Blinking

The corresponding module port’s

data is being transmitted at

1000 Mbps.

FDX/HDX GREEN

The corresponding module port’s

data is being transmitted in full

duplex mode.

Off

The corresponding module port’s

data is being transmitted in half

duplex mode.

RING/CHAIN

PORT GREEN

The corresponding module’s port

is the ring or chain port of this PT

switch.

Off

The corresponding module’s port

is not the ring or chain

port of this

PT switch.

COUPLER

PORT GREEN

The corresponding module’s port

is the coupler port of this PT

switch.

Off

The corresponding module’s port

is not the coupler port of this PT

switch.

Specifications

Technology

Standards

IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x,

802.1D, 802.1w, 802.1Q, 802.1p, 802.1X, 802.3ad

Flow control

IEEE 802.3x flow control, back pressure flow control

Interface

Fast Ethernet

10/100BaseT(X) or 100BaseFX (SC/ST connector or

SFP slot)

Gigabit Ethernet

10/100/1000BaseT(X), 1000BaseSX/LX/LHX/ZX

(SFP slot, LC connector)

System LED

Indicators

STAT, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL

Module LED

Indicators

LNK/ACT, FDX/HDX, SPEED, RING /CHAIN PORT,

COUPLER PORT

Alarm Contact

One relay output with current carrying capacity of 3A

@ 30 VDC or 3A @ 240 VAC

www.ipc2u.ru

www.moxa.pro

All manuals and user guides at all-guides.com

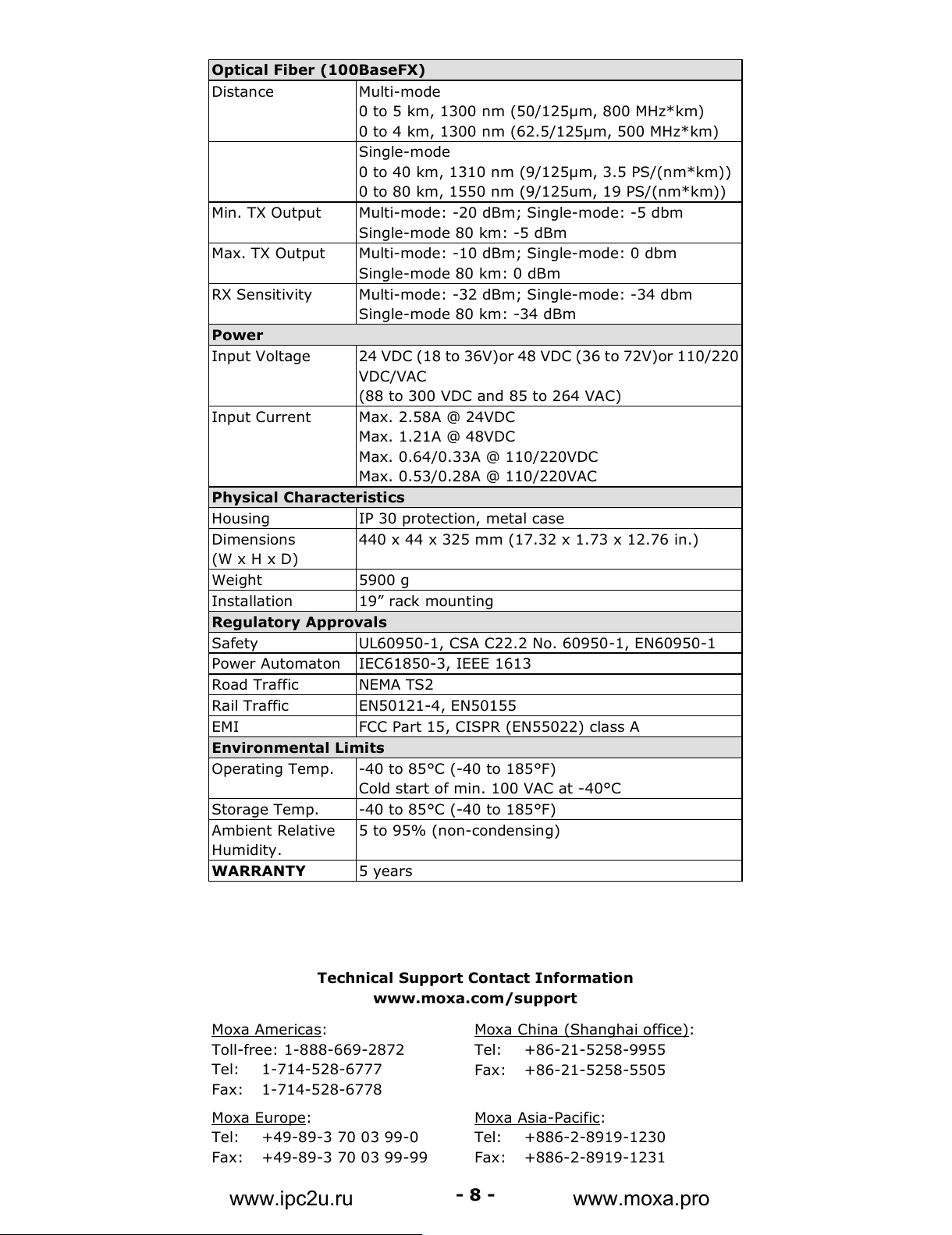

- 8 -

Optical Fiber (100BaseFX)

Distance

Multi-mode

0 to 5 km, 1300 nm (50/125μm, 800 MHz*km)

0 to 4 km, 1300 nm (62.5/125μm, 500 MHz*km)

Single-mode

0 to 40 km, 1310 nm (9/125μm, 3.5 PS/(nm*km))

0 to 80 km, 1550 nm (9/125um, 19 PS/(nm*km))

Min. TX Output

Multi-mode: -20 dBm; Single-mode: -5 dbm

Single-mode 80 km: -5 dBm

Max. TX Output Multi-mode: -10 dBm; Single-mode: 0 dbm

Single-mode 80 km: 0 dBm

RX Sensitivity

Multi-mode: -32 dBm; Single-mode: -34 dbm

Single-mode 80 km: -34 dBm

Power

Input Voltage

24 VDC (18 to 36V)or 48 VDC (36 to 72V)or 110/220

VDC/VAC

(88 to 300 VDC and 85 to 264 VAC)

Input Current Max. 2.58A @ 24VDC

Max. 1.21A @ 48VDC

Max. 0.64/0.33A @ 110/220VDC

Max. 0.53/0.28A @ 110/220VAC

Physical Characteristics

Housing

IP 30 protection, metal case

Dimensions

(W x H x D)

440 x 44 x 325 mm (17.32 x 1.73 x 12.76 in.)

Weight

5900 g

Installation

19” rack mounting

Regulatory Approvals

Safety

UL60950-1, CSA C22.2 No. 60950-1, EN60950-1

Power Automaton

IEC61850-3, IEEE 1613

Road Traffic

NEMA TS2

Rail Traffic

EN50121-4, EN50155

EMI

FCC Part 15, CISPR (EN55022) class A

Environmental Limits

Operating Temp.

-40 to 85°C (-40 to 185°F)

Cold start of min. 100 VAC at -40°C

Storage Temp.

-40 to 85°C (-40 to 185°F)

Ambient Relative

Humidity.

5 to 95% (non-condensing)

WARRANTY

5 years

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia

-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

www.ipc2u.ru

www.moxa.pro

All manuals and user guides at all-guides.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Moxa Technologies

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-PTP Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A/408A Series Manual

Moxa Technologies

Moxa Technologies EDS-508A Series Manual de usuario

Moxa Technologies

Moxa Technologies PT-7528-24TX-HV Manual de usuario

Moxa Technologies

Moxa Technologies UPORT 1200 series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-516A Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-G2008-EL Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manual

Moxa Technologies

Moxa Technologies EDS-316 EtherDevice Manual

Moxa Technologies

Moxa Technologies EDS-P308 Series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manual de usuario

Moxa Technologies

Moxa Technologies IKS-6726-8PoE Series Manual

Moxa Technologies

Moxa Technologies EDS-208 series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice Switch EDS-G205 Manual

Moxa Technologies

Moxa Technologies TN-5305 Series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205A-4PoE Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-305-T Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-30 Manual

Moxa Technologies

Moxa Technologies PT-7528 Manual de usuario

Moxa Technologies

Moxa Technologies MDS-G4000-L3-4XGS Series Manual de usuario

Moxa Technologies

Moxa Technologies TN-G4516-8GPoE-4XGPoE-WV-T Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A-PTP Series Manual

Moxa Technologies

Moxa Technologies TN-4516A non-PoE series Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
