TN-G4500 Series

Quick Installation Guide

Moxa ToughNet Switch

Version 2.2, October 2021

Technical Support Contact Information

www.moxa.com/support



- 2 -

Overview

The ToughNet TN-G4500 Series of M12 managed Ethernet switches are

designed for railway applications, including rolling stock and wayside

installations. The switches use M12 and other circular connectors to

ensure tight, robust connections, and guarantee reliable operation in

industrial environments where vibration and shock are commonplace.

These PoE switches are classified as power source equipment (PSE);

they provide up to 30 watts of power per port, and can be used to

power IEEE 802.3at/af compliant powered devices (PDs), such as IP

cameras, wireless access points, and IP phones.

The TN-G4500 Series has push-pull M12 connectors that are tailor-

made for push-pull cables in order to facilitate quick installation, and

also allow M12 rotary cables to be utilized. The 24 to 110 VDC wide

power input range and isolated dual power inputs not only allow the

same type of power source at different sites around the globe, but also

increase the reliability of communications systems. Furthermore, the -

40 to 70°C operating temperature capability make the switches suitable

for deployment in harsh environments. The TN-G4500 Series of

Ethernet switches are compliant with the essential sections of EN

50155, covering operating temperature, power input voltage, surge,

ESD, and vibration, as well as conformal coating and power insulation,

which makes the switches suitable for a variety of industrial

applications.

Package Checklist

Your ToughNet TN-G4500 switch is shipped with the following items. If

any of these items are missing or damaged, please contact your

customer service representative for assistance.

•TN-G4500 switch

•10 protective caps for Ethernet ports, console port, and USB

storage port (already fixed on switch)

•Panel mounting kit

•Quick installation guide (printed)

•Warranty card

Features

Anti-vibration Push-pull/Circular Connectors for Robust Links

•M12 X-coded 8-pin female connectors for 1G or 10G Ethernet ports

•M12 B-coded 5-pin female connector for serial console port

•M12 A-coded 5-pin female connector for USB storage port

•M12 K-coded 5-pin male connector for power input

Isolated Power Inputs

•Supports 24 to 110 VDC (16.8 to 137.5 VDC)

High-performance Network Switching Technology

•Provides up to 30 watts per PoE port with a total power budget of

120 watts per switch

•IPv6 Ready logo awarded (IPv6 Logo Committee certified)

•DHCP Option 82 for IP address assignment with different policies

•Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250

switches), and STP/RSTP/MSTP for network redundancy

•IGMP snooping and GMRP for filtering multicast traffic

- 3 -

•EtherNet/IP and Modbus/TCP industrial Ethernet protocols

supported

•Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network

planning

•QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic

classification and prioritization

•IEEE 802.3ad, LACP for optimum bandwidth utilization

•SNMPv1/v2c/v3 for different levels of network management

•TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance

network security

•RMON for efficient network monitoring and proactive capability

•Bandwidth management prevents unpredictable network status

•Lock port allows access by only authorized MAC addresses

•Port mirroring for online debugging

•Automatic warning by exception through email and relay output

•Line-swap fast recovery

•LLDP for automatic topology discovery in network management

software

•Configurable by web browser, Telnet/serial console, CLI, and

Windows utility

•Loop protection prevents network loops

Designed for Industry-specific Applications

•Complies with all EN 50155 mandatory test items*

•-40 to 70°C operating temperature range

•Panel mounting installation capability

*This product is suitable for rolling stock railway applications, as

defined by the EN 50155 standard. For a more detailed statement, click

here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf

Recommended Optional Accessories

•CBL-M12XMM8PRJ45-Y-200-IP67: 2-meter M12-to-RJ45 Cat-5 UTP

Ethernet cable with IP67-rated 8-pin male X-coded crimp type M12

connector

•CBL-M12XMM8P-Y-300-IP67: 3-meter M12-to-M12 Cat-5 UTP

Ethernet cable with IP67-rated 8-pin male X-coded crimp type M12

connector

•CBL-M12XMM8P-Y-100-IP67: 1-meter M12-to-M12 Cat-5 UTP

Ethernet cable with IP67-rated 8-pin male X-coded crimp type M12

connector

•M12X-8PMM-IP67-HTG: Field-installable M12 X-coded crimp type,

slim design connector, 8-pin male, IP67-rated

•A-CAP-M12F-M-PP: Metal Cap for M12 female push-pull connector

- 4 -

Panel Layouts

1. PWR1 LED: for power input 1

2. MSTR/HEAD LED: for ring master or chain head

3. FAULT LED

4. 10/100/1000BaseT(X) port (M12 X-coded 8-pin female connector)

5. 10/100/1000BaseT(X) port LED

6. 10G BaseT(X) port LED

7. 10G BaseT(X) port (M12 X-coded 8-pin female connector)

8. Screw holes for panel mounting kit

9. PWR2 LED: for power input 2

10. CPLR/TAIL LED: for ring coupler or chain tail

11. USB port

12. Grounding screw

13. Console port

14. Power input port (M12 K-coded 5-pin male connector)

15. PoE LED

- 5 -

Mounting Dimensions (unit = mm)

Panel/Wall Mounting

STEP 1: Mounting the TN-G4500 to a wall requires 4 screws. Use the

ToughNet switch as a guide to mark the correct positions of the 4

screws.

STEP 2:

Use the 4 screws in the

panel mounting kit. If you would

like to use your own screws, make

sure the screw head

is between

6.0 mm and 7.0 mm

in diameter

and the shaft

is less than 4.0 mm

diameter, as shown at the right.

Do not screw the screws in all the way—leave a space of about 2 mm to

allow room for sliding the ToughNet switch between the wall and the

screws.

- 6 -

NOTE

Before tightening the screws into the wall, make sure the screw

head and shaft size are suitable by inser

ting the screw through

one of the keyhole-shaped apertures of the ToughNet switch.

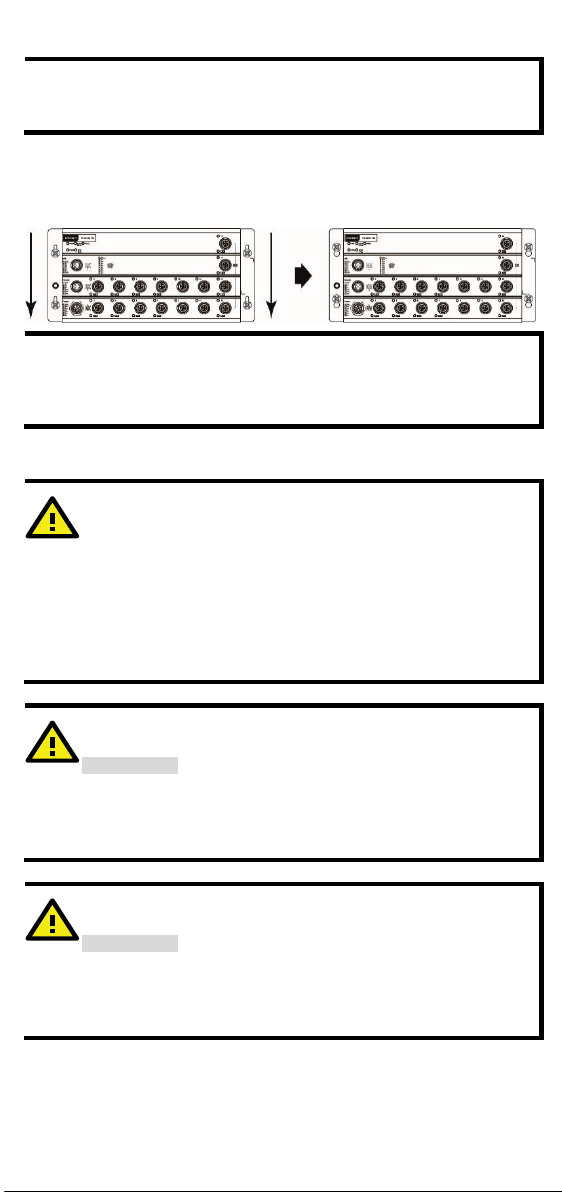

STEP 3: Once the screws are fixed in the wall, hang the ToughNet

switch on the 4 screws through the large opening of the keyhole-

shaped apertures, and then slide the switch downwards. Tighten the

four screws for added stability.

NOTE

To provide greater protection from vibration and shock, use

screws with shaft diameter between 6.0 mm and 7.0 mm, and

fix the ToughNet switch onto the wall directly through the large

opening of the keyhole-shaped apertures.

Wiring Requirements

WARNING

Turn the power off before disconnecting modules or wires. The

correct power supply voltage is listed on the product label.

Check

the voltage of your power source to make sure you are

using the

correct voltage. Do NOT use a voltage greater than

what is

specified on the product label.

These devices must be supplied by a SELV source as defined in

the Low Voltage Directive 2006/95/EC and 2004/108/EC.

ATTENTION

Safety

First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa switch.

This device has UL 62368-1 approval.

Use copper conductors only,

70°C, and tighten to 4.5 pound-

inches. For use in pollution degree 2 environments.

ATTENTION

Safety First!

Observe all electrical codes dictating the

maximum current

allowable for each wire size. If the current

goes above the

maximum ratings, the wiring could overheat,

causing serious

damage to your equipment.

- 7 -

Please read and follow these guidelines:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power

wiring through the same wire conduit. To avoid interference, wires

with different signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb

is that wiring that shares similar electrical characteristics can be

bundled together.

•Keep input wiring and output wiring separated.

•It is strongly advised that you label wiring for all devices in the

system when necessary.

Grounding the ToughNet Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from

the grounding screw to the grounding surface prior to connecting

devices.

ATTENTION

To ground this product to earth,

use a green and yellow AWG

16 or higher grounding cable.

ATTENTION

This product is intended to be mounted to a

well-grounded

mounting surface such as a metal panel.

Connecting the Power Supplies

The ToughNet TN-G4500 Series switches support dual power inputs—

power input 1 and power input 2. The M12 K-coded 5-pin male

connector on the TN-G4500 Series switches' front panel is used for the

dual power inputs.

- 8 -

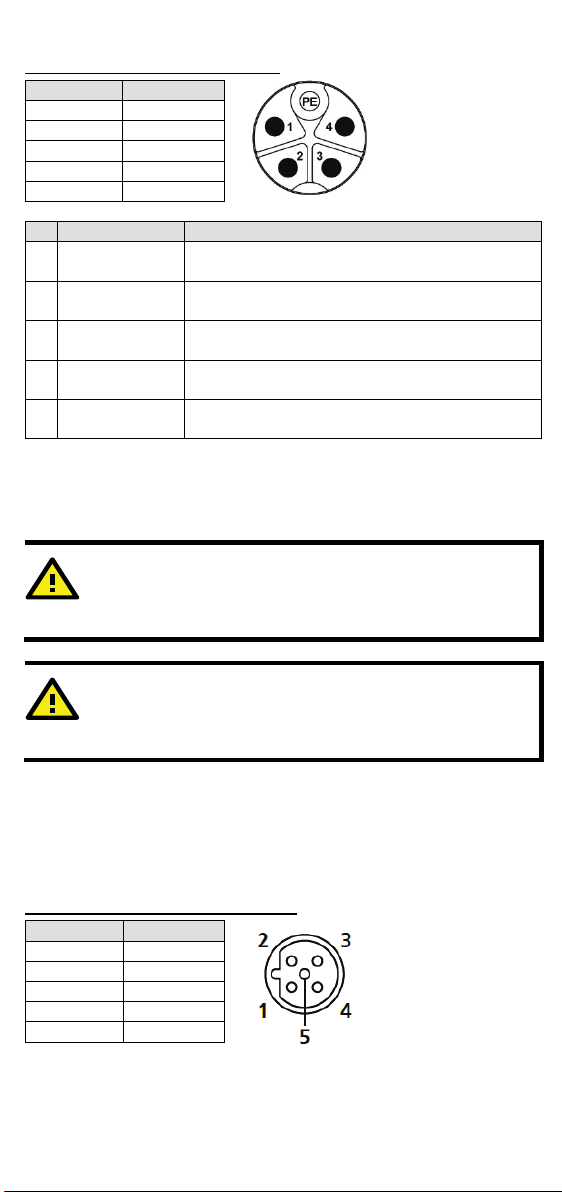

Pinouts for the power input port

PWR

V1+

V1–

V2–

V2+

GND

Description

Usage

1 PWR1 / DC + Connect “PWR1 Live / DC +” to the positive (+)

terminal when using a DC power source.

2 PWR1 / DC – Connect “PWR1 Neutral / DC –” to the negative

(–) terminal when using a DC power source.

3 PWR2 / DC –

Connect “PWR2 Neutral / DC –” to the negative

(–) terminal when using a DC power source.

4 PWR2 / DC +

Connect “PWR2 Live / DC +” to the positive (+)

terminal when using a DC power source.

PE Chassis Ground Connect the “Chassis Ground” to the equipment

ground bus for DC inputs.

STEP 1: Plug your power cord connector into the power input port of

the TN-G4500 switch.

STEP 2: Screw the nut on your power cord connector into the power

input connector on the switch to ensure a tight connection.

ATTENTION

Before connecting the

TN-G4500 Series to the power input,

make sure the power source voltage is stable.

ATTENTION

Do not power on

the TN-G4500 Series before connecting the

M12 power connector.

Connecting the Serial Port

The TN-G4500 Series has a M12 B-coded 5-pin female connector. Users

can use an adapter to connect a management PC and control the device

using commands through the CLI (Command-Line Interface).

Pinouts for the M12-B (5-pin) Port

CON

DSR

GND

DTR

- 9 -

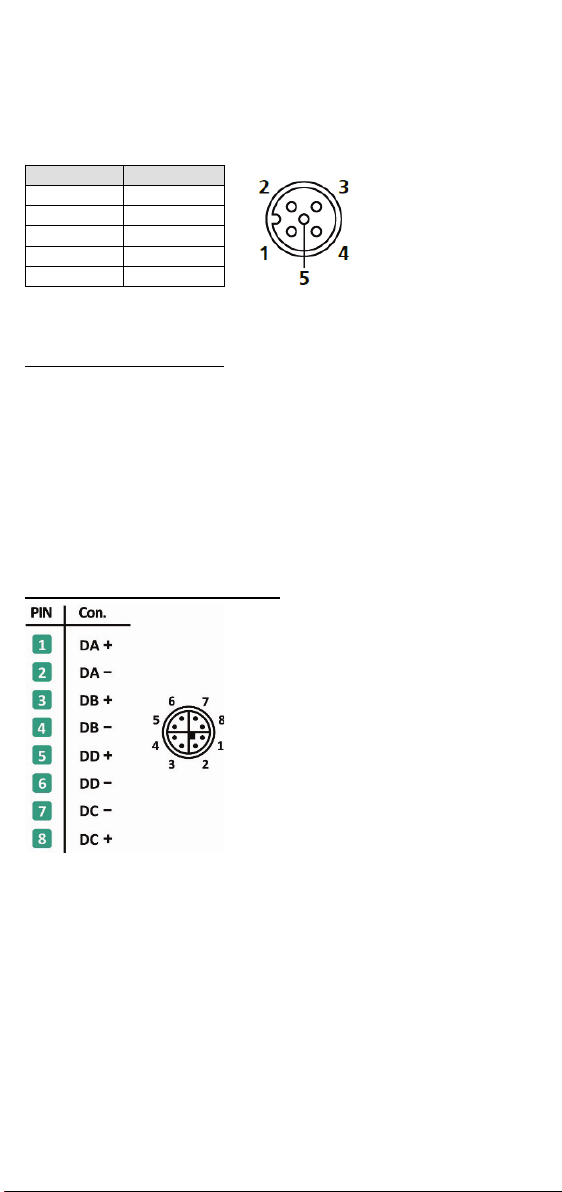

Connecting the USB Storage Port

The TN-G4500 Series has a M12 A-coded 5-pin female connector. Users

can either use an adapter or the ABC-02-P-USB-M12 to connect to a PC

or to import configuration files to the device.

CON

D-

D+

GND

Connecting the Data Lines

Ethernet Port Connection

The TN-G4500 Series has 12 10/100/1000BaseT(X) Ethernet ports

(M12 X-coded 8-pin female connector) and 4 10G BaseT(X) Ethernet

ports. Most users configure these ports for Auto MDI/MDI-X mode, in

which case the port’s pinouts are adjusted automatically depending on

the type of Ethernet cable used (straight-through or cross-over), and

the type of device (NIC-type or HUB/Switch-type) connected to the

port.

In what follows, we give pinouts for both MDI (NIC-type) ports and

MDI-X (HUB/Switch-type) ports. We also give cable wiring diagrams for

straight-through and cross-over Ethernet cables.

Pinouts for the M12 (8-pin) Port

- 10 -

M12 (8-pin, M) to M12 (8-pin, M) Cross-Over Cable Wiring

M12 (8-pin, M) to M12 (8-pin, M) Straight-Trough Cable Wiring

M12 (8-pin, M) to RJ45 (8-pin) Cross-Over Cable Wiring

Tabla de contenidos

Otros manuales de Cambiar de Moxa Technologies

Moxa Technologies

Moxa Technologies PT-7728 Series Manual de usuario

Moxa Technologies

Moxa Technologies IEX-408E-2VDSL2 series Manual de usuario

Moxa Technologies

Moxa Technologies PowerTransPT-7728-PTP Manual de usuario

Moxa Technologies

Moxa Technologies PT-7528 Manual

Moxa Technologies

Moxa Technologies TN-5308 Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manual

Moxa Technologies

Moxa Technologies PowerTrans PT-7528-24TX-WV Manual de usuario

Moxa Technologies

Moxa Technologies NPort S8458 Series Manual de usuario

Moxa Technologies

Moxa Technologies TN-G4516-8GPoE-4XGPoE-WV-T Manual de usuario

Moxa Technologies

Moxa Technologies ToughNet TN-5510A-2GLSX-ODC Manual

Moxa Technologies

Moxa Technologies ICS-G7 Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A/408A Series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-G508E-T Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-P510A-8PoE Series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-G509 Manual

Moxa Technologies

Moxa Technologies TN-5308-LV-T Manual de usuario

Moxa Technologies

Moxa Technologies IKS-G6524 Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-2016-ML Series Manual de usuario

Moxa Technologies

Moxa Technologies PT-7728 Series Manual

Moxa Technologies

Moxa Technologies ToughNet TN-4500A Series Manual de usuario

Moxa Technologies

Moxa Technologies PT-508 Series Manual

Moxa Technologies

Moxa Technologies PT-510 Series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-P506A-4PoE Series Manual de usuario

Moxa Technologies

Moxa Technologies PT-7528 Manual

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
