PT-508 Series

Quick Installation Guide

Moxa PowerTrans Switch

Edition 6.0, February 2017

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Package Checklist

Moxa’s PT-508 PowerTrans switch is shipped with the following items. If

any of these items is missing or damaged, please contact your customer

service representative for assistance.

•PT-508 PowerTrans switch

•RJ45 to DB9 console port cable

•DIN-Rail Kit or wall mount plates (optional)

•1 grounding cable

•Protective caps for unused ports

•Documentation and software CD

•Quick installation guide (printed)

•Warranty card

- 3 -

Panel Layout of the PT-508

1. Power input PWR1/PWR2(DC

model only) LED

2. LEDs for ports 1 to 8

3. Fault LED

4. MSTR/HEAD: LED indicator

5. CPLR/TAIL: LED indicator

100BaseFX ports (SC/ST/LC/MTRJ)

7. 10/100BaseT(X) ports

8. Model Name

9. Terminal block for power input

10.

Screw hole for grounding cable

11.

Terminal block for DI and Relay 1

12.

Console port

13.

Screw hole for wall mounting kit

14.

Screw hole for DIN-Rail kit

15.

DIN-Rail kit

- 4 -

Mounting Dimensions (unit = mm)

- 5 -

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should already be fixed to the

back panel of the PT-508 when you take it out of the box. If you need to

reattach the DIN-Rail attachment plate to the PT-508, make sure the stiff

metal spring is situated towards the top as shown in the figures below.

STEP 1: If the spring-loaded

bracket is locked in place,

push the rece

ssed button to

release it. Once released, you

should feel some resistance

from the spring as you slide

the bracket up and down a few

millimeters in each direction.

STEP 2:

Insert the top of the DIN

-Rail

into the top slots on the

DIN-Rail attachment plate.

STEP 3:

The DIN

Rail attachment unit will snap

into place as shown in the following

illustration.

To remove the Moxa

PT-508

switch from the DIN

-Rail, use a

screwdriver to push down the

spring

loaded bracket until it locks

in place, as shown in the following

diagram. Next, rotate the bottom

of the switch upwards and then

remove the switch from the

DIN

-Rail.

- 6 -

Wall Mounting (optional)

For added convenience, the PT-508 can be wall mounted as illustrated

below.

STEP 1: Remove the

aluminum DIN

-Rail

attachment plate from

the

-508’s rear panel, and then

attach the wall mount plates

with

6 M3 screws, as shown

the right.

STEP 2: Mounting the PT-508 to a wall requires 4

screws. Use the

PT-508

, with wall mount plates attached,

as a guide to mark the correct locations for the

screws.

The heads of the screws should be less than 6.0 mm

diameter, and the shafts should be less than 3.5 mm in

diameter, as shown on the right.

NOTE

Test the screw’s head and shank size by inserting the screw into

one of the keyhole

shaped apertures of the wall mounting plates

before screwing it into the wall.

DO NOT screw the screws all the way in—leave a space of about 2 mm to

allow room for sliding the wall mount panel between the wall and the

screws.

STEP 3: After the screws are fixed into the wall, insert the four screw

heads through the large opening of the keyhole-shaped apertures, and

then slide the PT-508 downwards. Tighten the 4 screws for added

stability.

Wiring Requirements

WARNING

Safety First!

Be sure the power cord is disconnected before installing and/or

wiring your

PT-508.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowed for each wire size. If the current goes

above the maximum rating, the wiring could overheat, causing

serious damage to your equipment.

- 7 -

Please read and follow these important guidelines:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

in the same wire conduit. To avoid interference, wires with different

signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. As a rule of thumb,

wiring with similar electrical characteristics can be bundled together.

•Keep input wiring and output wiring separate.

•It is strongly advised that you label wiring to all devices in the system.

Grounding the PowerTrans Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground wire from the

grounding screw to the grounding surface prior to connecting devices.

ATTENTION

Before

powering on the PT-508 (24/48 VDC models)

, make sure

that the g

rounding cable is secured between the

grounding screw

and ground for surge prote

ction on the terminal block.

Ground for

surge protection is on terminal 3 of the terminal block as shown

below.

ATTENTION

This product is to be mounted to a well

-grounded mounting

surface, such as a metal panel.

ATTENTION

For dielectric strength (HIPOT) test, users must remove the

grounding cable secured between the grounding screw and

ground for surge protection located at terminal 3 of the terminal

block to avoid damage.

- 8 -

Wiring the Relay Contact

The PT-508 has one set of relay output—relay 1. The relay contact

consists of two contacts of the terminal block on the PT-508’s bottom

panel. Refer to the next section for detailed instructions on how to

connect the wires to the terminal block connector, and how to attach the

terminal block connector to the terminal block receptor.

The fault circuit will open if:

1. A relay warning event is triggered, OR

2. The PT-508 is the Master of this Turbo Ring, and the Turbo Ring is

broken, OR

3. Start-up failure.

If none of these three conditions is met, the fault circuit will remain

closed.

Wiring the Redundant Power Inputs (24/48 VDC models)

The PT-508 (24/48 VDC models) unit has two sets of power inputs –

power input 1 and power input 2. Top and front views of one of the

terminal block connectors are shown below.

Take the following steps to wire the redundant power inputs:

STEP 1: Insert the negative/positive DC wires into the V-/V+ terminals.

STEP 2: To keep the DC wires from pulling loose, use a small flat-blade

screwdriver to tighten the wire-clamp screws on the front of the terminal

block connector.

STEP 3: Insert the plastic terminal block connector prongs into the

terminal block receptor, which is located on the PT’s bottom panel.

ATTENTION

Before connecting

the PT

to the DC power inputs, make sure the

DC power source voltage is stable.

- 9 -

Wiring the Power Input (110/220 VDC/VAC model)

The PT-508 unit (110/220 VDC/VAC model) has one set of power input—

Pin 1(Neutral) and Pin5(Line). To insert the terminal block connector

prongs into the terminal block receptor on this PT-508 unit properly.

Please take the following steps to wire the power input. Top and front

views of one of the terminal block connectors are also shown below.

Take the following steps to wire the power input:

STEP 1: Insert the Neutral/Line AC or Negative/Positive DC wires into the

terminals (Terminal 1 for Neutral/Negative and Terminal 5 for

Line/Positive) of the terminal block connector.

STEP 2: To keep the AC or DC wires from pulling loose, use a small

flat-blade screwdriver to tighten the wire-clamp screws on the front of the

terminal block connector.

STEP 3: Insert the plastic terminal block connector prongs into the

terminal block receptor, which is located on the PT’s bottom panel.

NOTE: The PT-508 unit (110/220 VDC/VAC model) has the reverse

protection mechanism for 110/220 VDC input.

ATTENTION

Before connecting the PT to the DC power inputs, make sure the

DC power source voltage is stable.

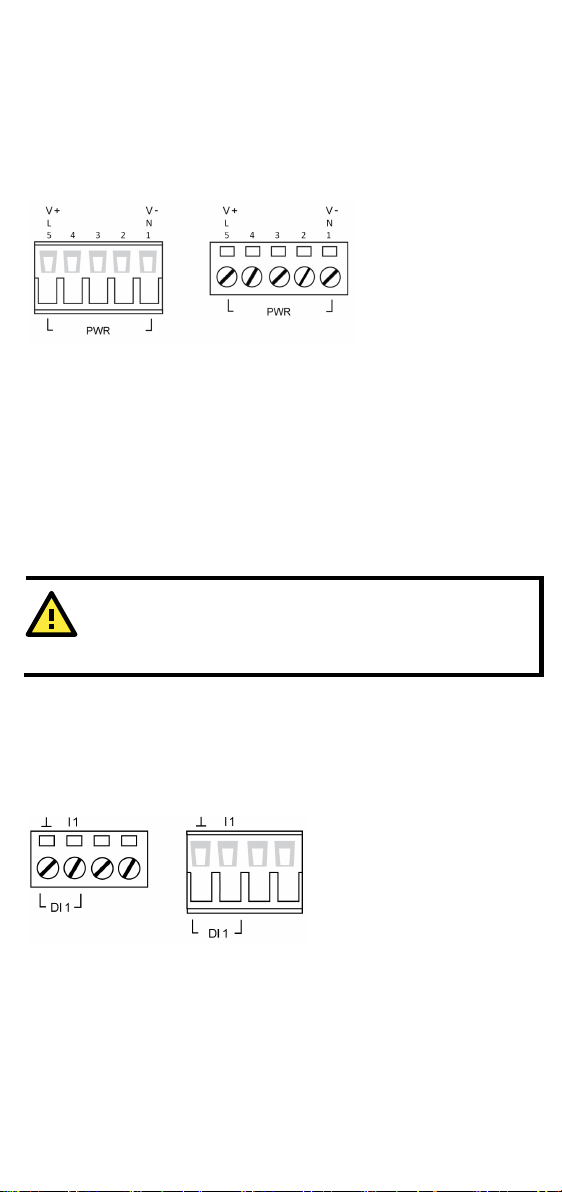

Wiring the Digital Inputs

The PT-508 unit has one set of digital input, DI 1. The DI consists of two

contacts from the 4-pin terminal block connector on the PT’s bottom

panel. The remaining contacts are used for the PT’s Relay 1. Top and front

views of one of the terminal block connectors are shown below.

Take the following steps to wire the digital input:

STEP 1: Insert the negative (ground)/positive DI wires into the ┴/I1

terminals.

STEP 2: To keep the DI wires from pulling loose, use a small flat-blade

screwdriver to tighten the wire-clamp screws on the front of the terminal

block connector.

STEP 3: Insert the plastic terminal block connector prongs into the

terminal block receptor, which is located on the PT-508’s bottom panel.

- 10 -

Pin Assignments

PT-508 models have six 10/100BaseT(X) Ethernet ports, and two

100BaseFX (SC/ST/LC/MTRJ-type connector) fiber ports.

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on PT’s front panel are used to connect

to Ethernet-enabled devices.

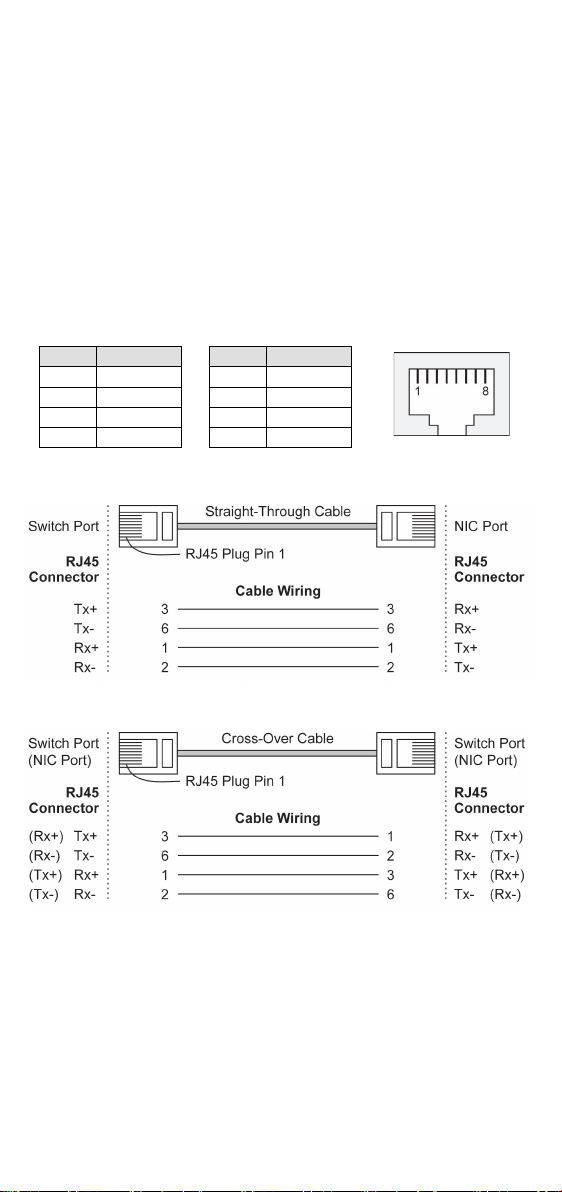

Next, we show pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports, and also show cable wiring diagrams for

straight-through and cross-over Ethernet cables.

10/100Base T(x) RJ45 Pinouts

MDI Port Pinouts

MDI-X Port Pinouts

8-pin RJ45

Signal

Tx+

Tx-

Rx+

Rx-

Signal

Rx+

Rx-

Tx+

Tx-

RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring

RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Moxa Technologies

Moxa Technologies

Moxa Technologies PowerTrans PT-7828 Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205A-4PoE Manual de usuario

Moxa Technologies

Moxa Technologies EDS-316 Series Manual de usuario

Moxa Technologies

Moxa Technologies MDS-G4000 Series Manual de usuario

Moxa Technologies

Moxa Technologies PT-G7728 Manual de usuario

Moxa Technologies

Moxa Technologies EDS-516A Series Manual

Moxa Technologies

Moxa Technologies EtherDevice Manual de usuario

Moxa Technologies

Moxa Technologies PT-7728 Series Manual

Moxa Technologies

Moxa Technologies IKS-G6524A Manual de usuario

Moxa Technologies

Moxa Technologies TN-5308 Manual de usuario

Moxa Technologies

Moxa Technologies EDS-208 series Manual de usuario

Moxa Technologies

Moxa Technologies MDS-G4000 Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A Series Manual

Moxa Technologies

Moxa Technologies ToughNet TN-5516 Series Manual

Moxa Technologies

Moxa Technologies UPort 404 Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-828 Series Manual de usuario

Moxa Technologies

Moxa Technologies MDS-G4000-4XGS Series Manual de usuario

Moxa Technologies

Moxa Technologies PowerTransPT-7528 Series Manual

Moxa Technologies

Moxa Technologies UPort 400A Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-G509 Series Manual de usuario

Moxa Technologies

Moxa Technologies ToughNet TN-G4500 Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-2005-ELP Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort S8000 Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-G500E Series Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
