TN-5508A/5510A Series

Quick Installation Guide

Moxa ToughNet Switch

Version 4.2, August 2023

Technical Support Contact Information

www.moxa.com/support



- 2 -

Overview

The ToughNet TN-5508A/5510A series M12 managed Ethernet switches

are designed for industrial applications in harsh environments. The TN

Series switches use M12 connectors to ensure tight, robust

connections, and guarantee reliable operation against environmental

disturbances, such as vibration and shock. The wide 24 to 110 VDC

with dual power input increases the reliability of your communications.

The TN-5508A Series includes PoE and non-PoE switches.

•TN-5508A Series: 8 Fast Ethernet M12 ports.

•TN-5508A-8PoE Series: 8 PoE Fast Ethernet M12 ports.

The TN-5510A Series also includes PoE and non-PoE switches.

•TN-5510A-2GTX Series: 8 Fast Ethernet M12 ports, supports

additional 2 Gigabit ports located on the bottom of the unit, with or

without bypass function.

•TN-5510A-2GLSX Series: 8 Fast Ethernet M12 ports, supports

additional 2 Gigabit fiber ports located on the bottom of the unit

with embedded multi-mode Q-ODC® interface.

•TN-5510A-8PoE-2GTX Series: 8 PoE Fast Ethernet M12 ports,

supports additional 2 Gigabit ports located on the bottom of the

unit, with or without bypass function.

•TN-5510A-8PoE-2GLSX Series: 8 PoE Fast Ethernet M12 ports,

supports additional 2 Gigabit fiber ports located on the bottom of

the unit with embedded multi-mode Q-ODC® interface.

The -40 to 75°C operating temperature and IP54 rated waterproof

enclosure allow deployment in harsh environments. The TN-

5508A/5510A Series Ethernet switches are compliant with mandatory

sections of the EN 50155 standard covering operating temperature,

power input voltage, surge, ESD, and vibration, as well as conformal

coating and power insulation, making the switches suitable for a variety

of industrial applications.

Package Checklist

Your ToughNet TN-5508A/5510A switch is shipped with the following

items. If any of these items is missing or damaged, please contact your

customer service representative for assistance.

•1 Moxa ToughNet switch

•Panel mounting screws

•Quick installation guide (printed)

•Warranty card

Features

Anti-Vibration Circular Connectors for Robust Links

•M12 D-coding 4-pin female connectors for Fast Ethernet

10/100BaseT(X) ports

•M12 X-coded 8-pin female connectors for Gigabit Ethernet

10/100/1000BaseT(X) ports

•Fiber-optic ODC connectors with embedded 2 km Gigabit Ethernet

1000BaseLSX ports

•M12 A-coding 5-pin male connectors for console and relay output.

•M23 6-pin male connectors for power input

- 3 -

Isolated Power Inputs

•Supports 24-110 VDC (16.8 to 137.5 VDC)

High Performance Network Switching Technology

•IPv6 ready, certified by the IPv6 Logo Committee

•DHCP Option 82 for IP address assignment with different policies

•Turbo Ring and Turbo Chain (recovery time <20 ms @250

switches),and STP/RSTP/MSTP for network redundancy

•IGMP Snooping V1/V2/V3, IGMP Querier, and GMRP for filtering

multicast traffic

•Port-based VLAN, IEEE802.1Q VLAN, and GVRP protocol to ease

network planning

•QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic

classification and prioritization

•IEEE 802.3ad, LACP for optimum bandwidth utilization

•TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance

network security

•SNMP v1/v2c/v3 for different levels of network management

•RMON for efficient network monitoring and proactive capability

•Bandwidth management prevents unpredictable network status

•Lock port allows access by only authorized MAC addresses

•Port mirroring for online debugging

•Automatic warning by exception through email, relay output

•Automatic recovery of connected devices’ IP addresses

•Line-swap fast recovery.

•LLDP for automatic topology discovery through network

management software

•Loop protection prevents network loops

•Configurable through Web browser, Telnet/Serial console, CLI, and

Windows utility

Designed for Industry-specific Applications

•Two Gigabit Ethernet ports to meet high bandwidth requirements

•Bypass relay option on the 2 Gigabit Ethernet ports ensure non-

stop data communication in the event a switch stops working due

to a power failure

•Complies with all EN 50155 mandatory test items*

•-40 to 75°C operating temperature range

•IP54 rugged high-strength case

•Panel mounting or DIN-Rail mounting installation capability

*This product is suitable for rolling stock railway applications, as

defined by the EN 50155 standard. For a more detailed statement, click

here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf

Recommended Optional Accessories

•CBL-M23(FF6P)Open-BK-100-IP67: 1-meter M23 to 6-pin power

cable with IP67-rated female 6-pin M23 connector

•CBL-M12D(MM4P)/RJ45-100 IP67: 1-meter M12-to-RJ45 Cat-5E

UTP Ethernet cable with IP67-rated male 4-pin M12 D-coded

connector

•CBL-M12DMM4PM12DMM4P-BK-100-IP67: 1-meter M12-to-M12

Cat-5E STP Ethernet cable with waterproof 4-pin D-coded M12

connector

•CBL-M12(FF5P)/OPEN-100 IP67: 1-meter M12-to-5-pin power cable

with IP67-rated female 5-pin M12 A-coded connector

- 4 -

•CBL-M12FF5PF9-BK-150-IP67: 1.5-meter M12-to-DB9 Cat-5E STP

Ethernet cable with waterproof 5-pin D-coded M12 connector

•CBL-M12XMM8P-Y-100-IP67: 1-meter M12-to-M12 Cat-5 UTP

Ethernet cable with IP67-rated 8-pin male X-coded crimp type M12

connector

•CBL-M12XMM8P-Y-300-IP67: 3-meter M12-to-M12 Cat-5 UTP

Ethernet cable with IP67-rated 8-pin male X-coded crimp type M12

connector

•CBL-M12XMM8PRJ45-Y-200-IP67: 2-meter M12-to-RJ45 Cat-5 UTP

Ethernet cable with IP67-rated 8-pin male X-coded crimp type M12

connector

•M12D-4P-IP68: Field-installable M12 D-coded screw-in connector,

male 4-pin, IP68-rated

•M12A-5P-IP68: Field-installable M12 A-coded screw-in connector,

female 5-pin, IP68-rated

•M12X-8PMM-IP67-HTG: Field-installable M12 X-coded crimp type,

slim design connector, male 8-pin, IP67-rated

•M12D-4PMM-IP67: M12 D-coded connector, QUICKON type, male

4-pin, IP67-rated

•A-PLG-WPM23-01: M23 cable connector, female 6-pin, crimp type.

•A-CAP-M12M-M: Metal cap for M12 male connector

•CAP-M12F-M-PP: Metal cap for M12 female connector

•ABC-01-P-M12-CT-T: Configuration backup and restoration tool

with M12 connector for ToughNet Series EN 50155 managed

Ethernet switches, -40 to 75°C operating temperature

•ABC-01-M12: Configuration backup and restoration tool with M12

connector for managed Ethernet switches and wireless

APs/Bridges/Clients, 0 to 60°C operating temperature

•DK-DC50131: DIN-rail mounting kit, 50 x 131 mm

ATTENTION

The equipment is intended to be supplied by an external power

source (UL listed/IEC 60950

-1/IEC 62368-1) of which the

output complies with ELV/ES2, LPS/PS2.

-5516/18A non-

PoE models require an output rating of 24 to

110 VDC, 0.75 A min., at an ambient temperature of 75°C min.

-5516/18A PoE models require an output rating of 24 to 110

VDC, 7.1 A min., at an ambient temperature of 75°C min.

- 5 -

TN-5508A/5510A Panel Layouts

- 6 -

1. Model name

2. Console port

3. Relay output port

4. Power input port (male 5-pin shielded M23 connector)

5. 10/100BaseT(X) port (M12 D-coded 4-pin female connector)

6. PWR1 LED: for power input 1

7. PWR2 LED: for power input 2

8. FAULT LED

9. MSTR/HEAD LED: for ring master or chain head

10. CPLR/TAIL LED: for ring coupler or chain tail

11. E1 LED: Not used by the TN-5508A/TN-5508A-8PoE models

12. E2 LED: Not used by the TN-5508A/TN-5508A-8PoE models

13. TP port’s 10/100 Mbps LED

14. Screw holes for panel mounting kit

15. Grounding screw

16. Waterproof vent

17. Product label

18. Screw holes for DIN-Rail mounting kit

19. Gigabit Ethernet port E1 (corresponding to port 9 in the TN-5510A

User's Manual) (For TN-5510A-2GTX/TN-5510A-8PoE-2GTX

models)

20. Gigabit Ethernet port E2 (corresponding to port 10 in the TN-

5510A User's Manual) (For TN-5510A-2GTX/TN-5510A-8PoE-2GTX

models)

21. Gigabit fiber port E1 (corresponding to port 9 in the TN-5510A

User’s Manual) (For TN-5510A-2GLSX/TN-5510A-8PoE-2GLSX

models)

22. Gigabit fiber port E2 (corresponding to port 10 in the TN-

5510AUser’s Manual) (For TN-5510A-2GLSX/TN-5510A-8PoE-

2GLSX models)

ATTENTION

DO NOT open or remove the vent (#1

6). Once the seal has

been removed, the warranty becomes invalid.

Exposed connectors (including

2, 3, 5, 19, 20, 21, and 22)

when not in use must be tightly covered with protective caps

(an optional accessory) to ensure IP54-rated protection.

- 7 -

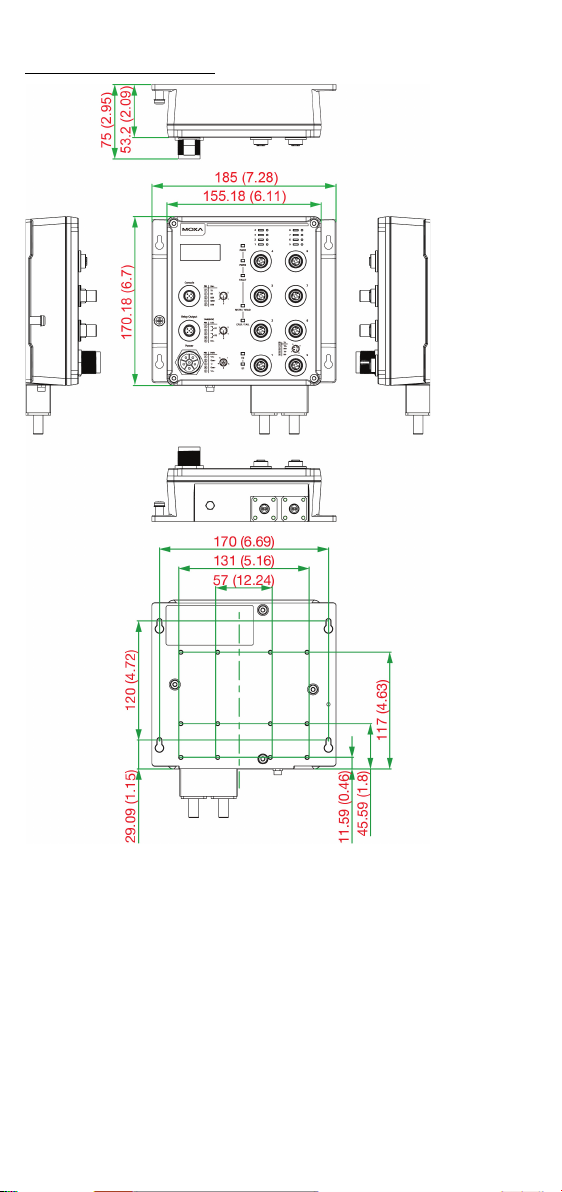

Mounting Dimensions (unit = mm)

TN-5508A Series

- 8 -

TN-5508A-8PoE Series

- 9 -

TN-5510A-2GTX Series

- 10 -

TN-5510A-2GLSX Series
