Tool Kit for Claspcon™ and Pin and Socket Crimp Terminals

Doc No: ATS-63811 1HM Release Date: 02-12-0 UNCONTROLLED COPY Page 1 of 10

Revision: D Revision Date: 01-31-14

Application Tooling

Specification Sheet

Tool Kit

Order No. 6 811-7170

Hand Crimp Tool

Order No. 6 811-7100

FEATURES

% A full cycle ratcheting hand tool ensures complete crimps

% Ergonomically designed soft handles

% Precisely designed crimping profiles with simple contact positioning

% Easy handling due to outstanding force ratio

 Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed

into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.

 Many different Tool kits can be used with a single Battery Powered Tool.

 This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.

SCOPE

Products: .093” Pin and Socket 14-18 AWG and 24-30 AWG and Claspcon™ Crimp Terminal Socket 24-30 AWG.

Terminal

Series No.

Terminal Order No.

Wire Size







Insulation Diameter

Strip Length

Loose Piece







Reel

AWG

mm²

In.

1433

0316

0320

0315

0319

24-28

- 0.80-1.50 .031-.059 3. 0-4.20

.146-.165

0318

0322

031

0321

1141

514

1142

24-30

- 0. 6-1.52 .030-.060 3.96-5.53

.156-.218

1144

146

1434

0324

0326

0323

0325

0.80

1.50

.031

.059

3. 0

4.20

.146

.165

2143

2141

6144

24-30

- 0. 6-1.52 .030-.060 3.96-5.53

.156-.218

6145

2149

1881

1104

1103

0. 6

1.52

.030

.060

3.96

5.53

.156

.218

424

1615

2.36

3.55

.093

.140

3.96

5.53

.156

.218

424 8

2612

2611

2.36

3.55

.093

.140

3.96

5.53

.156

.218



Follow the Cut

Off Tab specifications listed

in Crimp Spe

cification below

Terminals series 1433, 1434, and 1881 cannot be removed from the reel by manual cutting.

An applicator must be used or the terminals will not fit the housing properly.

See Conditions on page 3.

Crimp Specifications

Terminal Series No. 





Cut

off Tab Maximum

In.

424

0.25

.010

424 8

0.25

.010

TYPE 2C

Tool Kit for Claspcon™ and Pin and Socket Crimp Terminals

Doc No: ATS-63811 1HM Release Date: 02-12-0 UNCONTROLLED COPY Page 2 of 10

Revision: D Revision Date: 01-31-14

DEFINITION OF TERMS

The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the

scope.

▲Insulation Crimp Note:

Due to the terminal’s insulation grip design

and/or insulation diameter range, this tool

uses “overlap” form geometry in the

insulation punch. This produces an overlap

insulation crimp (A620 – compliant). While

the insulation punch profile may appear

“lopsided”, this is a normal condition for this

tool. See figure to the right. (Some tools with

multiple crimp pockets may not have the

“overlap” profile on all pockets).

CONDITIONS:

After crimping, the conductor profiles should measure the following (See notes below).

Terminal Series No.

Wire Size

Conductor Crimp

Insulation Crimp

Pull Force

Minimum Profile

Height (Ref) Width (Ref)

Height (Ref)

Maximum Width (Ref)

AWG

In.

Lb.

1433

(39-00-XXXX)

0.86

0.94

.034

.03

1.60

.063

1.35

.053

1.90

.0 5

29.4

6.60

0.86

0.94

.034

.03

1.60

.063

1.32

.051

1.90

.0 5

19.6

4.40

0.86

0.94

.034

.03

1.60

.063

1.28

.050

1.90

.0 5

9.8

2.20

1433

(02-09-XXXX)

0.86

0.94

.034

.03

1.60

.063

1.35

.053

1.90

.0 5

5.6

8.00

0.86

0.94

.034

.03

1.60

.063

1.32

.051

1.90

.0 5

22.2

5.00

0.86

0.94

.034

.03

1.60

.063

1.28

.050

1.90

.0 5

13.3

3.00

0.84

0.91

.033

.036

1.60

.063

1.28

.050

1.90

.0 5

8.9

2.00

1434

(39-00-XXXX)

0.86

.034

.03

1.60

.063

1.35

.053

1.90

.0 5

29.4

6.60

0.86

0.94

.034

.03

1.60

.063

1.32

.051

1.90

.0 5

19.6

4.40

0.86

0.94

.034

.03

1.60

.063

1.28

.050

1.90

.0 5

9.8

2.20

INSULATION

CRIMP

▲SEE NOTE

BRUSH

STRIP

LENGTH

BELL MOUTH

BEND

DOWN

BEND UP

ROLLING

CONDUCTOR

CRIMP

TWISTING

CRIMP HEIGHT

OVERLAP

INSULATION

CRIMP

OVERLAP FORM GEOMETRY

ANVIL

PUNCH

WIRE

Tool Kit for Claspcon™ and Pin and Socket Crimp Terminals

Doc No: ATS-63811 1HM Release Date: 02-12-0 UNCONTROLLED COPY Page 3 of 10

Revision: D Revision Date: 01-31-14

Terminal Series No.

Wire Size

Conductor Crimp

Insulation Crimp

Pull Force

Minimum Profile

Height (Ref) Width (Ref)

Height (Ref)

Maximum Width (Ref)

AWG

In.

Lb.

1434

(02-09-XXXX)

0.86

0.94

.034

.03

1.60

.063

1.35

.053

1.90

.0 5

35.6

8.00

0.86

0.94

.034

.03

1.60

.063

1.32

.051

1.90

.0 5

22.2

5.00

0.86

0.94

.034

.03

1.60

.063

1.28

.050

1.90

.0 5

13.3

3.00

0.84

0.91

.033

.036

1.60

.063

1.28

.050

1.90

.0 5

8.9

2.00

1881-3

.86

0.94

.034

.03

1.60

.063

1.35

.053

1.90

.0 5

44.5

10.00

0.86

0.94

.034

.03

1.60

.063

1.32

.051

1.90

.0 5

26.

6.00

0.86

0.94

.034

.03

1.60

.063

1.28

.050

1.90

.0 5

13.3

3.00

0.84

0.91

.033

.036

1.60

.063

1.28

.050

1.9

.0 5

1.50

424

1.85

1.96

.0 3

2.49

.098

3.28

.129

4.85

.191

222.4

50.00

1.40

1.50

.055

.059

2. 5

.108

3.80

.150

3. 0

.146

1 .9

40.00

1.30

1.40

.051

.055

2. 5

.108

3. 5

.148

3. 0

.146

115.

26.00

424 8

1.85

1.96

.0 3

2.49

.098

3.28

.129

4.60

.181

222.4

50.00

1.40

1.50

.055

.059

2. 5

.108

3.80

.150

3. 0

.146

1 .9

40.00

1.30

1.40

.051

.055

2. 5

.108

3. 5

.148

3. 0

.146

115.

26.00



To Achieve IPC

620 Class 2 Crimps, the

following over

all wire insulation diameter ranges are recommended:

1. Profile A: 0. 6-1.52mm (.030-.060 inch)

2. Profile B: 2. 9-3.55mm (.110-.140 inch)

3. Profile C: 2.36-3.14mm (.093-.124 inch)

Tool Qualification Notes:

1. Pull Force should be measured with no influence from the insulation crimp.

2. The above specifications are guidelines to an optimum crimp.

Note:

A crimp height chart is provided with this manual as Reference Only. Due to the wide range of wires, strands,

insulation diameters, and durometers, actual crimp height measurements may very slightly. An occasional,

destructive, pull force test should be performed to check hand tool crimp. Pull Force value must exceed the

minimum pull force specifications listed.

CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage

can occur to the tool or die.

INSTALLATION

To install the Tool Kit into the Power Crimp Head follow the steps below:

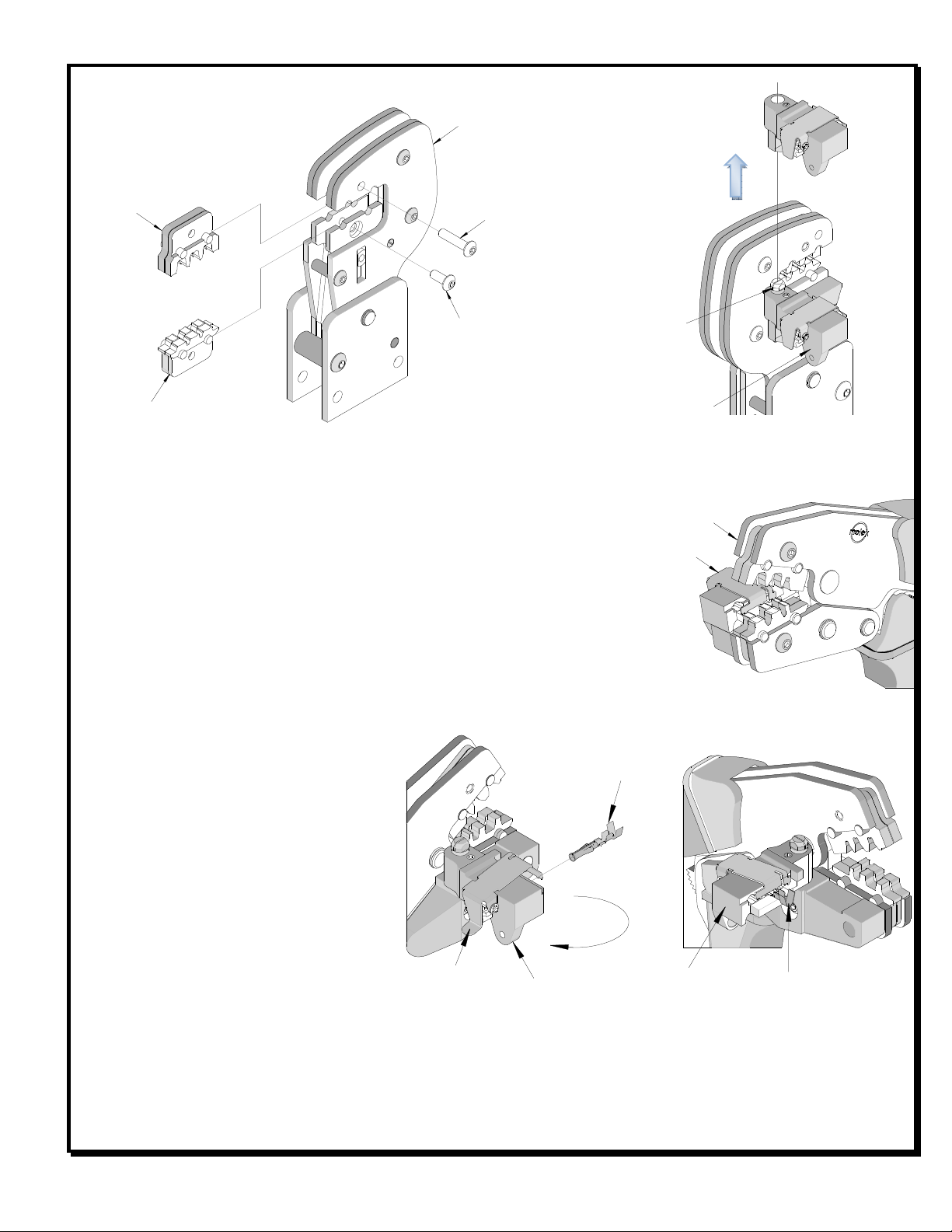

Anvils and Punches Installation

1. Insert the Anvils into the bottom slots of the nest. Install the M4 x 10 long BHCS and tighten in place.

2. Insert the Punches into the top slots of the nest. Install the M4 x 18 long BHCS and tighten in place. See

Figure 1.

Tool Kit for Claspcon™ and Pin and Socket Crimp Terminals

Doc No: ATS-63811 1HM Release Date: 02-12-0 UNCONTROLLED COPY Page 4 of 10

Revision: D Revision Date: 01-31-14

ANVILS

POWER

CRIMP

HEAD

Figure

PUNCHES

M4 X 10 LONG

BHCS

M4 X 18 LONG

BHCS

SWING

LOCATOR

OPEN

PRESS DOWN

ON THE BRASS

PIVOT SHAFT

LIFT UP ON

THE LOCATOR

Figure

Locator Installation and Removal

Follow the steps below to install or replace the locator. See Figure 2.

To install the locator

1. Position the locator with the hole over the brass pivot shaft and snap it

into place.

To remove the locator

1. Open the crimp hand tool.

2. Swing the existing locator open and away from the hand tool.

3. Firmly press down on the brass pivot shaft with your thumb, while pulling

the locator up. Slip the locator off the top of the brass pivot shaft.

OPERATION

Open the tool by squeezing the handles

together, at the end of the closing stroke,

the ratchet mechanism will release the

handles, and the hand tool will spring

open.

Crimping Terminals

1. Select the desired terminal listed in

the preceding charts.

2. Swing the terminal locator away from

the crimp tool shown in Figure 4.

Some terminals with large insulation

grips may interfere with the crimp tooling when swinging the locator into position. The terminal must then be

loaded into the locator in the closed/crimp position.

Figure

LOCATOR

JAWS OPEN

TERMINAL

PUSH HERE

TO OPEN

WIRE STOP

SWING OPEN

LOCATOR

TERMINAL

IN PLACE

Figure 4

Tool Kit for Claspcon™ and Pin and Socket Crimp Terminals

Doc No: ATS-63811 1HM Release Date: 02-12-0 UNCONTROLLED COPY Page 5 of 10

Revision: D Revision Date: 01-31-14

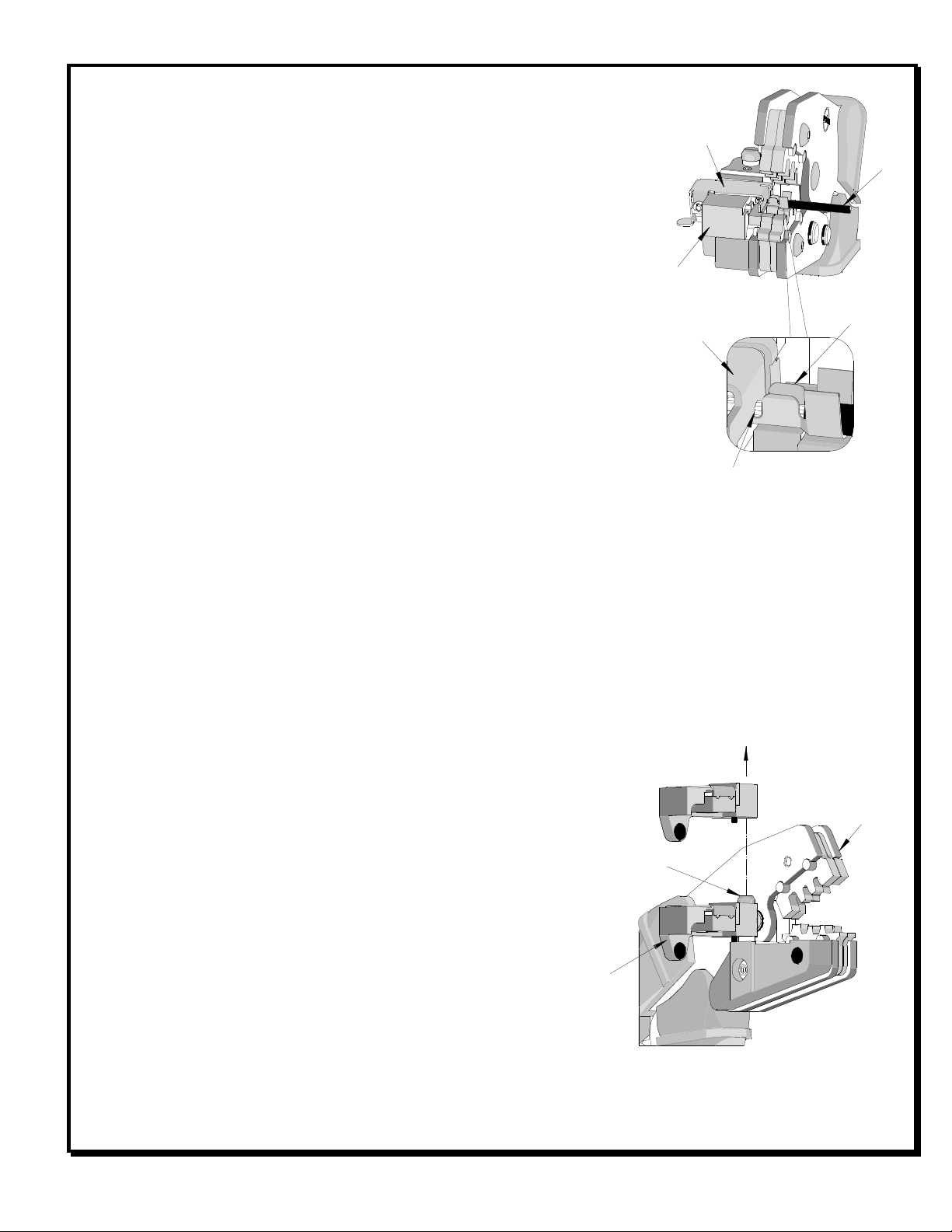

3. When using the locator, press down on the wire stop on the locator as

shown in Figure 4. Insert the proper terminal into the proper nest

opening. Make sure when choosing the nest opening, it will correspond

with the A, B, or C profile on the hand tool.

4. Return the locator to its original position. Insert the proper wire over the

terminal. Some large O.D. wires may need to be placed into the

terminal before closing the tool. Gently touch the wire stop with the end

of the wire. See Figure 5.

5. Compress the terminal by squeezing the tool handles until the ratchet

mechanism cycle has been completed. Release handles to open the

jaws.

6. Remove the crimped terminal from the terminal locator by pressing

down on the wire stop and gently pulling on the wire. The terminal

locator can be in either position.

. Visually inspect the crimped terminal for proper crimp location.

Note: The tamper proof ratchet action will not release the tool until it has

been fully closed.

For the Battery Power Tool:

1. Cycle the Battery Power Tool to crimp the terminal to the wire.

2. Remove the crimped terminal from the terminal locator by pressing down on the wire stop and gently pulling on

the wire. The terminal locator can be in either position.

3. Visually inspect the crimped terminal for proper crimp location.

Locator Replacement

See the parts list on the last page of this document for the proper locator order number. Follow the steps below to

replace the locator.

1. Open the crimp hand tool.

2. Swing the existing locator open and away from the

hand tool.

3. Firmly press down on the brass pivot shaft with your

thumb, while pulling the locator up. Slip the locator off

the top of the brass pivot shaft. See Figure 6.

4. Replace it with the proper locator by putting over the

brass pivot shaft and snapping it into place.

Maintenance

It is recommended that each operator of the tool be made

aware of, and responsible for, the following maintenance

steps:

1. Remove dust, moisture, and other contaminants with a

clean brush, or soft, lint free cloth.

2. Do not use any abrasive materials that could damage

the tool.

SWING

LOCATOR

OPEN

PRESS DOWN ON

BRASS PIVOT SHAFT

LIFT UP LOCATOR

JAWS OPEN

Figure 6

LOCATOR

IN PLACE

WIRE STOP

TERMINAL

WIRE AGAINST

STOP

Figure 5

WIRE STOP

WIRE

Tool Kit for Claspcon™ and Pin and Socket Crimp Terminals

Doc No: ATS-63811 1HM Release Date: 02-12-0 UNCONTROLLED COPY Page 6 of 10

Revision: D Revision Date: 01-31-14

3. Make certain all pins; pivot points and

bearing surfaces are protected with a thin

coat of high quality machine oil. Do not oil

excessively. The tool was engineered for

durability but like any fine piece of equipment

it needs cleaning and lubrication for a

maximum service life of trouble free crimping.

Use a 30 weight automotive (light) oil used at

the oil points, every 5,000 crimps or 3

months, shown in Figure A or B will

significantly enhance the tool life.

4. Wipe excess oil from hand tool, particularly

from crimping area. Oil transferred from the

crimping area onto certain terminations may

affect the electrical characteristics of an

application.

5. When tool is not in use, keep the handles closed to prevent objects from becoming lodged in the crimping dies,

and store the tool in a clean, dry area.

Miscrimps or Jams

Should this tool ever become stuck or jammed in a

partially closed position, Do Not force the handles

open or closed. The tool will open easily by

pressing the ratchet release lever. See Figure 8.

How to Adjust Tool Preload (See Figure 8)

This hand tool is factory preset to 25-45 LBS.

preload. It may be necessary over the life of the

tool to adjust tool handle preload force. Listed

below are the steps required to adjust the crimping

force of the hand tool to obtain proper crimp

conditions:

1. Remove or fold back the handle grip from the handle to expose the eccentric axle and setting wheel.

2. Remove the locking screw with a 2mm hex wrench. The wrench set (63810-0101), is not supplied. It is sold

separately from the hand tool.

3. Turn the eccentric axle and setting wheel with the wrench or pliers Counter-clockwise (CCW) to increase

handle force.

4. Replace the locking screw, aligning the nearest notch in the setting wheel to locking screw.

5. Replace the handle grip.

6. Check the crimp specifications or conduct a pull test after tool handle preload force is adjusted.

RATCHET

RELEASE LEVER

Figure 8

HANDLE

GRIP

REMOVED

ECCENTRIC AXLE

HANDLE

GRIP

LOCKING

SCREW

WRENCH SET

(SOLD

SEPERATELY)

PRELOAD

CHECK POINT

25.4MM

SETTING WHEEL

Figure 7B

LUBRICATION

POINTS

(BOTH SIDES)

LIGHT OIL

(EVERY MONTH

5,000 CRIMPS)

Figure 7A

Tool Kit for Claspcon™ and Pin and Socket Crimp Terminals

Doc No: ATS-63811 1HM Release Date: 02-12-0 UNCONTROLLED COPY Page of 10

Revision: D Revision Date: 01-31-14

Warranty

This tool is for electrical terminal crimping purposes only. This tool is made of the best quality materials. All vital

components are long life tested. All tools are warranted to be free of manufacturing defects for a period of 30

days. Should such a defect occur, we will repair or exchange the tool free of charge. This repair or exchange will

not be applicable to altered, misused, or damaged tools. This tool is designed for hand use only. Any clamping,

fixturing, or use of handle extensions voids this warranty.

CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling.

CAUTIONS

1. Manually powered hand tools are intended for low volume or field repair. This tool is NOT intended for

production use. Repetitive use of this tool should be avoided.

2. Insulated rubber handles are not protection against electrical shock.

3. Wear eye protection at all times.

4. Use only the Molex terminals specified for crimping with this tool.

Certification

Molex does not certify or re-certify commercial grade hand tools but rather supplies the following guidelines for

customers to re-certify hand tools.

% This tool is qualified to pull force only. To re-certify, crimp a terminal to a wire, which has been stripped

12. mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than

25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull

testing.

% If the tool does not meet minimum pull force values, handle preload should be increased and the pull test

rerun, (See How to Adjust Preload).

% When the hand tool is no longer capable of achieving minimum pull force, it should be taken out of service and

replaced.

WARNING: NEVER operate service, install tool kits, or adjust the Power Crimp Head without proper

instruction and without first reading and understanding the instructions in the proper Manual or

Specification Sheet. See Chart above for the correct Manual or Specification Sheet.

WARNING: NEVER install tooling or service this tool while it is into any power source. Make sure the

power is turned off.

CAUTION: Keep fingers away from the crimping area when operating this tool. It may cause severe injury.

CAUTION: Wear safety glasses when operating or serving this tool.

Tool Kit for Claspcon™ and Pin and Socket Crimp Terminals

Doc No: ATS-63811 1HM Release Date: 02-12-0 UNCONTROLLED COPY Page 8 of 10

Revision: D Revision Date: 01-31-14

The chart below shows all applications for this Tool Kit.

Tool Kit

Order No.

Tool

Order no.

Tool

Description

Power

Head

Order No.

Adapter

Description

Figure

No.

63811- 1 0

6381

0100

Hand Crimp Frame (Short)

N/A

6381

Hand Crimp Frame (Long)

N/A

63816

0200

Battery Power

Tool (110 V)

63816

0300

Power Crimp Head

63816

0250

Battery Powe

Tool (220 V)

63816

0300

Power Crimp Head

Applications for the Tool Kit

Hand Crimp Tool

Battery Powered Tool

Figure

POWER

CRIMP

HEAD

LOCKING PINS

BATTERY

POWERED

TOOL

TOOLING KIT

HAND CRIMP

FRAME LONG

AND SHORT

TOOLING

KIT

Tool Kit for Claspcon™ and Pin and Socket Crimp Terminals

Doc No: ATS-63811 1HM Release Date: 02-12-0 UNCONTROLLED COPY Page 9 of 10

Revision: D Revision Date: 01-31-14

RATCHET

RELEASE SCREW

Figure 11

M4 X 6mm

LONG BHCS

M4 X 12mm

LONG BHCS

WITH TOOL KIT

LOCATOR ONLY

M4 X 12mm

LONG BHCS

HAND TOOL PARTS LIST

Item Number

Order Number

Description

Quantity

63810

0100

Hand Crimp Frame (

Short

)

63810

0101

Wrench Set (Not included)

63810

0102

Locator Base

63810

0103

Repair Kit (Not included)

63811

1 0

Tool Kit with

Locator

63811

1 5

Locator (only)

REF

Tool Kit for Claspcon™ and Pin and Socket Crimp Terminals

Doc No: ATS-63811 1HM Release Date: 02-12-0 UNCONTROLLED COPY Page 10 of 10

Revision: D Revision Date: 01-31-14

Figure 12

Long

BHCS

Long

BHCS

Long

BHCS

POWER HEAD PARTS LIST

Item

Order No

Engineering No.

Description

Quantity

63816-0300 63816-0300 Power Crimp Head 1

63811- 1 0 63811- 1 0 Tool Kit 1

Visit our Web site at http://www.molex.com

Otros manuales para 63811-7100

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Herramientas de crimpado de molex

molex

molex 63827-2970 Manual de usuario

molex

molex AT AFIFG Manual de usuario

molex

molex 63811-6170 Manual de usuario

molex

molex 207129 Series Manual de usuario

molex

molex 63819-0900 Manual de usuario

molex

molex 207129 Series Manual de usuario

molex

molex 207129 Series Manual de usuario

molex

molex 207129 Series Manual de usuario

molex

molex 63827-5470 Manual de usuario

molex

molex 63903-8900 Manual de usuario

molex

molex 207129 Series Manual de usuario

molex

molex 35768 Series Manual de usuario

molex

molex 63816-0900 Manual de usuario

molex

molex 4D Manual de usuario

molex

molex 63811-5500 Manual de usuario

molex

molex 63825-5500 Guía del usuario

molex

molex CR60930B Manual de usuario

molex

molex 63825-1570 Manual de usuario

molex

molex 64001-7300 Manual de usuario

molex

molex 64005-4100 Manual de usuario

molex

molex 207129 Series Manual de usuario

molex

molex 63811-7070 Manual de usuario

molex

molex 207129 Series Manual de usuario

molex

molex 207129 Series Manual de usuario

Manuales populares de Herramientas de crimpado de otras marcas

Panduit

Panduit CT-1000 Guía del administrador

JST

JST CS 10 Manual de usuario

Danfoss

Danfoss ET4200 Manual de usuario

Tyco Electronics

Tyco Electronics PRO-CRIMPER III Manual de usuario

TE Connectivity

TE Connectivity 2063528-1 Manual de usuario

Tyco Electronics

Tyco Electronics 69156-1 Manual de usuario

CRH

CRH CRL CBLHCT1 Manual de usuario

Emerson

Emerson Klauke ES 105CFM Manual de usuario

KIMBALL MIDWEST

KIMBALL MIDWEST 27-798 Manual de instrucciones

Danfoss

Danfoss ET4350 Manual de usuario

Milwaukee

Milwaukee M18 Manual de usuario

HOGERT

HOGERT HT1P169 Manual de usuario

Textron

Textron ESG105L Manual de usuario

Tyco Electronics

Tyco Electronics 90035-3 Manual de usuario

Emerson

Emerson Klauke ES 20RMCCFB Manual de usuario

Continental Refrigerator

Continental Refrigerator PC150HD Manual de usuario

TE Connectivity

TE Connectivity ERGOCRIMP 1-1579001-3 Manual de usuario

Tyco Electronics

Tyco Electronics CERTI-CRIMP 90418-1 Manual de usuario

molex 63811-7100 Manual de usuario

Manuales populares de Herramientas de crimpado de otras marcas
