USER MANUAL

Model:

TP-114

1:4 XGA/HD DA/CAT 5 Transmitter

Contents

1Introduction 1

2Getting Started 1

2.1Getting Started 2

3Overview 3

3.1About the Power Connect Feature 3

3.2Shielded Twisted Pair (STP)/Unshielded Twisted Pair (UTP) 3

3.3Recommendations for Achieving the Best Performance 4

4Your TP-114 1:4 XGA/HD DA/CAT 5 Transmitter 5

5Configuring a TP-114 XGA/HD Line Transmitter – DA System 6

5.1Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 9

6Technical Specifications 9

Figures

Figure 1: TP-114 1:4 XGA/HD DA/CAT 5 Transmitter 5

Figure 2: TP-114 1:4 XGA/HD DA/CAT 5 Transmitter (Underside Panel) 6

Figure 3: Configuring a TP-114 XGA/HD Line Transmitter – DA 8

Figure 4: CAT 5 PINOUT 9

Tables

Table 1: TP-114 1:4 XGA/HD DA/CAT 5 Transmitter Features 5

Table 2: TP-114 1:4 XGA/HD DA/CAT 5 Transmitter (Underside Panel) Features 6

Table 3: CAT 5 PINOUT 9

Table 4: Technical Specifications of the TP-114 (with 100m CAT 5 cable) 9

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, presentation, and

broadcasting professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

1,000-plus different models now appear in 11 groups1that are clearly

defined by function.

Thank you for purchasing the Kramer TOOLS: TP-114 XGA/HD Line

Transmitter – DA, which is ideal for:

•Presentation and multimedia applications

•Long range graphics distribution for schools, hospitals, security, and

stores

The package includes the following:

•TP-114 1:4 XGA/HD DA/CAT 5 Transmitter

•Power supply (12V DC)

•This user manual2

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and

packaging materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high performance high-resolution cables3

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;

GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;

GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products

2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

2.1 Getting Started

This quick start chart summarizes the basic setup and operation steps.

Step 2: Connect the power

Step 3: Change the polarity - see section 5

You can change the polarity of

decoding H and V Sync for video

(see Figure 4 and Table 2):

You can change the polarity of

decoding H and V Sync for video

(see Figure 4 and Table 2):

On the TP-114, connect:

A computer graphics

source to the XGA input

The XGA output to a local

display

Up to 4 of the line

outputs to the line inputs

(for example, on TP-120

XGA Line Receivers), via

UTP cabling

On the TP-114, connect:

A computer graphics

source to the XGA input

The XGA output to a local

display

Up to 4 of the line

outputs to the line inputs

(for example, on TP-120

XGA Line Receivers), via

UTP cabling

XGA Line Receiver

LEVEL

EQ.

XGA Line Receiver

LEVEL

EQ.

TP-114

1:4 XGA/HD DA/CAT5 Transmitter

Display 4

Computer

Graphics

Source

TP-120

TP-114

Long CAT 5 cable

LO3

INE UT

Local

Display

Display 1

VGA

Step 1: Connect the inputs and outputs - see section 5

Overview

3 Overview

Your Kramer TOOLS TP-114 1:4 XGA/HD DA/CAT 5 Transmitter is a

high-performance distribution amplifier for computer graphics video or

HDTV signals. It converts a computer graphics video or HDTV signal on a

15-pin HD connector to four identical twisted pair signals.

The TP-114:

•Receives a computer graphics1/HD2signal and transmits it over four

CAT 5 cables to appropriate receivers3

•Has a resolution of up to UXGA, and a transmission range of more than

300 feet (more than 100 meters)

•Can change the polarity of decoding H and V Sync for video

•Includes the Power Connect™ feature

•Is powered by 12V DC

3.1 About the Power Connect Feature

The Power Connect™ feature applies as long as the cable can carry power.

This feature is available when using STP cable and the distance does not

exceed 50m on standard CAT 5 cable. For longer distances, heavy gauge

cable should be used4.For units which are connected via RJ-45 connectors,

make sure that the shield of the STP cable is connected to the metal casing

of the connectors on both ends of the cable. For units which are connected

via terminal block connectors, the shield of the STP cable must be

connected to a ground terminal on the units at both ends (use the ground

terminal of the power supply connection if necessary).

For a CAT 5 cable exceeding a distance of 50m, separate power supplies

should be connected to the transmitter and to the receiver simultaneously.

3.2 Shielded Twisted Pair (STP)/Unshielded Twisted Pair (UTP)

We recommend that you use Shielded Twisted Pair (STP) cable. There are

different levels of STP cable available, and we advise you to use the best

quality STP cable that you can afford. Our non-skew-free cable, Kramer

BC-STP is intended for analog signals where skewing is not an issue. For

1 The terminology XGA is used throughout this manual, where this implies any RGBHV signal on an 15-pin HD connector

having a resolution from VGA up to UXGA

2 The TP-114 accepts high definition resolutions: 480p, 576p, 720p, 1080i, and 1080p

3 Note that the CAT 5 connectors exclude audio

4 CAT 5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

cases where there is skewing, our UTP skew-free cable, Kramer BC-XTP,

may be used. Bear in mind, though, that we advise using STP cables where

possible, since the compliance to electromagnetic interference was tested

using those cables.

Although Unshielded Twisted Pair (UTP) cable might be preferred for long

range applications, the UTP cable should be installed far away from electric

cables, motors and so on, which are prone to create electrical interference.

However, since the use of UTP cable might cause inconformity to

electromagnetic standards, Kramer does not commit to meeting the standard

with UTP cable.

3.3 Recommendations for Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables1to avoid interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables).

•Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer TP-114

away from moisture, excessive sunlight and dust

1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

Your TP-114 1:4 XGA/HD DA/CAT 5 Transmitter

4 Your TP-114 1:4 XGA/HD DA/CAT 5 Transmitter

Figure 1 and Table 1 define the TP-114:

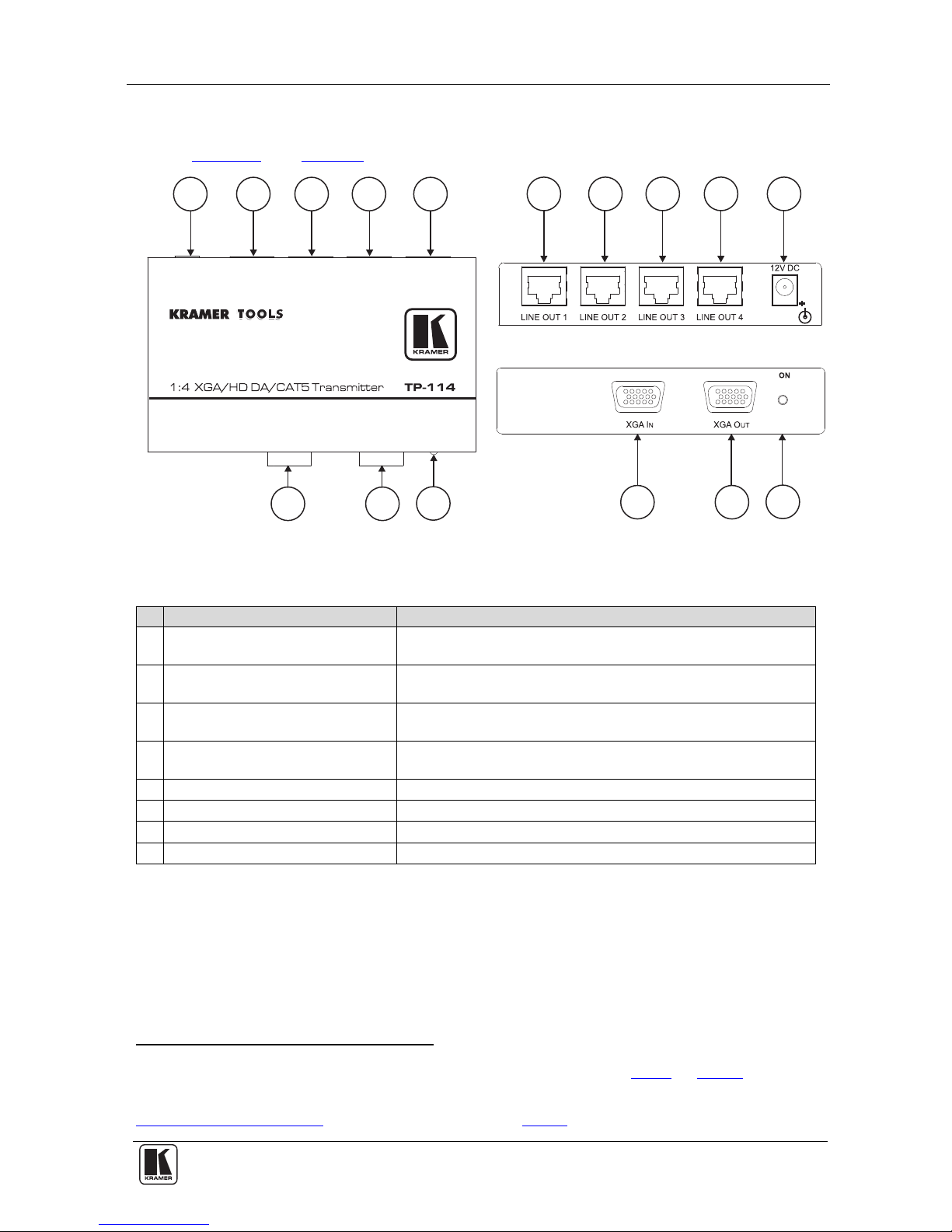

Figure 1: TP-114 1:4 XGA/HD DA/CAT 5 Transmitter

Table 1: TP-114 1:4 XGA/HD DA/CAT 5 Transmitter Features

# Feature Function

1 LINE OUT 1 RJ-45 Connector Connects to1the LINE IN RJ-45 connector on the (first) TP-120

XGA Line Receiver2

2 LINE OUT 2 RJ-45 Connector Connects to1the LINE IN RJ-45 connector on the (second)

TP-120 XGA Line Receiver2

3 LINE OUT 3 RJ-45 Connector Connects to1the LINE IN RJ-45 connector on the (third) TP-120

XGA Line Receiver2

4 LINE OUT 4 RJ-45 Connector Connects to1the LINE IN RJ-45 connector on the (fourth)

TP-120 XGA Line Receiver2

5 12V DC +12V DC connector for powering the unit

6 XGA IN 15-pin HD Connector Connect to the XGA source

7 XGA OUT 15-pin HD Connector Connect to the XGA acceptor

8 ON LED Illuminates when receiving power

1 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 3 and Figure 4)

2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at:

http://www.kramerelectronics.com. Also, see the example illustrated in Figure 3

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Configuring a TP-114 XGA/HD Line Transmitter – DA System

Figure 2 and Table 2 define the TP-114 underside panel:

Figure 2: TP-114 1:4 XGA/HD DA/CAT 5 Transmitter (Underside Panel)

Table 2: TP-114 1:4 XGA/HD DA/CAT 5 Transmitter (Underside Panel) Features

# Feature Function

1 VS Switch Slide the switch up1to change the VS polarity to NEGATIVE polarity2;

slide the switch down to NORMAL to retain the polarity

2 HS Switch Slide the switch up1to changethe HS polarity to NEGATIVE polarity2;

slide the switch down to NORMAL to retain the polarity

5 Configuring a TP-114 XGA/HD Line Transmitter – DA

System

You can use the TP-114 with four TP-120 units3to configure a 1:4 XGA/HD

DA/CAT 5 Transmitter system. This will let you transmit a computer

graphics/HD signal to four displays via long line CAT 5 UTP cabling.

To connect the TP-114 to four TP-120 units, as the example in Figure 3

illustrates, do the following:

1 By default, both switches are set in the down position

2 Downgoing syncs

3 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at:

http://www.kramerelectronics.com

Configuring a TP-114 XGA/HD Line Transmitter – DA System

1. On the TP-114, connect the XGA/HD source (for example, a computer

graphics/HD source) to the XGA IN 15-pin HD connector, and connect the

line output RJ-45 connector1:

OUT 1 connector to the LINE IN RJ-45 connector on the first

TP-120

OUT 2 connector to the LINE IN RJ-45 connector on the second

TP-120

OUT 3 connector to the LINE IN RJ-45 connector on the third

TP-120

OUT 4 connector to the LINE IN RJ-45 connector on the fourth

TP-120

2. On the four TP-120 units, connect the:

XGA OUT 15-pin HD connector of the first TP-120 unit to the

XGA/HD acceptor (for example, display 1)

XGA OUT 15-pin HD connector of the second TP-120 unit to the

XGA/HD acceptor (for example, display 2)

XGA OUT 15-pin HD connector of the third TP-120 unit to the

XGA/HD acceptor (for example, display 3)

XGA OUT 15-pin HD connector of the fourth TP-120 unit to the

XGA/HD acceptor (for example, display 4)

3. On each Kramer TOOL, connect the 12V DC power adapter to the power

socket and connect the adapter to the mains electricity.

The signal from the XGA source is transmitted via the CAT 5 cables,

decoded and converted at the each of the XGA OUT 15-pin HD connectors

to the XGA acceptors.

4. On the TP-120 units, if necessary:

Set the H SYNC and V SYNC switches2on the underside

Adjust3the video output signal level and/or cable compensation

equalization level

5. On the TP-114, if necessary, set the VS and HS switches4on the underside

1 Via UTP cabling (with a range of more than 300ft (>100m)). For details of how to wire a CAT 5 LINE IN/LINE OUT

RJ-45 connector, see section 5.1

2 By default, both switches are set down (for negative V SYNC and H SYNC polarity)

3 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level

4 By default, both switches are set down (to NORMAL) to retain the VS and HS polarity

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Configuring a TP-114 XGA/HD Line Transmitter – DA System

Figure 3: Configuring a TP-114 XGA/HD Line Transmitter – DA

XGA Line Receiver

LEVEL

EQ.

XGA Line Receiver

LEVEL

EQ.

TP-114

1:4 XGA/HD DA/CAT5 Transmitter

Display 4

Computer

Graphics

Source

TP-120

TP-114

Long CAT 5 cable

LO3

INE UT

Local

Display

Display 1

VGA

Otros manuales para TP-114

Tabla de contenidos

Otros manuales de Transmisor de Kramer

Kramer

Kramer TP-551N Manual de usuario

Kramer

Kramer VA-1USB-T Manual de usuario

Kramer

Kramer VP-200XLTHD Manual de usuario

Kramer

Kramer TP-15 Manual de usuario

Kramer

Kramer TP-210A Manual de usuario

Kramer

Kramer TP-121EDID Manual de usuario

Kramer

Kramer 617T Manual de usuario

Kramer

Kramer TA Manual de usuario

Kramer

Kramer WP-871xr Manual de usuario

Kramer

Kramer TP-594Txr Manual de usuario

Kramer

Kramer 675T Manual de usuario

Kramer

Kramer TOOLS TP-104 Manual de usuario

Kramer

Kramer TP-205A Manual de usuario

Kramer

Kramer SWT3-41-U-T Manual de usuario

Kramer

Kramer TP-114 Manual de usuario

Kramer

Kramer F-121UK Manual de usuario

Kramer

Kramer SID-X2N Manual de instalación y operación

Kramer

Kramer SID-X1N Manual de usuario

Kramer

Kramer WP-110xl Manual de usuario

Kramer

Kramer WP-580Txr Manual de usuario

Kramer

Kramer 691 Manual de usuario

Kramer

Kramer TWA Manual de usuario

Kramer

Kramer TP-121EDID Manual de usuario

Kramer

Kramer TP-202 Manual de usuario

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
