Kramer 691 Manual de usuario

P/N: 2900-300523 Rev 1 www.KramerAV.com

USER MANUAL

MODEL:

691HDBT 2.0 Optical Transmitter

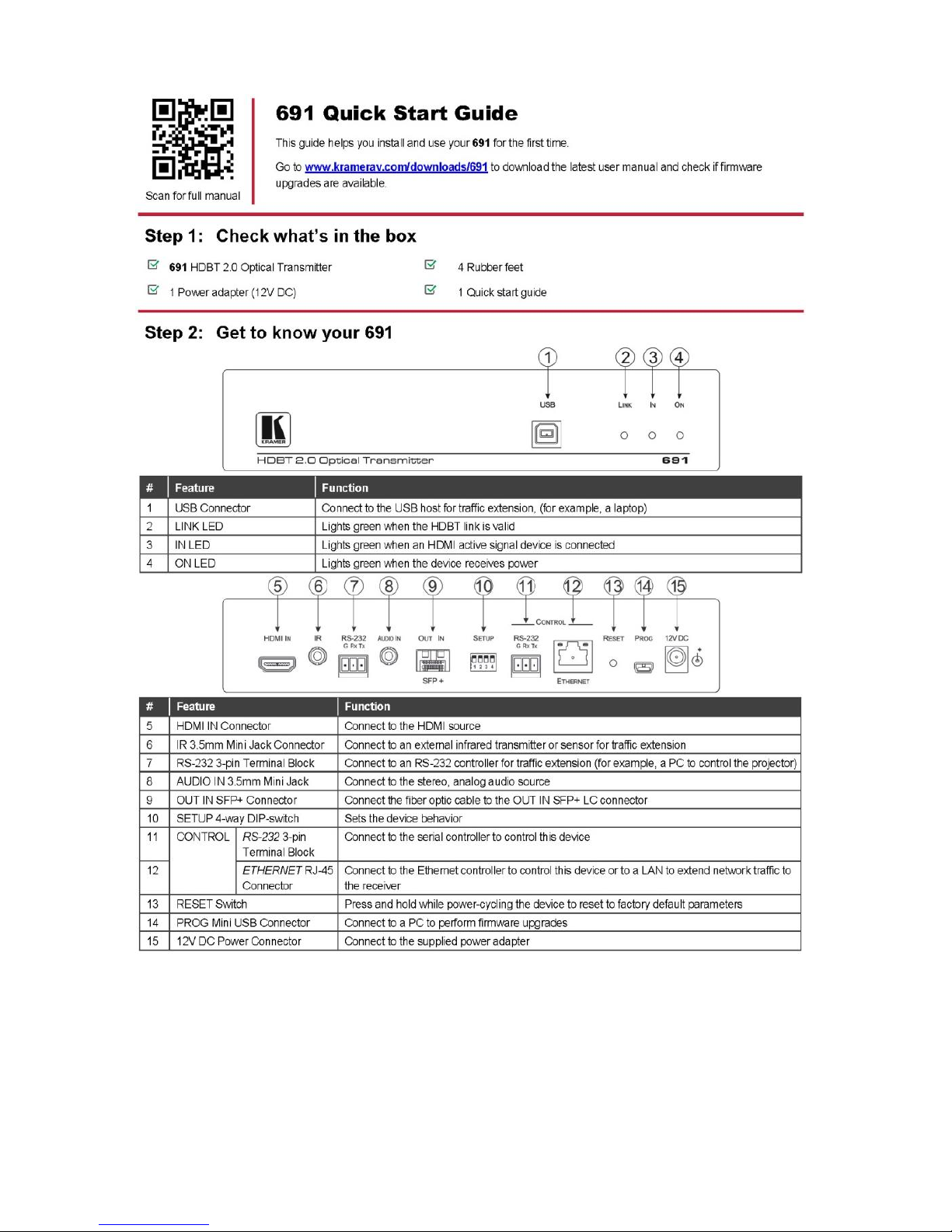

691 – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3Overview 4

4Defining the 691 HDBT 2.0 Optical Transmitter 6

5Connecting the 691 HDBT 2.0 Optical Transmitter 8

5.1 Using the OSP SFP+ Module 12

5.2 Connecting to 691 via RS-232 15

5.3 Connecting 691 via the Ethernet Port 16

6Principles of Operation 20

6.1 Audio Output 20

6.2 Video Output and Audio Switching Timeouts 20

6.3 Controlling A/V Equipment via an IR Remote Control 20

7Configuring the 691 HDBT 2.0 Optical Transmitter 23

8Using the Embedded Web Pages 24

8.1 Browsing the 691 Web Pages 24

8.2 Setting the Sleep Mode, HDCP Mode and Audio Switching Delay Time 26

8.3 Setting Device Parameters 28

8.4 Managing the EDID 32

8.5 Authentication Page 34

8.6 Viewing the About Page 35

9Firmware Upgrade 36

10 Technical Specifications 37

10.1 Default Communication Parameters 39

10.2 Default Parameters 39

10.3 Default EDID 39

11 Protocol 3000 42

11.1 Understanding Protocol 3000 43

11.2 Kramer Protocol 3000 Syntax 45

11.3 Protocol 3000 Commands 46

Figures

Figure 1: 691 Front Panel 6

Figure 2: 691 Rear Panel 7

Figure 3: Connecting the Fiber Optic Cable 9

Figure 4: Connecting the 691 and 692 11

Figure 5: System Layout Example for Optical Reach Evaluation 13

Figure 6: Inserting the Transceiver Module 14

Figure 7: RS-232 Connection 15

Figure 8: Local Area Connection Properties Window 17

Figure 9: Internet Protocol Version 4 Properties Window 18

Figure 10: Internet Protocol Version 6 Properties Window 18

Figure 11: Internet Protocol Properties Window 19

691 - Contents

Figure 12: Controlling a Blu-ray Disk Player via the 692 Receiver 21

Figure 13: Controlling a Projector via the 691 Transmitter 22

Figure 14: 691 DIP-Switch 23

Figure 15: Entering Logon Credentials 25

Figure 16: Video & Audio Settings Page 26

Figure 17: The Device Settings Page 29

Figure 18: Turning DHCP Off Dialog Box 29

Figure 19: Turning DHCP On Warning 30

Figure 20: The EDID Management Page 33

Figure 21: The EDID Message 33

Figure 22: The Authentication Page 34

Figure 23: The About Page 35

691 - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP

5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP

7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:

Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and

GROUP 14: Collaboration.

Congratulations on purchasing your Kramer 691 HDBT 2.0 Optical Transmitter

which is part of the Kramer Video and Audio Distribution System and is ideal for:

Ultra-long signals extension for:

Multi-room and inter-building ultra-long connectivity.

Large dividable auditoriums and lecture halls.

Highly secured and reliable signals ultra-long extension for:

Governmental applications.

Medical applications.

Rental and staging applications.

691 HDBT 2.0 Optical Transmitter and 692 HDBT 2.0 Optical

Receiver are standard compliant and can be connected to other

HDBT-certified transmitters and receivers.

691 - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment.

Review the contents of this user manual.

Go to www.kramerav.com/downloads/691 to check for up-to-date user

manuals, application programs, and to check if firmware upgrades are

available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables).

Do not secure the cables in tight bundles or roll the slack into tight coils.

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality.

Position your 691 HDBT 2.0 Optical Transmitter away from moisture,

excessive sunlight and dust.

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the power cord that is supplied with the unit.

Warning:

Disconnect the power and unplug the unit from the wall

before installing.

691 - Getting Started

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at www.kramerav.com/support/recycling/.

691 - Overview

3 Overview

691 is a high-performance HDBaseT 2.0 fiber transmitter for ultra-reach extension

of 4K60Hz (4:2:0) HDMI, USB 2.0, Ethernet, RS-232, IR and stereo audio signals

over either multi-mode or single-mode fiber optic. 691 converts all the input

signals into the transmitted HDBaseT 2.0 signal over fiber optic cable. The

extended line receiver, such as Kramer 692, converts the HDBaseT 2.0 signal

back to 4K60Hz (4:2:0) HDMI, USB 2.0, Ethernet, RS-232, IR and stereo audio

output signals.

691 extends video signals to up to 33km (20.5 miles) over single-mode fiber at up

to 4K@60Hz (4:2:0) resolution.

The 691 transmitter features:

High performance standard fiber extender –HDBaseT 2.0 fiber transmitter for

providing ultra-reach signals over either multi-mode or single-mode optical

fiber infrastructures, using Kramer pluggable OSP SFP+ units. 691 is a

standard fiber extender that can be connected to any market-available

HDBaseT-compliant extension product.

To ensure Kramer support and warranty of the 691 product, use only

Kramer's certified high-performance OSP SFP+ pluggable optical

modules:

OSP-MM1: Optical MM 850nm 10G SFP+ Transceiver

OSP-SM10: Optical SM 1310nm 10G SFP+ Transceiver

For optimum extension reach and performance, use Kramer's OSP SFP+

units and recommended Kramer cables. Non-Kramer cables may not

reach these ranges.

Note that the maximum transmission reach is typical and may vary

depending on fiber cables performance, signal resolution, connectors and

splicing optical losses, modal or chromatic dispersion, and similar optical-

related factors.

HDMI signal extension –HDMI 2.0 and HDCP 1.4 compliant. Supports deep

color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby

TrueHD, DTS-HD, 2K, 4K, and 3D. EDID and CEC signals are passed

through from the source to the display.
