Kramer TP-102HD Manual de usuario

Kramer Electronics, Ltd.

USER MANUAL

Model:

TP-102HD

XGA / HD Line Transmitter / DA

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 2

Overview 3

3.1

About the Power Connect Feature 3

3.2

Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP) 3

3.3

About the TP-102HD 4

3.4

Recommendations for Achieving the Best Performance 4

Your TP-102HD XGA / HD Line Transmitter / DA 5

Configuring a 1:2 XGA / HD-to-Twisted Pair DA System 7

5.1

Wiring the CAT5 LINE IN / LINE OUT RJ-45 Connectors 9

Technical Specifications 10

Figures

Figure 1: TP-102HD XGA / HD Line Transmitter / DA 5

Figure 2: TP-102HD (Top Side Panel) 5

Figure 3: TP-102HD (Lower Side Panel) 5

Figure 4: TP-102HD (Underside Panel) 6

Figure 5: Configuring a 1:2 XGA / HD to Twisted Pair Transmitter / Receiver / DA 8

Figure 6: CAT5 PINOUT 9

Tables

Table 1: TP-102HD XGA / HD Line Transmitter / DA Features 6

Table 2: TP-102HD (Underside Panel) Features 6

Table 3: CAT5 PINOUT 9

Table 4: Technical Specifications of the TP-102HD (with 100m CAT5 cable) 10

Introduction

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and

affordable solutions to the infinite range of problems that confront the video, audio

and presentation professional on a daily basis. In recent years, we have redesigned

and upgraded most of our line, making the best even better! Our 500-plus

different models now appear in 8 Groups

, which are clearly defined by function.

Congratulations on purchasing your Kramer TOOLS: TP-102HD XGA / HD

Line Transmitter / DA, which is ideal for:

 Presentation and multimedia applications

 Long range graphics distribution for schools, hospitals, security, and stores

The package includes the following:

 TP-102HD XGA / HD Line Transmitter / DA

 Power adapter (12V DC Input)

 This user manual

2 Getting Started

We recommend that you:

 Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

 Review the contents of this user manual

 Use Kramer high performance high resolution cables

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

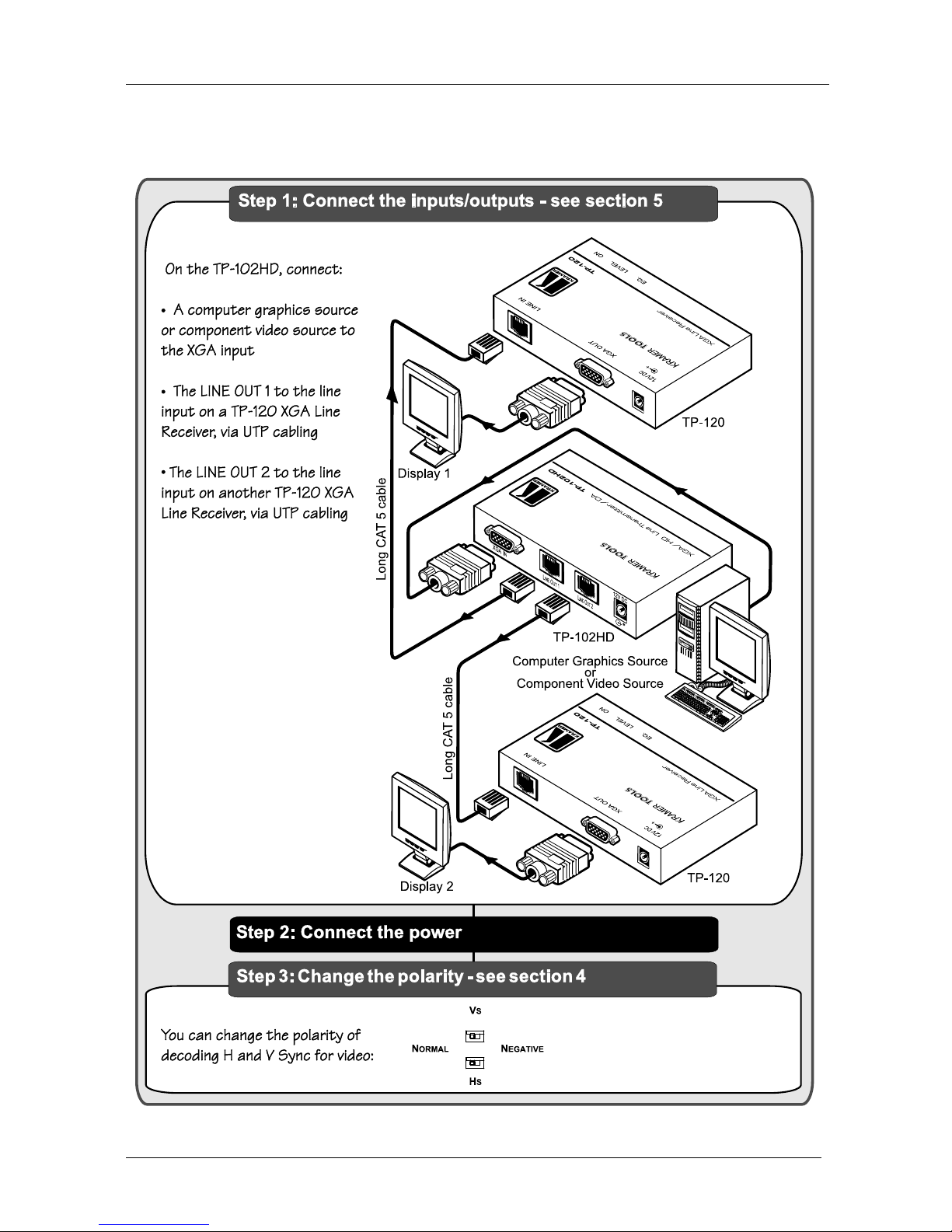

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

Overview

3 Overview

This section describes:

 The power connect feature, see section 3.1

 Using shielded twisted pair (STP) / unshielded twisted pair (UTP), see

section 3.2

 A summary of the TP-102HD, see section 3.3

 Recommendations for achieving the best performance, see section 3.4

3.1 About the Power Connect Feature

The Power Connect feature lets you power a transmitter / receiver system by

connecting just one power adapter— to either the transmitter or the receiver.

The other unit is fed via the cable connecting between the

transmitter/receiver. The Power Connect feature applies as long as the cable

can carry power. The distance does not exceed 50 meters on standard CAT5

cable, for longer distances, heavy gauge cable should be used

For a CAT5 cable exceeding a distance of 50 meters, separate power supplies

should be connected to the transmitter and to the receiver simultaneously.

3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP)

The decision whether to use shielded twisted pair (STP) cable or unshielded

twisted pair (UTP) cable depends on the nature of the application.

It is recommended that in applications with high interference, shielded

twisted pair (STP) cable is used. However, the shield itself does create a

capacitance that degrades the frequency response of the machines. For shorter

distances, of 50m or so, shielded twisted pair (STP) cable is preferred because

it provides protection from interference (degradation is not apparent).

For long range applications, unshielded twisted pair (UTP) cable is preferred.

However, the unshielded twisted pair (UTP) cable should be installed far away from

electric cables, motors and so on, which are prone to create electrical interference.

1 CAT5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

3.3 About the TP-102HD

Your Kramer TOOLS TP-102HD XGA / HD Line Transmitter / DA:

 Receives a computer graphics

/ HD

signal and transmits it over two

CAT5 cables to appropriate receivers

 Has a video bandwidth of 150MHz, with a transmission range of more

than 300 ft. (more than 100 meters)

 Includes the Power Connect feature

 Is 12VDC fed

3.4 Recommendations for Achieving the Best Performance

Achieving the best performance means:

 Connecting only good quality connection cables, thus avoiding

interference, deterioration in signal quality due to poor matching, and elevated

noise levels (often associated with low quality cables)

 Avoiding interference from neighboring electrical appliances that may

adversely influence signal quality, and positioning your TP-102HD away

from moisture, excessive sunlight and dust

Caution – No operator-serviceable parts inside unit.

Warning – Use only the Kramer Electronics input power

wall adapter that is provided with this unit

Warning – Disconnect power and unplug unit from wall

before installing or removing device or servicing unit.

1 The terminology XGA is used throughout this manual, where this implies any RGBHV signal on an HD15 connector

having a resolution from VGA up to UXGA

2 The TP-102HD accepts high definition resolutions: 480p, 576p, 720p, 1080i, and 1080p

3 Note that the CAT5 connectors exclude audio

4 For example: model number AD2512C, part number 2535-000251

Your TP-102HD XGA / HD Line Transmitter / DA

4 Your TP-102HD XGA / HD Line Transmitter / DA

Figure 1, Figure 2, Figure 3 and Table 1 define the TP-102HD:

Figure 1: TP-102HD XGA / HD Line Transmitter / DA

Figure 2: TP-102HD (Top Side Panel)

Figure 3: TP-102HD (Lower Side Panel)

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your TP-102HD XGA / HD Line Transmitter / DA

Table 1: TP-102HD XGA / HD Line Transmitter / DA Features

# Feature Function

1 12V DC +12V DC connector for powering the unit

2 LINE OUT 2 RJ-45 Connector Connects to

the LINE IN RJ-45 connector on

the (second) TP-120 XGA Line Receiver

3 LINE OUT 1 RJ-45 Connector Connects to

the LINE IN RJ-45 connector on

the (first) TP-120 XGA Line Receiver

4 XGA IN HD15F Connector Connect to the XGA source

5 ON LED Illuminates when receiving power

Figure 4 and Table 2 define the TP-102HD underside panel:

Figure 4: TP-102HD (Underside Panel)

Table 2: TP-102HD (Underside Panel) Features

# Feature Function

1 VS Switch Slide the switch to the left (to NORMAL) to retain the polarity; slide the

switch to the right

to change the VS polarity to NEGATIVE polarity

2 HS

Switch Slide the switch to the left (to NORMAL) to retain the polarity; slide the

switch to the right

to change the HS polarity to NEGATIVE polarity

1 Using a UTP CAT5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 3 and Figure 6)

2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at this

URL: http://www.kramerelectronics.com. Also, see the example illustrated in Figure 5

3 By default, both switches are set to the left

4 Downgoing syncs

Configuring a 1:2 XGA / HD-to-Twisted Pair DA System

5 Configuring a 1:2 XGA / HD-to-Twisted Pair DA System

You can use the TP-102HD XGA / HD Line Transmitter / DA with two

TP-120 XGA Line Receiver units

to configure a 1:2 XGA / HD-to-Twisted

Pair DA system. This will let you transmit a computer graphics / HD signal to

two displays via long line CAT5 UTP cabling.

To connect the TP-102HD to two TP-120 units, as the example in Figure 5

illustrates, do the following:

1. On the TP-102HD, connect the XGA / HD source (for example, a computer

graphics / HD source) to the XGA IN HD15F connector, and connect the line

output RJ-45 connector

 OUT 1 connector to the LINE IN RJ-45 connector on the first TP-120

 OUT 2 connector to the LINE IN RJ-45 connector on the second TP-120

2. On the two TP-120 units, connect the:

 XGA OUT HD15F connector of the first TP-120 unit to the XGA / HD

acceptor (for example, Display 1)

 XGA OUT HD15F connector of the second TP-120 unit to the XGA /

HD acceptor (for example, Display 2)

3. On each of the three Kramer TOOLS, connect the 12V DC power adapter

to the power socket and connect the adapter to the mains electricity.

The signal from the XGA source is transmitted via the two CAT5 cables,

decoded and converted at the each of the XGA OUT HD15F connectors

to the XGA acceptors.

4. On the TP-120 units, if necessary:

 Set the H SYNC and V SYNC switches

on the underside

 Adjust

the video output signal level and/or cable compensation

equalization level

5. On the TP-102HD, if necessary, set the VS and HS switches

on the

underside

1 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at this

URL: http://www.kramerelectronics.com

2 Via UTP cabling (with a range of more than 300ft (>100m)). For details of how to wire a CAT5 LINE IN / LINE OUT

RJ-45 connector, see section 5.1

3 By default, both switches are set down (for negative V SYNC and H SYNC polarity)

4 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level

5 By default, both switches are set to the left (to NORMAL) to retain the V SYNC and H SYNC polarity

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Configuring a 1:2 XGA / HD-to-Twisted Pair DA System

Figure 5: Configuring a 1:2 XGA / HD to Twisted Pair Transmitter / Receiver / DA
