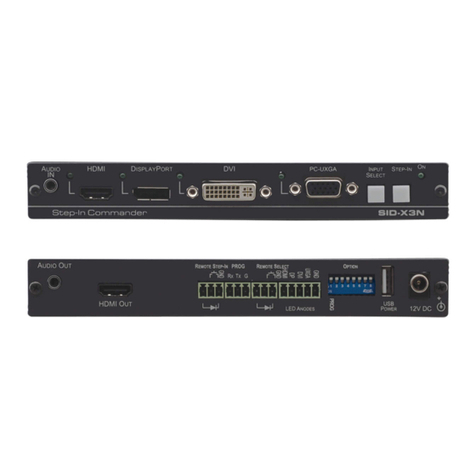

Kramer SID-X3N Manual de instalación y operación

SID

X3N

4−Input Multi−Format Video over HDMI Transmitter & Step−In Commander

The SID−X3N is a twisted pair transmitter,

step−in commander for computer graphics

video, HDMI, DVI, DisplayPort and

unbalanced stereo audio signals. The unit

includes a “Step−In” button that allows the

local source to be routed as the active

source when connected to the VS−62H.

Max. Data Rate

6.75Gbps (2.25Gbps per graphic channel).

HDTV Compatible.

HDCP Compliant.

Works with sources that support HDCP repeater mode.

HDMI Support

Deep Color, x.v.Color™ and 3D.

-EDIDPro™ Kramer Intelligent EDID Processing™

Intelligent EDID handling & processing algorithm ensures Plug

and Play operation for HDMI systems.

Data Equalization and Reclocking.

Input Signal Detection

Based on video clock presence.

Automatic Input Selection

Based on manual selection or last connected input.

Automatic Analog Audio Detection and Embedding.

Local Balanced Audio De-Embedding.

Support for Digital Audio Formats.

Lockable EDID.

Local Step-In Switching

Button & contact closure.

Supports Programmable Step-In Functionality

Over HEC enabled HDMI cables, when used with compatible

switchers such as the VS−62H.

Power Supply

Requires independent power supply.

FEATURES

SID

X3N

TECHNICAL SPECIFICATIONS

INPUTS:

1 HDMI, 1 DVI on a Molex 24−pin connector, 1 DisplayPort, 1 UXGA on a 15−pin HD connector, 1

unbalanced stereo audio on a 3.5mm mini jack.

OUTPUT:

1 HDMI connector, 1 unbalanced stereo audio on a 3.5mm mini jack.

STANDARDS:

HDMI with Deep Color, x.v.Color™ and 3D; HDCP: works with sources that support HDCP

repeater mode.

MAXIMUM STEP

DISTANCE:

50m (164ft) up to 1080p @60Hz.

POWER

CONSUMPTION:

12V DC, 950mA.

OPERATING

TEMPERATURE:

0° to +40°C (32° to 104°F).

STORAGE

TEMPERATURE:

−40° to +70°C (−40° to 158°F).

HUMIDITY:

10% to 90%, RHL non−condensing.

DIMENSIONS:

18.8cm x 11.3cm x 2.5cm (7.4" x 4.5" x 1") W, D, H.

WEIGHT:

0.48 kg (1.1lbs) approx.

INCLUDED

ACCESSORIES:

Power supply.

OPTIONS:

RK−T2B 19" rack adapter, RTBUS−12, RTBUS−22, SID−X1BP Kit (substitute black top plate for

the SID−X3N that blends with the color of the modular TBUS−10xl), RC−10TB remote contact

closure switch.

Otros manuales para SID-X3N

Tabla de contenidos

Otros manuales de Transmisor de Kramer

Kramer

Kramer 691 Manual de usuario

Kramer

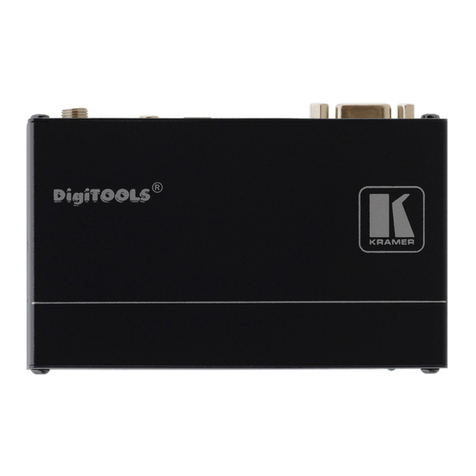

Kramer TP-121EDID Manual de usuario

Kramer

Kramer PT-572HDCP+ Manual de usuario

Kramer

Kramer 610R Manual de usuario

Kramer

Kramer WP-789T Manual de usuario

Kramer

Kramer 691 Manual de usuario

Kramer

Kramer SWT3-41-U-T Manual de usuario

Kramer

Kramer TP-580TD Manual de usuario

Kramer

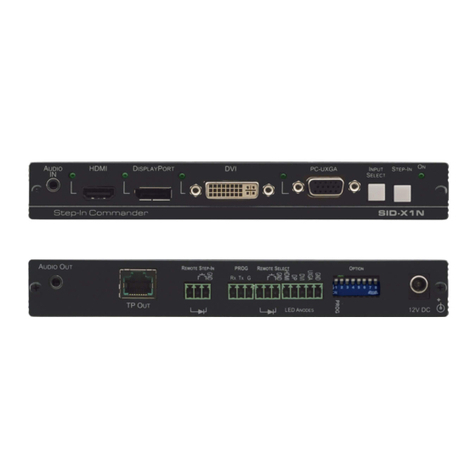

Kramer SID-X1N Manual de usuario
