Kogan KAMN32F7CSA Manual de usuario

32 FULL HD CURVED

FREESYNC GAMING MONITOR

(1920 x 1080, 75Hz)

KAMN32F7CSA

• Read all instructions before using the appliance and retain this user guide for future

reference.

• Unplug the monitor before cleaning it.

• Use a clean, slightly-dampened cloth to wipe the main monitor body.

• To c l e a n t h e s c r e e n : t u r n i t o f f , u n p l u g i t a n d w a i t f o r i t t o c o o l c o m p l e t e l y, t h e n w i p e i t

with a dry microfibre cloth.

• Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.

• This monitor is designed with ventilation holes on the back of the casing. Do not cover or

block them.

• Do not insert any object or spray any liquid into the vents.

• Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as

well as in rooms lacking adequate ventilation.

• Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged

and may injure nearby people.

• Unplug the monitor if it is not going to be used for an extended period.

• Do not place heavy objects on the monitor, its power cord or any connected cable.

• Do not open the back panel of the monitor, as it contains a high-voltage current even

when not plugged in.

The terms HDMI and HDMI High-Definition Multimedia

Interface, and the HDMI Logo are trademarks or registered

trademarks of HDMI Licensing Administrator, Inc. in the

United States and other countries.

SAFETY & WARNINGS

Monitor

Stand arm

Stand base

Stand base screw

(M4 x 16mm)

VESA screws (x4)

HDMI cable

Power cable

User guide

COMPONENTS

Monitor Controls

Backlight button

Press to turn the display backlight on/off.

Menu button

Press to display the OSD menu or enter sub-menus.

Down button

Press to move down in the menu.

Up button

Press to move up in the menu.

Exit button

Press to exit the menu.

Power button

Press to turn the monitor ON/OFF.

OVERVIEW

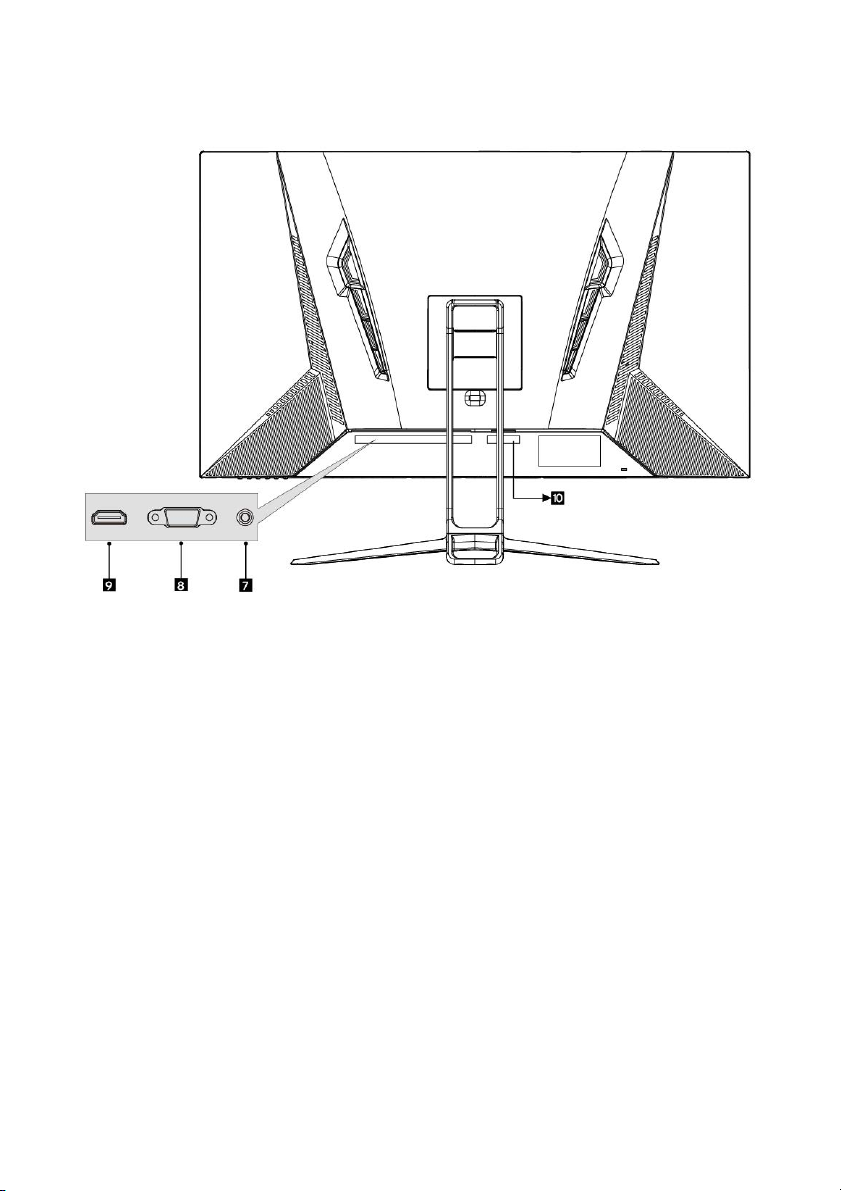

Monitor Ports

Audio in

VGA input

HDMI input

Power input

Before disposing of any packaging, place all items on a soft, clean and flat surface to

ensure all components are accounted for.

1. Carefully remove the monitor, stand

arm and stand base from the box.

2. Attach the stand base to the stand

arm using the M4x16 screw provided.

3. Insert the stand arm block into the

back cabinet and push down until

ﬁrmly connected.

4. Lift the monitor up straight and

remove the bottom foam. Stand the

monitor up on the installed base.

ASSEMBLY

WARNING: The panel of the monitor is fragile. Keep the foam

underneath the monitor screen while assembling the stand.

Open the box, take out the monitor with protection form attached and gently place it on a

desktop or table. Remove the extra parts and the foam covering the back of the monitor.

Press the release button to remove the stand plate. If the monitor was already attached to

the stand assembly, remove it.

Assemble the mount following the instructions provided with the mount.

VESA MOUNT

VESA mounting pattern 100 x 100mm, screw size M4.

Note:

VESA mount or mounting accessories are NOT included.

Stand base

Monitor

Stand

plate

Button

Stand arm

Mount (not included)

Power

Connect the included power cable to the monitor power port, then connect the other end to

a power outlet.

Audio In

Connect an audio cable to the 3.5mm audio port on the monitor (Audio In) and the 3.5mm

audio port on your computer.

CONNECTIVITY

HDMI

Connect an HDMI cable from the computer’s display output to the monitor’s display input.

VGA

Connect a VGA cable from the computer’s display output to the monitor’s display input.
