IOM1711 and IOM2711 Input/Output Module Installation

Instructions

MS-IOM1711-0U, MS-IOM2711-0U

Part No. 24-10144-246, Rev. A

Software Release 8.1

Issued March 2018

Application

The IOM1711 and IOM2711 input/output expansion

modules are part of the Metasys®system Field

Equipment Controller family. Input/Output Module (IOM)

expansion modules expand the number of points

connected to a Network Automation Engine (NAE), Field

Equipment Controller (FEC), VAV Modular Assembly

(VMA), or Advanced Application Field Equipment

Controller (FAC) to monitor and control a wide variety of

HVAC equipment.

IOM field controllers operate on an RS-485 BACnet®

MS/TP Bus and integrate into Johnson Controls®and

third-party BACnet systems.

Important: The MS-IOM171x-0U and MS-IOM271x-0U

models are used in Metasys Release 8.1

smoke control applications and are UL 864

UUKL/UUKLC 10th Edition Smoke Control

Listed. You must refer to the Metasys®

System UL 864 10th Edition

UUKL/ORD-C100-13 UUKLC Smoke

Control System Technical Bulletin

(LIT-12012487) for detailed requirements

and procedures for installing,

commissioning, and operating UL 864

UUKL/UUKLC Listed Metasys system

devices. The UL 864 UUKL/UUKLC listing

for Smoke Control Equipment is voided if

(1) you do not use the required software

tools at the required versions; or (2) you do

not meet the requirements or do not follow

the procedures as documented in the

Metasys®System UL 864 10th Edition

UUKL/ORD-C100-13 UUKLC Smoke

Control System Technical Bulletin

(LIT-12012487).

Note: With CCT Release 10.3 and Release Module (RM)

10.2, a new capability allows VMAs, FECs, and

FACs to communicate by using either the BACnet

or the N2 field bus networking protocol. The

operation of the IOM Input/Output Module is not

affected by the selection of the BACnet or the N2

protocol in the host controller when the IOM is

connected to the host controller using the SA bus.

Only the BACnet protocol is supported when the

IOM is connected directly to the trunk using the

FC bus.

North American Emissions

Compliance

Canada

This Class (A) digital apparatus meets all the

requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numérique de la Classe (A) respecte toutes

les exigences du Règlement sur le matériel brouilleur

du Canada.

United States

This equipment has been tested and found to comply

with the limits for a Class A digital device pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference when this equipment is operated in a

commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction

manual, may cause harmful interference to radio

communications. Operation of this equipment in a

residential area may cause harmful interference, in which

case the users will be required to correct the interference

at their own expense.

1IOM1711 and IOM2711 Input/Output Module Installation Instructions

Installation

Observe these guidelines when installing a field controller:

• Transport the controller in the original container to

minimize vibration and shock damage.

• Verify that all parts shipped with the controller.

• Do not drop the controller or subject it to physical

shock.

Parts Included

• one controller with removable terminal blocks (Power

and SA/FC bus are removable)

• one installation instructions sheet

Materials and Special Tools Needed

• three fasteners appropriate for the mounting surface

(M4 screws or #8 screws)

• one 20 cm (8 in.) or longer piece of 35 mm DIN rail

and appropriate hardware for DIN rail mount (only)

• small straight-blade screwdriver for securing wires in

the terminal blocks

Mounting

Observe these guidelines when mounting a field

controller:

• Ensure the mounting surface can support the

controller, DIN rail, and any user-supplied enclosure.

• Mount the controller horizontally on 35 mm DIN rail

whenever possible.

• Mount the controller in the proper mounting position

(see Figure 1).

• Mount the controller on a hard, even surface

whenever possible in wall-mount applications.

•Use shims or washers to mount the controller securely

and evenly on the mounting surface.

• Mount the controller in an area free of corrosive

vapors and observe the Ambient Conditions

requirements in Technical Specifications.

• Provide for sufficient space around the controller for

cable and wire connections for easy cover removal

and good ventilation through the controller (50 mm

[2 in.] minimum on the top, bottom, and front of the

controller).

• Do not mount the controller on surfaces prone to

vibration, such as duct work.

• Do not mount the controller in areas where

electromagnetic emissions from other devices or

wiring can interfere with controller communication.

Observe these additional guidelines when mounting a

field controller in a panel or enclosure:

• Mount the controller so that the enclosure walls do

not obstruct cover removal or ventilation through the

controller.

• Mount the controller so that the power transformer

and other devices do not radiate excessive heat to

the controller.

• Do not install the controller in an airtight enclosure.

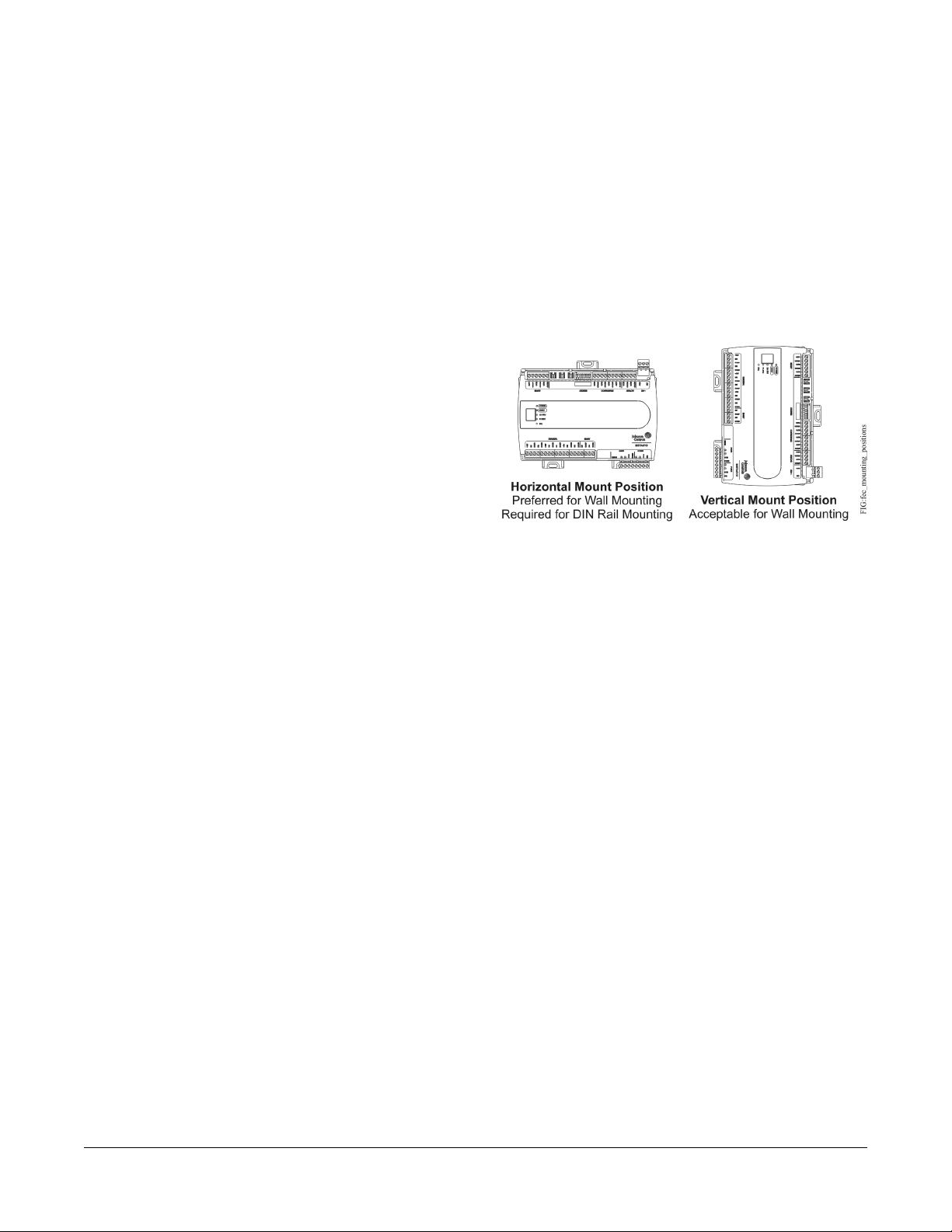

Figure 1: Controller Mounting Positions

DIN Rail Mount Applications

Mounting the controller horizontal on 35 mm DIN rail is

the preferred mounting method.

To mount a field controller on 35 mm DIN rail:

1. Securely mount a 20 cm (8 in.) or longer section of

35 mm DIN rail horizontal and centered in the desired

space so that the controller mounts in the horizontal

position shown in Figure 1.

2. Pull the bottom mounting clip outward from the

controller to the extended position as shown in Figure

3. Hang the controller on the DIN rail by the hooks at

the top of the (DIN rail) channel on the back of the

controller (Figure 2), and position the controller snugly

against the DIN rail.

4. Push the bottom mounting clip inward (up) to secure

the controller on the DIN rail.

To remove the controller from the DIN rail, pull the

bottom mounting clip out to the extended position and

carefully lift the controller off the DIN rail.

Wall Mount Applications

To mount a field controller directly on a wall or other flat

vertical surface:

2IOM1711 and IOM2711 Input/Output Module Installation Instructions

1. Pull the bottom mounting clip outward and ensure it

is locked in the extended position as shown in Figure

2. Position the controller in a proper mounting position

shown in and mark the mounting hole locations on

the wall or surface using the dimensions shown in

Figure 2. Or, hold the controller up to the wall or

surface in a proper mounting position and mark the

hole locations through the mounting clips.

3. Drill holes in the wall or surface at the marked

locations, and insert appropriate wall anchors in the

holes (if necessary).

4. Hold the controller in place, and insert the screws

through the mounting clips and into the holes (or wall

anchors). Carefully tighten all of the screws.

Important: Do not overtighten the mounting screws.

Overtightening the screws may damage

the mounting clips.

Figure 2: Back of IOM17 or IOM27 Controller Showing

Extended Mounting Clips, DIN Rail Channel, and

Mounting Dimensions, mm (in.)

3IOM1711 and IOM2711 Input/Output Module Installation Instructions

Figure 3: IOM1711 and IOM2711 Physical Features

Table 1: IOM17 and IOM27 Physical Features

Physical Feature: Description and ReferencesCallout

Device Address DIP Switch Block. See Setting the Device Addresses for more information.

Mounting Clip2

24 VAC, Class 2 Supply Power Terminal Block. See Table 5 for more information.

Cover Lift Tab. See Removing the Controller Cover for more information.

Sensor Actuator (SA) Bus / Field Controller (FC) Bus Terminal Block. See Table 5 for more information.

Binary Inputs (BIs) Terminal Block (IOM17 only). See Table 3 for more information.

End-of-Line (EOL) Switch. See Setting the End-of-Line (EOL) Switch for more information.

Note: The EOL Switch is located under the controller cover. You must remove the cover to change the EOL

switch position.

Sensor Actuator (SA) Bus or Field Controller (FC) Bus Port (RJ-12 6-pin Modular Jack). See Table 5 for more

information.

Light-Emitting Diode (LED) Status Indicators. See Table 7 for more information.

Universal Outputs (UO) Terminal Blocks (IOM27 only). See Table 3 for more information.

Universal Inputs (UI) Terminal Blocks (IOM27 only). See Table 3 for more information.

Relay Output Terminal Blocks (IOM27 only). See Table 3 for more information.

4IOM1711 and IOM2711 Input/Output Module Installation Instructions

Wiring

Risk of Electric Shock: Disconnect or isolate all power

supplies before making electrical connections. More than

one disconnection or isolation may be required to

completely de-energize equipment. Contact with

components carrying hazardous voltage can cause

electric shock and may result in severe personal injury

or death.

Avertissement: Risque de décharge électrique:

Débrancher ou isoler toute alimentation avant de réaliser

un branchement électrique. Plusieurs isolations et

débranchements sont peut-être nécessaires pour

-couper entièrement l'alimentation de l'équipement. Tout

contact avec des composants conducteurs de tensions

dangereuses risque d'entraîner une décharge électrique

et de provoquer des blessures graves, voire mortelles.

Risk of Property Damage: Do not apply power to the

system before checking all wiring connections. Short

circuited or improperly connected wires may result in

permanent damage to the equipment.

Mise En Garde: Risque de dégâts matériels: Ne pas

mettre le système sous tension avant d'avoir vérifié tous

les raccords de câblage. Des fils formant un court-circuit

ou connectés de façon incorrecte risquent

d'endommager irrémédiablement l'équipement.

Important: Do not exceed the controller electrical

ratings. Exceeding controller electrical

ratings can result in permanent damage to

the controller and void any warranty.

Important: Use copper conductors only. Make all wiring

in accordance with local, national, and

regional regulations.

Important: Electrostatic discharge can damage

controller components. Use proper

electrostatic discharge precautions during

installation, setup, and servicing to avoid

damaging the controller.

For detailed information on configuring and wiring an

MS/TP Bus, FC bus, and SA bus, refer to the MS/TP

Communications Bus Technical Bulletin (LIT-12011034).

Terminal Blocks and Bus Ports

See Figure 3 for terminal block and bus port locations on

the controller. Observe the following guidelines when

wiring a controller.

Input and Output Terminal Blocks

Most of the input terminal blocks are mounted on the

bottom of the controller and the output terminal blocks

are mounted on the top of the controller. See Table 3 for

more information about I/O terminal functions,

requirements, and ratings.

SA/FC Bus Terminal Block

An IOM can be connected to a Sensor/Actuator (SA) bus

or a Field Controller (FC) bus, but not to both buses

simultaneously. The SA/FC bus terminal block is a

removable, 4-terminal plug that fits into a board-mounted

jack.

When connecting the IOM to an FC bus, wire the bus

terminal block plugs on the controller and the other

controllers in a daisy-chain configuration using 3-wire

twisted, shielded cable as shown in the FC Bus Terminal

Block wiring figure below. See Table 5 for more

information.

Figure 4: FC Bus Terminal Block Wiring

When connecting the IOM to an SA bus, wire the bus

terminal block plugs on the controller and other SA bus

devices in a daisy-chain configuration using 4-wire

twisted, shielded cable as shown in Figure 5. See Input

and Output Wiring Guidelines for more information.

5IOM1711 and IOM2711 Input/Output Module Installation Instructions

Figure 5: SA Bus Terminal Block Wiring

Note: The SA PWR/SHLD terminal does not supply 15

VDC. The SA PWR/SHLD terminal is isolated and

can be used to connect (daisy chain) the 15 VDC

power leads on the SA bus (Figure 5) or the cable

shields on the FC bus (Figure 4). The SA bus

supervisor (FAC, FEC, or VMA) supplies 15 VDC

to devices on the SA Bus requiring power.

SA/FC Bus Port

The SA/FC bus port on the front of the controller is an

RJ-12, 6-position modular jack that provides a connection

for devices on the SA bus.

The SA/FC bus port is connected internally to the SA/FC

bus terminal block. See Table 5 for more information.

The SA/FC Bus Port pin assignment is shown in the Pin

Number Assignments figure below.

Figure 6: Pin Number Assignments for Sensor, SA

Bus and FC Bus Ports on Controllers

Supply Power Terminal Block

The 24 VAC supply power terminal block is a gray,

removable, 3-terminal plug that fits into a board-mounted

jack on the top right of the controller.

Wire the 24 VAC supply power wires from the transformer

to the HOT and COM terminals on the terminal plug as

shown in the following figure. The middle terminal on the

supply power terminal block is not used. See Table 5 for

more information about the Supply Terminal Block.

Figure 7: 24 VAC Supply Power Terminal Block Wiring

Important: Connect 24 VAC supply power to the

controller and all other network devices so

that transformer phasing is uniform across

the network devices. Powering network

devices with uniform 24 VAC supply power

phasing reduces noise, interference, and

ground loop problems. The controller does

not require an earth ground connection.

Wireless Network Applications

Important: Wireless operation is not approved for

smoke control applications. Refer to the

Metasys®System UL 864 10th Edition

UUKL/ORD-C100-13 UUKLC Smoke

Control System Technical Bulletin

(LIT-12012487) for detailed requirements

and procedures for installing,

commissioning, and operating UL 864

UUKL/UUKLC Listed Metasys system

devices.

6IOM1711 and IOM2711 Input/Output Module Installation Instructions

Termination Details

A set of Johnson Controls®termination diagrams provides details for wiring inputs and outputs to the controllers.

See the figures in this section for the applicable termination diagrams.

Table 2: Termination Details

Termination DiagramsType of

Input/Output

Type of Field Device

UITemperature Sensor

UIVoltage Input - External

Source

UIVoltage Input - Internal

Source

UIVoltage Input

(Self-Powered)

UICurrent Input - External

Source (Isolated)

UICurrent Input - Internal

Source (2-wire)

7IOM1711 and IOM2711 Input/Output Module Installation Instructions

Table 2: Termination Details

Termination DiagramsType of

Input/Output

Type of Field Device

UICurrent Input - Internal

Source (3 wire)

UICurrent Input - External

Source (in Loop)

UIFeedback from

EPP-1000

UI or BIDry Contact

UOIncremental Control to

Actuator (Switch Low,

External Source)

UO24 VAC Binary Output

(Switch Low, Externally

Sourced)

UO24 VAC Binary Output

(Switch High,

Externally Sourced)

8IOM1711 and IOM2711 Input/Output Module Installation Instructions

Table 2: Termination Details

Termination DiagramsType of

Input/Output

Type of Field Device

UOIncremental Control to

Actuator (Switch High,

Externally Sourced)

UOAnalog Output

(Current)

UO4–20 mA Output to

Actuator

UOVoltage (Analog Ouput)

UO4–20 mA Output to

Actuator

UO0–10 VDC Output to

Actuator (External

Source)

9IOM1711 and IOM2711 Input/Output Module Installation Instructions

Table 2: Termination Details

Termination DiagramsType of

Input/Output

Type of Field Device

UO0–10 VDC Output to

Actuator (Internal

Source)

RO24 VAC Binary Output

(Switch Low, Externally

Sourced)

RO24 VAC Binary Output

(Switch High,

Externally Sourced)

Terminal Wiring Guidelines,

Functions, Ratings, and

Requirements

Input and Output Wiring Guidelines

Table 3 provides information and guidelines about the

functions, ratings, and requirements for the controller

input and output terminals; and references guidelines for

determining proper wire sizes and cable lengths.

In addition to the wiring guidelines in Table 3, observe

these guidelines when wiring controller inputs and

outputs:

• Run all low-voltage wiring and cables separate from

high-voltage wiring.

• All input and output cables, regardless of wire size or

number of wires, should consist of stranded, insulated,

and twisted copper wires.

• Shielded cable is not required for input or output

cables.

• Shielded cable is recommended for input and output

cables that are exposed to high electromagnetic or

radio frequency noise.

• Inputs/outputs with cables less than 30 m (100 ft)

typically do not require an offset in the software setup.

Cable runs over 30 m (100 ft) may require an offset

in the input/output software setup.

10IOM1711 and IOM2711 Input/Output Module Installation Instructions

Otros manuales para IOM1711

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de Johnson Controls

Johnson Controls

Johnson Controls Penn P28 Series Manual de usuario

Johnson Controls

Johnson Controls Tyco RV-1A Manual de usuario

Johnson Controls

Johnson Controls Autocall MX Indoor Isolated Callpoint Manual de usuario

Johnson Controls

Johnson Controls M4-XPM Manual de usuario

Johnson Controls

Johnson Controls G77 Series Manual de servicio

Johnson Controls

Johnson Controls LP-FXGPRSU-0 Manual de usuario

Johnson Controls

Johnson Controls GM 20 Series Manual de usuario

Johnson Controls

Johnson Controls Tyco DV-5a Series Manual de usuario

Johnson Controls

Johnson Controls EM-3000 Series Manual de usuario

Johnson Controls

Johnson Controls IOM3723 Manual de usuario

Johnson Controls

Johnson Controls S1-TTSCC01 Manual de usuario

Johnson Controls

Johnson Controls System 350 Y350R Manual de servicio

Johnson Controls

Johnson Controls Y20EBD Series Manual de servicio

Johnson Controls

Johnson Controls MS-NCM4510-2 Manual de usuario

Johnson Controls

Johnson Controls Tyco PRV-1A Manual de usuario

Johnson Controls

Johnson Controls TYCO DPV-1 Manual de instrucciones

Johnson Controls

Johnson Controls GS-20 Series Manual de usuario

Johnson Controls

Johnson Controls VP1000 Series Manual de usuario

Johnson Controls

Johnson Controls UL Listed GS-20 Series Manual de usuario

Johnson Controls

Johnson Controls PENN P470 Manual

Johnson Controls

Johnson Controls Tyco 8200-1466-01 Manual de usuario

Johnson Controls

Johnson Controls C450CCN-2 Manual de usuario

Johnson Controls

Johnson Controls VG1xA5Gx Manual de usuario

Johnson Controls

Johnson Controls F4-XPM Series Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
