IOM3711 Input/Output Module Installation Guide

Application

The IOM37 input/output expansion module is a part of the

Metasys® system Field Equipment Controller family. Input/

Output Module (IOM) expansion modules expand the

number of I/O points connected to a Network Automation

Engine (NAE), Network Control Engine (NCE), Field

Equipment Controller (FEC), VAV Modular Assembly (VMA),

or Advanced Application Field Equipment Controller (FAC)

to monitor and control a wide variety of HVAC equipment.

IOM expansion modules operate on an RS-485 BACnet®

MS/TP Bus and integrate into Johnson Controls® and

third-party BACnet systems.

Note: At CCT Release 10.1 and later, a new capability

was introduced allowing VMAs, FECs, and FACs to

communicate by using either the BACnet or the N2

field bus networking protocol. The operation of the

Input/Output Module (IOM) is not affected by the

selection of the BACnet or the N2 protocol in the host

controller, when the (IOM) is connected to the host

controller using the SA bus. Only the BACnet protocol

is supported when the (IOM) is connected directly to

the trunk using the FC bus.

Important: In Metasys system smoke control

applications, use only the MS-IOM3710-0U and MS-

IOM3711-0U at Metasys Release 8.1 that are UL 864

UUKL/UUKLC 10th Edition Smoke Control Listed. For

Metasys system smoke control applications, you must

refer to the Metasys System UL 864 UUKL Tenth Edition

Smoke Control System Technical Bulletin (LIT-12012487)

for detailed requirements and procedures for

installing, commissioning, and operating UL 864

UUKL Listed Metasys system devices. The UL 864

UUKL listing for Smoke Control Equipment is voided

if (1) you do not use the required software tools

at the required versions; or (2) you do not meet

the requirements or do not follow the procedures

as documented in the Metasys System UL 864 UUKL

Tenth Edition Smoke Control System Technical Bulletin

(LIT-12012487).

North American Emissions Compliance

Canada

This Class (A) digital apparatus meets all the

requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numérique de la Classe (A) respecte toutes

les exigences du Règlement sur le matériel brouilleur du

Canada.

United States

This equipment has been tested and found to comply

with the limits for a Class A digital device pursuant to

Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful

interference when this equipment is operated in a

commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction

manual, may cause harmful interference to radio

communications. Operation of this equipment in a

residential area may cause harmful interference, in which

case the users will be required to correct the interference

at their own expense.

Installation

Observe these guidelines when installing an expansion

module:

• Transport the expansion module in the original

container to minimize vibration and shock damage.

• Verify that all parts shipped with the expansion module.

• Do not drop the expansion module or subject it to

physical shock.

Parts included

• One expansion module with removable terminal blocks

(Power and SA/FC bus are removable)

• One installation instructions sheet

Materials and special tools needed

• Three fasteners appropriate for the mounting surface

(M4 screws or #8 screws)

• One 20 cm (8 in.) or longer piece of 35 mm DIN rail and

appropriate hardware for DIN rail mount (only)

• Small straight-blade screwdriver for securing wires in

the terminal blocks

Physical feature graphic and table

*241014484N*

Part No. 24-10144-84 Rev. N

2019-10-01

(barcode for factory use only)

MS-IOM3711-x

Figure 1: IOM3711 physical features

Table 1: IOM3711 Physical features

Callo

ut Physical features: description and references

1 Relay Output Terminal Blocks (See Table 2)

2 Mounting Clip

3Device Address DIP Switch Block (See Setting the device

addresses)

4Universal Outputs (UOs) Terminal Blocks (See Input and

Output terminal blocks)

5 24 VAC, Class 2 Supply Power Terminal Block (See Table 4)

6Cover Lift Tab (See Removing the Expansion Module

cover)

7Sensor Actuator (SA) Bus or Field Controller (FC) Bus

Terminal Block (See Table 4)

8 Universal Inputs (UI) Terminal Blocks (See Table 2)

9 Light-Emitting Diode (LED) Status Indicators (See Table 7)

10 Sensor Actuator (SA) Bus / Field Controller (FC) Bus Port

(RJ-12 6-pin Modular Jack) (See Table 4)

Mounting

Observe these guidelines when mounting an expansion

module:

• Ensure the mounting surface can support the

expansion module, DIN rail, and any user-supplied

enclosure.

• Mount the expansion module horizontally on 35 mm

DIN rail whenever possible.

• Mount the expansion module in the proper mounting

position (Figure 2).

• Mount the expansion module on a hard, even surface

whenever possible in wall-mount applications.

• Use shims or washers to mount the expansion module

securely and evenly on the mounting surface.

• Mount the expansion module in an area free of

corrosive vapors and observe the Ambient Conditions

requirements in Table 10.

• Provide for sufficient space around the expansion

module for cable and wire connections for easy cover

removal and good ventilation through the expansion

module (50 mm [2 in.] minimum on the top, bottom,

and front of the expansion module).

• Do not mount the expansion module on surfaces prone

to vibration, such as duct work.

• Do not mount the expansion module in areas where

electromagnetic emissions from other devices or wiring

can interfere with expansion module communication.

Observe these additional guidelines when mounting a

expansion module in a panel or enclosure:

• Mount the expansion module so that the enclosure

walls do not obstruct cover removal or ventilation

through the expansion module.

• Mount the expansion module so that the power

transformer and other devices do not radiate excessive

heat to the expansion module.

• Do not install the expansion module in an airtight

enclosure.

IOM3711 Input/Output Module Installation Guide2

Figure 2: Expansion Module mounting positions

DIN rail mount applications

Mounting the expansion module horizontal on 35 mm

DIN rail is the preferred mounting method.

To mount a expansion module on 35 mm DIN rail:

1. Securely mount a 20 cm (8 in.) or longer section of 35

mm DIN rail horizontal and centered in the desired

space so that the expansion module mounts in the

horizontal position shown in Figure 2.

2. Pull the two bottom mounting clips outward from

the expansion module to the extended position

(Figure 3).

3. Hang the expansion module on the DIN rail by the

hooks at the top of the (DIN rail) channel on the back

of the expansion module (Figure 3), and position the

expansion module snugly against the DIN rail.

4. Push the bottom mounting clips inward (up) to

secure the expansion module on the DIN rail.

To remove the expansion module from the DIN rail, pull

the bottom mounting clips out to the extended position

and carefully lift the expansion module off the DIN rail.

Wall mount applications

To mount a expansion module directly on a wall or other

flat vertical surface:

1. Pull the two bottom mounting clips outward and

ensure they are locked in the extended position as

shown in Figure 3.

2. Mark the mounting hole locations on the wall using

the dimensions in Figure 3 and one of the mount

positions shown in Figure 2. Or hold the expansion

module up to the wall or surface in a proper mount

position and mark the hole locations through the

mounting clips.

3. Drill holes in the wall or surface at the marked

locations, and insert appropriate wall anchors in the

holes (if necessary).

4. Hold the expansion module in place, and insert the

screws through the mounting clips and into the

holes (or anchors). Carefully tighten all of the screws.

Important: Do not overtighten the mounting

screws. Overtightening the screws may damage the

mounting clips.

Mounting features and dimensions

Figure 3: Back of Expansion Module showing

extended mounting clips, DIN rail channel, and

mounting dimensions, mm (in.)

Wiring

Warning

Risk of Electric Shock:

Disconnect or isolate all power supplies before mak-

ing electrical connections. More than one disconnec-

tion or isolation may be required to completely de-en-

ergize equipment. Contact with components carrying

hazardous voltage can cause electric shock and may

result in severe personal injury or death.

Avertissement

Risque de décharge électrique:

Débrancher ou isoler toute alimentation avant de

réaliser un branchement électrique. Plusieurs iso-

lations et débranchements sont peut-être néces-

saires pour -couper entièrement l'alimentation de

l'équipement. Tout contact avec des composants con-

ducteurs de tensions dangereuses risque d'entraîner

une décharge électrique et de provoquer des

blessures graves, voire mortelles.

IOM3711 Input/Output Module Installation Guide 3

CAUTION

Risk of Property Damage:

Do not apply power to the system before checking all

wiring connections. Short circuited or improperly con-

nected wires may result in permanent damage to the

equipment.

ATTENTION

Risque de dégâts matériels:

Ne pas mettre le système sous tension avant d'avoir

vérifié tous les raccords de câblage. Des fils for-

mant un court-circuit ou connectés de façon incor-

recte risquent d'endommager irrémédiablement

l'équipement.

Important: Do not exceed the expansion module

electrical ratings. Exceeding expansion module

electrical ratings can result in permanent damage to

the expansion module and void any warranty.

Important: Use copper conductors only. Make

all wiring in accordance with local, national, and

regional regulations.

Important: Electrostatic discharge can damage

expansion module components. Use proper

electrostatic discharge precautions during

installation, setup, and servicing to avoid damaging

the expansion module.

For detailed information on configuring and wiring

an MS/TP Bus, FC bus, and SA bus, refer to the MS/TP

Communications Bus Technical Bulletin (LIT-12011034).

Terminal blocks and bus ports

See Figure 1 for terminal block and bus port locations on

the expansion module. Observe the following guidelines

when wiring an expansion module.

Input and Output terminal blocks

Most of the input terminal blocks are mounted on the

bottom of the expansion module and the output terminal

blocks are mounted on the top of the expansion module.

See Table 2 for more information about I/O terminal

functions, requirements, and ratings.

SA/FC bus terminal block

An IOM can be connected to a Sensor/Actuator (SA)

bus or a Field Controller (FC) bus, but not to both buses

simultaneously. The SA/FC bus terminal block is a

removable, 4-terminal plug that fits into a board-mounted

jack.

When connecting the IOM to an FC bus, wire the bus

terminal block plugs on the expansion module, and the

other expansion modules in a daisy-chain configuration

using 3-wire twisted, shielded cable as shown in Figure 4.

See Table 4 for more information.

Figure 4: FC bus terminal block wiring

When connecting the IOM to an SA bus, wire the bus

terminal block plugs on the expansion module, and other

SA bus devices in a daisy-chain configuration using 4-

wire twisted, shielded cable as shown in Figure 5. See

I/O wiring ratings and requirements table for more

information.

Figure 5: SA bus terminal block wiring

Note: The SA PWR/SHLD terminal does not supply 15

VDC. The SA PWR/SHLD terminal is isolated and can

be used to connect (daisy chain) the 15 VDC power

leads on the SA bus (Figure 5) or the cable shields on

the FC bus (Figure 4). The SA bus supervisor supplies

15 VDC to devices on the SA bus requiring power.

IOM3711 Input/Output Module Installation Guide4

SA/FC bus port

The SA/FC bus port on the front of the expansion

module is an RJ-12, 6-position modular jack that provides

a connection for devices on the SA bus, a Wireless

Commissioning Converter, a ZFR/ZFR Pro Wireless Router

(depending on which bus the IOM is operating on).

The SA/FC bus port is connected internally to the SA/FC

bus terminal block. See Table 4 for more information. The

SA/FC bus port pin assignment is shown in Figure 6.

Figure 6: Pin number assignments for sensor, SA bus

and FC bus ports on Expansion Modules

Supply power terminal block

The 24 VAC supply power terminal block is a gray,

removable, 3-terminal plug that fits into a board-mounted

jack on the top right of the expansion module.

Wire the 24 VAC supply power wires from the transformer

to the HOT and COM terminals on the terminal plug as

shown in Figure 7. The middle terminal on the supply

power terminal block is not used. See Table 4 for more

information about the Supply Terminal Block.

Figure 7: 24 VAC supply power terminal block wiring

Note: The supply power wire colors may be different

on transformers from other manufacturers. Refer to

the transformer manufacturer’s instructions and the

project installation drawings for wiring details.

Important: Connect 24 VAC supply power to the

expansion module and all other network devices

so that transformer phasing is uniform across the

network devices. Powering network devices with

uniform 24 VAC supply power phasing reduces

noise, interference, and ground loop problems. The

expansion module does not require an earth ground

connection.

Wireless network applications

The expansion module can also be installed in a wireless

application using a ZFR/ZFR Pro Wireless Field Bus Router.

Important: Wireless operation is not approved for

smoke control applications. Refer to the Metasys

System UL 864 UUKL Tenth Edition Smoke Control

System Technical Bulletin (LIT-12012487) for detailed

requirements and procedures for installing,

commissioning, and operating UL 864 UUKL/UUKLC

Listed Metasys system devices.

To configure a expansion module for use with the

ZFR/ZFR Pro Series Wireless Field Bus system:

Note: IOMs can talk wirelessly on the FC bus only.

1. Connect the ZFR/ZFR Pro Wireless Field Bus Router to

the FC bus port (RJ-12 modular jack) on the front of

the expansion module.

2. Ensure that the expansion module's device address

DIP switches are set to the correct device address.

See Setting the device addresses.

3. Set DIP switch 128 to ON, which enables wireless

operation on the expansion module.

For more information on the ZFR Pro Wireless Field Bus

system, refer to the WNC1800/ZFR182x Pro Series Wireless

Field Bus System Product Bulletin (LIT-12012320).

For more information on the ZFR 1800 Wireless Field Bus

system, refer to the ZFR1800 Series Wireless Field Bus Sys-

tem Product Bulletin (LIT-12011336).

Terminal Wiring Guidelines,

Functions, Ratings, and

Requirements

Input and Output wiring guidelines

Table 2 provides information and guidelines about the

functions, ratings, and requirements for the expansion

module input and output terminals; and references

guidelines for determining proper wire sizes and cable

lengths.

In addition to the wiring guidelines in Table 2, observe

these guidelines when wiring expansion module inputs

and outputs:

• Run all low-voltage wiring and cables separate from

high-voltage wiring.

IOM3711 Input/Output Module Installation Guide 5

• All input and output cables, regardless of wire size or

number of wires, should consist of stranded, insulated,

and twisted copper wires.

• Shielded cable is not required for input or output

cables.

• Shielded cable is recommended for input and output

cables that are exposed to high electromagnetic or

radio frequency noise.

• Inputs/outputs with cables less than 30 m (100 ft)

typically do not require an offset in the software setup.

Cable runs over 30 m (100 ft) may require an offset in

the input/output software setup.

IOM3711 Input/Output Module Installation Guide6

I/O wiring ratings and requirements

table

Table 2: IOM37 terminal blocks, functions, ratings, requirements, and cables

Terminal block label Terminal

label Function, ratings, requirements Determine wire size and

maximum cable length

+15 V

15 VDC Power Source for active (3-wire) input devices

connected to the Universal INn terminals.

Provides 100 mA total current

Same as (Universal) INn

Note: Use 3-wire cable for

devices that source power

from the +15 V terminal.

Analog Input - Voltage Mode (0–10 VDC)

10 VDC maximum input voltage

Internal 75k ohm Pull-down

See Guideline A in Table 3.

Analog Input - Current Mode (4–20 mA)

Internal 100 ohm load impedance See Guideline B in Table 3.

Analog Input - Resistive Mode (0–600k ohm)

Internal 12 V. 15k ohm pull up

Qualified Sensors: 0-2k ohm potentiometer, RTD (1k Nickel

[ Johnson Controls sensor], 1k Platinum, and A99B Silicon

Temperature Sensor) Negative Temperature Coefficient (NTC)

Sensor (10k Type L, 10k JCI Type II, 2.252k Type II)

See Guideline A in Table 3.

INn

Binary Input - Dry Contact Maintained Mode

1 second minimum pulse width

Internal 12 V. 15k ohm pull up

See Guideline A in Table 3.

UNIVERSAL

(Inputs)

ICOMn

Universal Input Common for all Universal Input terminals

Note: All Universal ICOMn terminals share a common,

which is isolated from all other commons.

Same as (Universal) INn

OUT NOn

Normally Open Contact

Connects OCOM to OUT NO when activated.

UL Listed (-0 model only)

1/4 hp 120 VAC, 1/2 hp 240 VAC

360 VA Pilot Duty at 120/240 VAC (B300)

3 A Non-inductive 24–240 VAC

CE Marking (-2 model only):

6 (4) A N.O. or N.C. only, 240 VAC

OCOMn

Relay Common

Isolated from all other terminal commons, including other

Relay Commons.

RELAYn

(Outputs)

OUT NCn

Normally Closed Contact

Connects OCOM to OUT NC when activated.

UL Listed(-0 model only)

1/4 hp 120 VAC, 1/2 hp 240 VAC

360 VA Pilot Duty at 120/240 VAC (B300)

3 A Non-inductive 24–240 VAC

CE Marking (-2 model only):

6 (4) A N.O. or N.C. only, 240 VAC

The Relay output terminals can

accommodate the following

maximum wire sizes:

Two wires per terminal:

1.0 mm (18 AWG) maximum wire

size

One wire per terminal:

2.0 mm (12 AWG) maximum

Note: You must determine

the required wire size

for the high-voltage (>30

V) terminals according

to relay ratings, the

applied load, and the

local, national, or regional

electrical codes.

IOM3711 Input/Output Module Installation Guide 7

Table 2: IOM37 terminal blocks, functions, ratings, requirements, and cables

Terminal block label Terminal

label Function, ratings, requirements Determine wire size and

maximum cable length

Analog Output - Voltage Mode (0–10 VDC)

10 VDC maximum output voltage

10 mA maximum output current

Requires an external load of 1,000 ohm or more.

Note: The AO operates in Voltage Mode when

connected to devices with impedances greater than

1,000 ohm. Devices that drop below 1,000 ohm may not

operate as intended for Voltage Mode applications.

See Guideline A in Table 3.

Analog Output - Current Mode (4–20 mA)

Requires an external load between 0–300 ohm.

Note: The AO operates in Current Mode when

connected to devices with impedances less than 300

ohm. Devices that exceed 300 ohm may not operate as

intended for Current Mode applications.

See Guideline B in Table 3.

OUTn

Binary Output Mode - 24 VAC/DC Field-effect Transistor

(FET)

Connects OUT to OCOM when activated.

30 V AC/DC maximum output voltage

0.5 A maximum output current

40 mA minimum load current (hold current)

See Guideline B in Table 3.

Universal

(Outputs)

OCOMn

Universal Output (UO) Common

Isolated from all other terminal commons, including other UO

commons.

Same as OUT

Cable and wire length guidelines

The table below defines cable length guidelines for the

various wire sizes that may be used for wiring low-voltage

(<30 V) input and outputs.

Table 3: Cable length guidelines for recommended wire sizes for low-voltage (<30 V) Inputs and Outputs

Guideline Wire size/Gauge and type Maximum cable length

and type Assumptions

1.0 mm (18 AWG) stranded copper 457 m (1,500 ft) twisted wire

0.8 mm (20 AWG) stranded copper 297 m (975 ft) twisted wire

0.6 mm (22 AWG) stranded copper 183 m (600 ft) twisted wire

0.5 mm (24 AWG) stranded copper 107 m (350 ft) twisted wire

100 mV maximum voltage drop

Depending on cable and the connected input

or output device, you may have to define an

offset in the setup software for the input or

output point.

1.0 mm (18 AWG) stranded copper 229 m (750 ft) twisted wire

0.8 mm (20 AWG) stranded copper 137 m (450 ft) twisted wire

0.6 mm (22 AWG) stranded copper 91 m (300 ft) twisted wire

0.5 mm (24 AWG) stranded copper 61 m (200 ft) twisted wire

100 mV maximum voltage drop

Depending on cable and the connected input

or output device, you may have to define an

offset in the setup software for the input or

output point.

CSee Figure 8 to select wire size/gauge.

Use stranded copper wire

See Figure 8 to determine

cable length. Use twisted

wire cable.

N/A

IOM3711 Input/Output Module Installation Guide8

Note: The required wire sizes and lengths for high-

voltage (>30 V) Relay Outputs are determined by the

load connected to the relay, and local, national, or

regional electrical codes.

Maximum cable length versus load

current

Use Figure 8 to estimate the maximum cable length

relative to the wire size and the load current (in mA) when

wiring inputs and outputs.

Note: Figure 8 applies to low-voltage (<30 V) inputs

and outputs only. The required wire size and length

for high-voltage (>30 V) Relay Outputs is determined

by the load connected to the relay and local electrical

codes.

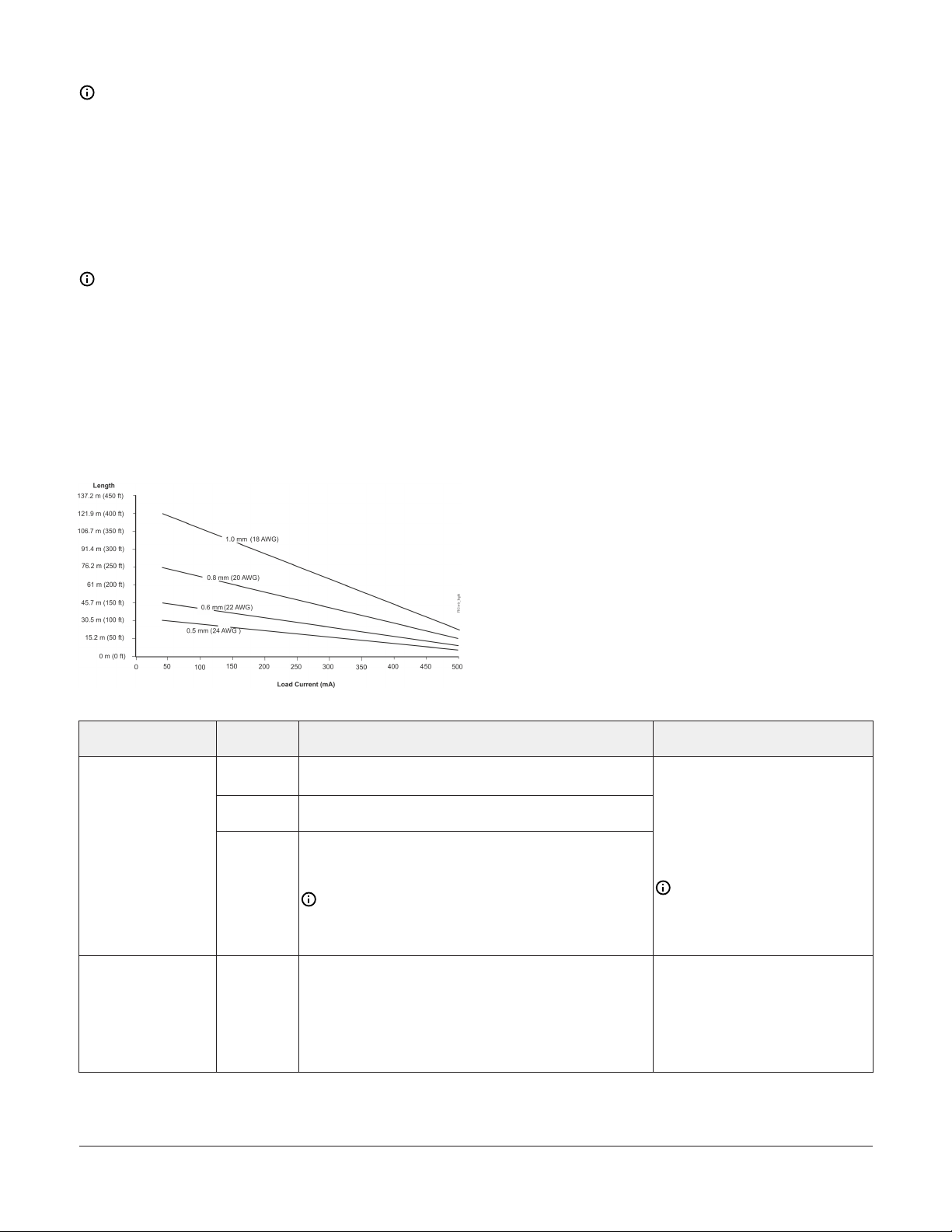

Max wire length by current and wire size

graphic

Figure 8: Maximum wire length for low-voltage (<30

V) Inputs and Outputs by current and wire Size

SA/FC bus and supply power wiring

guidelines

Table 4 provides information about the functions, ratings,

and requirements for the communication bus and supply

power terminals; and guidelines for wire sizes, cable

types, and cable lengths when wiring the expansion

module's communication buses and supply power.

In addition to the guidelines in Table 4, observe these

guidelines when wiring an SA or FC bus and the 24 VAC

supply power:

• Run all low-voltage wiring and cables separate from

high-voltage wiring.

• All SA and FC bus cables, regardless of wire size, should

be twisted, insulated, stranded copper wire.

• Shielded cable is strongly recommended for all SA and

FC bus cables.

• Refer to the MS/TP Communications Bus Technical

Bulletin (LIT-12011034) for detailed information

regarding wire size and cable length requirements for

the SA and FC buses.

Table 4: Communications bus and supply power terminal blocks, functions, ratings, requirements, and cables

Terminal block/Port

label

Terminal

labels Function, electrical ratings/Requirements Recommended cable type

-FC or SA Bus Communications

COM Signal Reference (Common) for FC or SA Bus

communications

FCBUS

SABUS SHLD

SAPWR

SHLD on FC Bus: Isolated terminal (optional shield drain

connection

SAP WR on SA Bus: 15 VDC power lead connection

Note: The SA PWR terminal on an IOM expansion

module does not supply 15 VDC. The SA bus

supervisor supplies 15 VDC to devices on the SA bus

requiring power.

FC Bus: 0.6 mm (22 AWG) stranded,

3-wire twisted, shielded cable

recommended.

SA Bus: 0.6 mm (22 AWG) stranded,

4-wire (2 twisted-pairs), shielded

cable recommended.

Note: On the SA Bus, the + and

- wire are one twisted pair, and

the COM and SA PWR are the

second twisted pair of wires.

SA/FC BUS

(Port)

RJ-12 6-Position Modular Connector provides:

FC or SA Bus Communications

FC or SA Bus Signal Reference and 15 VDC Common

Commissioning Converter or ZFR181x/ZFR 182x Wireless

Router

(Maximum total current draw for SA Bus is 240 mA.)

Wireless Commissioning Converter

retractable cable or 24 AWG 3-pair

CAT 3 Cable <30.5 m (100 ft)

IOM3711 Input/Output Module Installation Guide 9

Table 4: Communications bus and supply power terminal blocks, functions, ratings, requirements, and cables

Terminal block/Port

label

Terminal

labels Function, electrical ratings/Requirements Recommended cable type

HOT 24 VAC Power Supply - Hot

Supplies 20–30 VAC (Nominal 24 VAC)

24~

COM

24 VAC Power Supply - Common

(Isolated from all other Common terminals on expansion

module.)

0.8 mm to 1.0 mm

(18 AWG) 2-wire

Note:

• The SA Bus and FC Bus wiring recommendations

in this table are for MS/TP bus communications

at 38,400 baud. For more information, refer to

the MS/TP Communications Bus Technical Bulletin

(LIT-12011034).

• See Table 3 to determine wire size and cable

lengths for cables.

IOM3711 Input/Output Module Installation Guide10

Otros manuales para IOM3711

Tabla de contenidos

Otros manuales de Unidad de control de Johnson Controls

Johnson Controls

Johnson Controls VMA 1410 Guía de instalación

Johnson Controls

Johnson Controls PENN P70 Series Manual

Johnson Controls

Johnson Controls System 450 Series Manual de operación y mantenimiento

Johnson Controls

Johnson Controls tyco AMD-1 Manual de usuario

Johnson Controls

Johnson Controls S1-TTSCC01 Manual de usuario

Johnson Controls

Johnson Controls METASYS TC-9102 Series Manual de servicio

Johnson Controls

Johnson Controls VG1xA5Gx Manual de usuario

Johnson Controls

Johnson Controls VP1000 Series Manual de usuario

Johnson Controls

Johnson Controls S300 Series Instrucciones de montaje

Johnson Controls

Johnson Controls Autocall MX Indoor Isolated Callpoint Manual de usuario

Johnson Controls

Johnson Controls GS-20 Series Manual de usuario

Johnson Controls

Johnson Controls UL Listed GS-20 Series Manual de usuario

Johnson Controls

Johnson Controls IOM3731 Manual de usuario

Johnson Controls

Johnson Controls System 350 Y350R Manual de servicio

Johnson Controls

Johnson Controls EM-3000 Series Manual de usuario

Johnson Controls

Johnson Controls Tyco DV-5a Series Manual de usuario

Johnson Controls

Johnson Controls IOM3723 Manual de usuario

Johnson Controls

Johnson Controls LP-FXGPRSU-0 Manual de usuario

Johnson Controls

Johnson Controls VG8000V Series Manual de usuario

Johnson Controls

Johnson Controls GH-5000 Manual de usuario

Johnson Controls

Johnson Controls Tyco DV-5a Series Manual de usuario

Johnson Controls

Johnson Controls IOM1711 Manual de usuario

Johnson Controls

Johnson Controls TrueRH Series Guía

Johnson Controls

Johnson Controls Penn System 350 S350P Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
