Interlogix TruVision TVD-N210V-2-N(-P) Manual de usuario

TruVision IP Dome Open-

Standards User Manual

P/N 1076511A-EN • REV 1.0 • ISS 07OCT11

Trademarks and

patents Interlogix, TruVision names and logos are trademarks of

UTC Fire & Security.

Other trade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective products.

Manufacture

UTC Fire & Security Americas Corporation, Inc.

2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification N4131

FCC compliance Class A: This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in

a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own

expense.

ACMA compliance Notice! This is a Class A product. In a domestic environment this

product may cause radio interference in which case the user may be

required to take adequate measures.

Canada This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme

NMB-0330 du Canada.

European Union

directives 12004/108/EC (EMC directive): Hereby, UTC Fire & Security

declares that this device is in compliance with the essential

requirements and other relevant provisions of Directive

2004/108/EC.

2002/96/EC (WEEE directive): Products marked with this symbol

cannot be disposed of as unsorted municipal waste in the European

Union. For proper recycling, return this product to your local supplier

upon the purchase of equivalent new equipment, or dispose of it at

designated collection points. For more information see:

www.recyclethis.info.

Contact information For contact information, see www.interlogix.com or

www.utcfssecurityproducts.eu.

Customer support www.interlogix.com/customer-support

Content

Chapter 1 Introduction 1

Product overview 1

Features 1

Chapter 2 Installation 3

Installation environment 3

Package contents 4

Cable requirements 4

Camera dimensions 5

Setting up the camera 5

Connecting the devices 6

Accessing the SDHC card 8

Mounting the dome cameras on a ceiling 9

Mounting the wedge dome cameras on a ceiling 11

Using the camera with TVR 60/ TVN 20/ TVN 40/ LNVR and other

systems 13

Using the camera with TruVision Navigator 13

Chapter 3 Network and streaming configuration 15

Checking your Web browser security level 15

Accessing the camera over the internet 17

Overview of the camera Web browser 18

Configuring the camera’s network settings 20

Information about the camera 23

Network parameters 23

Serial port settings 25

Chapter 4 Camera configuration 27

Camera parameters 27

Defining how information is displayed on screen 28

Defining the system time 29

Alarm parameters 30

Events scheduling 31

Defining recording parameters 32

Motion detection alarms 35

Adding extra on-screen text 38

Configuring the video image 38

Chapter 5 Camera management 41

User management 41

Formatting the SDHC card 43

Restoring default settings 44

Upgrading the firmware 44

TruVision IP Dome Open-Standards User Manual i

ii TruVision IP Dome Open-Standards User Manual

Rebooting the camera 45

Chapter 6 Camera operation 47

Logging on and off 47

Live mode 47

Playing back recorded video 48

Searching event logs 50

Archiving recorded files 52

Using presets 53

Appendix A Specifications 55

TruVision IP Dome Open-Standards cameras 55

IP wedge dome cameras 56

Appendix B Pin definitions 57

Appendix C Warranty and contact information 59

Warranty information 59

Contacting support 59

Index 61

Chapter 1

Introduction

Product overview

This is the user manual for TruVision IP dome open-standard camera models:

TruVision IP dome:

TVD-N210V-2-N(-P) (VGA)

TVD-M1210V-2-N(-P) (1.3 megapixel)

TVD-M2210V-2-N(-P) (2 megapixel)

TVD-M3210V-2-N(-P) (3 megapixel)

TruVision IP IR dome:

TVD-N245V-2-N(-P) (4CIF WDR, D/N)

TVD-M1225V-2-N(-P) (1.3 megapixel, D/N)

TVD-M2225V-2-N(-P) (2 megapixel, D/N, IR)

TVD-M3225V-2-N(-P) (3 megapixel, D/N, IR)

TVD-M5225V-4-N(-P) (5 megapixel, D/N, IR)

TruVision IP wedge dome:

TVD-N210W-4-N(-P) (VGA)

TVD-M2210W-4-N(-P) (2 megapixel)

Features

This section describes the camera features.

Supports TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTCP, PPPoE, SMTP,

NTP protocols

Programming and setup through a browser interface

TruVision IP Dome Open-Standards User Manual 1

0BChapter 1: Introduction

2 TruVision IP Dome Open-Standards User Manual

Live viewing over the network

50/60 Hz selectable flicker control

Mono and bi-directional audio

Digital pan/tilt/zoom (PTZ)

Supports remote upgrades and maintenance

H.264 video compression with dual capability

Supports full HD, HD, 4CIF, 2CIF, CIF and QCIF

SDHC card for local storage (dome cameras only)



Chapter 2

Installation

This chapter provides information on how to install the TruVision IP dome and

wedge dome cameras.

Installation environment

When installing your product, consider these factors:

• Electrical: Install electrical wiring carefully. It should be done by qualified

service personnel. Always use a proper PoE switch or a 12 VDC UL listed

Class 2 or CE certified power supply to power the camera. Do not overload

the power cord or adapter.

• Ventilation: Ensure that the location planned for the installation of the

camera is well ventilated.

• Temperature: Do not operate the camera beyond the specified temperature,

humidity or power source ratings. The operating temperature of the camera is

between -10 to +60°C (14°F to 140°F). Humidity is below 90%.

• Moisture: Do not expose the camera to rain or moisture, or try to operate it in

wet areas. Turn the power off immediately if the camera is wet and ask a

qualified service person for servicing. Moisture can damage the camera and

also create the danger of electric shock.

• Servicing: Do not attempt to service this camera yourself. Any attempt to

dismantle or remove the covers from this product will invalidate the warranty

and may also result in serious injury. Refer all servicing to qualified service

personnel.

• Cleaning: Do not touch the sensor modules with fingers. If cleaning is

necessary, use a clean cloth with a some ethanol and wipe the camera

gently. If the camera will not be used for an extended period of time, put on

the lens cap to protect the sensors from dirt.

TruVision IP Dome Open-Standards User Manual 3

1BChapter 2: Installation

Package contents

Check the package and contents for visible damage. If any components are

damaged or missing, do not attempt to use the unit; contact the supplier

immediately. If the unit is returned, it must be shipped back in its original

packaging.

Package contents:

Camera

Hex wrench

Mounting plate (except wedge dome cameras)

Video cable for testing (except wedge dome cameras)

Multilingual quick start guide

CD with user manual in several languages

CAUTION: Use direct plug-in UL listed power supplies marked Class 2/CE

certified or LPS (limited power source) of the required output rating as listed on

the unit.

Cable requirements

For proper operation, adhere to the following cable and power requirements for

the cameras. Category 5 cabling or better is recommended. All network cabling

must be installed according to applicable codes and regulations.

Table 1 below lists the requirements for the cables that connect to the camera.

Table 1: Recommended cable requirements

Cable type Requirements

Data For RS-485: 22 gauge (0.64 mm) shielded, two-conductor, twisted-pair

(STP) cable.

Video 75 ohm RS-59 coaxial cable with BNC ends

Power 12 VDC cable

4 TruVision IP Dome Open-Standards User Manual

1BChapter 2: Installation

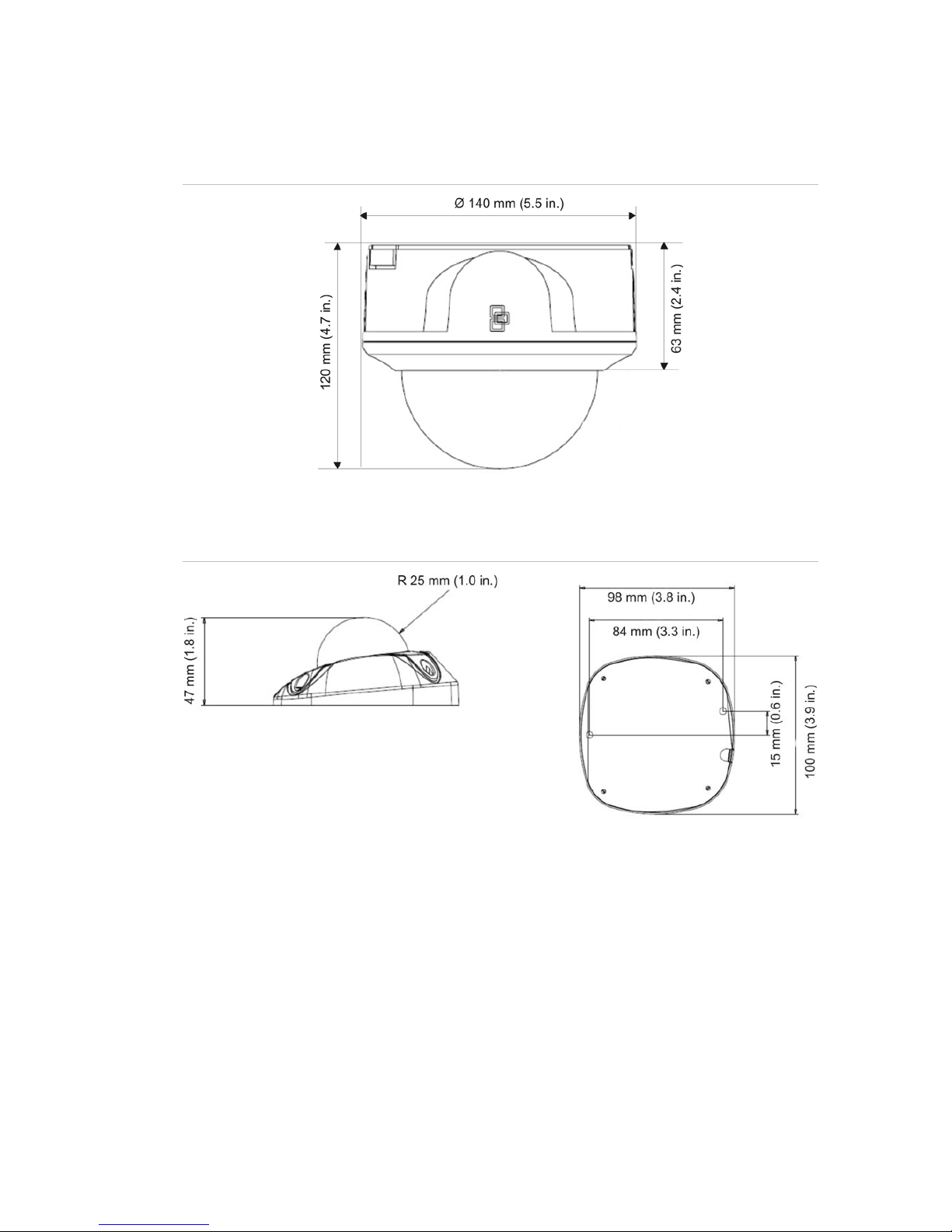

Camera dimensions

Figure 1: IP dome and IR dome cameras

Figure 2: IP wedge dome camera

Setting up the camera

Note: If the light source where the camera is installed experiences rapid, wide-

variations in lighting, the camera may not operate as intended.

To quickly put the dome camera into operation:

1. Prepare the mounting surface.

2. Connect the power cable (optional), alarm I/O cables, RS-485 cable, audio

cables and network cable to the camera. See “Dome and IR dome camera

connections” on page 7.

TruVision IP Dome Open-Standards User Manual 5

1BChapter 2: Installation

3. Mount the camera to the ceiling using the appropriate fasteners. See

“Mounting the dome cameras on a ceiling ” on page 11.

4. Set up the camera’s network and streaming parameters so that the camera

can be controlled over the network. See “Chapter 3 Network and streaming

configuration” on page 15.

5. Program the camera to suit its location. See “Chapter 4 Camera

configuration” on page 27.

To quickly put the wedge dome camera into operation:

1. Prepare the mounting surface.

2. Connect the power and network cables to the camera. See “Wedge dome

camera connections” on page 8.

3. Mount the camera to the ceiling using the appropriate fasteners. See

“Mounting the wedge dome cameras on a ceiling” on page 11.

4. Set up the camera’s network and streaming parameters so that the camera

can be controlled over the network. See “Chapter 3 Network and streaming

configuration” on page 15.

5. Program the camera to suit its location. See “Chapter 4 Camera

configuration” on page 27.

Connecting the devices

A qualified service person, complying with all applicable codes, should perform

all required hardware installation.

6 TruVision IP Dome Open-Standards User Manual

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Interlogix

Interlogix

Interlogix TruVision Line Manual de usuario

Interlogix

Interlogix TruVision TVD-2402 Manual de usuario

Interlogix

Interlogix TruVision TVD-6120VE-2 Manual de usuario

Interlogix

Interlogix TruVision TVB-5702 Hoja de instrucciones

Interlogix

Interlogix TruVision Line Manual de usuario

Interlogix

Interlogix TruVision Line Manual de usuario

Interlogix

Interlogix TruVision TVB-2401 Manual de usuario

Interlogix

Interlogix TruVision TVB-2402 Manual de usuario

Interlogix

Interlogix TruVision HD-TVI 3MPX Hoja de instrucciones

Interlogix

Interlogix TruVision TVB-2403 Hoja de instrucciones

Interlogix

Interlogix True Vision TVP-5104 Manual de usuario

Interlogix

Interlogix FW5.1 Manual de usuario

Interlogix

Interlogix TruVision TVB-2401 Manual de usuario

Interlogix

Interlogix TruVision Open Standards Manual de usuario

Interlogix

Interlogix TruVision Bullet IR Manual de usuario

Interlogix

Interlogix TVW-6101 Manual de usuario

Interlogix

Interlogix TruVision TVA-1101 Manual de usuario

Interlogix

Interlogix UVP-N120P-36X(-P) Manual de usuario

Interlogix

Interlogix TruVision TVD-2401 Manual de usuario

Interlogix

Interlogix TruVision Series Manual de usuario

Interlogix

Interlogix TruVision TVA-1101 Manual de usuario

Interlogix

Interlogix TVB-WBS Manual de usuario

Interlogix

Interlogix TruVision TVW-2401 Hoja de instrucciones

Interlogix

Interlogix TruVision TVW-2401 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
