Interlogix TVF-1101 Manual de usuario

TruVision 360°

Camera Installation

Manual

P/N 1072845A-EN • REV 1.0 • ISS 25SEP14

Interlogix is part of UTC Building & Industrial Systems, a unit of United

Trademarks and

patents

Trade names used in this document may be trademarks or registered trademarks

of the manufacturers or vendors of the respective products.

Manufacturer Interlogix.

2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

N4131

FCC compliance Class A: This equipment has been tested and found to comply with the limits for

a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the

interference at his own expense.

ACMA compliance Notice! This is a Class A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures.

Canada This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-0330 du

Canada.

European Union

directives

12004/108/EC (EMC directive): Hereby, UTC Fire & Security declares that this

device is in compliance with the essential requirements and other relevant

provisions of Directive 2004/108/EC.

2002/96/EC (WEEE directive): Products marked with this symbol cannot be

disposed of as unsorted municipal waste in the European Union. For proper

recycling, return this product to your local supplier upon the purchase of

equivalent new equipment, or dispose of it at designated collection points. For

more information see: www.recyclethis.info.

Contact information For contact information, see www.interlogix.com or

www.utcfssecurityproducts.eu.

Installation Manual 1

Content

Introduction 2

Product overview 2

Installation 3

Installation environment 3

Package contents 3

Cable requirements 4

Camera description 5

Install the camera 6

IR illuminators 8

Accessing the SD card 8

Mounting accessories 9

Network settings 10

Using the web browser to configure 11

Using the camera with an Interlogix NVR or another system 13

Using the camera with TruVision Navigator 13

Specifications 13

Pin definitions 14

2 Installation Manual

Introduction

Product overview

This is the user manual for TruVision 360° camera models:

SKU Description

TVF-1101 TruVision 360 Degree IP Dome, 3.0 MPX, WDR, 1.19mm

fisheye lens, true D/N, 10m IR, 2 way audio (built-in mic &

speaker), SD/SHDC slot, POE (803.af) /12VDC, PAL.

TVF-3101 TruVision 360 Degree IP Dome, 3.0 MPX, WDR, 1.19mm

fisheye lens, true D/N, 10m IR, 2 way audio (built-in mic &

speaker), SD/SHDC slot, POE (803.af) /12VDC, NTSC

TVF-1102 TruVision 360 Degree IP Dome, 3.0MP, WDR, 1.19mm fisheye

lens, true D/N, 10m IR, 2 way audio (built-in mic & speaker),

SD/SHDC slot, POE (803.af) /12VDC, IP66, IK10, PAL

TVF-3102 TruVision 360 Degree IP Dome, 3.0MP, WDR, 1.19mm fisheye

lens, true D/N, 10m IR, 2 way audio (built-in mic & speaker),

SD/SHDC slot, POE (803.af) /12VDC, IP66, IK10, NTSC

TVF-1103 TruVision 360 Degree IP Dome, 6.0MP, DWDR, 1.27mm

fisheye lens, true D/N,10m IR, 2 way audio (built-in mic &

speaker), SD/SHDC slot, POE (803.af) /12VDC, PAL

TVF-3103 TruVision 360 Degree IP Dome, 6.0MP, DWDR, 1.27mm

fisheye lens, true D/N,10m IR, 2 way audio (built-in mic &

speaker), SD/SHDC slot, POE (803.af) /12VDC, NTSC

TVF-1104 TruVision 360 Degree IP Dome, 6.0MP, DWDR, 1.27mm

fisheye lens, true D/N, 10m IR, 2 way audio (built-in mic &

speaker), SD/SHDC slot, POE (803.af) /12VDC, IP66, IK10,

PAL

TVF-3104 TruVision 360 Degree IP Dome, 6.0MP, DWDR, 1.27mm

fisheye lens, true D/N, 10m IR, 2 way audio (built-in mic &

speaker), SD/SHDC slot, POE (803.af) /12VDC, IP66, IK10,

NTSC

Installation Manual 3

Installation

This chapter provides information on how to install the cameras.

Installation environment

When installing your product, consider these factors:

• Electrical: Install electrical wiring carefully. It should be done by qualified

service personnel. Always use a proper PoE switch or a 12 VDC UL listed

Class 2 or CE certified power supply to power the camera. Do not overload

the power cord or adapter.

• Ventilation: Ensure that the location planned for the installation of the

camera is well ventilated.

• Temperature: Do not operate the camera beyond the specified

temperature, humidity or power source ratings. The operating temperature of

the camera is between -30 to +60°C. Humidity is below 90%.

• Moisture: Do not expose the camera to rain or moisture, or try not to

operate it in wet areas. Turn the power off immediately if the camera is wet

and ask a qualified service person for servicing. Moisture can damage the

camera and also create the danger of electric shock.

• Servicing: Do not attempt to service this camera yourself. Please refer to

the instructions in this manual when removing the camera cover. Refer all

servicing to qualified service personnel.

• Cleaning: Do not touch the bubble with fingers. If cleaning is necessary, use

a clean cloth with some ethanol and wipe the camera bubble gently.

Package contents

Check the package and contents for visible damage. If any components are

damaged or missing, do not attempt to use the unit; contact the supplier

immediately. If the unit is returned, it must be shipped back in its original

packaging.

Indoor camera Outdoor camera

4 Installation Manual

Screws: Hex wrench 95 x 50 mm

Drywall anchor

Φ7.5 x 24.5mm (3 pcs)

Screw M4

16 x 25mm (3 pcs)

Drill template (170 x 170 mm) Installation manual

CD (Includes Configuration Manual,

Installation Manual, TruVision Device

Finder and Adobe Reader

Water joint (Provides water

resistance to network connection)

12 VDC Connector:

DC jack socket to terminal connectors

with positive and negative indicators

CAUTION: Use direct plug-in UL listed power supplies marked Class 2/CE

certified or LPS (limited power source) of the required output rating as listed on

the unit.

Cable requirements

For proper operation, adhere to the following cable and power requirements for

the cameras. Category 5 cabling or better is recommended. All network cabling

must be installed according to applicable codes and regulations.

Installation Manual 5

The recommended power cable requirements to use are a 12 VDC power jack or

PoE (802.3af) when connecting the camera.

Camera description

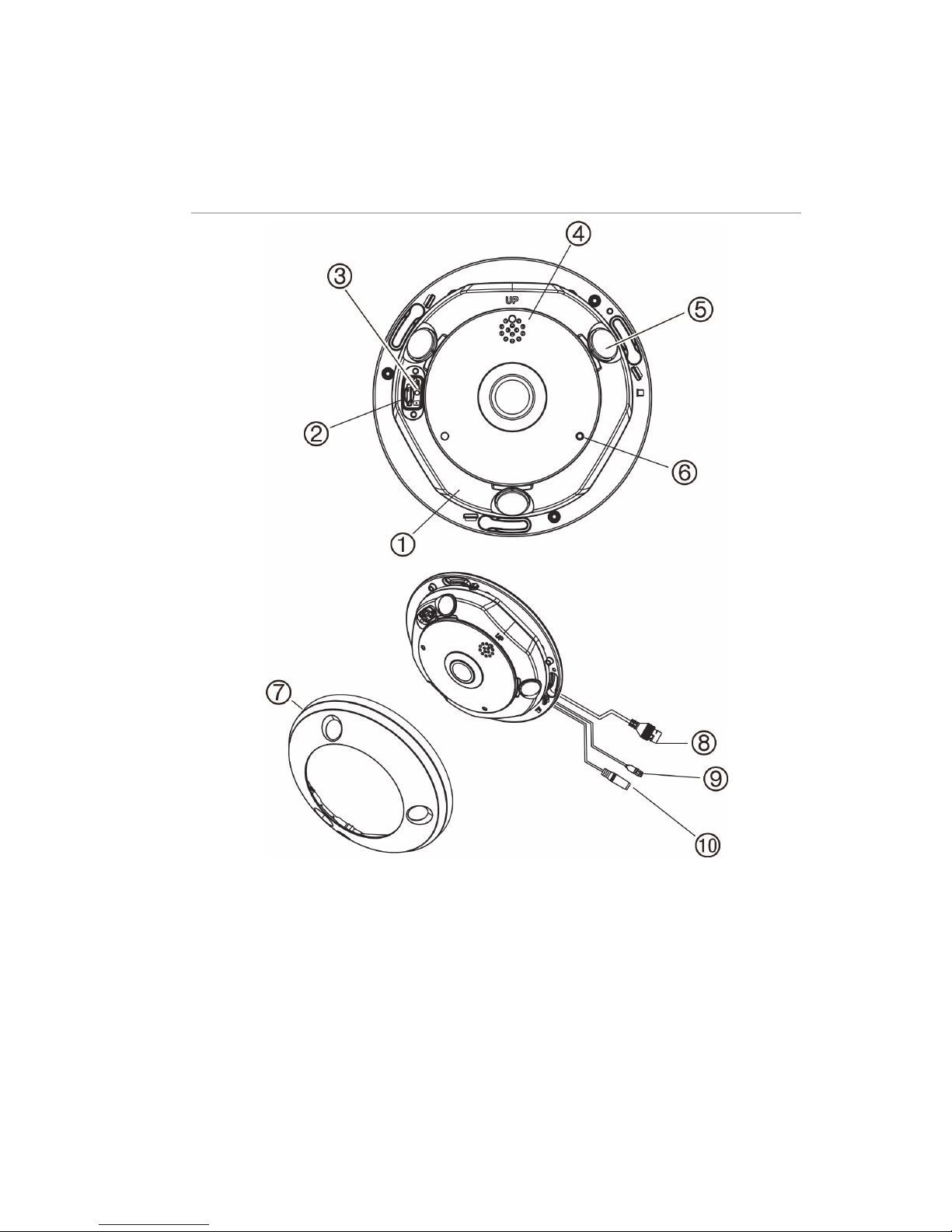

Figure 1: 360° camera

1. Base

2. Micro SD card slot

3. Reset button

4. Speaker

5. IR illuminator

6. Mic in

7. Camera cover ring

8. PoE & network port

9. RS-485 port

10. Power port

6 Installation Manual

Install the camera

Note: If the light source where the camera is installed experiences rapid, wide-

variations in lighting, the camera may not operate as intended.

To install the 360° camera on a ceiling or wall:

1. Prepare the mounting surface.

Use the drill template provided to draw the positions of the screws and

cabling hole.

2. Install the three screws and drywall anchor half-deep in the ceiling or wall,

leaving clearance to slide the camera in to place. See below.

Important: When mounting the camera to a wall, ensure that the ‘UP’

reference on the camera base is pointing upwards.

3. Remove the camera cover ring from the camera.

Using the hex wrench provided, unscrew the hex head screw located under

the small flap on the cover (1).

Using a flathead screwdriver, release the two clips on the base of the

camera (2) to release the cover.

Installation Manual 7

Grasp the opening on the side of the cover, and pull the cover and base

apart to open the camera (3).

Note: For further information on removing the cover ring from the camera,

please refer to the guide, “Instructions to remove the 360° camera cover”.

4. Connect the cables to the camera.

5. Attach the camera to the ceiling/wall.

Align the holes on the base of the camera with the three screws in the

ceiling/wall and rotate the camera to lock it into position.

When mounting the camera to a wall, ensure that the ‘TOP’ reference is

pointing up.

6. Tighten the three screws to securely fix the camera to the ceiling/wall.

7. When re-attaching the camera cover ring, ensure that groove/opening near

the cover screw (1) is not up against a wall or ceiling. You will need to have

access to that area when removing the camera cover

8 Installation Manual

8. Tighten the cover screw (1) in the camera cover ring to securely reattach

cover to the camera.

IR illuminators

The camera’s built-in IR illumination provides high-quality video in low-light

environments, even when there is no other illumination available.

You can configure the IR illumination using a web browser or a client software. If

the function is enabled, the IR light is On when the camera enters night (black

and white) mode. If disabled, the IR light is always Off.

The visible IR range may vary due to multiple factors, such as weather, IR

reflection rate of viewing objects, lens adjustment, and camera settings. Please

refer to the camera datasheet for the standard IR range.

Note: Avoid installing the IR camera closely facing a tree or wall. The reflection

will cause over-exposure and lose visibility of detail in field of view.

Accessing the SD card

Remove the camera cover ring and insert an SD card up to 64GB for local

storage as a backup in case the network fails. An SD card is NOT supplied with

the camera.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Interlogix

Interlogix

Interlogix TruVision TVB 2102 Manual de usuario

Interlogix

Interlogix TruVision Line Manual de usuario

Interlogix

Interlogix TruVision TVB-2402 Instrucciones de funcionamiento y mantenimiento

Interlogix

Interlogix 4 SERIES Hoja de instrucciones

Interlogix

Interlogix TruVision Series Manual de usuario

Interlogix

Interlogix TruVision Line Manual de usuario

Interlogix

Interlogix TruVision TVP-5101 Hoja de instrucciones

Interlogix

Interlogix TruVision Bullet IR Manual de usuario

Interlogix

Interlogix TruVision Line Manual de usuario

Interlogix

Interlogix UltraView PTZ Manual de usuario

Interlogix

Interlogix UltraView PTZ Manual de usuario

Interlogix

Interlogix TruVision TVD-N210V-2-N(-P) Manual de usuario

Interlogix

Interlogix TruVision PTZ 36X Manual de usuario

Interlogix

Interlogix UVD-XP4DNR Manual de usuario

Interlogix

Interlogix TruVision TVD-2401 Manual de usuario

Interlogix

Interlogix TruVision TVB-2402 Hoja de instrucciones

Interlogix

Interlogix UltraSync RS-3240 Manual de usuario

Interlogix

Interlogix TruVision TVD-2404 Manual de usuario

Interlogix

Interlogix UVP-N120P-36X(-P) Manual de usuario

Interlogix

Interlogix TruVision TVC-6110-1 Instrucciones de funcionamiento y mantenimiento

Interlogix

Interlogix TruVision 5 Series Hoja de instrucciones

Interlogix

Interlogix TVB-5801 Hoja de instrucciones

Interlogix

Interlogix TruVision Series Manual de usuario

Interlogix

Interlogix TruVision TVC-7120-1-N Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
