Interlogix TVB-2201 Manual de usuario

TruVision IR Bullet Camera

TVB

-2201/TVB-4201 and

TVB

-2202/TVB-4202

Installation Guide

P/N 1072924 • REV A • ISS 10FEB15

2 Installation Guide

Content

Product overview 2

Camera description 4

Installation 4

Specifications 6

Regulatory Information 7

Product overview

This is the TruVision IR Bullet Camera Installation

Guide for models TVB-2201 / TVB-2202 / TVB-4201

/ TVB-4202. This guide describes a standard

installation.

Installation Guide 3

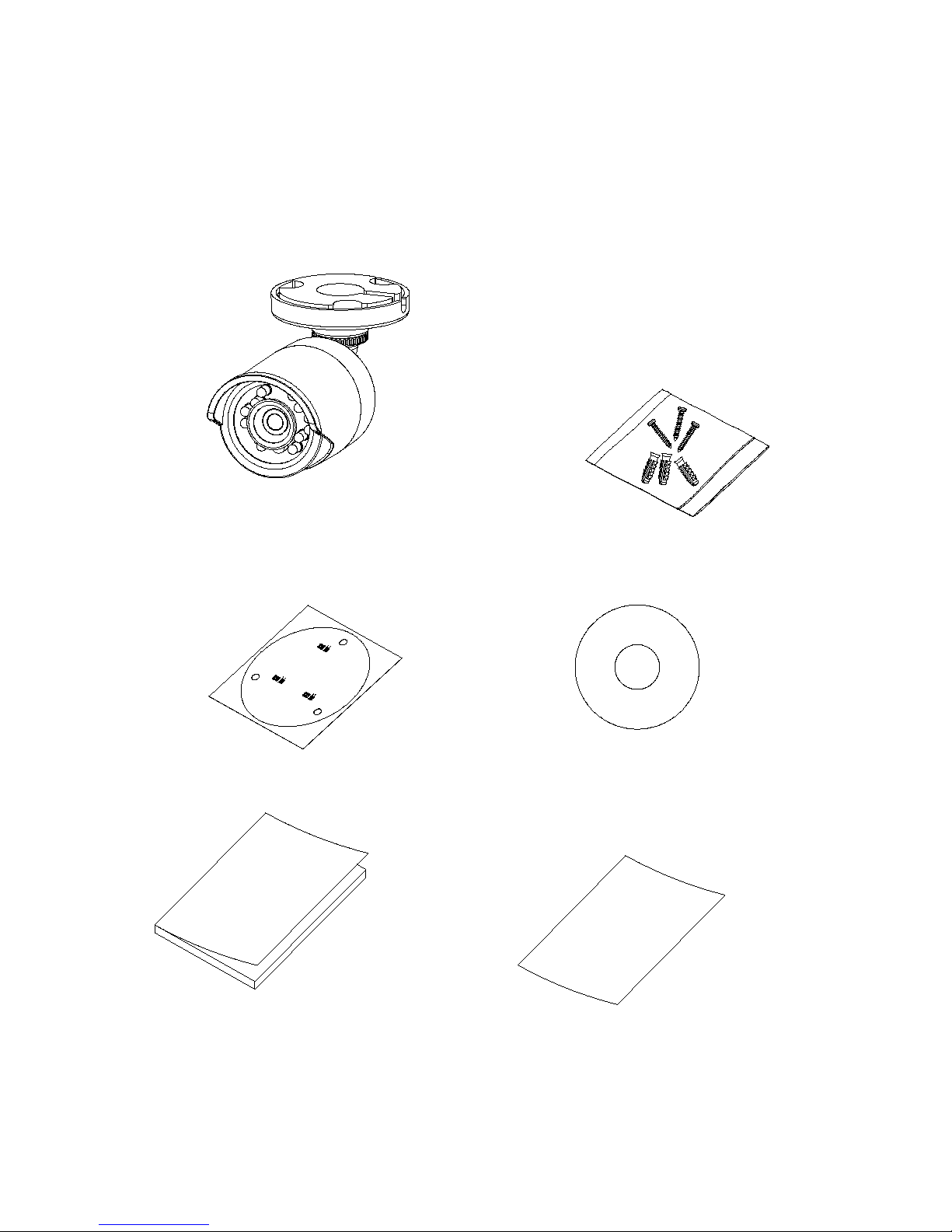

Package contents:

Camera with power

and video output

cables

3 M4 screws (3 x

25 mm) and 4 dry

wall anchors (Ø7.5

x 24.5 mm) for wall

or ceiling

installation

Template

CD

Installation Guide

•WEEE and Battery

Disposal

4 Installation Guide

Camera description

1. Video cable

2. Power cable

3. Mounting base

4. Sun shield

5. Lens

6. IR LED

Installation

To install the camera:

1. Using the template, place it level against the

mounting surface and mark the position of the

mounting holes.

Installation Guide 5

2. Following all local codes, drill and prepare the

mounting holes.

3. Securely fasten the mount to the mounting

surface with the supplied screws.

4. Connect a 75-ohm coaxial video cable to the

video cable and a 12 VDC power supply to the

power cable.

5. Loosen the bracket screws and then adjust the

camera position and angle as required.

Drill Template

6 Installation Guide

6. Retighten the bracket screws.

Specifications

Power supply 12 VDC

Current Max. 330 mA

Power

consumption

1.8 W max.(Max. 4 W with

IR cut filter on)

Weight 0.79 lb. (360 g)

Dimensions

(Ø × L)

2.76 x 5.89 in.

(70 x 149.5 mm)

360°

90°

360°

Installation Guide 7

Regulatory Information

Interlogix is part of UTC Building & Industrial Systems, a unit of

Trademarks and patents:

Trade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective products.

Manufacturer:

Interlogix

2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification:

N4131

FCC compliance: Class A

Class A: This equipment has been tested and found to comply

with the limits for a Class A digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is

erated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful

8 Installation Guide

interference in which case the user will be required to correct the

interference at his own expense.

ACMA compliance

Notice! This is a Class A product. In a domestic environment this

product may cause radio interference in which case the user may

be required to take adequate measures.

Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme

NMB-0330 du Canada.

European Union directives:

12004/108/CE (EMC directive): Hereby, UTC Fire & Security declares

that this device is in compliance with the essential requirements and

other relevant provisions of Directive 2004/108/EC.

2002/96/CE (WEEE directive): Products marked

with this symbol cannot be disposed of as

unsorted municipal waste in the European Union.

For proper recycling, return this product to your

local supplier upon the purchase of equivalent

new equipment, or dispose of it at designated

collection points. For more information see:

www.recyclethis.info.

Contact information:

For contact information, see www.interlogix.com or

www.utcfssecurityproducts.eu..
