HYDRAVISION

for

Fire GL

Installation and User's Guide

Version 1.0 P/N 137-50002-10 Rev. A

the express written permission of ATI Technologies Inc.

Products may not be exactly as shown. Features, performance, and specifications may vary

depending on operating environment and are subject to change without notice. Trademarks

and/or registered trademarks are the properties of their respective owners.

Adobe and Acrobat are trademarks of Adobe Systems Incorporated, which may be registered in

certain jurisdictions.

ATI is a registered trademark of ATI Technologies Inc. in Canada, the United States and/or

other countries.

Fire GL is a trademark of ATI Technologies Inc. in Canada, the United States, and/or other

countries.

MS-DOS, Windows, Windows NT, Windows 2000, Windows XP, DirectDraw and Direct3D are

either registered trademarks or trademarks of Microsoft Corporation in the United States and/or

other countries.

MACROVISION PRODUCT NOTICE

A. Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and 4,907,093

licensed for limited viewing users only.

B. In the printed collateral material that accompanies the Product, the following notice must be

printed in an appropriate place in such materials:

This product incorporates copyright protection technology that is protected by method claims of

certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and

other rights owners. Use of this copyright protection technology must be authorized by

Macrovision Corporation, and is intended for home and other limited viewing uses unless

otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is

prohibited.

2 Using ATI HYDRAVISION™

Using ATI

HYDRAVISION™

Your Fire GL provides dual display functionality from a single

video card. This new technology changes the way you view

your PC and video graphics.

The ATI® HYDRAVISION™ is a software utility to create a

seamless multiple display desktop. Multiple monitor display

works as one large work area. A single application can span all

monitors or many applications can occupy its own specific

monitor. This feature will take your PC’s graphics and video

capabilities to the next level.

IN THIS GUIDE

 Installing ATI HYDRAVISION™

 How to Start ATI

HYDRAVISION™

 How to Use ATI

HYDRAVISION™

 Uninstalling the ATI

HYDRAVISION™ Software

Back to Fire GL User’s Guide

Using ATI HYDRAVISION™ 3

Installing ATI

HYDRAVISION™

To install HYDRAVISION™, perform the following steps:

1 Insert the Fire GL CD into the appropriate CD-ROM drive.

2 Run the ATI Setup program by selecting Run from the

Windows Start menu and selecting the path to the ATI

install.exe file using the Browse button.

3 Click OK. Follow the ATI Setup program prompts to the

ATI FGL Install dialog box.

4 Using ATI HYDRAVISION™

4 Click Standard to install the ATI Fire GL video drivers

and HYDRAVISION™. If you select a Custom

installation, make sure to to check the HydraVision

checkbox.

5 Follow the instructions on your screen to complete the

HYDRAVISION™ installation.

6 If you choose to use HYDRAVISION's™ various display

options available to you like "hot keys", via the

HYDRAVISION™ Hot Keys dialog box (which can be

defined to control specific functions), "application specific

settings" can be applied to specific programs, and much

more.

7 You are now ready to use your Fire GL and

HYDRAVISION™

Using ATI HYDRAVISION™ 5

How to Start ATI

HYDRAVISION

™

Windows® XP and Windows® 2000

1 Right-click on a clear area of your screen.

2 Click HYDRAVISION to open the HYDRAVISION™

Desktop Management.

Windows® NT4.0

1 Right-click on a clear area of your screen.

2 Click Properties

3 Click the Desktop Management tab.

Note

HYDRAVISION™ is not available if you have specifically

deselected Use HydraVision for Placement in the

DualScreen dialog. Check Use HydraVision for

Placement in the DualScreen dialog to enable

HYDRAVISION™.

6 Using ATI HYDRAVISION™

How to Use ATI

HYDRAVISION™

HYDRAVISION™ software is specifically designed for use

with Windows® NT, Windows® 2000 and Windows® XP Pro.

HYDRAVISION™ installation enables the Desktop Manager

and creates a Windows® program group for

HYDRAVISION™ display management software.

HYDRAVISION™ is activated whenever Windows® starts..

The ATI® HYDRAVISION™ Desktop Manager allows you to

modify your display options. You can access the Desktop

Management and Hot Keys dialog boxes by clicking on

the appropriate tab in the Desktop Manager.

Along the bottom of each ATI® HYDRAVISION™ dialog are

four buttons: OK, Cancel, Apply and Help.

OK implements the changes you’ve made in the ATI®

HYDRAVISION™ dialog and exits the Desktop Manager.

Changes take effect immediately unless you see a message

prompting you to restart your computer.

Cancel discards

all

changes made to any section of

the ATI® HYDRAVISION™ dialog and closes the Desktop

Manager.

Apply implements your changes without closing the

Desktop Manager.

Help connects to either local or on-line HTML-based

help. You can also get context -sensitive on-screen help by

moving your mouse over the relevant text for each control.

Using ATI HYDRAVISION™ 7

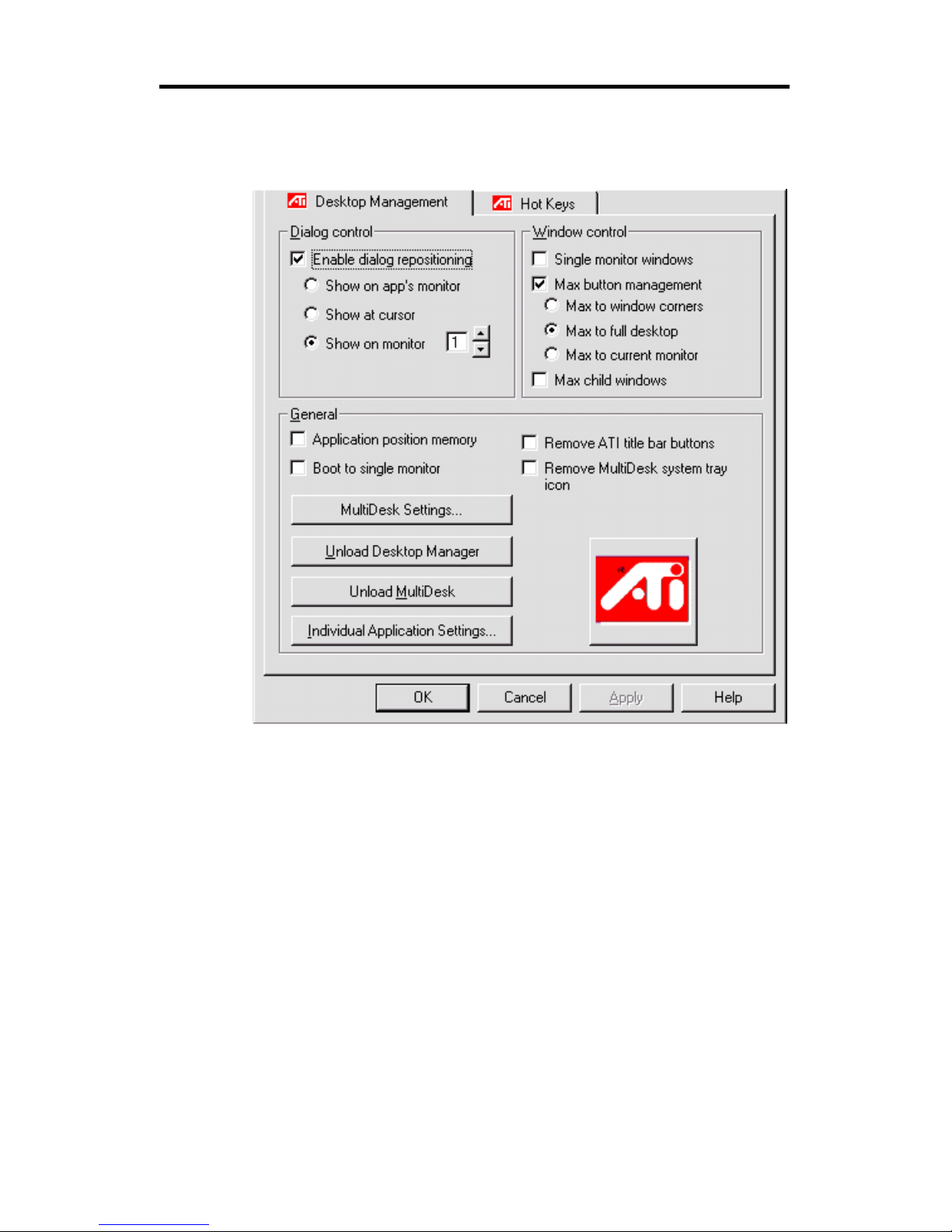

Desktop Management Controls

The Desktop Management dialog lets you determine the

behavior of pop-up windows and dialog boxes in a multiple

monitor environment.

Dialog control:

Enable dialog repositioning—Toggles dialog control on and

off. When it is checked, you can choose to have dialog boxes

appear on the parent application’s monitor (The parent

application is the application that generated the dialog box.). If

the parent application or associated monitor cannot be located,

the dialog box defaults to monitor 1. You can also choose to

have dialog boxes appear on the monitor in which the cursor is

located or to always appear on a specific monitor in the array.

8 Using ATI HYDRAVISION™

Window control:

Single monitor windows—When this box is checked, windows

are sized no larger than a single monitor. Windows that are

placed on monitor splits are automatically relocated to the

monitor on which most of the window appears.

Max Button Management—Allows you to control the

behavior of the Windows® Maximize button. When ATI®

HYDRAVISION™ is running, a HYDRAVISION

Max/Restore button appears in the upper right corner of your

application title bars. Clicking this icon makes the active

window maximize in one of the following ways:

- Max to window corners causes windows to maximize to

the monitor(s) that contain the window’s upper left and

lower right corners.

- Max to full desktop causes windows to maximize to the

entire monitor array.

- Max to current monitor causes windows to maximize to

the current monitor.

Max child windows—Keeps windows generated by parent

applications from splitting across monitors (A child window is a

window residing within a parent application window.). The

ability to keep child windows on a single monitor when

maximized is extremely useful for editing multiple documents

side by side in a parent application.

Note:

ATI® HYDRAVISION™ application title bar icon

changes from a single square to two smaller squares

when a window is in a ATI® HYDRAVISION™

maximized state. Clicking the icon again restores the

The active window to its default state as a single

square

Using ATI HYDRAVISION™ 9

General:

Application position memory—Check this box to “remember”

the size and location of application windows when they are

closed and reapply those settings when the application is

reopened.

Boot to single monitor—Check this box to enable a single

monitor only when the computer boots. All other connected

video devices will be disabled. Please note that Extended

Desktop must be enabled before the computer is restarted.

Remove ATI title bar button—This box removes or restores

the ATI buttons placed on the title bar in installed applications.

Remove MultiDesk system tray icon—This box removes or

restores the MultiDesk system tray icon.

MultiDesk Settings - This button gives access to all the

MultiDesk Properties. Here you enable, disable, and name

active desktops

Load/Unload Desktop Manager - This button restores or

removes the HYDRAVISION™ Desktop Manager tracking

program. You should only select this option if you do not want

to use any multiple monitor dialog box and window controls or

hot keys.

Load/Unload MultiDesk - This button restores or removes

multiple desktop functionality.

Note:

MultiDesk will not reload automatically when

Windows® restarts. You will need to reload MultiDesk

from the Desktop Manager dialog box.

Note:

MultiDesk will not reload automatically when

Windows® restarts. You will need to reload MultiDesk

from the Desktop Manager dialog box.

10 Using ATI HYDRAVISION™

Individual Application Settings - This button allows you to

specify, enable and disable desktop management settings for

individual applications. You can access these settings by

clicking on the down arrow of the HYDRAVISION™ icon in

the application title bar or by pressing the Individual

Application Settings button in the Desktop Management

dialog.

Note: These settings override the global settings defined in

the Desktop Management dialog.
