Geeetech Acrylic Prusa I3 Instrucciones de operación

Assemble manual of Geeetech acrylic Prusa I3

Prologue

Note: This manual only applies to the 5-mm acrylic Prusa I3. We have

another one that is 8-mm.

As picture is much more helpful than words in assembly manual, so I use plenty of

pictures and less word. If you have any questions, please contact me on

www.geeetech.com and find me on Skype.

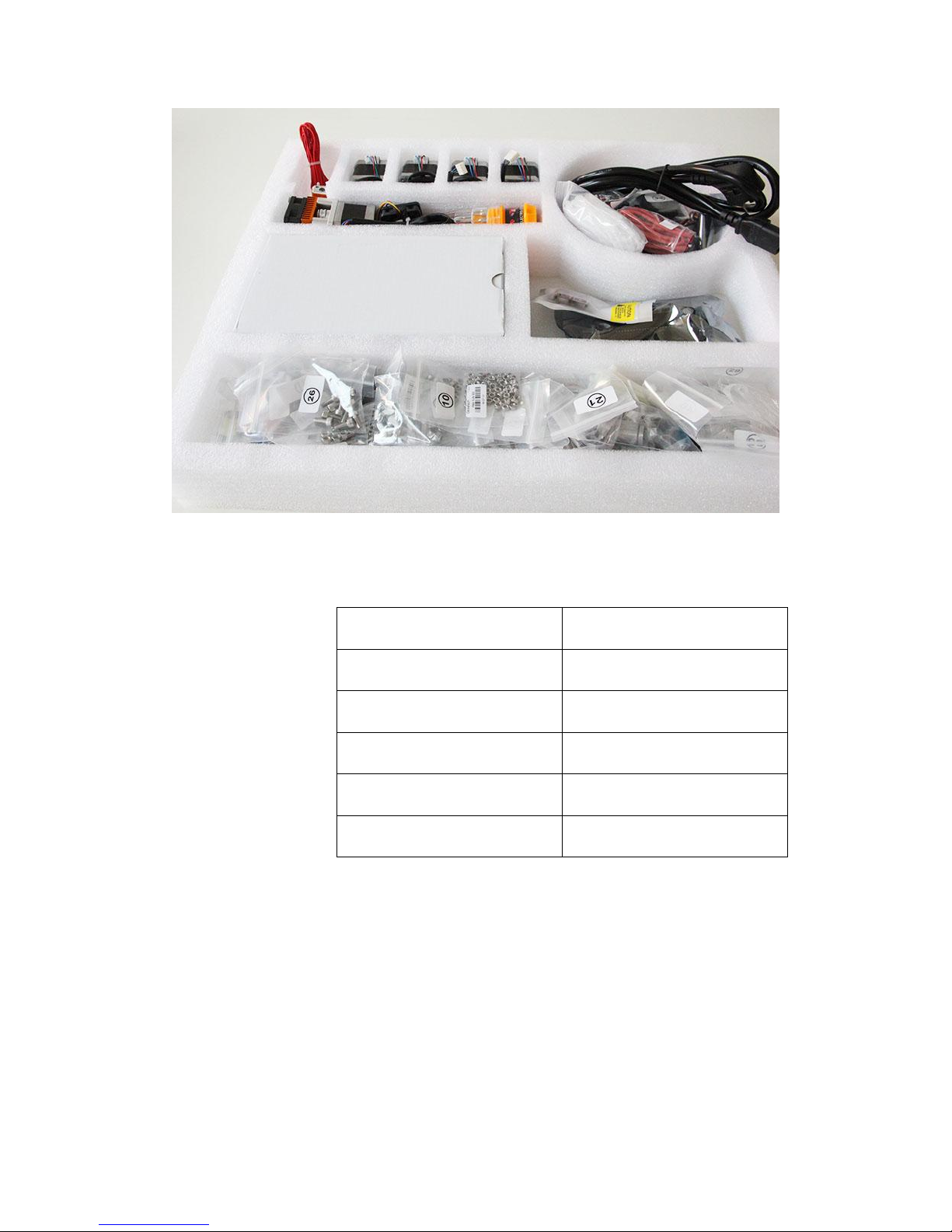

Unfold the package and take all the parts out to check the condition of

the items.

1. Assemble Y axis (the bottom part of the chassis)

1.1 Assemble the rods of a Y axis

Part ID

Required parts

NO.5

M10 450mm threaded rod

NO.A 12

Acrylic Fender

NO.17

M8 spring washer

NO.7

M10 washer

NO.12

M10 nut

Step1. Assemble the threaded rod

Thread the nuts and washers on the two M10 threaded rods separately. The order should be:

M10 washer > M8 spring washer M10 screw > M10 screw > M10 washer > >A 12> M10 washer >

M8 spring washer > M10 screw > M10 screw > M8 spring washer > M10 washer

Step2. Assemble the Y axis smooth rod

Slide 2 bearings on each smooth rod. Before you slide the bearings please make sure they are

clean. (Ignore the black one in between)

Part ID

Required parts

NO.3

M8 410mm smooth rod

NO.32

LM8UU Linear Bearings

1.2. Attach the front and rear Acrylic support plates of the rods.

Front Rear

Part ID

Required parts

No. A7, A 8, A 9, A 10)

Acrylic plate

N0.10

M 3 nut

No. A11

Acrylic Fender

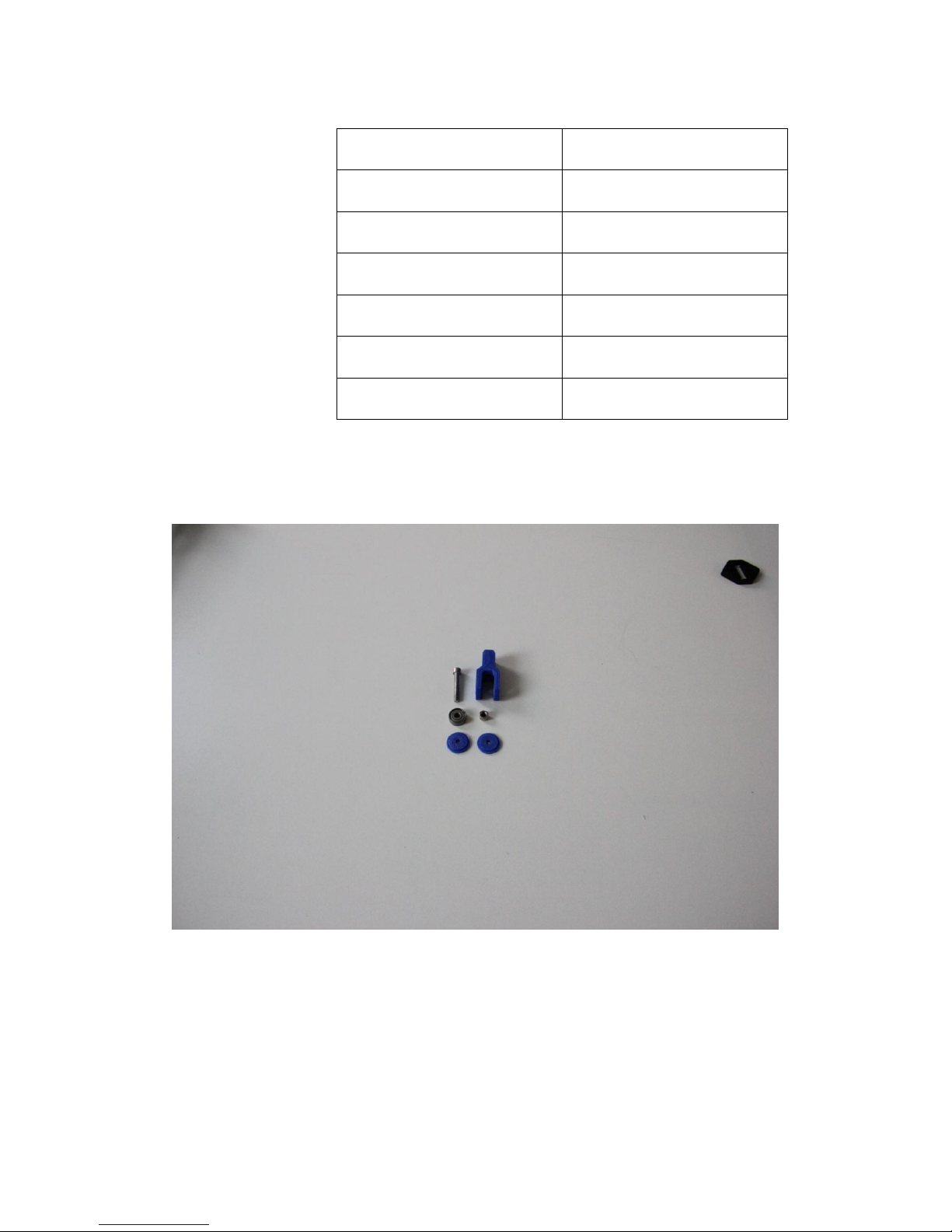

1.3 Assemble the Y idler

Part ID

Required parts

NO.31

624ZZ Ball bearing

NO. P8

Printed Y idler

NO.28

M4 X25 screw

NO.11

M4 nut

A18

Y bearing limit block

P9

Retaining ring

Step1. Put the screw through the printed Y idler piece, with the 624ZZ bearings in between.

Lock the other end of a M3 nut.

Step2. Mount the assembled idler onto the front support plates.

1.4 Mount the Y motor.

Part ID

Required parts

NO. A13, A14

Y-axis motor block

60

Stepper motor

35

pulley

20,24

M3 screw

10

M3 nut
