Geeetech Acrylic I3 Pro Instrucciones de operación
Assemble Instruction of Geeetech Acrylic Prusa I3
Pro & pro B & pro C
1
Shenzhen GETECH CO.,LTD
GEEETECH
Safety Instructions
Building the printer will require a certain amount of physical dexterity, common sense
and a thorough understanding of what you are doing. We have provided this detailed
instruction to help you assemble it easily.
However ultimately we cannot be responsible for your health and safety whilst
building or operating the printer, with that in mind be sure you are confident with
what you are doing prior to commencing with building or buying. Read the entire
manual to enable you to make an informed decision.
Building and operating involves electricity, so all necessary precautions should be
taken and adhered to, the printer runs on 12V supplied by a certified power supply, so
you shouldn’t ever have to get involved with anything over 12V but bear in mind
there can still be high currents involved and even at 12V they shouldn’t be taken
lightly.
High temperatures are involved with 3D Printing, the Extrusion nozzle of the hot end
can run about 230°C, the heated bed runs 110°C and the molten plastic extruded will
initially be at around 200°C, so special care and attention should be made when
handling these parts of the printer during operation.
We wouldn’t recommend leaving your printer running unattended, or at least until you
are confident to do so. We cannot be held responsible for any loss, damage, threat,
hurt or other negligent result from either building or using the printer.
2
Shenzhen GETECH CO.,LTD
GEEETECH
Preparation
1. Unpack the kit and check if all parts are in the box and check the condition of each
part, there might be some damage during shipping. To help you with this, there is
BOM in the box and each bag was labeled with part number.
2. Contact our customer service immediately by email or through the website if you
find any missing or damaged parts. And on the bottom of the BOM, there is a
signature of reviewer, please take a picture of it and attach the picture in your mail.
3. Read through each chapter of these instructions to gain an over-all idea of what is
involved and how long it might take, before starting on the work described.
4. Before you start, you can put all the part in order to save your time especially those
screws and nuts. Do not mix them up.
5. Ensure you have the necessary skills to carry out the work, or enlist the help of
someone who does.
6. Work on a big firm table or bench in a clean dry well-lit area.
7. This kit contains tiny parts; please keep them away from kids under 3.
8. Ask for help if you run into any problems - our contact details are on the website
and we will always do our best to resolve any problems encountered.
1 Unfold the box and check the package
3
Shenzhen GETECH CO.,LTD
GEEETECH
Unfold the package and take all the parts out to check the condition of the items. As
you can see, all the parts are packed very carefully.
All the acrylic plate has been etched with part ID and the plate is covered with
a sheet of Kraft paper, you need to tear them off.
4
Shenzhen GETECH CO.,LTD
GEEETECH
Tips:
1. Before assembly, you are advised to put all the parts, especially the screws and nuts
5
Shenzhen GETECH CO.,LTD
GEEETECH
in order, which will save you a lot of time looking for the required parts.
2. The part ID is corresponding to the number labeled on the bag of every part. Some
parts may not have label, you can refer to the pictures on the package list.
2 Assemble Y axis
2.1 Assemble the rods of a Y axis
Step1. Assemble the 2 threaded rods.
Pic
Part ID
Required number
Required parts
NO.5
2
M10 threaded rod
NO.A14
2
Y plate connecting
plate
NO.18
6
M10 spring washer
NO.9
8
M10 washer
6
Shenzhen GETECH CO.,LTD
GEEETECH
NO.12
8
M10 nut

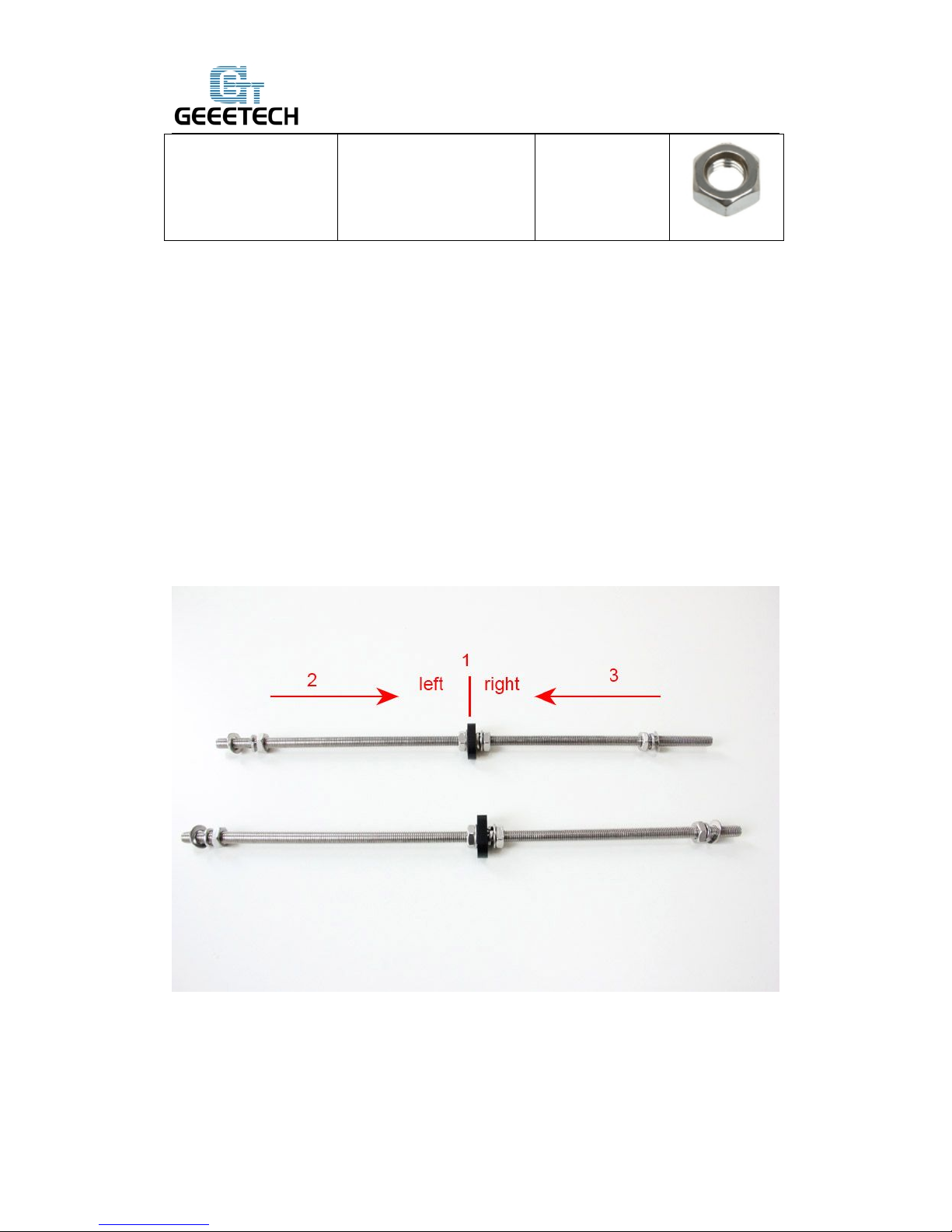

Thread the nuts and washers into the two M10 threaded rods separately. The order
should be:
1) Thread the acrylic fender (Y plate connecting plate) in the middle.
2) Thread the M10 washer > M8 spring washer >M10 nut > M10 nut > M10 washer
on the left
3) Thread theM10 washer < M8 spring washer < M10 nut < M10 nut< M8 spring
washer < M10 washer on the right
7
Shenzhen GETECH CO.,LTD
GEEETECH
Step2. Assemble the 2 smooth rods
Pic
Part ID
Required number
Required parts
NO.3
2
M8 smooth rod
NO.39
4
LM8UU Linear
bearings
Slide 2 bearings on each smooth rod. Before you slide the bearings please make sure
they are clean.
8
Shenzhen GETECH CO.,LTD
GEEETECH
1.2. Attach the front and rear Acrylic support plates of the rods.
9
Shenzhen GETECH CO.,LTD
GEEETECH
Step1.Slide the locking ring on the smooth rods, thread the rods into the acrylic plate;
adjust the length so that the smooth rods fit snugly between the front and rear piece.
Step2. Screw up the rods and plate with M10 nut and M10 washer.
Pic
Part ID
Required number
Required parts
NO. A9,
A 10
2
Acrylic
plate( front)
NO. A 11, A
12
2
Acrylic
plate( rear)
NO.9
4
M10 washer
NO.12
4
M10 nut
NO.19
2
Screw locking
ring
