Geeetech Acrylic I3 Pro Manual de usuario

Acrylic Geeetech I3 Pro C

3D Printer

GEEETECH

- 1 -

The copyright of this manual belongs to the Shenzhen GETECH

CO., LTD. (hereinafter referred to as the "Geeetech"), and all rights

reserved. No part of this specification should be reproduced or

extracted in any forms or means without the prior written consent of

Geeetech by any company and individuals.

Technical Support

If you are interested in the technology of 3 D printing, flight

control and U-home, welcome to Geeetech, we have series of

made-up products, main boards, modules and a variety of peripherals

for you. Or if you are looking for relevant information or technical

support, please log in our Forum where you can find anything you

want about open source. To know more about our new products,

please visit www.geeetech.com, we will serve you wholeheartedly.

GEEETECH

- 2 -

SAFETY INSTRUCTIONS

Building the printer will require a certain amount of physical

dexterity, common sense and a thorough understanding of what you

are doing. We have provided detailed instructions to help you

assemble it easily, please download at geeetech.com.

However ultimately we cannot be responsible for your health and

safety whilst building or operating the printer, with that in mind be

sure you are confident with what you are doing prior to commencing

with building or buying. Read the entire manual to enable you to

make an informed decision.

Building and operating involves electricity, so all necessary

precautions should be taken and adhered to, the printer runs on 12V

supplied by a certified power supply, so you shouldn’t ever have to

get involved with anything over 12V but bear in mind there can still

be high currents involved and even at 12V they shouldn’t be taken

lightly.

High temperatures are involved with 3D Printing, the Extrusion

GEEETECH

- 3 -

nozzle of the hot end can run about 230°C, the heated bed runs 110°C

and the molten plastic extruded will initially be at around 200°C, so

special care and attention should be made when handling these parts

of the printer during operation.

We wouldn’t recommend leaving your printer running unattended,

or at least until you are confident to do so. We cannot be held

responsible for any loss, damage, threat, hurt or other negligent result

from either building or using the printer.

INTRODUCTION:

This Acrylic I3 Pro 3D printer is designed and manufactured by

Shenzhen Getech Co., Ltd based on the Reprap Prusa I3, Geeetech I3

features simple assembly, easy debugging and more stable

performance. The acrylic structure makes the printer much easier to

operate.

PACKAGE LIST:

This list includes all the parts required to assemble your Acrylic

GEEETECH

- 4 -

Frame Geeetech I3 Pro 3D Printer. After you received your package,

please check if all the parts listed are included. Also make sure all the

components are in good condition and not damaged during shipping.

If anything is missing please contact with our customer service

straight away, provide us the NO. , Name, and Qty.

Name

Specifications

Qty

Pic

Smooth Rod

D8*L322mm

Smooth Rod

D8*L390mm

Smooth Rod

D8*L410mm

Threaded

Rod

M8*L300mm

Z-axis screw

Threaded

Rod

M10*L450m

m Y-axis

GEEETECH

- 5 -

M2.5

Washers

M2.5

M3 Washers

115

M4 Washers

M10

Washers

M10

Nut

M2.5

Nut

M10

Lock nut

GEEETECH

- 6 -

Lock nut

Wing nut

Square nut

Z-axis nut

Φ8

（tin-bronze）

Spring

washer

M10

Screw

locking ring

Φ8

Screw

M2.5x8 mm

Screw

M2.5x16 mm

Screw

M3x6mm

Screw

M3x8mm

Screw

M3x10mm

GEEETECH

- 7 -

Screw

M3x12mm

Screw

M3x16mm

Screw

M3x20mm

Screw

M3x30mm

Screw

M3x35mm

Screw

M3x40mm

Screw

M4x6mm

Screw

M4x25mm

Bolts

countersunk

head bolt

M3x16mm

Spring

GEEETECH

- 8 -

LM8UU

Linear

Bearings

LM8UU

LM8LUU

Linear

Bearings

LM8LUU

Linear

Bearing

LMH8LUU

Timing Belts

L1=775(Y

axis)

Timing Belts

L1=860mm(X

axis)

GEEETECH

- 9 -

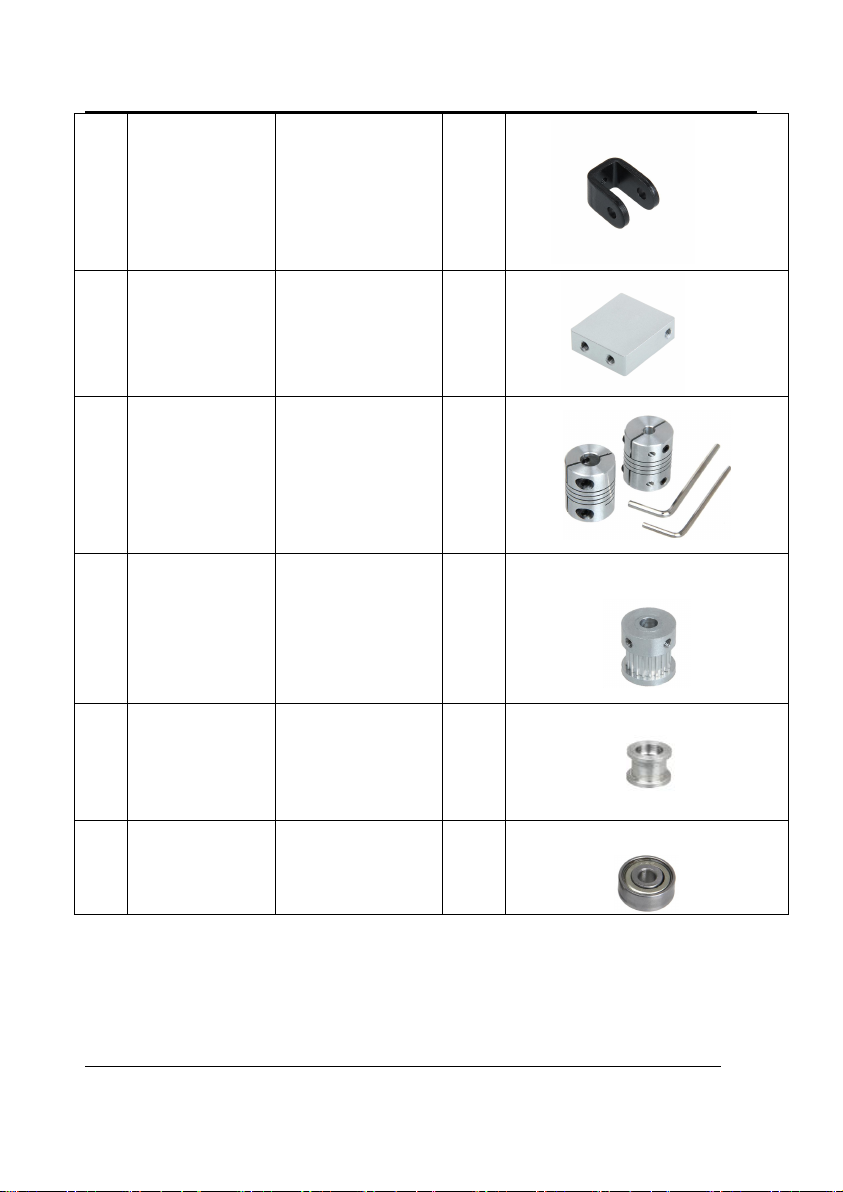

Bearing

holder

metal plate

Belt mount

Aluminum

plate

Couplings

5-8mm

Pulleys

20 tooth

d5mm

Driving

wheel

Ball bearing

MR84zz
