Geeetech Delta Rostock mini G2S Pro Manual de usuario
Delta Rostock mini G2S Pro
3D Printer
GEEETECH
- 1 -
Copyright Declaration
The copyright of this manual belongs to the Shenzhen GETECH
CO., LTD. (hereinafter referred to as the "Geeetech"), and all rights
reserved. No part of this specification should be reproduced or
extracted in any forms or means without the prior written consent of
Geeetech by any company and individuals.
Technical Support
If you are interested in the technology of 3 D printing, flight
control and U-home, welcome to Geeetech, we have series of
made-up products, main boards, modules and a variety of peripherals
for you. Or if you are looking for relevant information or technical
support, please log in our Forum where you can find anything you
want about open source. To know more about our new products,
please visit www.geeetech.com, we will serve you wholeheartedly.
GEEETECH
- 2 -
SAFETY INSTRUCTIONS
Building the printer will require a certain amount of physical
dexterity, common sense and a thorough understanding of what you
are doing. We have provided detailed instructions to help you
assemble it easily, please download at geeetech.com.
However ultimately we cannot be responsible for your health and
safety whilst building or operating the printer, with that in mind be
sure you are confident with what you are doing prior to commencing
with building or buying. Read the entire manual to enable you to
make an informed decision.
Building and operating involves electricity, so all necessary
precautions should be taken and adhered to, the printer runs on 12V
supplied by a certified power supply, so you shouldn’t ever have to
get involved with anything over 12V but bear in mind there can still
be high currents involved and even at 12V they shouldn’t be taken
lightly.
High temperatures are involved with 3D Printing, the Extrusion
nozzle of the hot end can run about 230°C, the heated bed runs 110°C
and the molten plastic extruded will initially be at around 200°C, so
GEEETECH
- 3 -
special care and attention should be made when handling these parts
of the printer during operation.
We wouldn’t recommend leaving your printer running unattended,
or at least until you are confident to do so. We cannot be held
responsible for any loss, damage, threat, hurt or other negligent result
from either building or using the printer.
INTRODUCTION:
This Rostock mini G2s pro is a upgraded delta 3D printer
redesigned by Geeetech.
Compared to its predecessor, this G2s pro has two major merits, it
looks cooler and it works better.
The printing effector of the G2s pro is upgraded with metal parts,
which are more durable and stable than the prints. The whole machine
is craft out of high-quality aluminum and laser cut acrylic plate,
making it more stable and smooth when printing, improving the
printing accuracy and speed to a higher level.
An metal auto-leveling device is also improved on G2s pro;
which means you do not have to adjust it every time before you start
GEEETECH
- 4 -
printing, and with this new metal leveling device, the calibration will
be more accurate.
PACKAGE LIST:
This list includes all the parts required to assemble your Delta
Rostock mini G2s pro 3D Printer. After you received your package,
please check if all the parts listed are included. Also make sure all the
components are in good condition and not damaged during shipping.
If anything is missing please contact with our customer service
straight away, provide us the NO. , Name, and Qty.
Mechanical parts
No
Name
Specifications
Qty
Pic
1
Smooth
Rod
D10
L500mm
6
2
Spool
D8
L235mm
1
GEEETECH
- 5 -
3
Rod-end
bearing
holder
D6.5
23mm
12
4
Diagonal
Rod
With rod-end
bearing
6
5
M3
Washers
M3
101
6
M4
Washers
M4
15
7
M5
Washers
M5
8
8
M8
Washers
M8
12
9
Nut
M2.5
6
10
Nut
M3
8
GEEETECH
- 6 -
10A
nut
M5
24
11
Lock nut
M4
3
12
Wing nut
M3
6
13
Square
nut
M3
27
14
Hex
Counter-
sunk-hea
d screw
M3x30 mm
3
15
Round
head
screw
with pad
M3 x 8 mm
12
16
Screw
M2.5x8mm
2
17
Screw
M2.5x16mm
8
18
Screw
M3x8mm
12
19
Screw
M3x12mm
32
GEEETECH
- 7 -
20
Screw
M3x16mm
32
21
Screw
M3x20mm
2
22
Screw
M3x25mm
8
23
Screw
M3x40mm
3
24
Screw
M4x8mm
12
24A
Screw
M4x12mm
8
25
Screw
M4x16mm
2
26
Screw
M4x25mm
3
27
Screw
M5x16
12
27A
Screw
M5x20
12
28
Spring
4.0x 20（for heat
bed）
3
29
Spring
3.5*30 （for
endstop trigger)
4
30
locking
ring
M8
With Jimmy bolt
2
GEEETECH
- 8 -
31
Ball
Bearing
MR84zz
6
32
Driven
wheel
3
33
Driven
wheel
holder
Sheet metal
part
3
34
Pulley
20 tooth
3
35
Linear
Bearing
PCS10UU
6
36
Timing
Belts
2GT
L=1200mm
3
GEEETECH
- 9 -

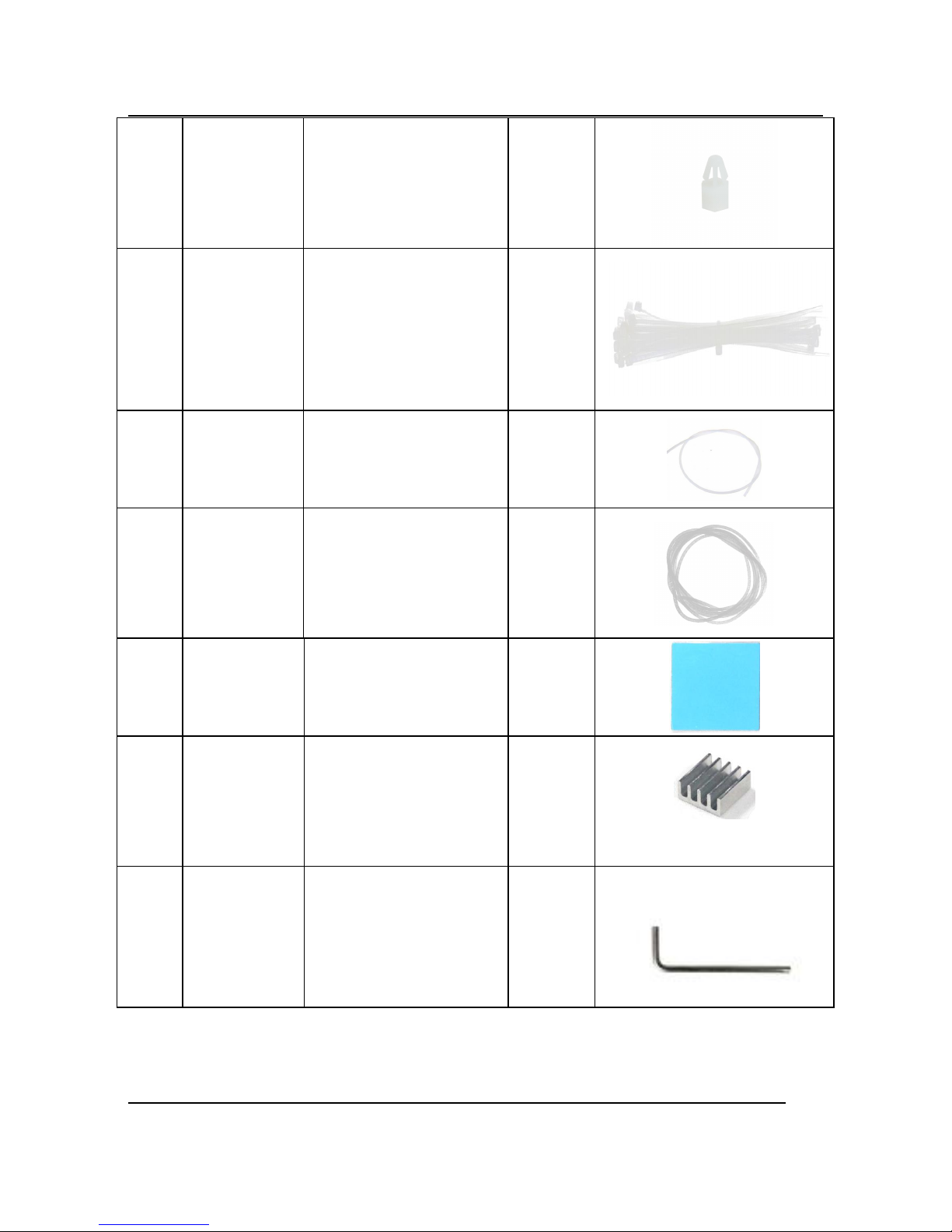

37
Spacer
With Aircraft
type end
8
38
Nylon
ties
20
39
Feeding
pipe
PTFE
L=600mm
2
40
Spiral
Coil
3 meters
1
41
Sticker
2
42
Heat sink
9*10*5mm
5
43
Probe
Φ3 L60mm
1
