Dancover ProShed Manual de usuario

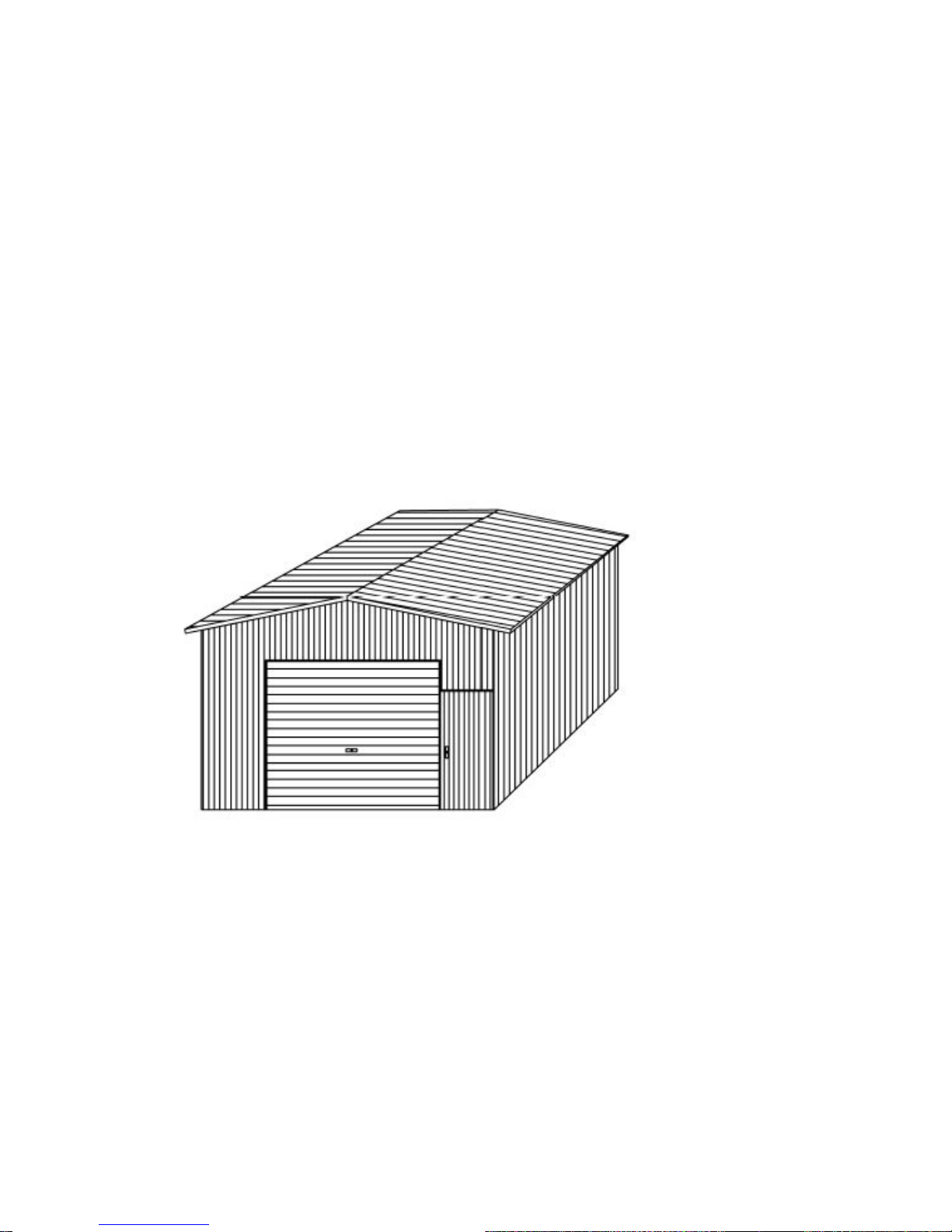

5x8m Garage Installation Instruction

Metal Garage

Owner's Manual

Instructions for Assembly

Size 5x8m

SAFETY AND HAZARD INSTRUCTIONS

CAUTION

Read the following safety warnings and all instructions in their entirety prior to installation.

WARNING:

Metal parts may get hot when exposed to high heat or direct sunlight. Avoid contact with skin and wear protective gloves

and clothing to prevent the possibility of burns.

WARNING:

Metal conducts electricity and electrical shock hazards exist since the structure is made of metal. During installation or storage,

keep the structure and all components away from electrical sources. Make sure that your selected location is away from power lines,

underground cables, and any other source of electrical power. Serious injury or even death may occur if contact is made with electrical current.

WARNING:

If the structure is moved once it has been installed, be certain to inspect all components and conditions and follow each and every step of

these instructions to make certain that the structure is securely anchored, properly installed, and aligned. Failure to follow these steps

could lead to collapse of the structure and may result in serious risk of injury.

WARNING:

In the event that your structure is enclosed, be sure to provide proper and adequate egress and ingress.

Hazardous, poisonous or noxious substances should not be stored in the structure and the following all warnings

and instructions of the manufacturer of the substance. Also, proper ingress and egress should be provided to prevent persons

or children from becoming trapped inside the structure.

WARNING:

The product metal panels are selected to cover all or a portion of your structure, be careful of the sharp edges which may cause cuts

or lacerations. Wear protective work gloves and suitable clothing for protection and always take care when handling metal parts.

WARNING:

Always wear safety glasses or goggles when installing self-drilling screws.

PART LIST FOR 5X8m GARAGE

Part No. Diagram

Length(m)

QTY(pcs) Part No. Diagram QTY(pcs)

FB01 2.8 4 UC 69

CC 10

FB02 2.4 2 LC 23

FB03 1.78 1 VC 3

FB03-1 1.78 1

IC 3

FB04 3 1 OC 3

FB04-1 3 1

RB 5

FP 3 7 S0 6

FP-1 3 1 S1

FR 2.44 8 S2

FP01 2.7 2

FP01-1 2.7 1 DC 2

RP 2.6 24

DA 1

WP 2.6 6

WB 2.24 2 DG 2

WB-1 0.9 2

DP 1

RP01 2.66 26 RP01

DF 1

WP01 3.04 26

WP01 WP02-3 1

WP01-1 WP01-3 3.04 1

WP01-2 WP01-4 2.94 1

WP01-3L WP01-1L 2.84 1 WP01-1 WP02-3L 1

WP01-4L WP01-2L 2.74 1

5x8m Garage

Frame Sketch

Width:5m

Length:8m

On center frame spacing:2.6m

Wall Height:3m

height:3.5m

FB01

FB02

FB03

FB04

Front

Back

Left

Right

Ridge

Sep#1.Base Installation

Measure and install base as following.

Make sure diagonal dimentsions should be equal.

Note:Don't fix the anchor bolt now.

Diagonal dimensions

should be equal

FB01

FB02

FB03

FB03-1

FB04

FB04-1

Front

Right

Back

Left

Sep#2.Post installation

Assemble 11 pcs posts and plug in pins.(as

following)

FP-1

FP01

FP01-1

Front

Right

Back

Left

Sep#3.Roof frame installation

Make 2pcs roof frame as a whole one 4.88m.

Lift and assemble roof frame between 2 posts.(as following)

Front

Right

Back

Left

Sep#4.Roof and side wall purlin installation

Assemble roof purlin between 2 roof frames.

Then assemble wall purlin between 2

Note:

Adjust the frame.

Now fix the 6pcs S0.

WB-1

Front

Right

Left

Back

posts.
