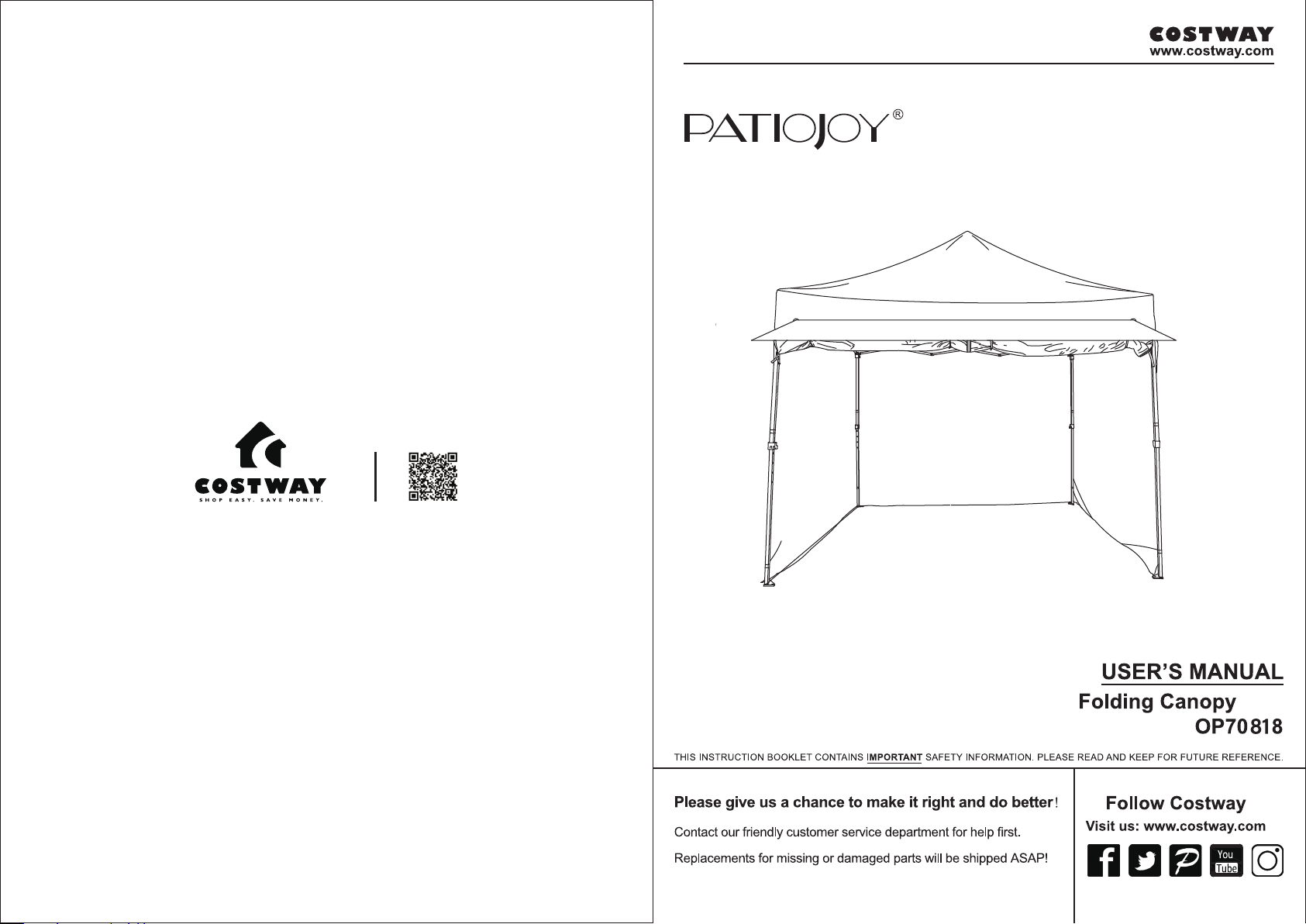

Costway PATIOJOY OP70818 Manual de usuario

Tent

Keep all flame and heat sources away from this canopy top and sidewall

fabric.This canopy top is made with flame resistant fabric which meets CPAI-84

specification.It is NOT FIRE PROOF.The fabric will burn if left in continuous

contact with any flame source.The application of any foreign substance to this

fabric may render the flame resistant properties ineffective.

Top Cap

Eave

Assembly

Ceiling

Assembly

Center Pole

Leg

Assembly

Wheeled Storage Bag

Fabric

Top

Stake

Guy Rope

I

D

G

H

F

E

A

Awning Top

Awning Poles

K

J

5

is reached.

strips

strips

SET STAKES

Anchor each leg with a stake by inserting the

stake through the hole at the foot of each canopy

leg.

STRING GUY ROPE

Tie each guy rope to an upper loop at each corner

of the canopy top. Extend the rope and anchor them

to the ground with the included stakes. The guy

rope should make a 45° angle with the ground and

the canopy. The stake should anchor with the

majority of the stake buried in the ground.

Use the diagrams below to ensure that the guy

ropes are tight. Tighten guy ropes with the slider

included at the end of the rope

IMPORTANT

It is highly advised the canopy be fully secured

with all 8 stakes and guy ropes to avoid wind

damage.

67

Adjust canopy fabric to align eyelets with

the hole on the leg slider if necessary

Insert each awning pole thru the eyelet and

into the hole on the slider.

The awning attaches to the shelter top using

hook and loop strips sewn along the edge of

each part.

Insert the tip of the awning poles into the

pocket formed at the corner of the awning

fabric on both sides. Wrap hook and loop fabric

strips around the poles

ATTACHING AWNING

ACCESSORY SETUP

ATTACHING AWNING POLES

Insert the iron core to the

plastic holes, then put the

wheels on the iron core, then

put the plastic cap on the

wheels.

to

pinch

8
