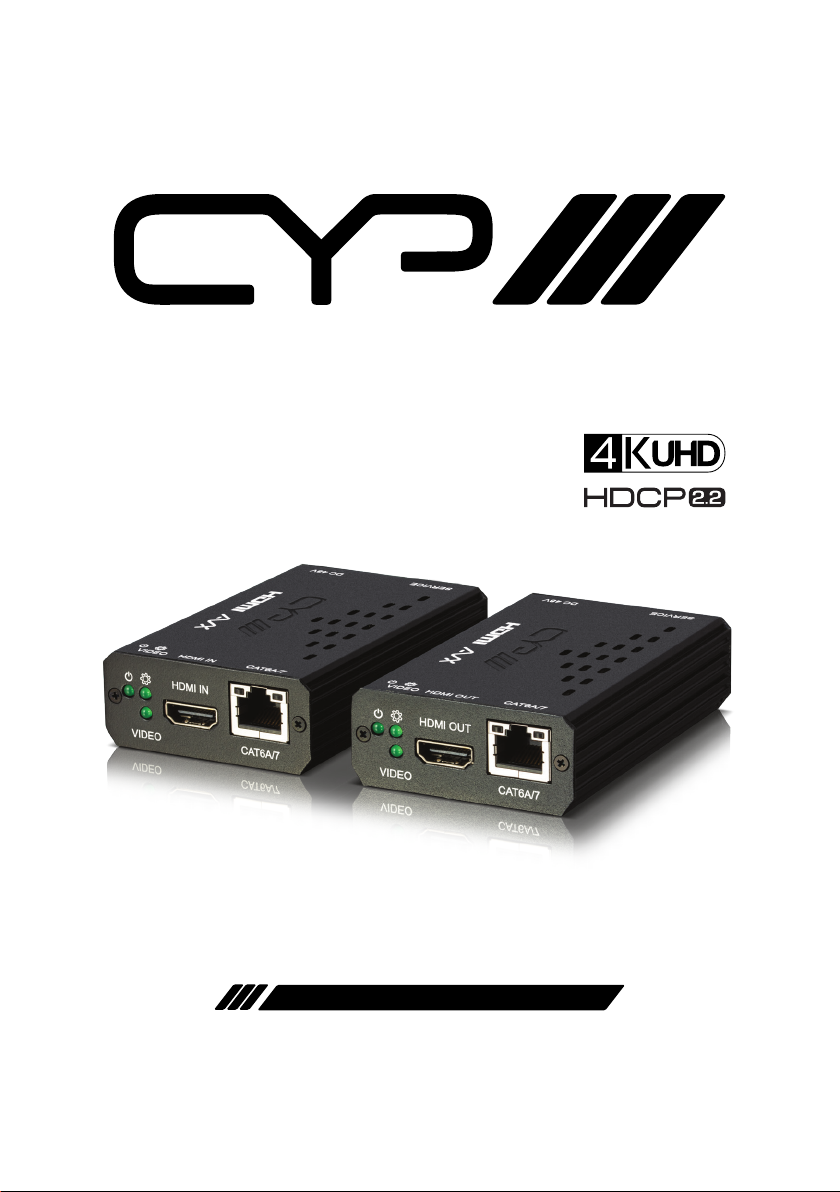

CYP AVX-101C-KIT Manual de usuario
AVX-101C-KIT
UHD+HDMI over CAT 5 Transmitter & Receiver
OPERATION MANUAL
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2021 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use
to avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
v1.00 2021/07/09 Preliminary release (RDV1)
CONTENTS
1. Introduction..................................................1
2. Applications ..................................................1
3. Package Contents ......................................... 1
4. System Requirements ..................................1
5. Features.........................................................2
6. Operation Controls and Functions ..............3
6.1 Transmitter Front Panel .....................................3
6.2 Transmitter Rear Panel.......................................4
6.3 Receiver Front Panel...........................................4
6.4 Receiver Rear Panel.............................................5
7. Connection Diagram ....................................6
8. Specifications................................................7
8.1 Technical Specifications ....................................7
8.2 Video Specifications............................................8
8.3 Audio Specifications...........................................9
8.3.1 Digital Audio ..............................................9
8.4 Cable Specifications ........................................ 10
9. Acronyms.....................................................11
1
1. INTRODUCTION
This 4K UHD+HDMI over CAT Transmitter and Reciever Set is designed for
high-quality AV extension with minimum latency. By using a sophisticated
ultra-light compression scheme (lossless for most content) it’s a great
solution for extending 4K@60Hz (4:4:4) HDMI audio/video streams.
Advanced HDMI content such as HDR (High Dynamic Range), 10-bit
colour and multi-channel HD Bitstream audio can be easily transmitted.
The use of 10 Gigabit Ethernet allows for extension distances of up to
100m when using Cat.6A/7. Additionally, this unit’s compact form factor
makes it ideal for installation in tight spaces, or inclusion in A/V travel kits.
2. APPLICATIONS
High quality, low latency, video extension
Household entertainment
Lecture halls, meeting rooms, and classrooms
Point-to-Point secure video conferencing
3. PACKAGE CONTENTS
1× UHD+HDMI over Copper Transmitter
1× 5V/2.6A DC Power Adapter
1× Shockproof Feet (Set of 4)
1× Operation Manual
4. SYSTEM REQUIREMENTS
HDMI source equipment such as a media player, video game console,
PC, or set-top box
Compatible copper-based receiver
The use of Premium High Speed HDMI cables, and industry standard
Cat.6A, or Cat.7 Ethernet cable is highly recommended.
2
5. FEATURES
HDMI 2.0 and DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
1 HDMI input
1 10GbE output
Ultra-light compression, lossless for most content
Extension up to 100m when using at.6A/7
Supports up to 4K UHD+(18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input
and output
Supports pass-through of 10/12-bit HDR sources
Supports pass-through of audio formats including LPCM (up to 8
channels), Bitstream and HD Bitstream
Simple, hassle free, point-to-point connection
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter Front Panel
DC 5VUPDATE
HDMI IN
CAT6A/7
VIDEO
1 3
2
4 5
1Power ( ) LED: This LED will illuminate to indicate the unit is on and
receiving power.
Note: This LED will blink during the firmware update process.
2System ( ) LED: This LED will illuminate to indicate that the system is
stable and ready to process audio/video streams.
Note: This LED will blink during the firmware update process.
3VIDEO LED: This LED will illuminate to indicate that the video source
is stable, and streaming is in process.
4HDMI IN Port: Connect to HDMI source equipment such as a media
player, game console, or set-top box.
5CAT6A/7 Port: Connect directly to a compatible receiver for audio
and video extension.
4
6.2 Transmitter Rear Panel
DC 5VSERVICE
P
V HDMI IN CAT6A/7
S
DC 5VSERVICE
21
1SERVICE (USB Mini-B) Port: This port is for rmware update only.
2DC 5V Port: Plug the 5V DC power adapter into this port and connect
it to an AC wall outlet for power.
5
6.3 Receiver Front Panel
DC 5VUPDATE
HDMI OUT
CAT6A/7
VIDEO
1 3
2
4 5
1Power ( ) LED: This LED will illuminate to indicate the unit is on and
receiving power.
Note: This LED will blink during the firmware update process.
2System ( ) LED: This LED will illuminate to indicate that the system is
stable and ready to process audio/video streams.
Note: This LED will blink during the firmware update process.
3VIDEO LED: This LED will illuminate to indicate that the video source
is stable, and streaming is in process.
4HDMI OUT Port: Connect to an HDMI TV, monitor, or amplifier for
digital video and audio output.
5CAT6A/7 Port: Connect directly to a compatible transmitter for audio
and video extension.
6.4 Rear Panel
DC 5VSERVICE
P
V HDMI OUT CAT6A/7
S
21
1SERVICE (USB Mini-B) Port: This port is for rmware update only.
2DC 5V Port: Plug the 5V DC power adapter into this port and connect
it to an AC wall outlet for power.
