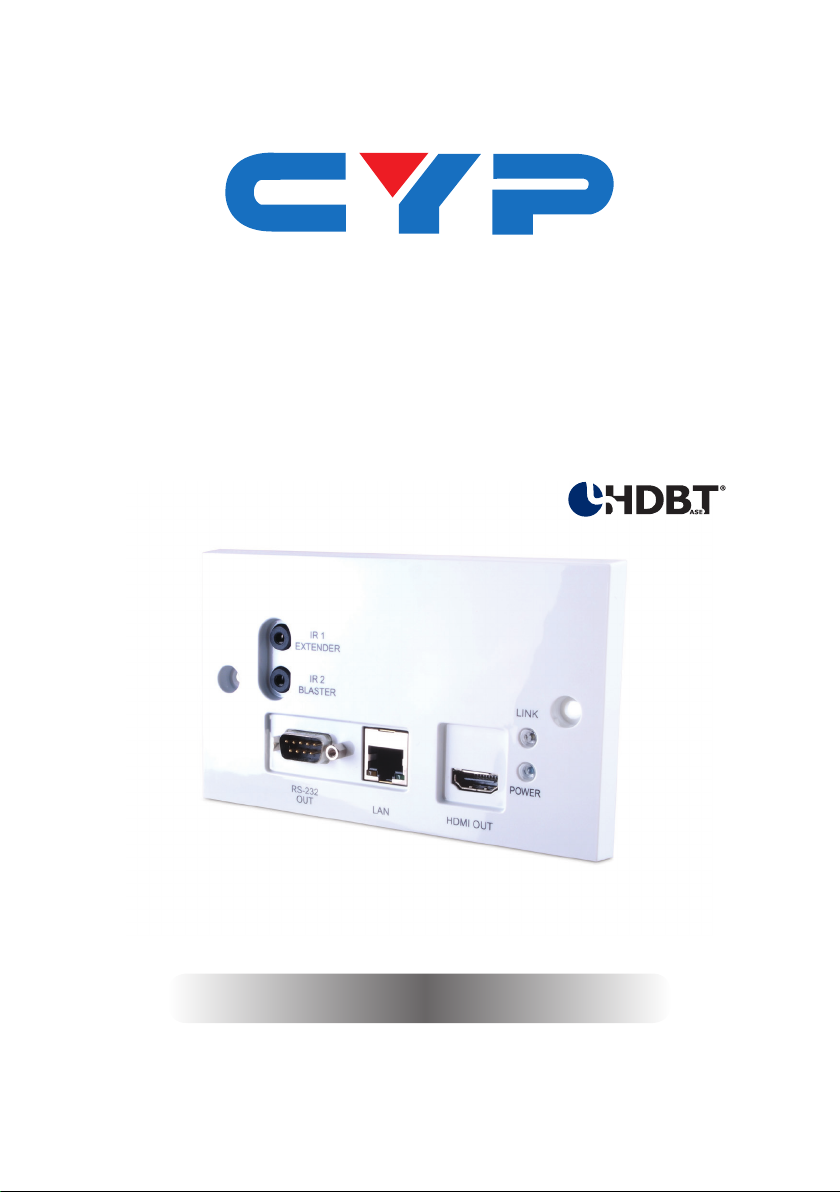

CH-507RXWP
HDMI over Single CAT5e/6/7 Wall-plate Receiver
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
RDV1 14/02/12 Preliminary Release
RDV2 20/01/15 Updated Text & Diagrams
RDV3 25/07/19 Update Format and Cable
Distance
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Receiver Front Panel........................3
6.2 Receiver Rear Panel ........................4
6.3 IR Cable Pin Assignment..................4
6.4 D-sub 9-pin Cable Denitions .........5
7. Connection Diagram ............................ 6
Option 1: Point to Point..........................6
Option 2: Matrix System.........................7
8. Specications ........................................ 8
8.1 Technical Specication...................8
8.2 Cable Specications .......................9
9. Acronyms ............................................. 10
1
1. INTRODUCTION
The HDMI over Single CAT5e/6/7 Wall-plate Receiver is designed
to receive uncompressed video, audio and IR control data from a
compatible transmitter over a single run of CAT5e/6/7 cable at a
distance of up to 100 meters at 1080p or 70 meters at 4K. It has the
added benet of control through the built-in RS-232 and IR ports and a
bi-directional LAN serving connection. Additionally, it can be powered
by a compatible transmitter unit via the Power over Cable (PoC)
functionality allowing for greater exibility in installations.
2. APPLICATIONS
• Extend an HDMI signal to a remote location
• Household entertainment sharing and control
• Showroom display and control
• Classroom display and control
3. PACKAGE CONTENTS
• 1×HDMI over Single CAT5e/6/7 Wall-plate Receiver
• 1×IR Extender
• 1×Operation Manual
4. SYSTEM REQUIREMENTS
• HDMI equipped source device (connected with HDMI cables) or
DVI equipped source (connected with DVI to HDMI cables)
• HDMI equipped display (TV or monitor) or an HDMI equipped AV
receiver, connected with HDMI cables
• Industry standard CAT5e/6/7 cable
• Compatible PoC HDBaseT™ Receiver
2
5. FEATURES
• HDMI 1.x and DVI 1.0 compliant
• HDCP compliant
• Supports HDMI 3D and 4K x 2K features
• Supports HDCP repeater and CEC bypass
• Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K
through CAT5e/6/7 cable
• HDMI input resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz
( YUV 4:4:4, 8-bit)
• Supports pass-through of audio formats including LPCM 2.0/5.1/7.1,
and Bitstream over HDMI
• HDBaseT™ 5PlayT™ convergence: uncompressed high denition Video
and Audio, LAN serving, Power over Cable (PoC) and RS-232/IR control
• Easy to install wall plate design
Note:
1. This system was tested with CAT6/23AWG and CAT5e/24AWG
cables, results may vary with cables of a different specication.
2. The PoC function requires a compatible Transmitter unit.
Transmitters from other brands may not be compatible.
3. For playback of 4K2K HDMI source signals, a 4K2K capable display
and High Speed HDMI cables are required.
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Receiver Front Panel
HDMI OUTLAN
POWER
LINK
IR 1
EXTENDER
IR 2
BLASTER
RS-232
OUT
1 2 3 4 5 6 7
1
IR 1 EXTENDER: Connect an IR Extender cable for IR signal
reception. Signals received will be transmitted from any IR blaster
connected to the transmitter unit. Ensure that the remote being
used is within the direct line-of-sight of the IR Extender.
2
IR 2 BLASTER: Connect an IR Blaster cable for IR signal transmission.
IR signals received by an IR extender connected to the transmitter
unit will be transmitted by this blaster. Place the IR Blaster in direct
line-of-sight of the equipment to be controlled.
3
RS-232 OUT: Connect to the device that is to be controlled (via
D-sub 9-pin female cable) by RS-232 commands.
4
LAN: Connect to an active network for LAN serving. When the
transmitter or any compatible LAN equipped receivers are
connected to a network, this allows the network access (including
internet access if available) to be shared between the receiver
and all connected receivers. Connect any Ethernet equipped
device e.g. a Smart TV or games console to the LAN port of a
receiver for that device to share the network/internet access.
5
HDMI OUT: Connect to a HDMI equipped TV/monitor for display of
the HDMI input source signal.
6
POWER LED: This LED will illuminate when the device is connected
to a power supply or powered by another unit via PoC.
7
LINK LED: This LED will illuminate when both the source connected
to the transmitter and the display connected to the receiver are
connected.
4
6.2 Receiver Rear Panel
1
1
CAT5e/6/7 IN: Connect to the transmitter unit with a single
CAT5e/6/7 cable for transmission of all data signals.
6.3 IR Cable Pin Assignment
3
1
2
3
2
1Power
IR Blaster Signal
NC
IR Signal
Power
Ground
IR Extender
IR Blaster
5
6.4 D-sub 9-pin Cable Denitions
PIN DEFINITION
1N/C
2TxD/RxD
3RxD/TxD
4N/C
5GND
6N/C
7N/C
8N/C
9N/C
